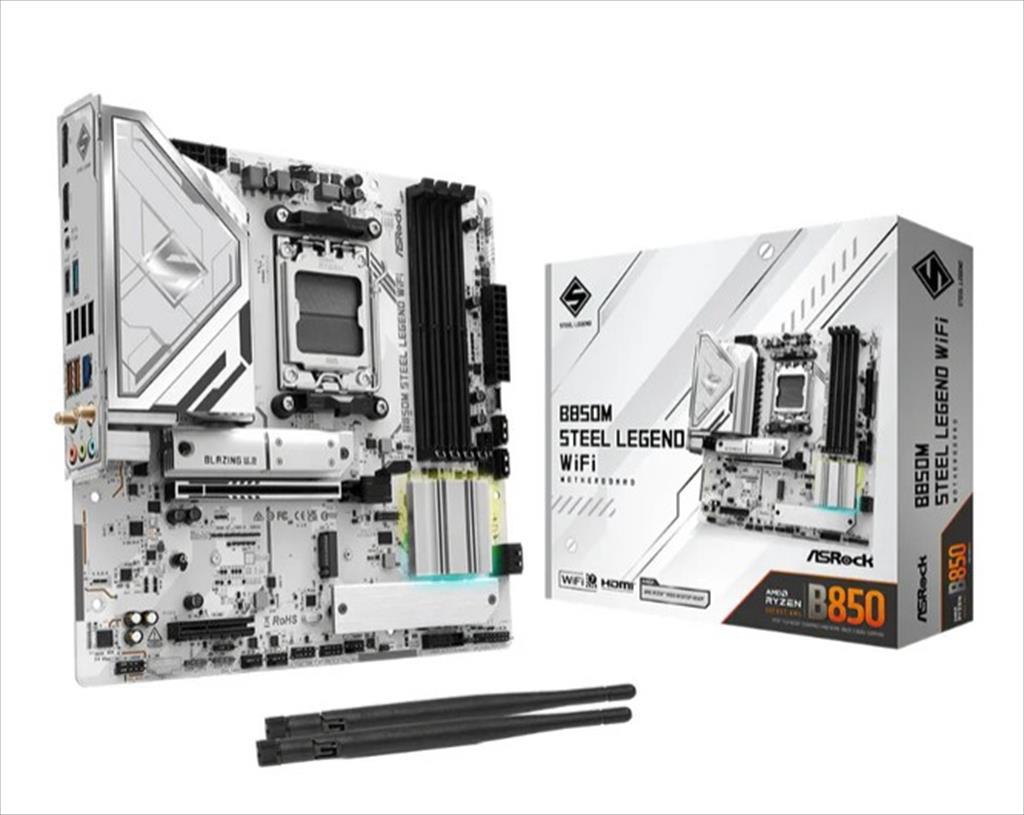

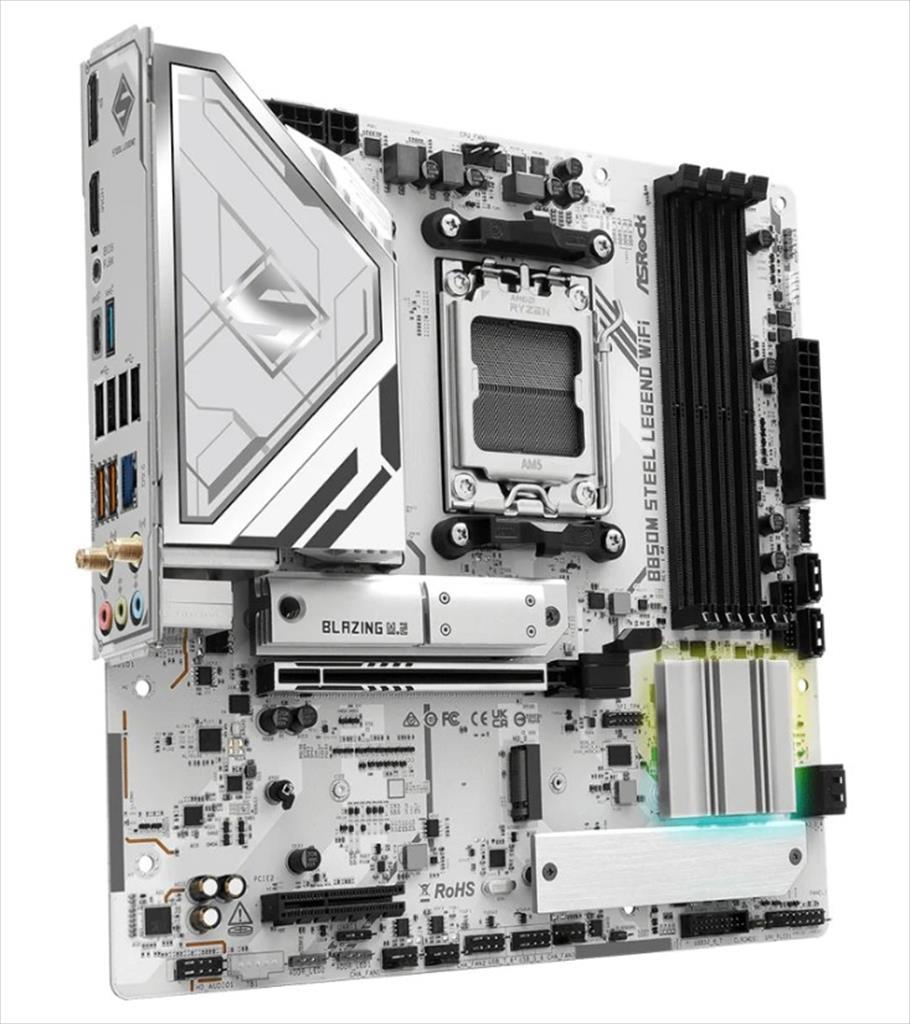

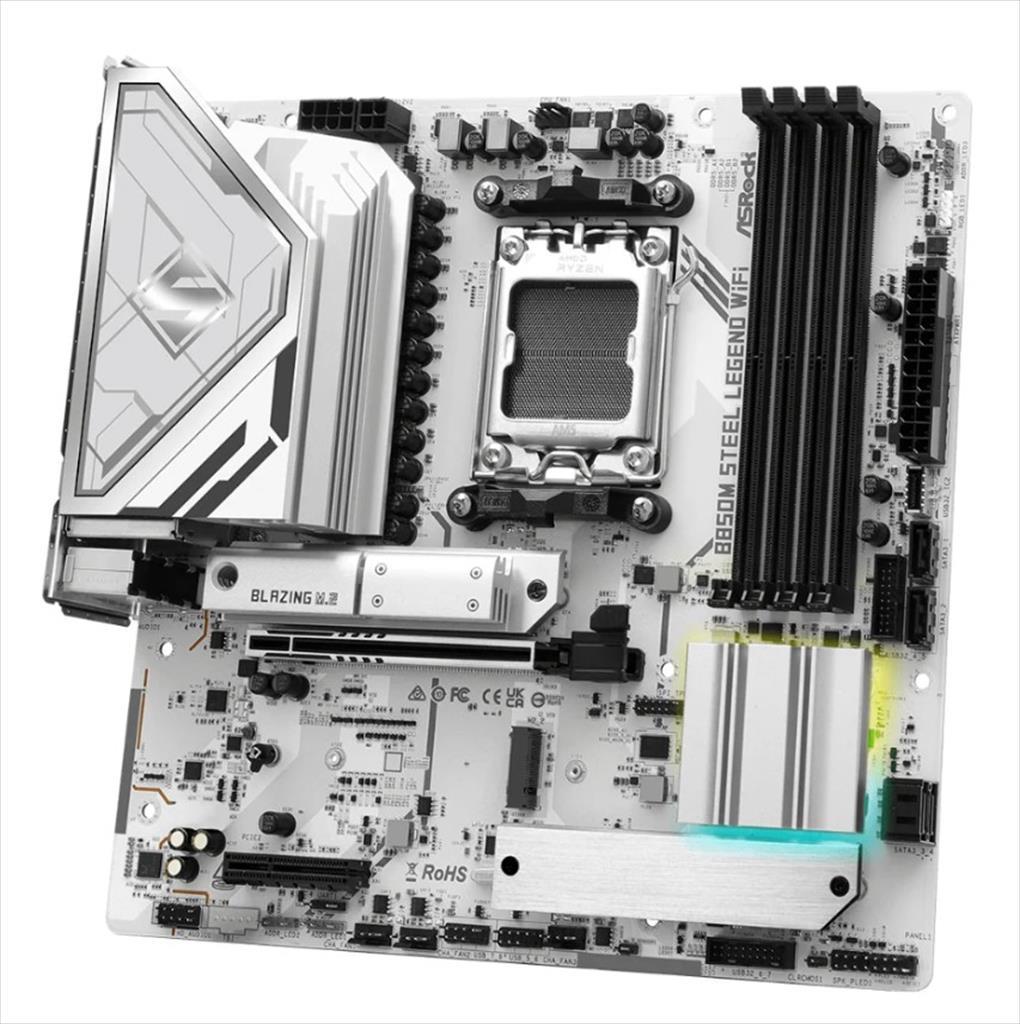

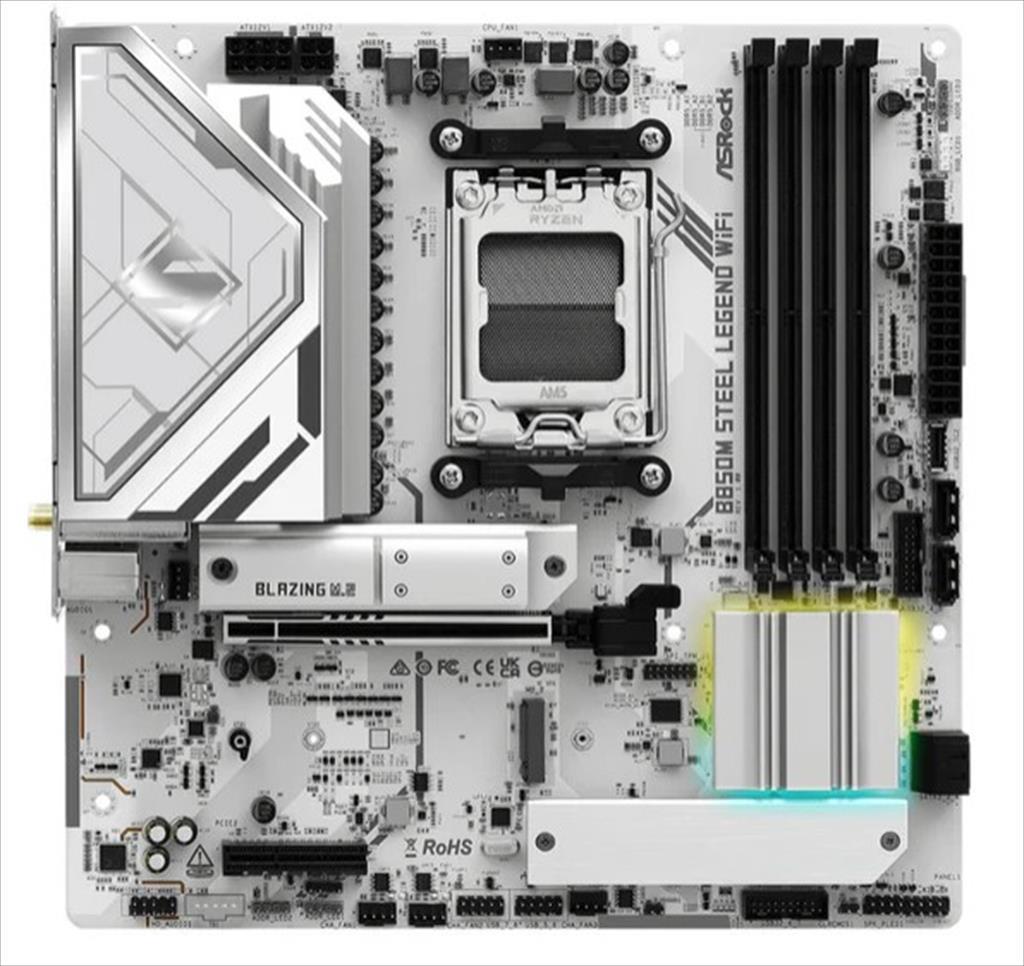

MB AM5 B850M STEEL LEGEND WIFI ASROCK 4xDDR5 8000Mhz (O.C), HDMI, DP, PCI-Ex16 5.0, 1xPCI-Ex4 4.0, 3xM.2, 4xSATAIII, Wi-Fi 7, BT 5.4, 2.5G, 90-MXBS20-A0UAYZ

Цена со ДДВ: 11.560 ден.
Шифра: 18649
Баркод: 4711581490499
Производител: ASROCK
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model Name: AM5 B850M STEEL LEGEND WIFI ASROCK

Specification :

  • CPU Support: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • Chipset: AMD B850
  • Memory:
    • Dual Channel DDR5 Memory Technology
    • 4 x DDR5 DIMM Slots
    • Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC)
    • Max. capacity of system memory: 256GB
    • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
  • 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics:
    • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
    • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
  • Audio:
    • 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    • Impedance Sensing on Rear Out port
    • Individual PCB Layers for R/L Audio Channel
    • Nahimic Audio
  • LAN:
    • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
    • Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI
  • Wireless LAN:
    • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    • Dragon RTL8125BG
    • Supports Dragon 2.5G LAN Software
    • 802.11be 2x2 Wi-Fi 7 Module
    • Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
    • Supports Bluetooth 5.4
  • Slots:
    • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
    • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode,
    • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • Storage:
    • 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
    • 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode
    • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
    • 4 x SATA3 6.0 Gb/s Connectors
  • RAID:
    • SATA: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    • NVMe: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
  • USB:
    • Rear: 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen1 Type-A (Rear (USB32_2))
    • Front: 1 x USB 3.2 Gen1 Type-C, 5 x USB 3.2 Gen1 Type-A, 8 x USB 2.0 (4 Rear, 4 Front)
  • Connectors:
    • 1 x SPI TPM Header, 1 x Thermistor Cable Header
    • 1 x Power LED and Speaker Header, 1 x RGB LED Header
    • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    • 1 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    • 1 x Front Panel Type C USB 3.2 Gen2x2 Header

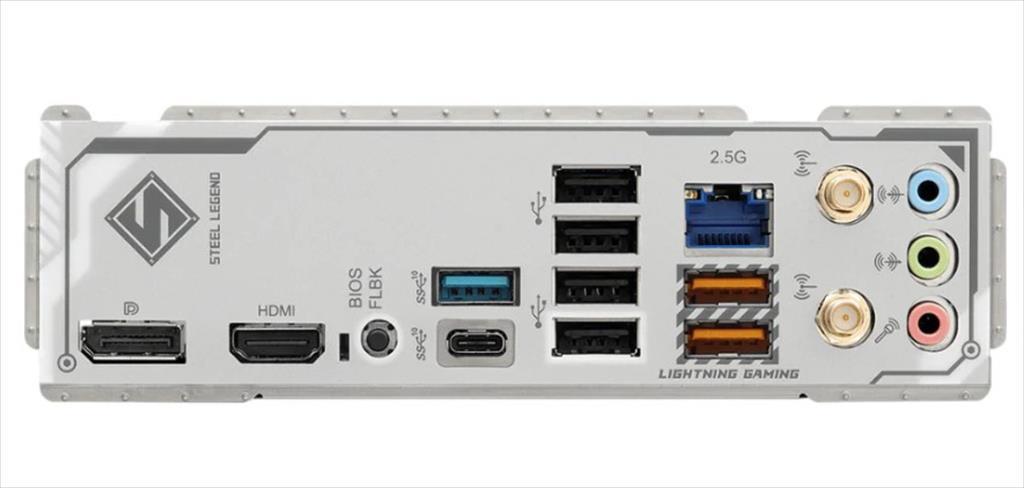

  • Rear Panel I/O:
    • 2 x Antenna Ports, HDMI, DisplayPort
    • USB Ports, RJ-45 LAN Port
    • HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI:
    • ASRock Motherboard Utility (A-Tuning)
    • ASRock Dragon 2.5G LAN Software
  • Form Factor: Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
  • OS Support: Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications: FCC, CE, ErP/EuP ready
