MB AM5 A620AM-HVS ASROCK, 2xDDR5 6800Mhz, 1xPCIex16 4.0, 2xPCIex1, 2x M.2, HDMI, VGA, 2xSATAIII, 90-MXBSR0-A0UAYZMB AM5 A620AM-HVS ASROCK, 2xDDR5 6800Mhz, 1xPCIex16 4.0, 2xPCIex1, 2x M.2, HDMI, VGA, 2xSATAIII, 90-MXBSR0-A0UAYZ

Цена со ДДВ: 5.790 ден.
Шифра: 18634
Баркод: 4711581490802
Производител: ASROCK
Гаранција: 720 дена
залиха: има на залиха
Спецификација

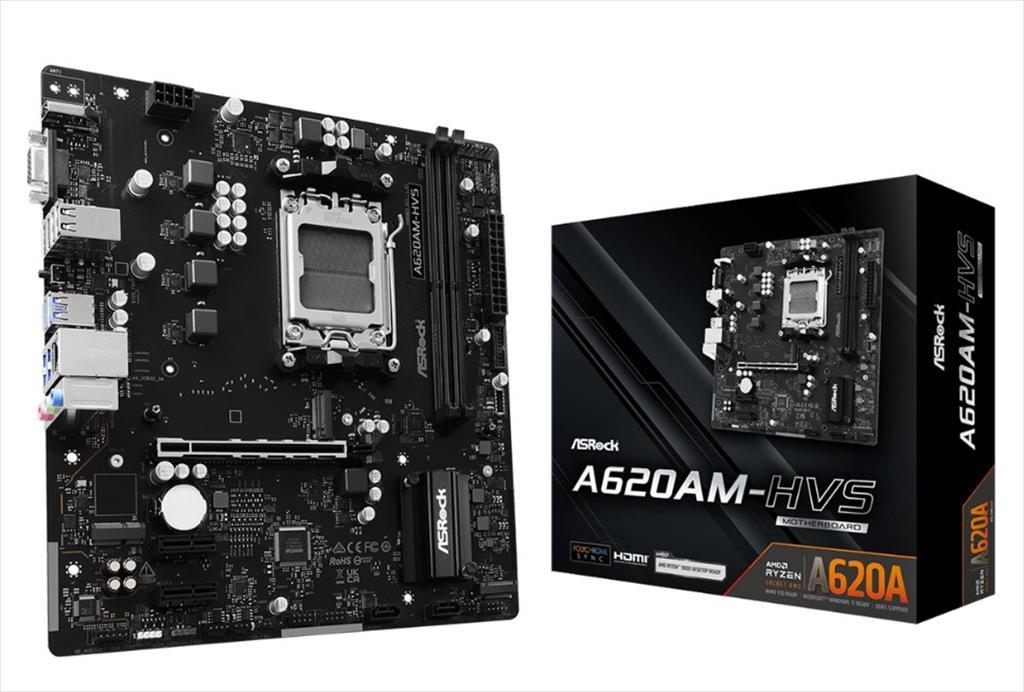

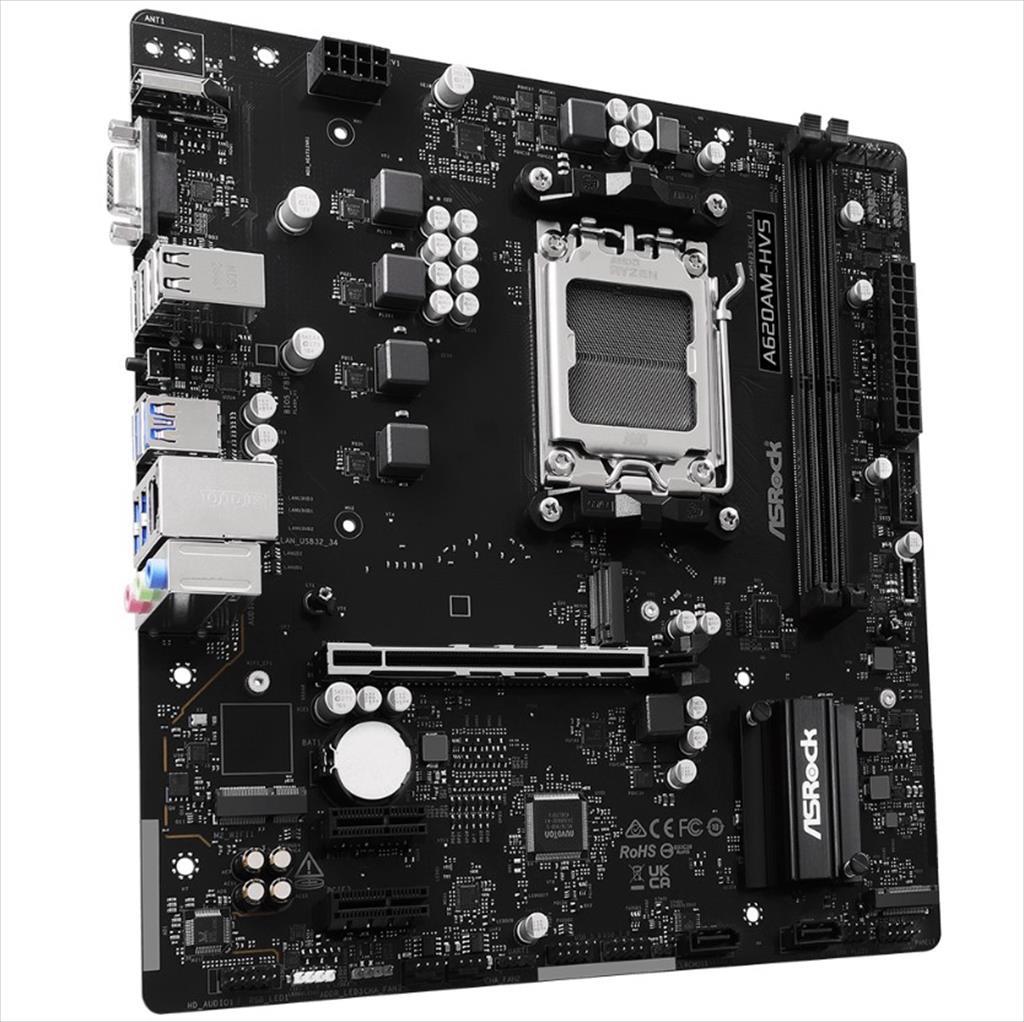

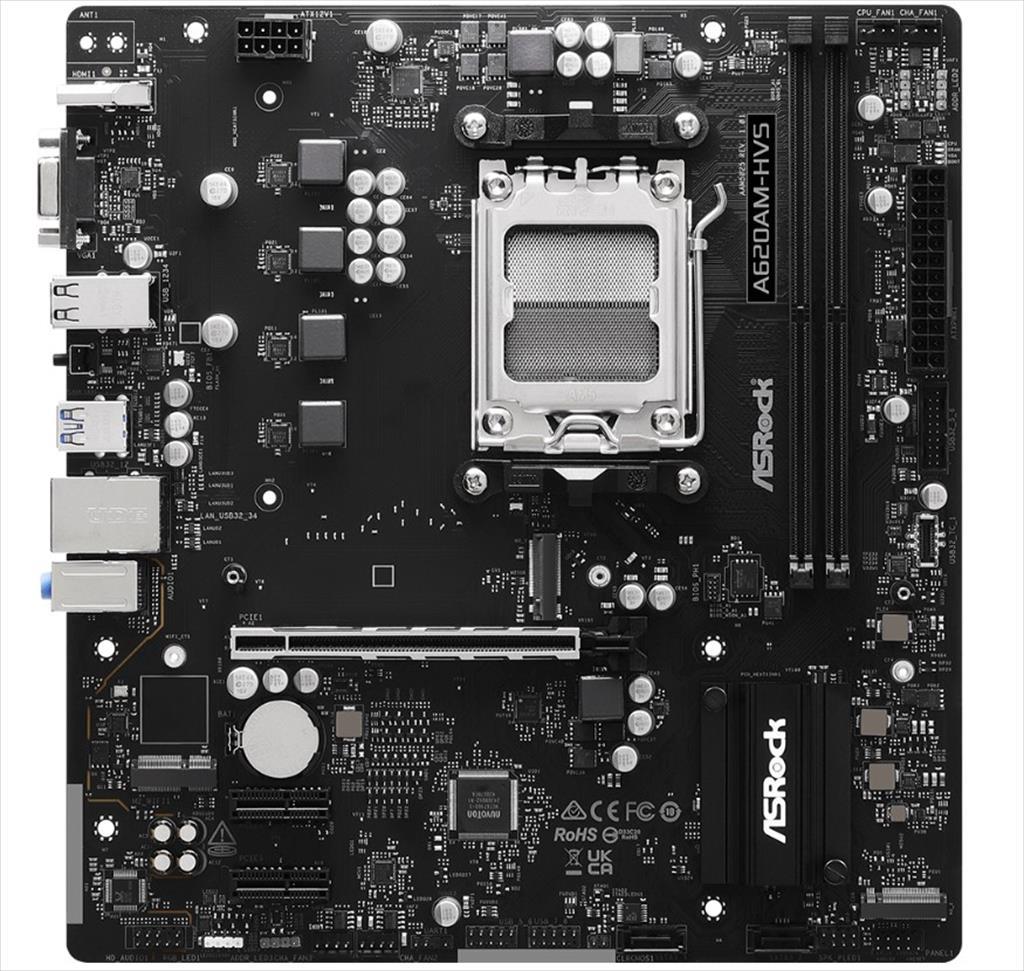

Model Name: MB AM5 A620AM-HVS ASROCK

Specification :

  • CPU Support: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • Chipset: AMD A620A
  • Memory:
    • Dual Channel DDR5 Memory Technology
    • 2 x DDR5 DIMM Slots
    • Supports DDR5 non-ECC, un-buffered memory up to 6800+(OC)
    • Max. capacity of system memory: 128GB
    • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
  • 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics:
    • Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
    • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    • 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
  • Audio:
    • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    • Nahimic Audio
  • Slots:
    • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
    • 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
    • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
    • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  • Storage:
    • 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
    • 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
    • 2 x SATA3 6.0 Gb/s Connectors
  • RAID:
    • SATA: Supports RAID 0 and RAID 1 for SATA storage devices
    • NVMe: Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
  • USB:
    • Rear: 3 x USB 3.2 Gen1 Type-A (Rear (USB32_2 and USB32_34)),1 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
    • Front: 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
  • Connectors:
    • 1 x Power LED and Speaker Header
    • 1 x RGB LED Header
    • 3 x Addressable LED Headers
    • 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
    • 3 x Chassis/Water Pump Fan Connectors (4-pin)
    • 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector
    • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), 1 x USB 3.2 Gen1 Header

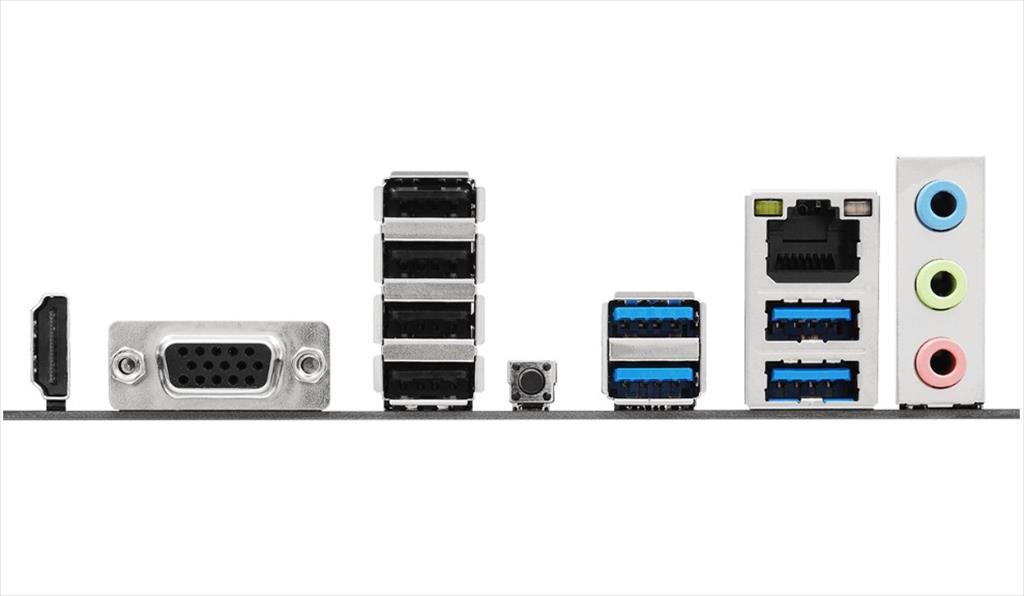

  • Rear Panel I/O:
    • 2 x Antenna Mounting Points, 1 x D-Sub Port, 1 x HDMI Port
    • 4 x USB 3.2 Gen1 Type-A Ports, 4 x USB 2.0 Ports, 1 x RJ-45 LAN Port
    • HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI:
    • ASRock Motherboard Utility (A-Tuning)
    • ASRock Polychrome SYNC, Full HD UEFI
  • Form Factor: Micro ATX Form Factor: 9.6-in x 9.0-in, 24.4 cm x 22.9 cm
  • OS Support: Microsoft Windows® 10/11 64-bit
  • Certifications: FCC, CE, ErP/EuP ready
