MB AM5 B840 EAGLE WIFI6E GIGABYTE 4xDDR5 8200Mhz (O.C), HDMI, DP, 1x PCI-Ex16 4.0,2x PCI-Ex4 3.0,1x PCI-Ex1 3.0 3xM.2,4xSATA3, 2.5G LAN, Wi-Fi 6E,BT 5.3

Цена со ДДВ: 10.470 ден.
Шифра: 18639
Баркод: 4719331876975
Производител: GIGABYTE
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model Name: AM5 B840 EAGLE WIFI6E GIGABYTE 4xDDR5 8200Mhz

Specification :

  • CPU Support: AMD Socket AM5, support for 9000/ 8000/ 7000 Series Desktop Processors
  • Chipset: AMD B840
  • Memory:
    • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
    • Dual channel memory architecture
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • MSupport for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  • Graphics:
    • Integrated Graphics Processor with AMD Radeon™ Graphics
    • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
  • Audio:
    • Realtek® Audio CODEC
    • 7.1-Channel High Definition Audio
  • LAN:
    • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless LAN:
    • Realtek® Wi-Fi 6E RTL8852CE
    • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    • BLUETOOTH 5.3
    • Support for 11ax 160MHz wireless standard
  • Slots:
    • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
    • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
    • 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
  • Storage:
    • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
    • 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs
    • 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 3.0 x4/x2 SSDs
    • 4 x SATA 6Gb/s connectors
  • RAID:
    • SATA: RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    • NVMe: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  • USB:
    • Rear: 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports on the back panel
    • Front: 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB heade, 4 x USB 2.0/1.1, 4 x USB 3.2 Gen 1
  • Connectors:
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers
    • 1 x system fan/water cooling pump header
    • 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors
    • 1 x USB Type-C® header, with USB 3.2 Gen 1 support, 2 x USB 3.2 Gen 1 headers
    • 2 x USB 2.0/1.1 headers
    • 1 x reset jumper, 1 x Clear CMOS jumper

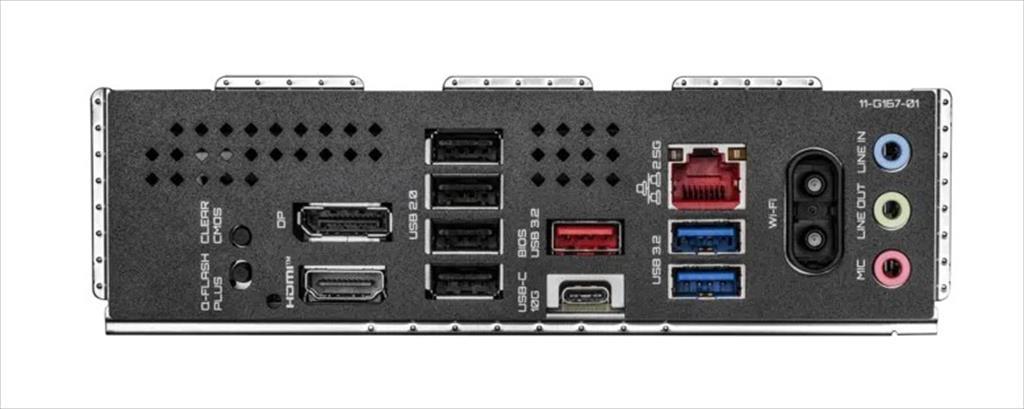

  • Rear Panel I/O:
    • 1 x Q-Flash Plus button, 1 x Clear CMOS button, 1 x DisplayPort
    • 1 x HDMI port, 1 x USB Type-C® port, with USB 3.2 Gen 2 support, 1 x USB 3.2 Gen 2 Type-A port (red)
    • 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port
    • 2 x antenna connectors (2T2R), 3 x audio jacks
  • Software and UEFI:
    • 1 x 256 Mbit flash
    • Use of licensed AMI UEFI BIOS
  • Form Factor: ATX Form Factor; 30.5cm x 24.4cm
  • OS Support: Microsoft Windows® 10/11 64-bit
