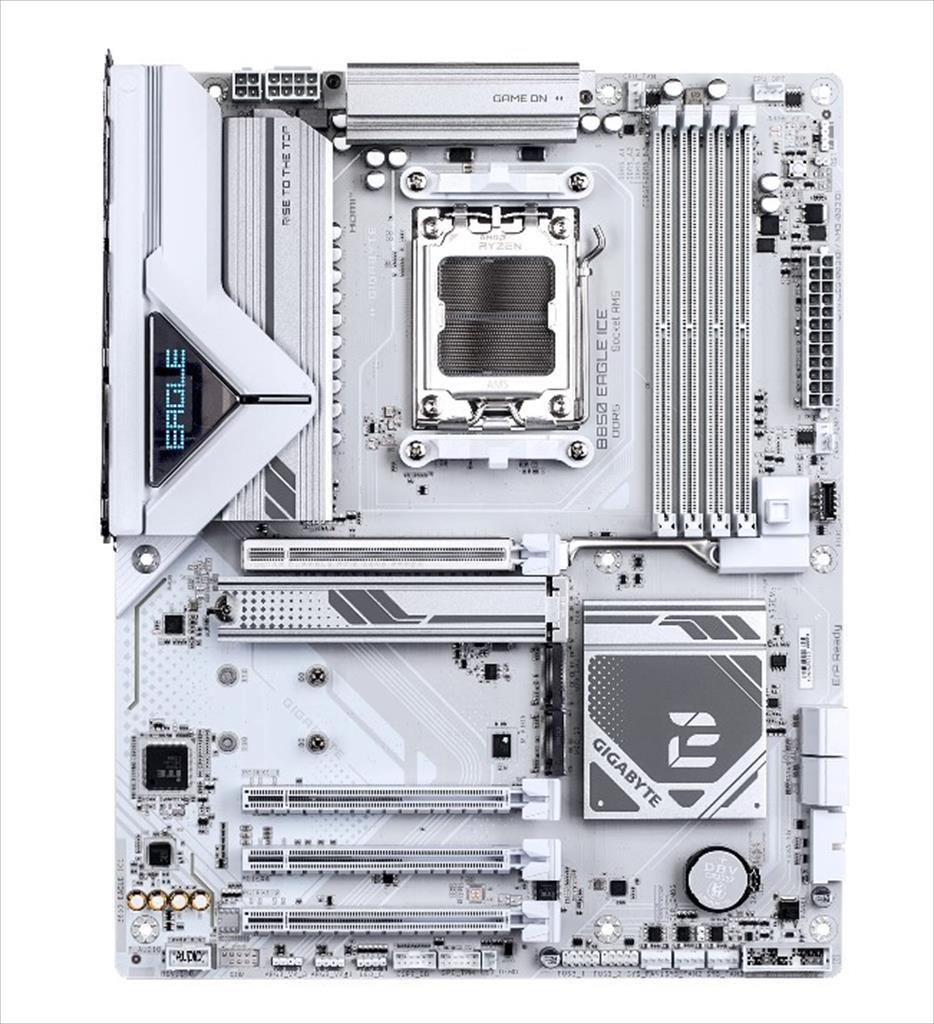

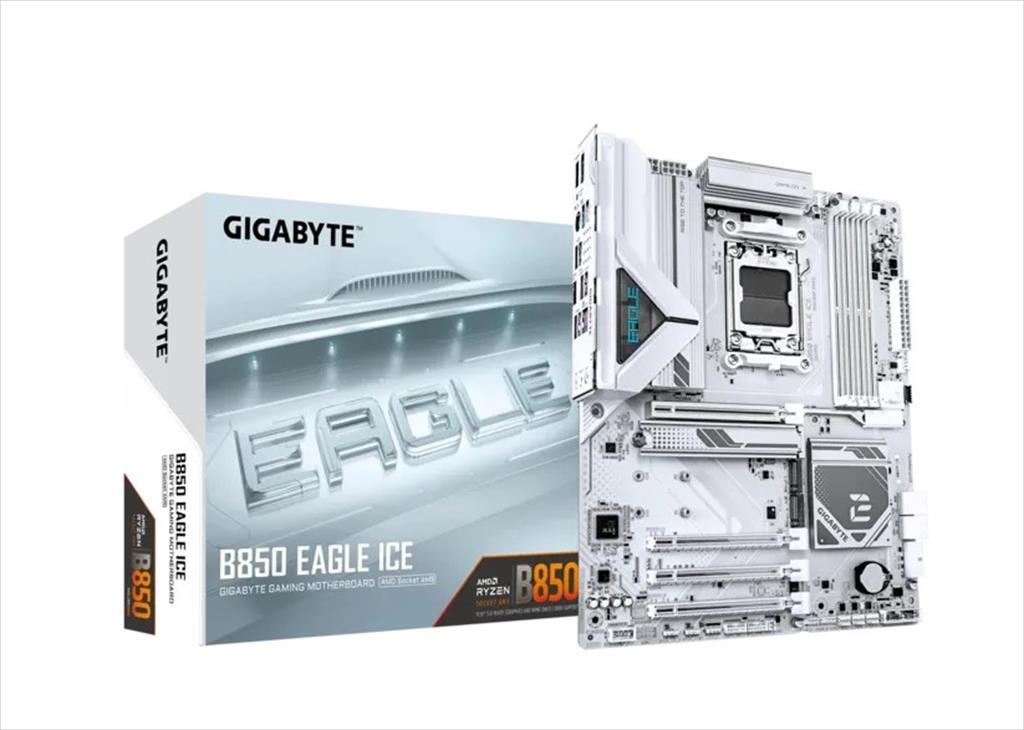

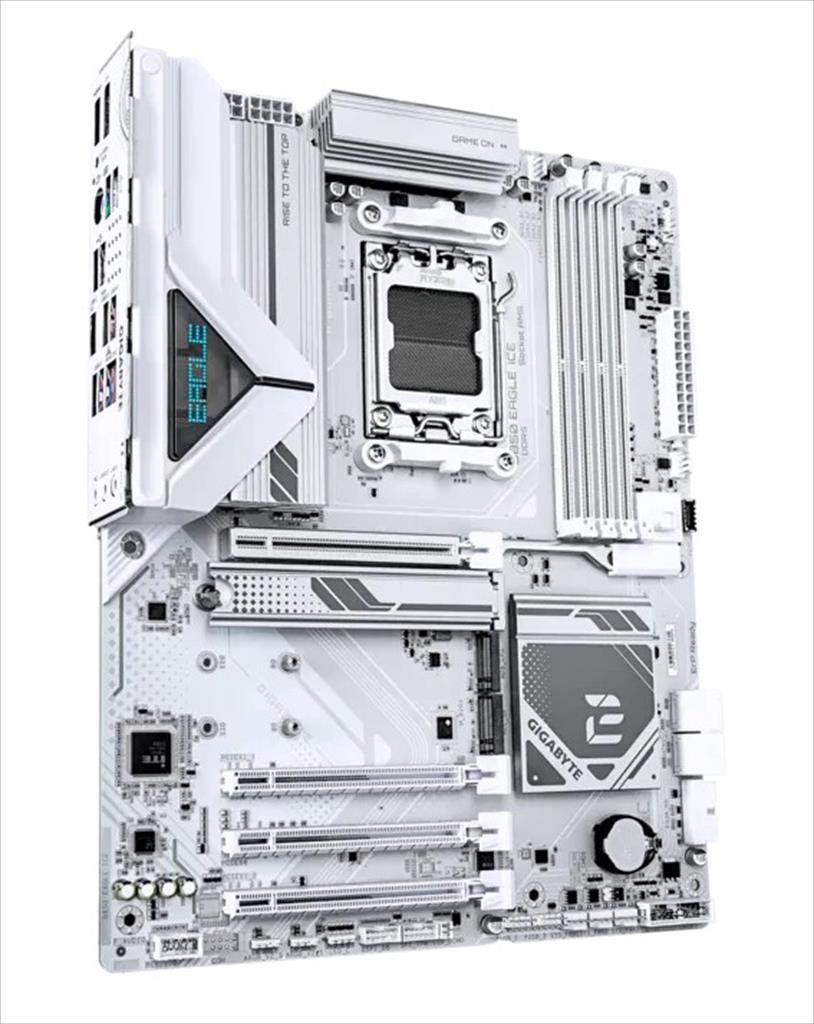

MB AM5 B850 EAGLE ICE GIGABYTE 4xDDR5 8200Mhz (O.C), DP, HDMI, PCI-Ex16 5.0, PCI-Ex4 4.0,2xPCI-Ex1 3.0, 3xM.2, 4xSATA3, 2.5GbE LAN

Цена со ДДВ: 11.370 ден.
Шифра: 18640
Баркод: 4719331871680
Производител: GIGABYTE
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model Name: AM5 B850 EAGLE ICE GIGABYTE 4xDDR5 8200Mhz

Specification :

  • CPU Support: AMD Socket AM5 AMD Ryzen™ 7000/8000/9000 Series Processors
  • Chipset: AMD B850
  • Memory:
    • Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules
    • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  • AMI UEFI BIOS
  • Graphics:
    • Integrated Graphics Processor with AMD Radeon™ Graphics
    • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
    • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • Audio:
    • Realtek® Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel
  • LAN:
    • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless LAN: ***
    • 802.11be 2x2 Wi-Fi 7 Module
    • Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
    • Supports 2.4GHz/5GHz/6GHz frequency band
    • Supports 320MHz channel bandwidth with 6GHz frequency band
    • Supports Bluetooth 5.4
  • Slots:
    • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
    • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
    • AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    • AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
  • Storage:
    • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key
    • 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key
    • 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors
  • RAID:
    • SATA: RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    • NVMe: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  • USB:
    • 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support,2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    • 1 x USB Type-C® port with USB 3.2 Gen 1, 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.
  • Connectors:
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x 4-pin ATX 12V power connector
    • 1 x CPU fan/water cooling pump header
    • 3 x addressable RGB Gen2 LED strip headers
    • 1 x RGB LED strip header
    • 3 x M.2 Socket 3 connectors
    • 4 x SATA 6Gb/s connectors
    • 1 x front panel audio header
    • 1 x USB Type-C® header, with USB 3.2 Gen 1 support

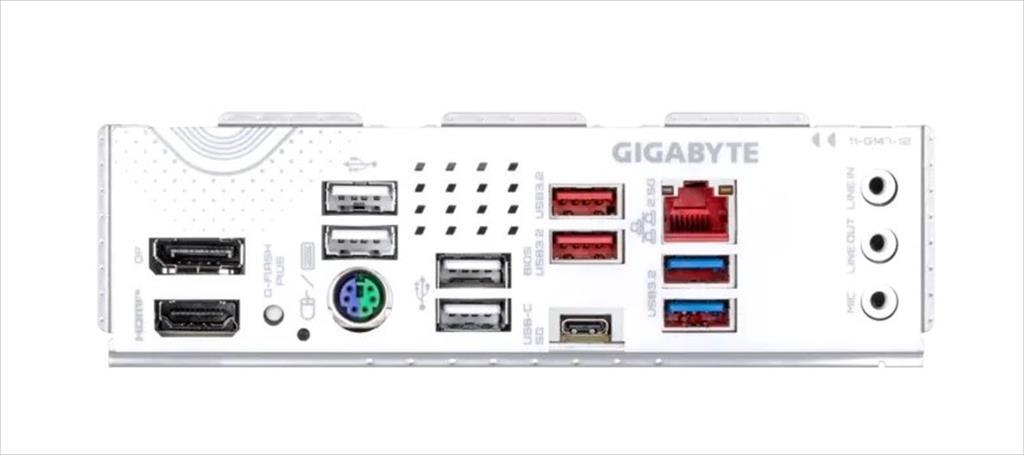

  • Rear Panel I/O:
    • DisplayPort, HDMI, Q-Flash Plus button
    • 4 x USB 2.0/1.1 ports, 1 x PS/2 keyboard/mouse port, 2 x USB 3.2 Gen 2 Type-A ports (red)
    • 1 x RJ-45 port, 2 x USB 3.2 Gen 1 ports, 3 x audio jacks
  • Software and UEFI:
    • Form Factor: ATX Form Factor; 30.5cm x 24.4cm
    • OS Support: Microsoft Windows® 11 64-bit
