MB 1851 Z890 STEEL LEGEND WIFI ASROCK, 4xDDR5 9466MHz, PCIex16 5.0, 2xPCIex4 4.0, 4xM.2 , 4xSATAIII, HDMI, 2xThunderbolt 4, 2.5G LAN, Wi-Fi 7, BT 5.4, 90-MXBPF0-A0UAYZ

Цена со ДДВ: 18.970 ден.
Шифра: 18646
Баркод: 4710483947520
Производител: ASROCK
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model Name: ASROCK Z890 STEEL LEGEND WIFI

Specification :

  • CPU Support: Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
  • Chipset: Intel® Z890
  • Memory:
    • Dual Channel DDR5 Memory Technology
    • 4 x DDR5 DIMM Slots
    • Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)
    • Max. capacity of system memory: 256GB
    • Supports Intel® Extreme Memory Profile (XMP) 3.0x
  • 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics:
    • Intel® Xe LPG Graphics Architecture
    • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    • 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
  • Audio:
    • 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
    • Impedance Sensing on Rear Out
    • Individual PCB Layers for R/L Audio Channel
    • Nahimic Audio
  • LAN:
    • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
    • Supports Dragon 2.5G LAN Software, Smart Auto Adjust Bandwidth Control, Visual User Friendly UI
  • Wireless LAN:
    • 802.11be 2x2 Wi-Fi 7 Module
    • Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
    • Supports 2.4GHz/5GHz/6GHz frequency band
    • Supports 320MHz channel bandwidth with 6GHz frequency band
    • Supports Bluetooth 5.4
  • Slots:
    • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
    • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode
    • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
  • Storage:
    • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s), 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s)
    • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s)
    • 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s)
    • 4 x SATA3 6.0 Gb/s Connectors
  • RAID:
    • SATA: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    • NVMe: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
  • USB:
    • Rear: 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-A, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
    • Front: 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
  • Connectors:
    • 1 x Thermistor Cable Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header
    • 1 x RGB LED Header, 3 x Addressable LED Headers
    • 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    • 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    • 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

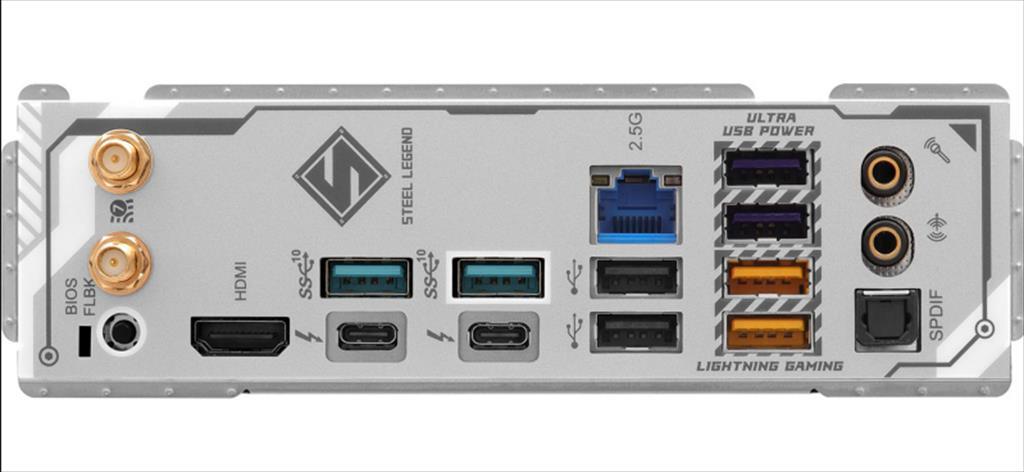

  • Rear Panel I/O:
    • 2 x Antenna Ports, HDMI, DisplayPort
    • USB Ports, Optical SPDIF Out
    • LAN, Audio Jacks, BIOS Flashback
  • Software and UEFI:
    • ASRock Motherboard Utility (A-Tuning)
    • ASRock Polychrome SYNC, Full HD UEFI
  • Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, 2oz Copper PCB
  • OS Support: Microsoft Windows® 11 64-bit
  • Certifications: FCC, CE, ErP/EuP ready
