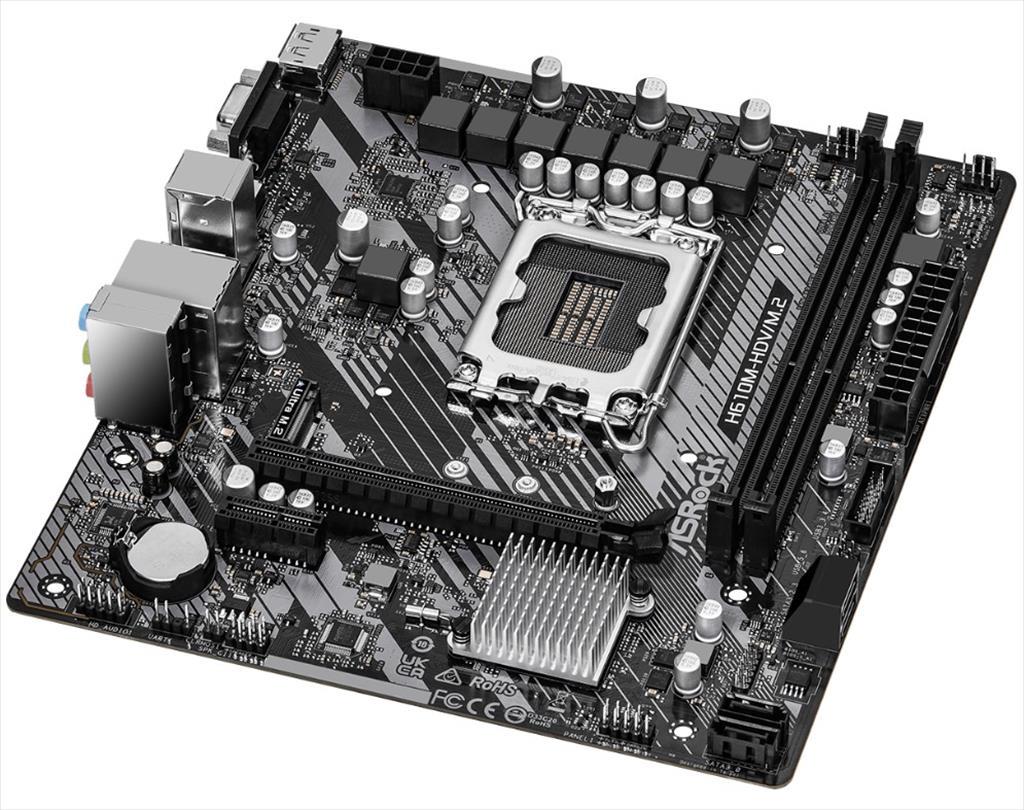

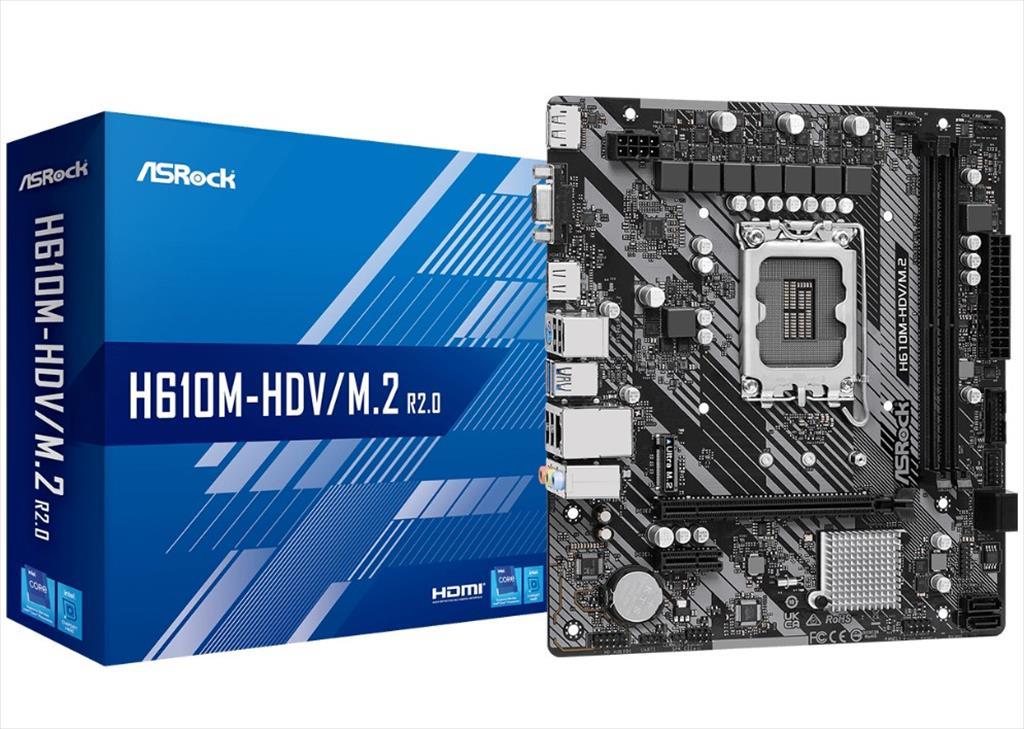

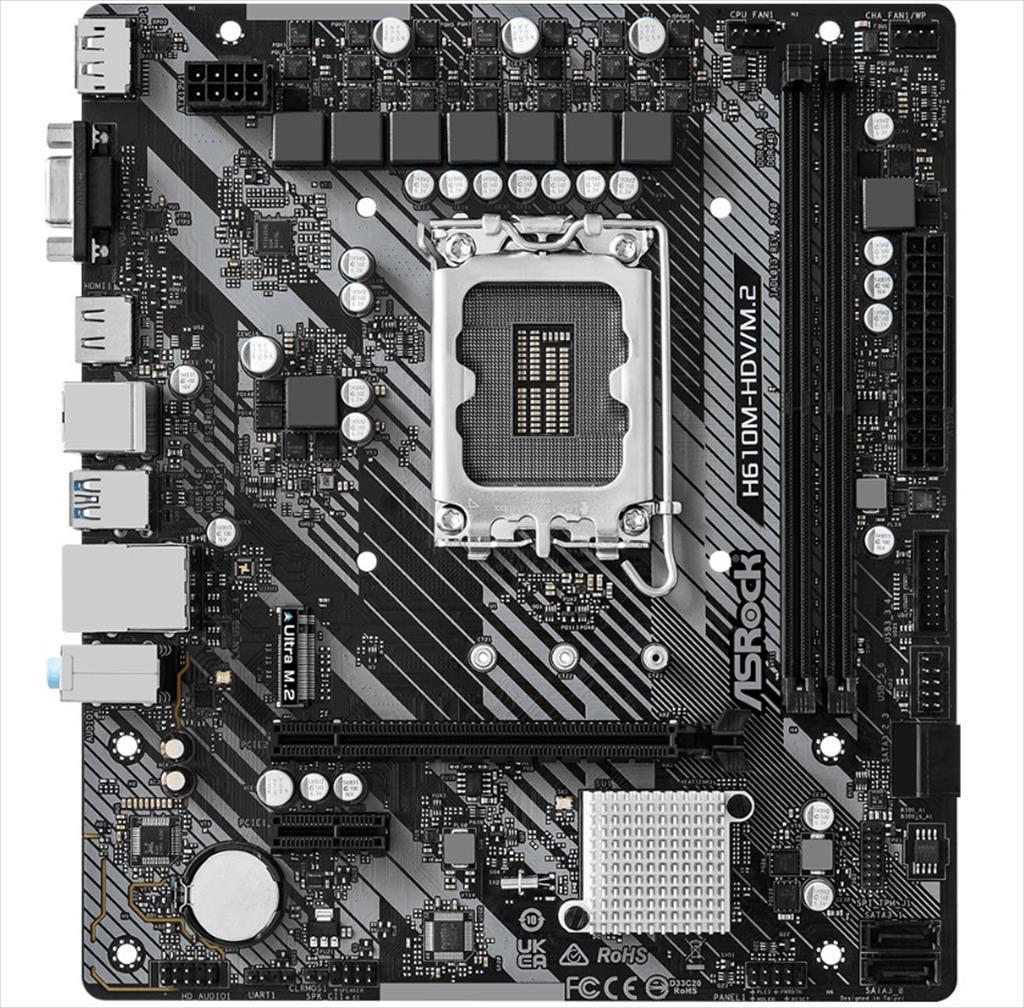

MB 1700 H610M-HDV/M.2 R2.0 ASROCK, 2xDDR4 3200MHz, M.2, VGA,HDMI, DP PCIex16 4.0, 1xPCIex1 3.0, 4xSATAIII, 2xUSB3.2Gen1, Gigabit LAN

Цена со ДДВ: 3.990 ден.
Шифра: 18652
Баркод: 4710483939860
Производител: ASROCK
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model Name: ASROCK MB 1700 H610M-HDV

Specification :

  • CPU Support: Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
  • Chipset: Intel® H610
  • Memory:
    • Dual Channel DDR5 Memory Technology
    • 2 x DDR4 DIMM Slots
    • Supports DDR4 non-ECC, un-buffered memory up to 3200)
    • Supports ECC UDIMM memory modules (operate in non-ECC mode)
    • Max. capacity of system memory: 64GB
  • BIOS: 128Mb AMI UEFI Legal BIOS with GUI support
  • Graphics:
    • Intel® Xe Graphics Architecture (Gen 12)
    • Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
    • Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    • Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
    • Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    • Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
  • Audio:
    • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    • Supports Surge Protection
  • LAN:
    • PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    • Supports Wake-On-LAN
    • Supports Lightning/ESD Protection
    • Supports Energy Efficient Ethernet 802.3az
  • Slots:
    • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode
    • 1 x PCIe 3.0 x1 Slot (PCIE1)
  • Storage:
    • 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode
    • 4 x SATA3 6.0 Gb/s Connectors
  • Connectors:
    • 1 x SPI TPM Header, 1 x Chassis Intrusion and Speaker Header
    • 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin)
    • 2 x Chassis/Water Pump Fan Connectors (4-pin)
    • 1 x 24 pin ATX Power Connector
    • 1 x 8 pin 12V Power Connector, 1 x Front Panel Audio Connector
    • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

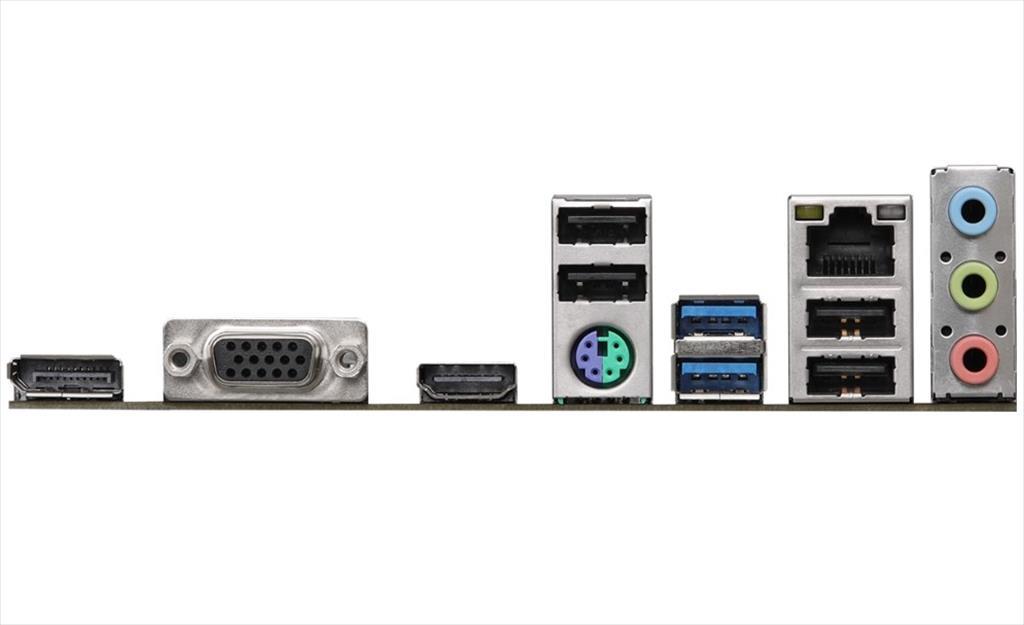

  • Rear Panel I/O:
    • 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x HDMI Port
    • 1 x DisplayPort 1.4, 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    • HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI:
    • ASRock Motherboard Utility (A-Tuning)
    • ASRock Polychrome SYNC, Full HD UEFI
  • Form Factor: Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
  • OS Support: Microsoft Windows® 10/11 64-bit
  • Certifications: FCC, CE, ErP/EuP ready
