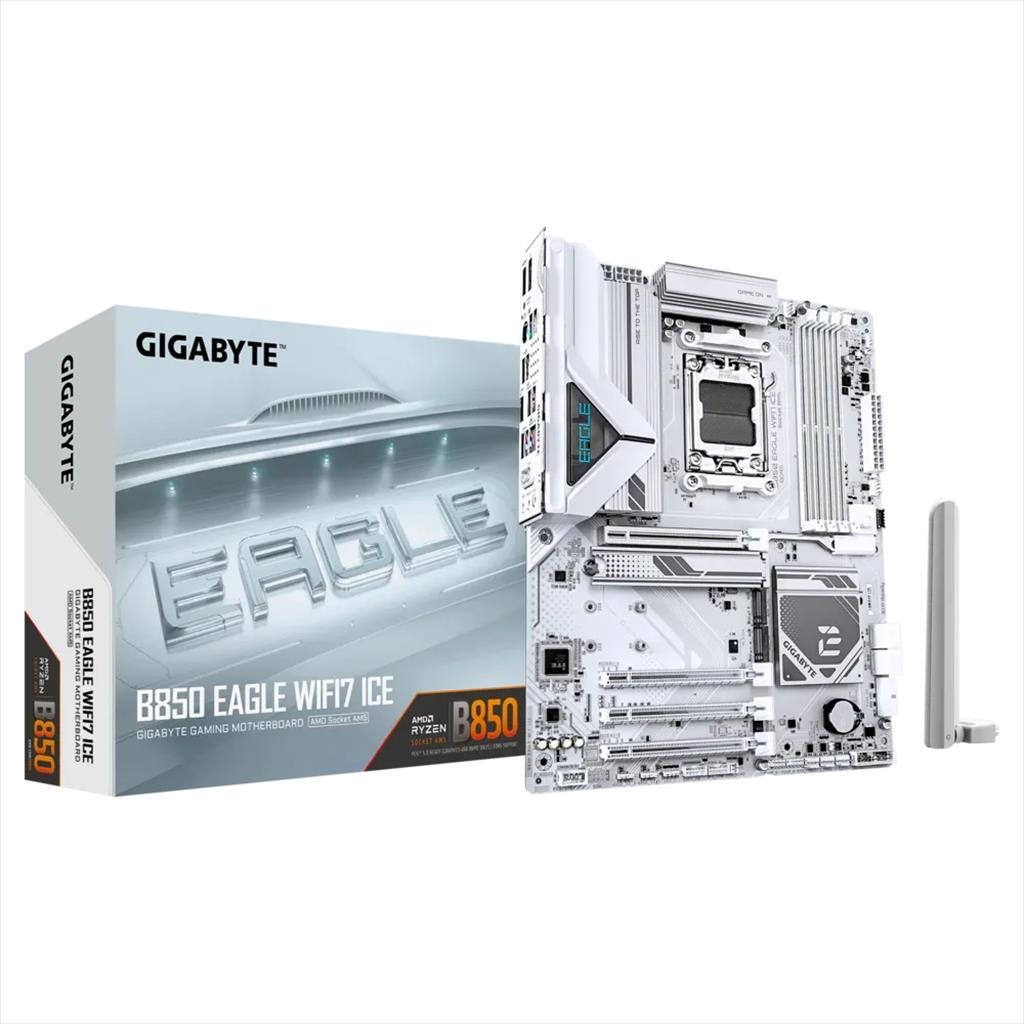

MB AM5 B850 EAGLE WIFI7 ICE GIGABYTE 4xDDR5 8200Mhz (O.C), DP, HDMI, PCI-Ex16 5.0, PCI-Ex8 4.0, PCI-Ex4 4.0, 3xM.2, 4xSATA3, Wi-Fi 7, BT 5.4

Цена со ДДВ: 12.780 ден.
Шифра: 18630
Баркод: 4719331871239
Производител: GIGABYTE
Гаранција: 1080 дена
залиха: има на залиха
Спецификација

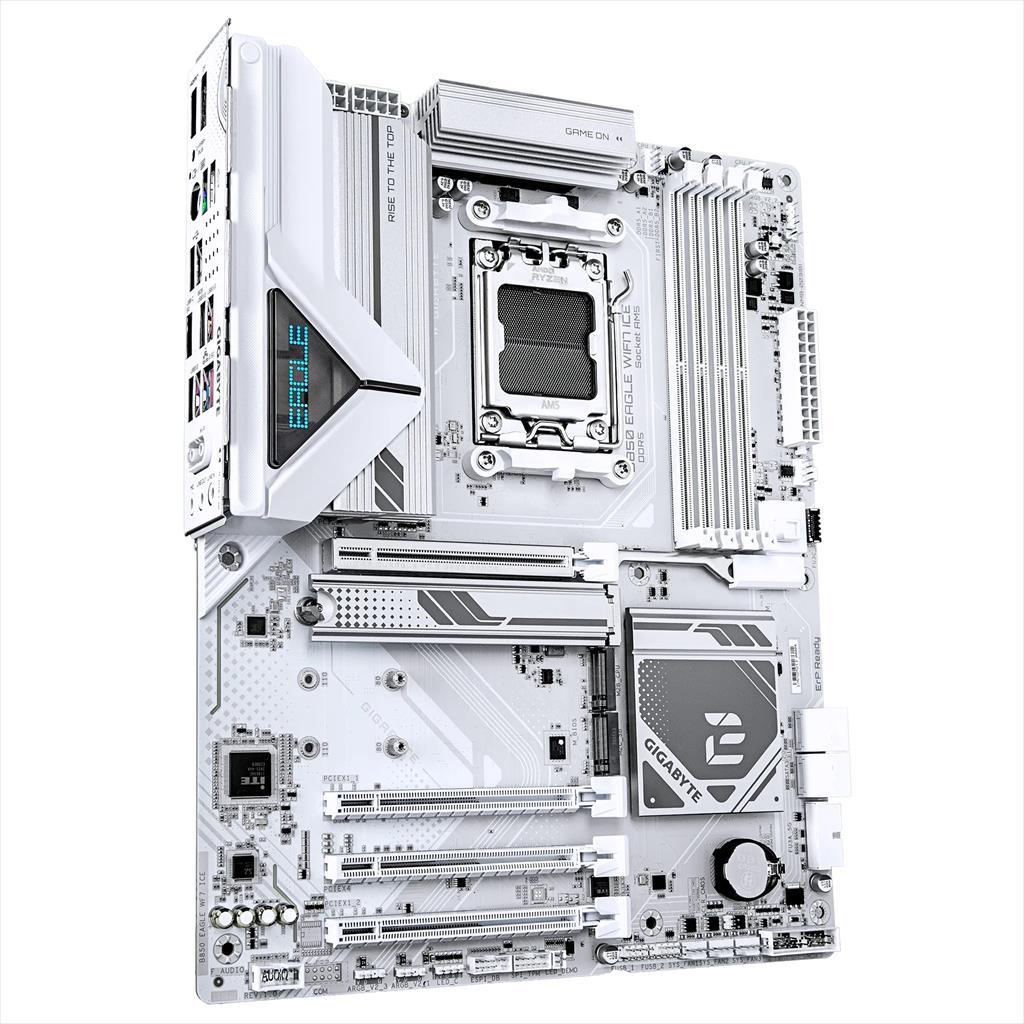

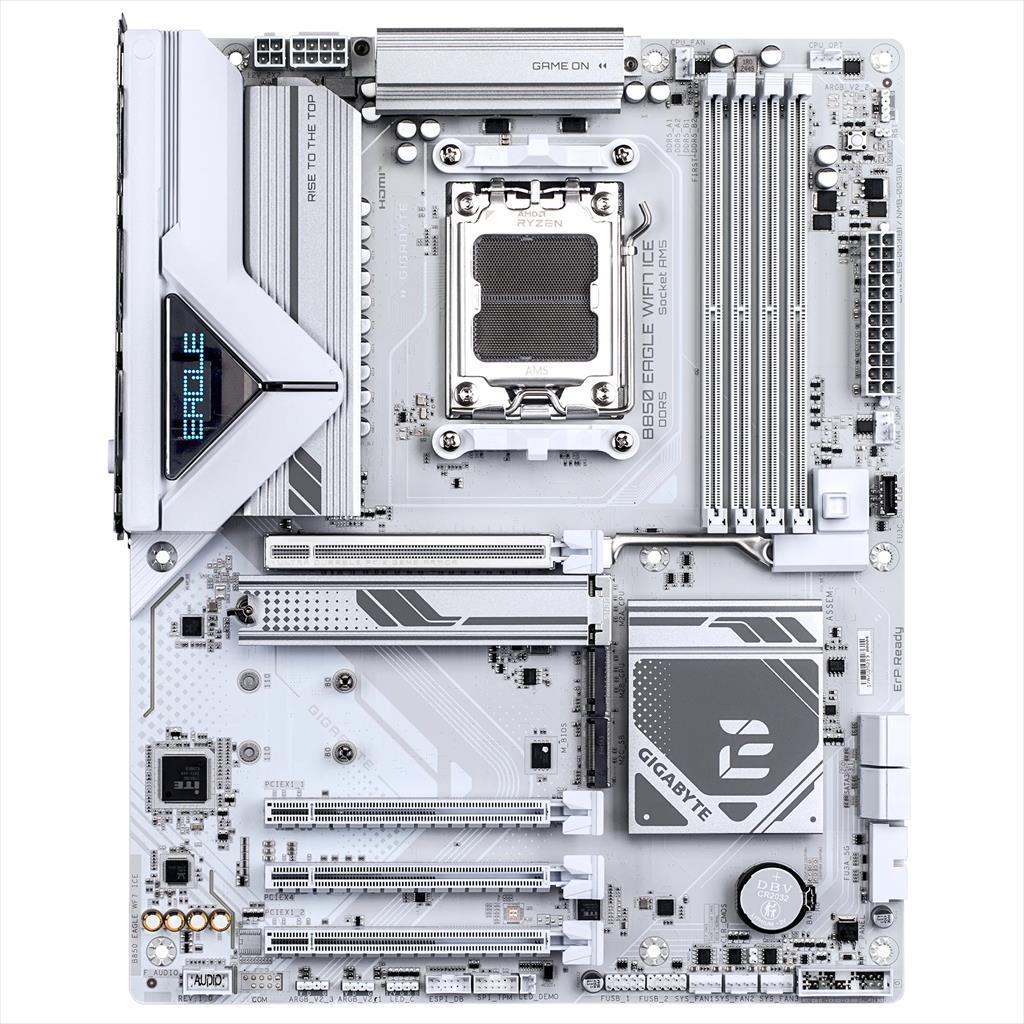

Model name: GIGABYTE B850 EAGLE

Specification :

  • CPU
    • Socket: AMD Socket AM5
    • Supported Processors: AMD Ryzen™ 9000 / 8000 / 7000 Series
  • Chipset
    • Chipset: AMD B850
  • Memory
    • Supported Memory: DDR5 8200(O.C) – 4400 MT/s
    • DIMM Slots: 4 x DDR5 DIMM sockets
    • Maximum Capacity: 256 GB (64 GB per DIMM)
    • Architecture: Dual channel
    • Supported Modules: Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
    • Overclocking Support: AMD EXPO™, XMP
  • Onboard Graphics
    • Integrated GPU: AMD Radeon™ Graphics
    • DisplayPort: 1 x 3840x2160@144Hz
    • HDMI: 1 x 4096x2160@60Hz
  • Audio
    • Codec: Realtek® Audio CODEC
    • High Definition Audio: 2/4/5.1/7.1-channel
  • LAN
    • Chip: Realtek® 2.5GbE LAN
    • Speeds: 2.5 / 1 / 0.1 Gbps
  • Wireless
    • Module: Realtek® Wi-Fi 7 RTL8922AE
    • Standards: 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz
    • Bluetooth: 5.4
    • 11be Support: 160MHz
  • Expansion Slots
    • CPU PCIEX16: 1 x PCIe x16
      • Ryzen 9000/7000 → PCIe 5.0 x16
      • Ryzen 8000 Phoenix 1 → PCIe 4.0 x8
      • Ryzen 8000 Phoenix 2 → PCIe 4.0 x4
    • Chipset PCIEX16: 1 x PCIe 4.0 x4
    • PCIEX1 Slots: 2 x PCIe 3.0 x1
  • Storage Interface
    • M2A_CPU: CPU integrated, PCIe 5.0/4.0 x4/x2
    • M2B_CPU: CPU integrated, PCIe 4.0 x4/x2
    • M2C_SB: Chipset integrated, PCIe 4.0 x2
    • SATA: 4 x SATA 6Gb/s, RAID 0/1/5/10 support
  • USB Ports
    • CPU: 1 x USB Type-C (3.2 Gen1), 2 x USB 3.2 Gen2 Type-A (red)
    • Chipset: 1 x USB Type-C (3.2 Gen1), 4 x USB 3.2 Gen1, 4 x USB 2.0/1.1
    • Internal Headers: 1 x USB Type-C (3.2 Gen1), 1 x USB 3.2 Gen1, 4 x USB 2.0/1.1
  • Internal I/O Connectors
    • 1 x 24-pin ATX main power
    • 1 x 8-pin ATX 12V, 1 x 4-pin ATX 12V
    • CPU/system fan headers, water cooling pump headers
    • RGB/Addressable RGB headers
    • M.2 Socket 3 connectors
    • SATA connectors
    • Front panel, audio, USB headers
    • TPM header, reset/clear CMOS buttons

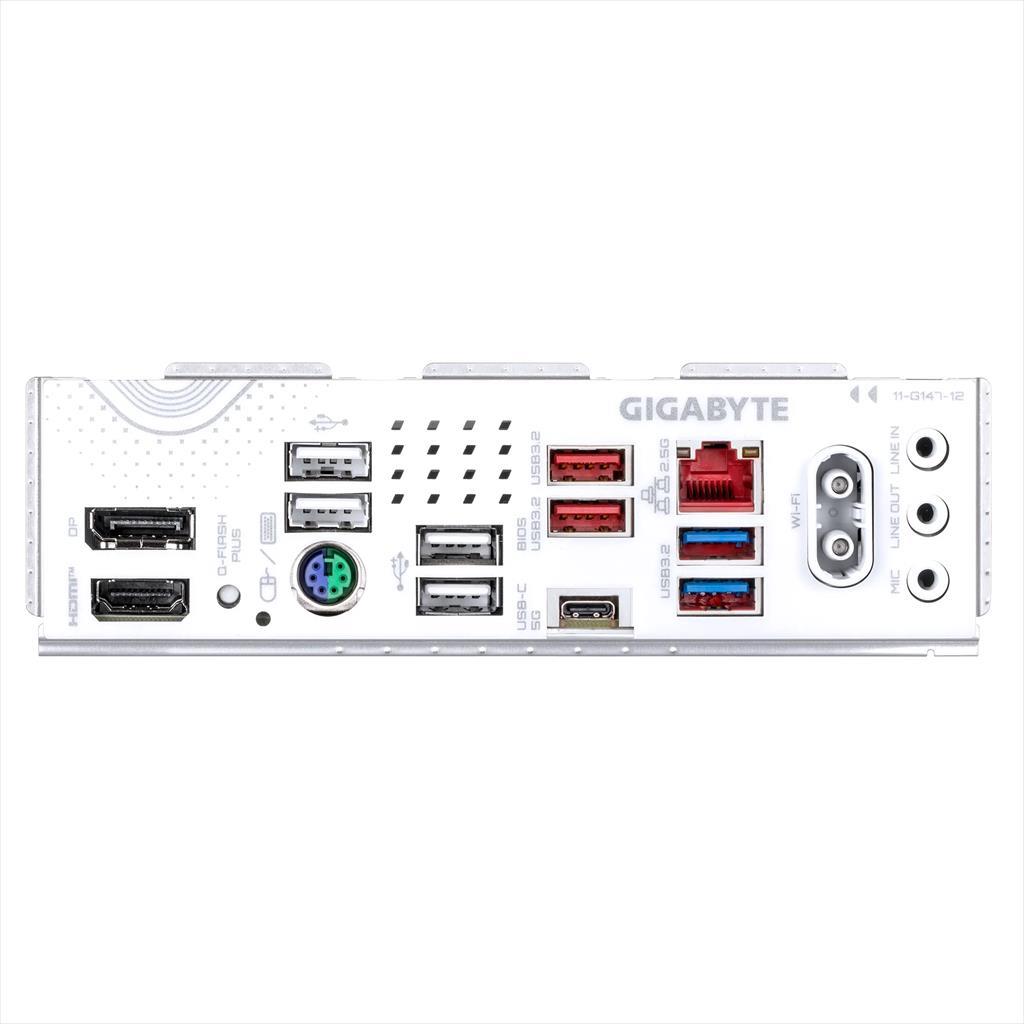

  • Back Panel Connectors
    • 1 x DisplayPort
    • 1 x HDMI
    • 1 x Q-Flash Plus button
    • 4 x USB 2.0/1.1
    • 1 x PS/2
    • 2 x USB 3.2 Gen2 Type-A (red)
    • 1 x USB Type-C (3.2 Gen1)
    • 1 x RJ-45
    • 2 x USB 3.2 Gen1
    • 2 x Antenna connectors (2T2R)
    • 3 x Audio jacks
  • I/O Controller
    • iTE® I/O Controller Chip
    • Voltage, temperature, fan speed detection
    • Water cooling flow rate detection
    • Fan fail warning, fan speed control
  • BIOS
    • 256 Mbit flash
    • AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Operating System
    • Support for Windows 11 64-bit
  • Form Factor
    • ATX, 30.5cm x 24.4cm
