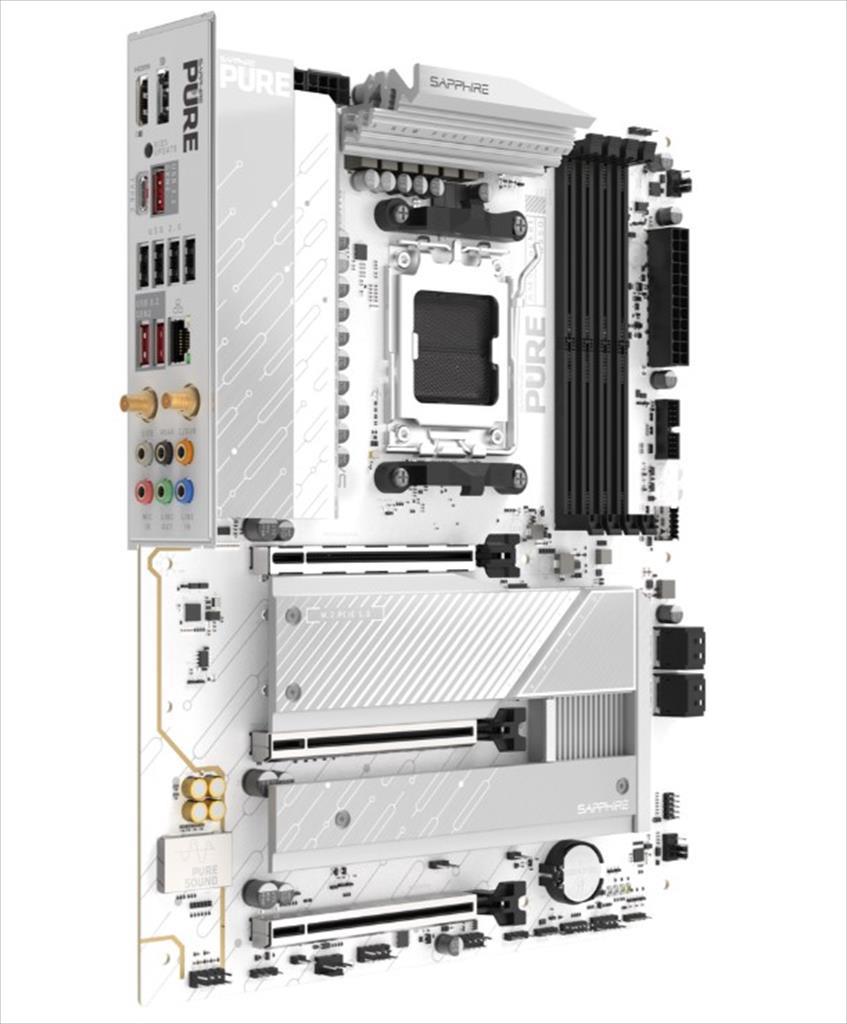

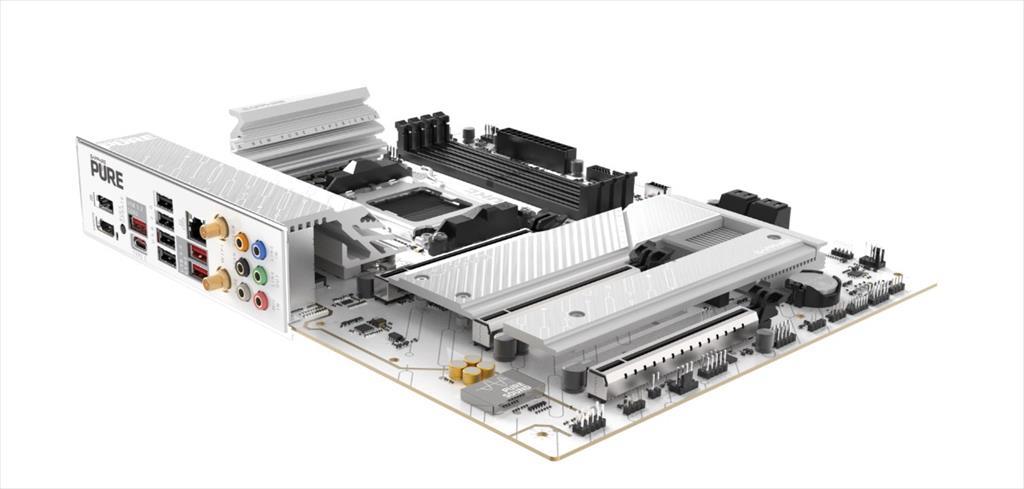

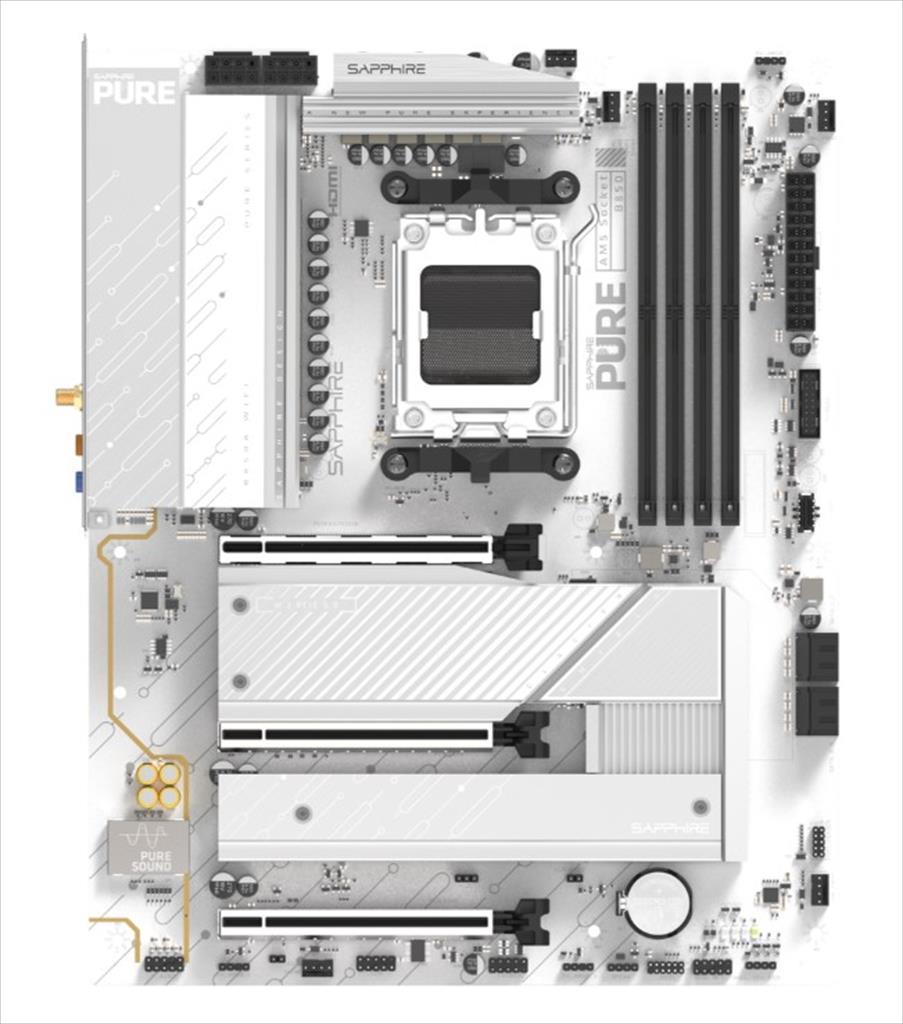

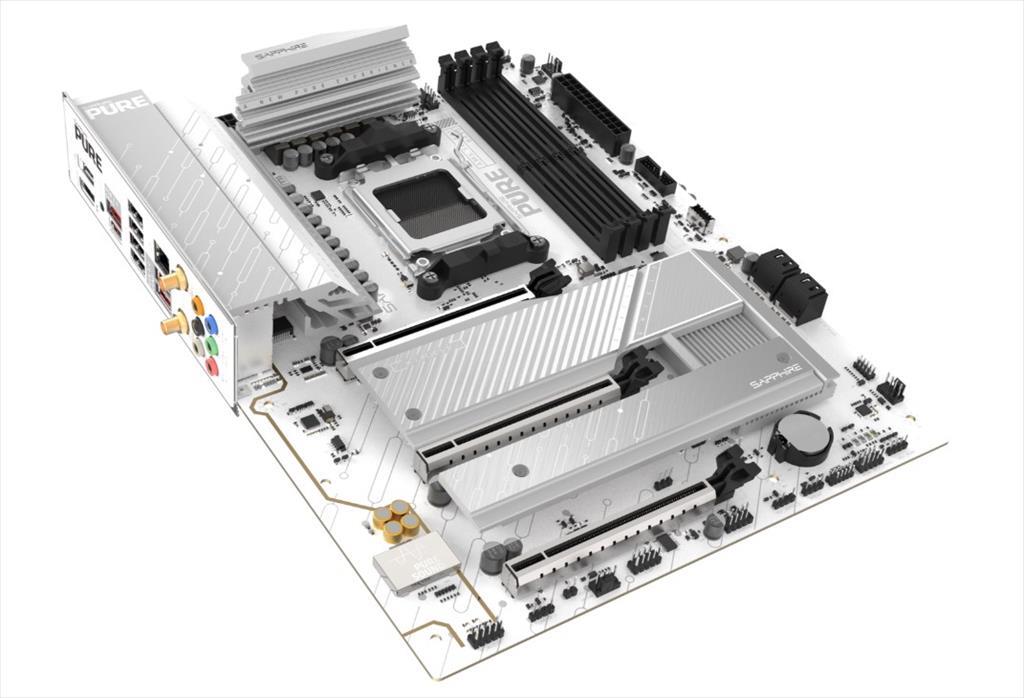

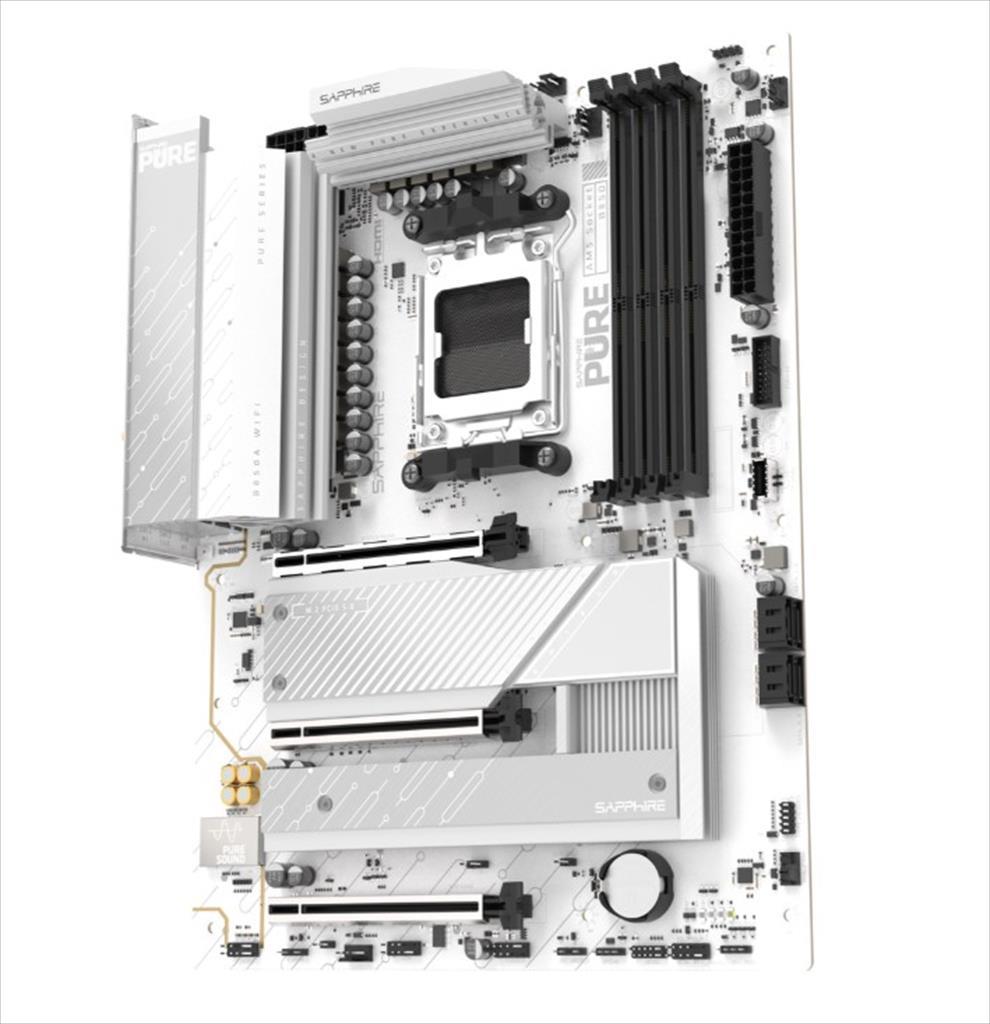

Model Name: AM5 B850A PURE WHITE WIFI7 SAPPHIRE

Specification :

• CPU Support: Supports AMD Socket AM5 Processors including Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Chipset: AMD® B850
• Memory:
  • Dual Channel DDR5 Memory Technology
  • 4x DIMMS
  • Supports DDR5 non-ECC
  • Maximum Memory Capacity 256GB (4x 64GB), up to 8000 MHz(OC)
  • Supports AMD EXPO™ and XMP memory profiles (XMP) 3.0x
• Features a 256 Mb Flash ROM, UEFI AMI BIOS with easy-to-use configuration options and BIOS FlashBack™ button
• Graphics:
  • Audio:
    • Realtek® ALC897 HD Audio, 7.1 Channel
    • Isolated Sound Card Shielding is included to minimize interference
    • 7.1 High Definition Audio
  • LAN:
    • 1x 2.5 Gigabit LAN
    • Realtek RTL8125BG
  • Wireless LAN:
    • M.2 WiFi 7 Module
    • Support 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5GHz / 6GHz band
    • Supports 2.4GHz/5GHz/6GHz frequency band
    • Supports Bluetooth 5.4
  • Slots:
    • 1x PCIe 5.0 x16 Slot
    • 1x PCIe 4.0 x4 in 16xSlot
    • 1x PCIe 4.0 x2 in 16x slot
  • Storage:
    • 3x M.2 slots, 1x PCIe 5.0 x4 for ultra-fast SSD
    • Supports PCIe 5.0 and PCIe 4.0 for SSD
    • Includes 4x SATA 6G ports for traditional HDD/SSD drives
    • Supports up to 256 GB of RAM, often with optimized paths for fast M.2 storage.
  • RAID:
    • SATA: Supports RAID 0, 1, 5, and 10
    • NVMe: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
  • USB:
    • Rear: 1 x USB 3.2 Gen2 Type-C (10Gbps), 3 x USB 3.2 Gen2 Type-A (10Gbps), and 4 x USB 2.0
    • Front: Includes 1x Front USB-C (5G-C), 1x Front USB 3.2 5G-A, and 2x Front USB 2.0 headers.
  • Connectors:
    • 1 1 x 24-pin (Power)
    • 1 1 x 4-pin CPU Fan Connector
    • 1 3 x 4-pin System Fan Connector
    • 1 1 x 4-pin Water Pump Connector
    • 1 2 x 8-pin (Power)
    • 1 3 x Addressable RGB LED 5V Connector
    • 1 1 x BIOS Flashback connector
    • 1 1 x Clear CMOS jumper
    • 1 4 x Diagnostic LED
    • 1 1 x Front Panel Audio Header
    • 1 1 x Front Panel Connector
    • 1 1 x RGB LED connector
    • 1 1 x Serial (COM) Header
    • 1 1 x speaker header
    • 1 1 x TPM (SPI_TPM) header
    • 1 1 x USB 2.0 Header
    • 1 1 x USB 3.2 Gen1 Header
    • 1 1 x USB 3.2 Gen1 Type-C Front Panel Header
  • Rear Panel I/O:
    • 2 x Antenna Ports, HDMI, DisplayPort
    • USB Ports, Optical SPDIF Out
    • LAN, Audio Jacks, BIOS Flashback
  • Software and UEFI:
    • Optimized for AMD software/drivers. Includes BIOS Flashback functionality
    • :Features "SAPPHIRE CORE BIOS," designed for easy access to performance settings, including RAM overclocking up to 8000 MHz.
  • Form Factor: ATX Form Factor: 305x244mm
  • OS Support: Microsoft Windows® 10/11 64-bit
  • Certifications: FCC, CE, ErP/EuP ready
