MB AM5 B850 PRO-A WIFI ASROCK 4xDDR5 8000Mhz (O.C), HDMI, Type-C (supports DP 1.4) PCI-Ex16 5.0, 1xPCI-Ex4 4.0,4xM.2, 4xSATAIII, Wi-Fi 6E, BT 5.2, 2.5G

Цена со ДДВ: 10.990 ден.
Шифра: 18655
Баркод: 4711581490192
Производител: ASROCK
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model Name: ASROCK AM5 B850 PRO-A WIFI

Specification :

  • CPU Support: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • Chipset: AMD B850
  • Memory:
    • Dual Channel DDR5 Memory Technology
    • 4 x DDR5 DIMM Slots
    • Supports DDR5 non-ECC, un-buffered memory up to 8000+(OC)
    • Max. capacity of system memory: 256GB
    • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
  • 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics:
    • Integrated AMD RDNA™ graphics
    • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    • 1 x USB 3.2 Gen1 Type-C, supports DP 1.4 HBR3 and max. resolution up to 4K 60Hz (DP-alt mode supports DP1.4a)
  • Audio:
    • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • LAN:
    • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    • Dragon RTL8125BG
    • Supports Dragon 2.5G LAN Software
    • Smart Auto Adjust Bandwidth Control
    • Visual User Friendly UI
  • Wireless LAN:
    • 802.11axe Wi-Fi 6E Module
    • Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
    • Supports Dual-Band 2x2 with extended 6GHz band
    • 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
    • Supports Bluetooth 5.2
  • Slots:
    • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
    • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
    • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
    • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
  • Storage:
    • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s), 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s)
    • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
    • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
    • 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode
    • 2 x SATA3 6.0 Gb/s Connectors
    • 2 x SATA3 6.0 Gb/s Connectors
  • RAID:
    • SATA: Supports RAID 0 and RAID 1 for SATA storage devices
    • NVMe: Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
  • USB:
    • Rear: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 2 x USB 3.2 Gen1 Type-A, 6x USB 2.0
    • Front: 1 x USB 3.2 Gen2x2 Type-C, 3 x USB 2.0
  • Connectors:
    • 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x RGB LED Header
    • 3 x Addressable LED Headers
    • 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
    • 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    • 1 x 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    • 2 x USB 2.0 Headers (Support 3 USB 2.0 ports), x Front Panel Audio Connector, 1 x USB 3.2 Gen1 Header, 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

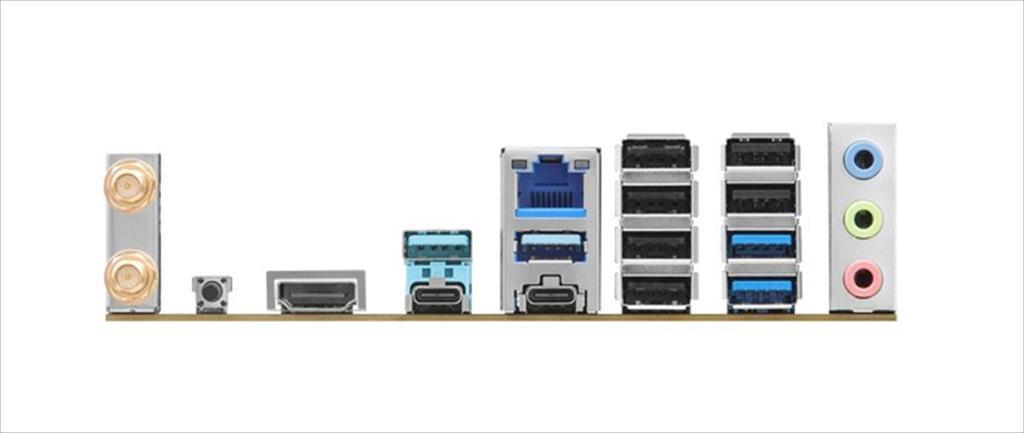

  • Rear Panel I/O:
    • 2 x Antenna Ports, HDMI, DisplayPort
    • USB Ports, Optical SPDIF Out
    • LAN, Audio Jacks, BIOS Flashback
  • Software and UEFI:
    • ASRock Motherboard Utility (A-Tuning)
    • ASRock Polychrome SYNC, Full HD UEFI
  • Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  • OS Support: Microsoft Windows® 11 64-bit
  • Certifications: FCC, CE, ErP/EuP ready
