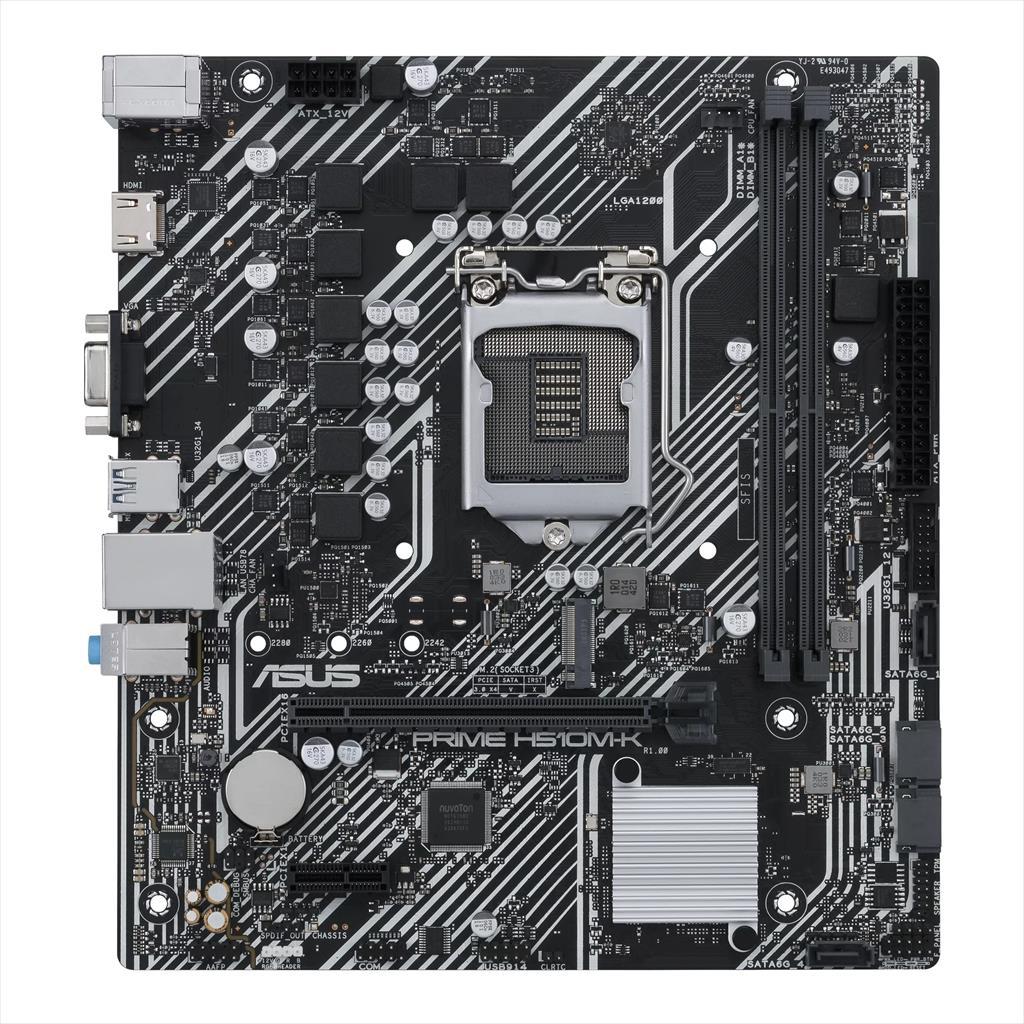

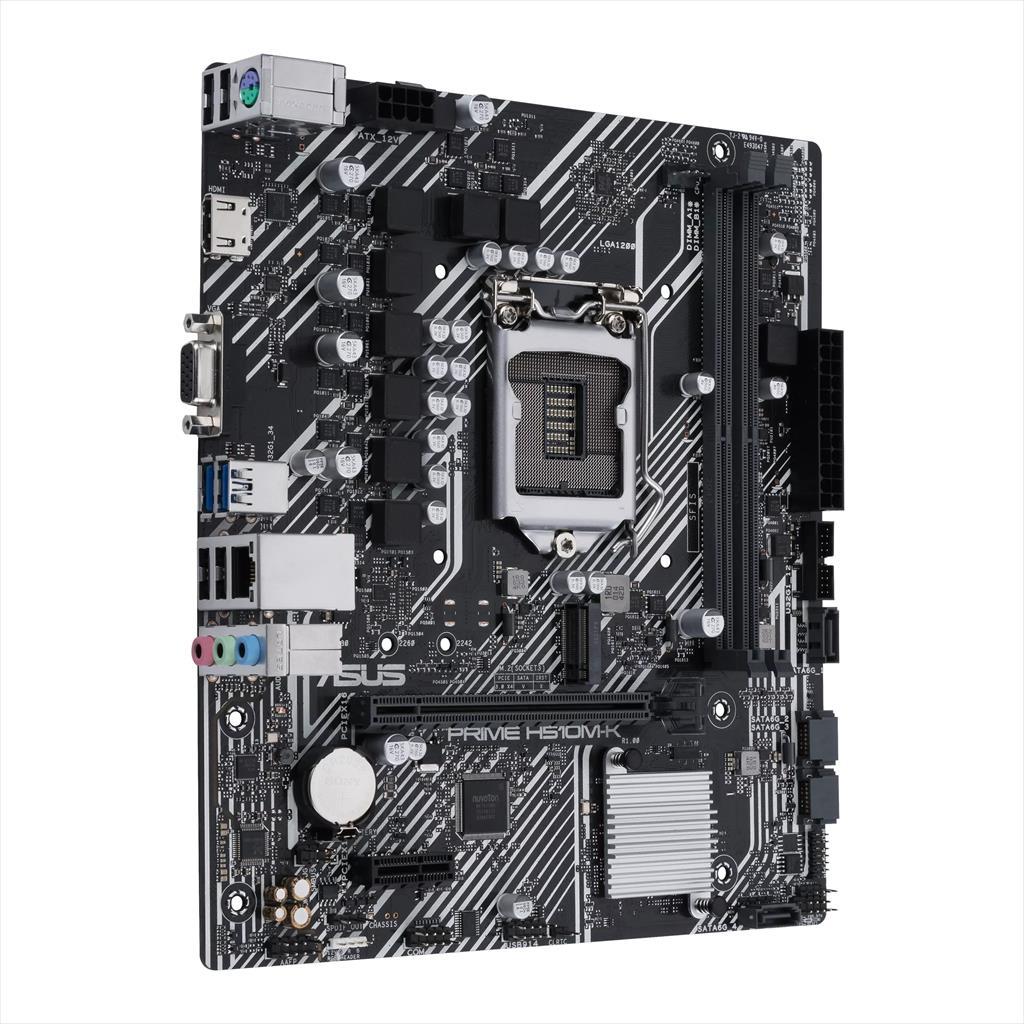

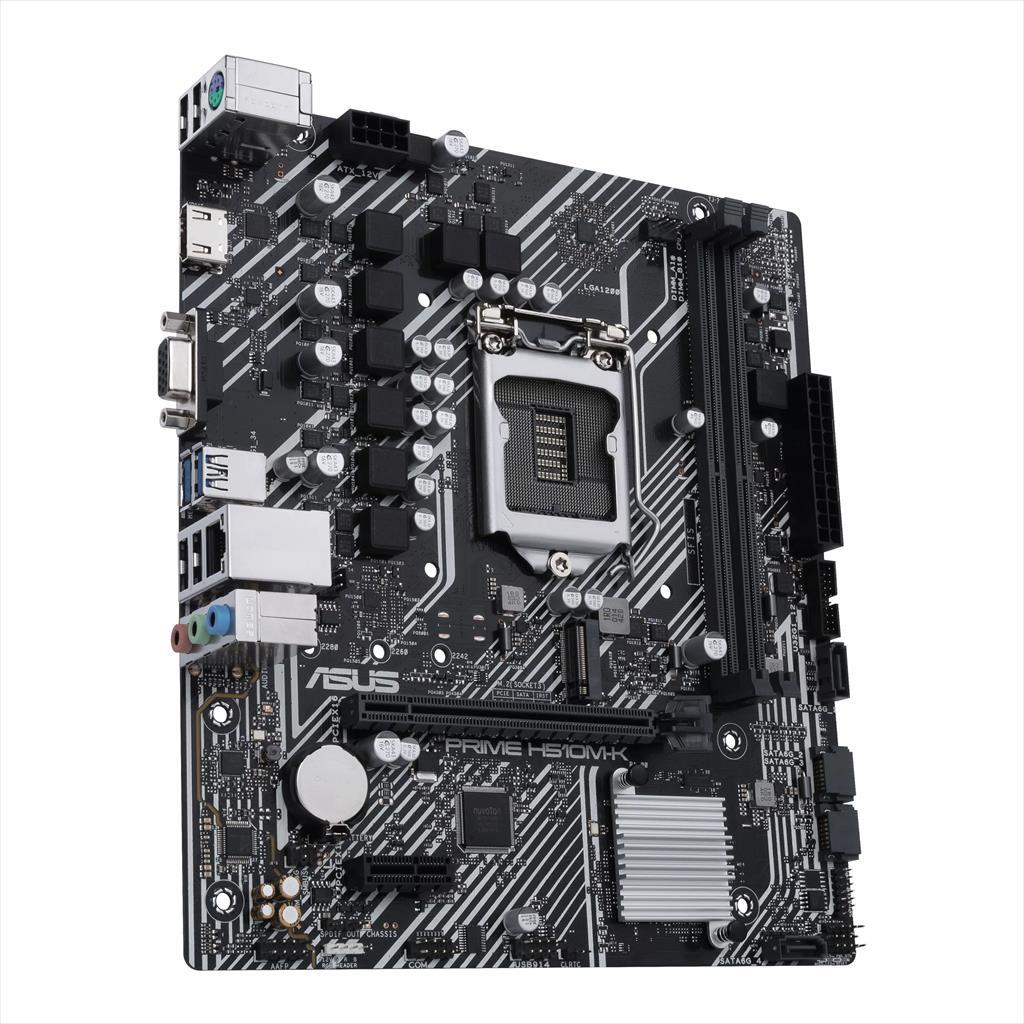

Model Name: ASUS H510M-K PRIME

Specification

• CPU
  • Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
  • Supports Intel® 14 nm CPU
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• Chipset
  • H510
• Memory
  • DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
    • Dual Channel Memory Architecture
    • Supports Intel® Extreme Memory Profile (XMP)
    • 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
    • 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
• Graphics
  • * Graphics specifications may vary between CPU types.
• Expansion Slots
  • Intel® 11th & 10th Gen Processors
    • 1 x PCIe 4.0/3.0 x16 slot
      • Intel® 11th Gen processors support PCIe 4.0 x16
      • Intel® 10th Gen processors support PCIe 3.0 x16
    • Intel® H510 Chipset
      • 1 x PCIe 3.0 x1 slot
• Storage
  • Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
    • Intel® H510 Chipset
      • M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
      • 4 x SATA 6Gb/s ports
        • The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.
• Ethernet
  • 1 x Intel® 1Gb Ethernet
  • ASUS LANGuard
• USB
  • Rear USB:Total 6 ports
    • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Audio
  • Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*
    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • Supports up to 24-Bit/192 kHz playback"
    • Audio Features
      • Audio Shielding
      • Dedicated audio PCB layers
      • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

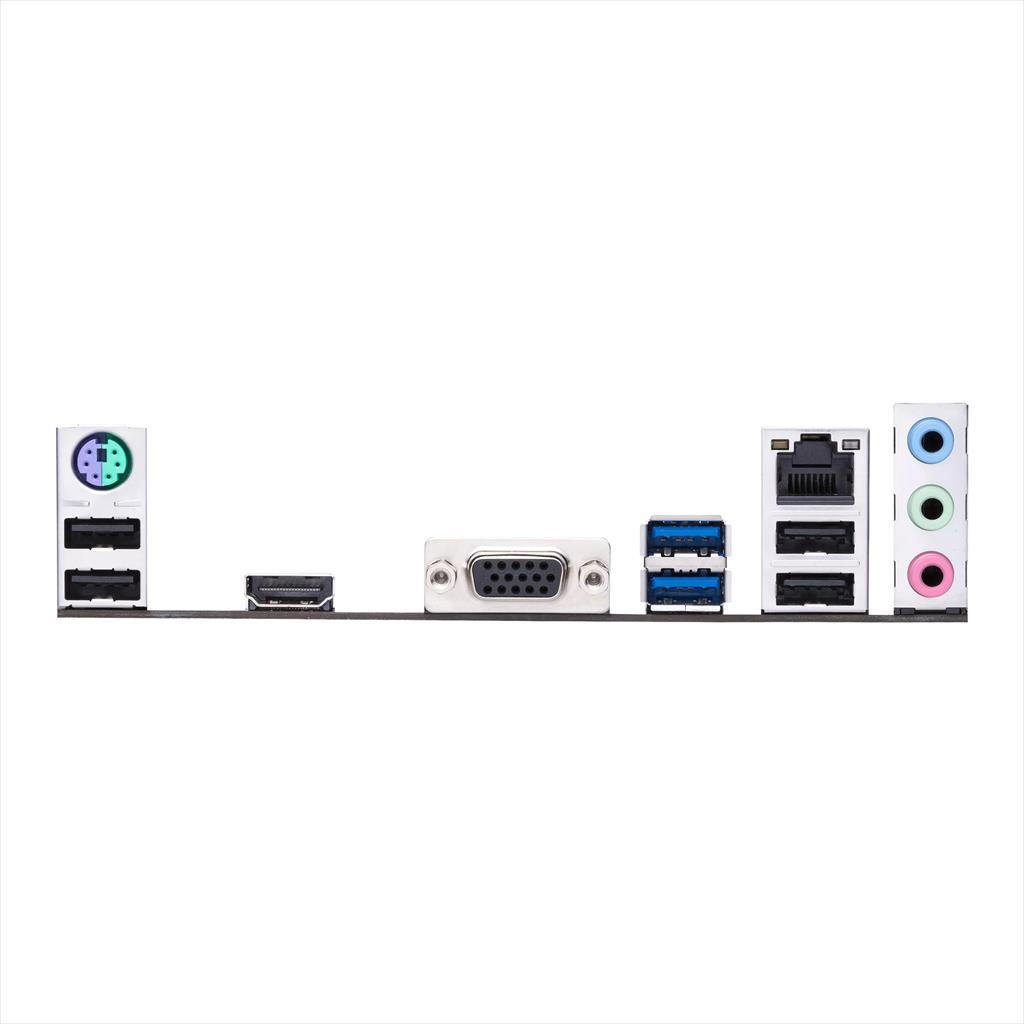

• Back Panel I/O Ports
  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x D-Sub port
  • 1 x HDMI™ port
  • 1 x Intel® I219-V 1Gb Ethernet port
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo port
• Internal I/O Connectors
  • Fan and Cooling related
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin Chassis Fan header
  • Power related
    • 1 x 24-pin Main Power connector
    • 1 x 8-pin +12V Power connector
  • Storage related
    • 1 x M.2 slot (Key M)
    • 4 x SATA 6Gb/s ports
• USB
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 1 x USB 2.0 header supports additional 2 USB 2.0 ports
• Miscellaneous
  • 1 x RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x S/PDIF Out header
  • 1 x Speaker header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 10-1 pin System Panel header
• Special Features
  • ASUS 5X PROTECTION III
    • DIGI+ VRM
    • LANGuard
    • Overvoltage Protection
    • SafeSlot Core
    • Stainless-Steel Back I/O
  • ASUS Q-Design
    • Q-DIMM
    • Q-Slot
  • ASUS Thermal Solution
    • Aluminum heatsink design
  • ASUS Lighting Control
    • RGB header
• Software Features
  • ASUS Exclusive Software
    • Armoury Crate
    • AI Suite 3
      • Performance And Power Saving Utility
        • TurboV EVO
        • EPU
        • DIGI+ VRM
        • Fan Xpert
      • EZ update
    • ASUS CPU-Z
    • AI Charger
    • DAEMON Tools
    • Norton Anti-virus software (Free Trial version)
    • WinRAR
• UEFI BIOS
  • ASUS EZ DIY
    • ASUS CrashFree BIOS 3
    • ASUS EZ Flash 3
    • ASUS UEFI BIOS EZ Mode
  • BIOS
    • 128 Mb Flash ROM, UEFI AMI BIOS
• Accessories
  • Cables
    • 2 x SATA 6Gb/s cables
  • Miscellaneous
    • 1 x I/O Shield
    • 1 x M.2 ANCHOR
  • Installation Media
    • 1 x Support DVD
• Operating System
  • Windows 10 64bit
• Form Factor
  • microATX
  • 22.6cm x 20.3cm
