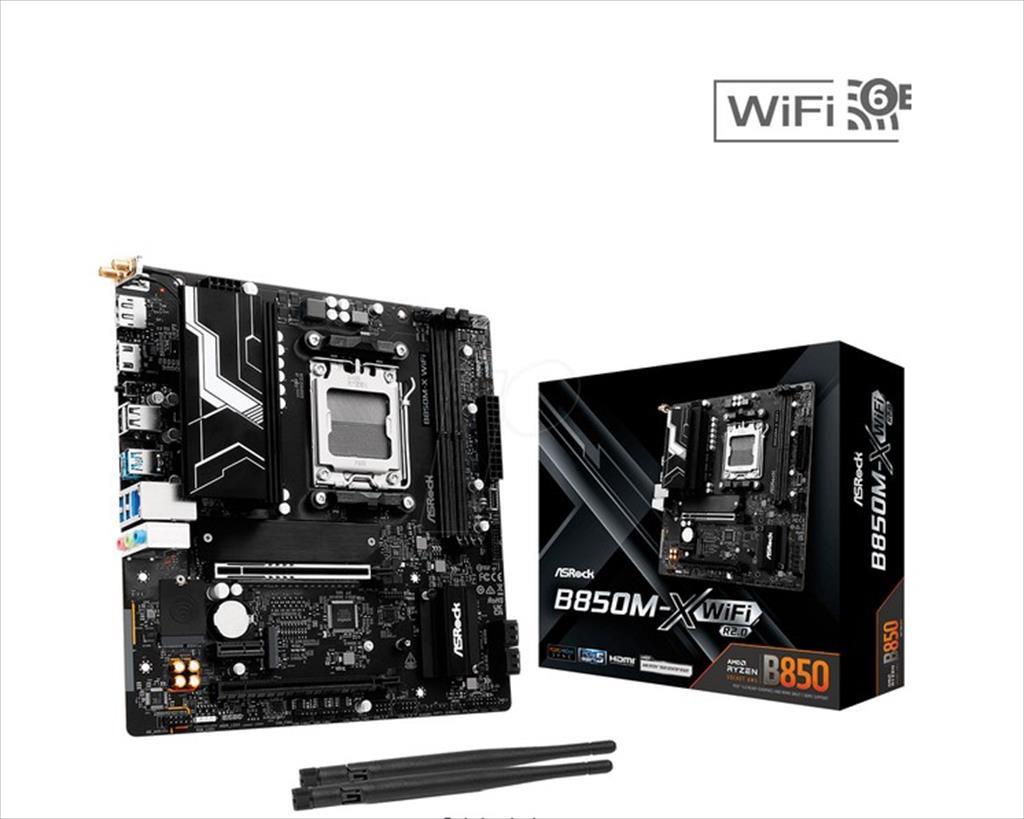

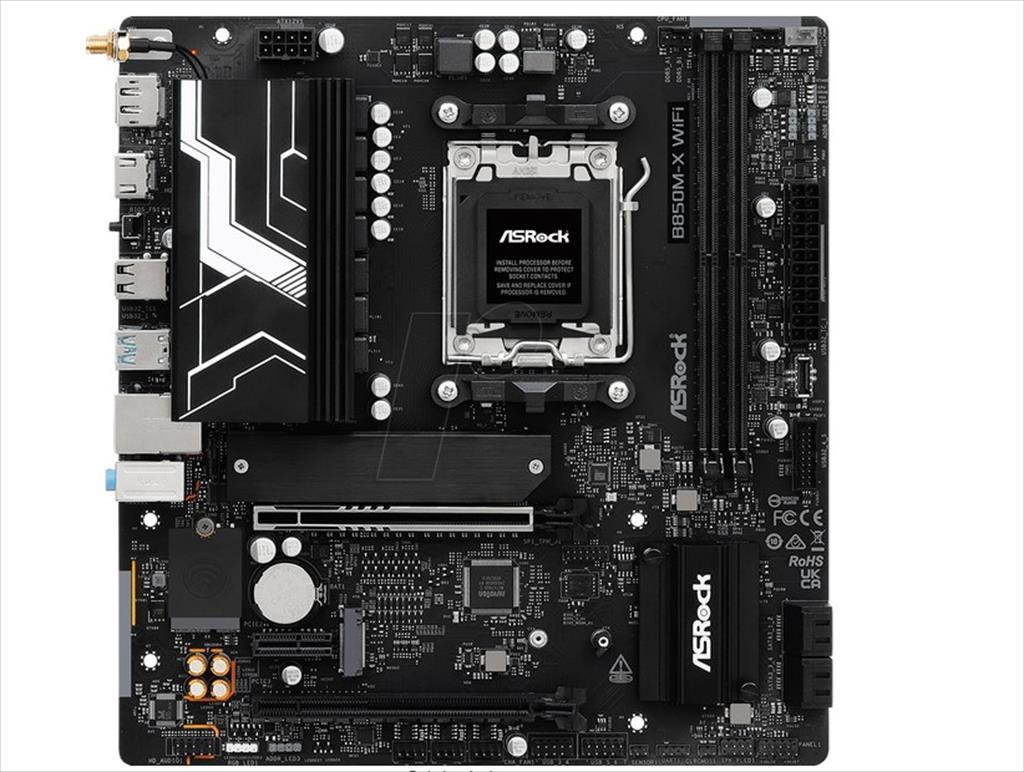

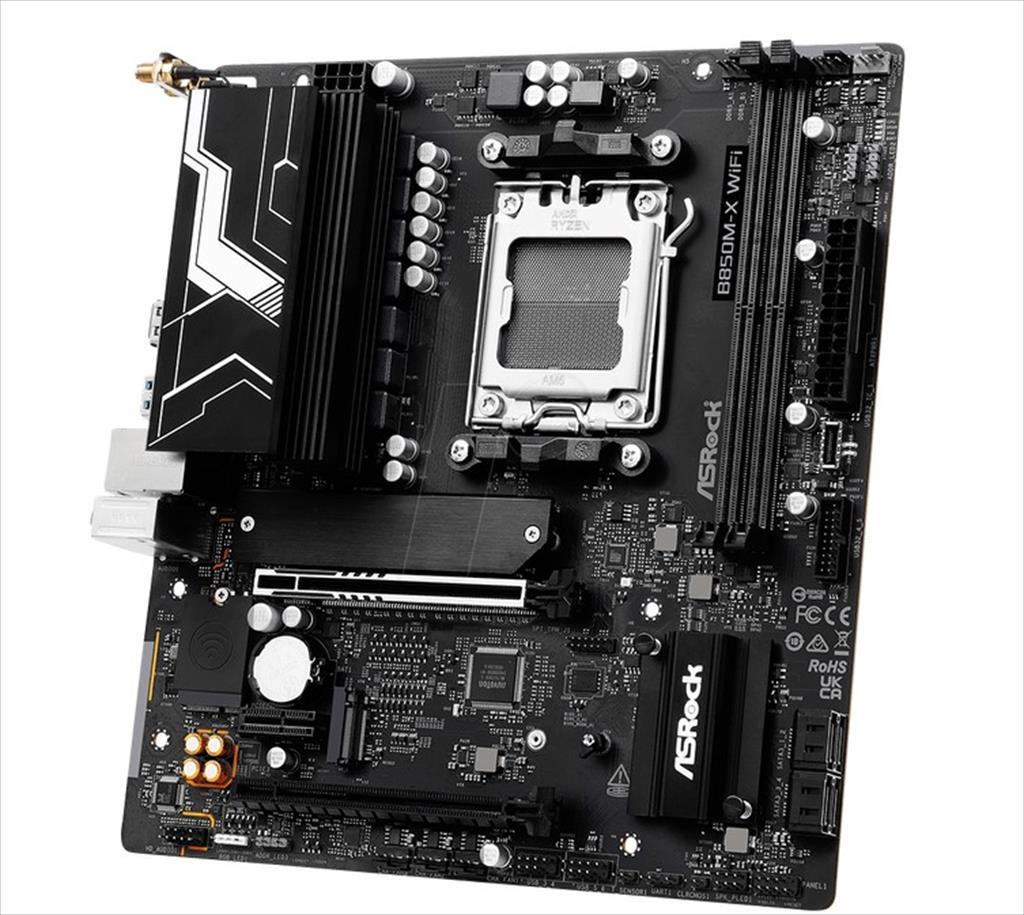

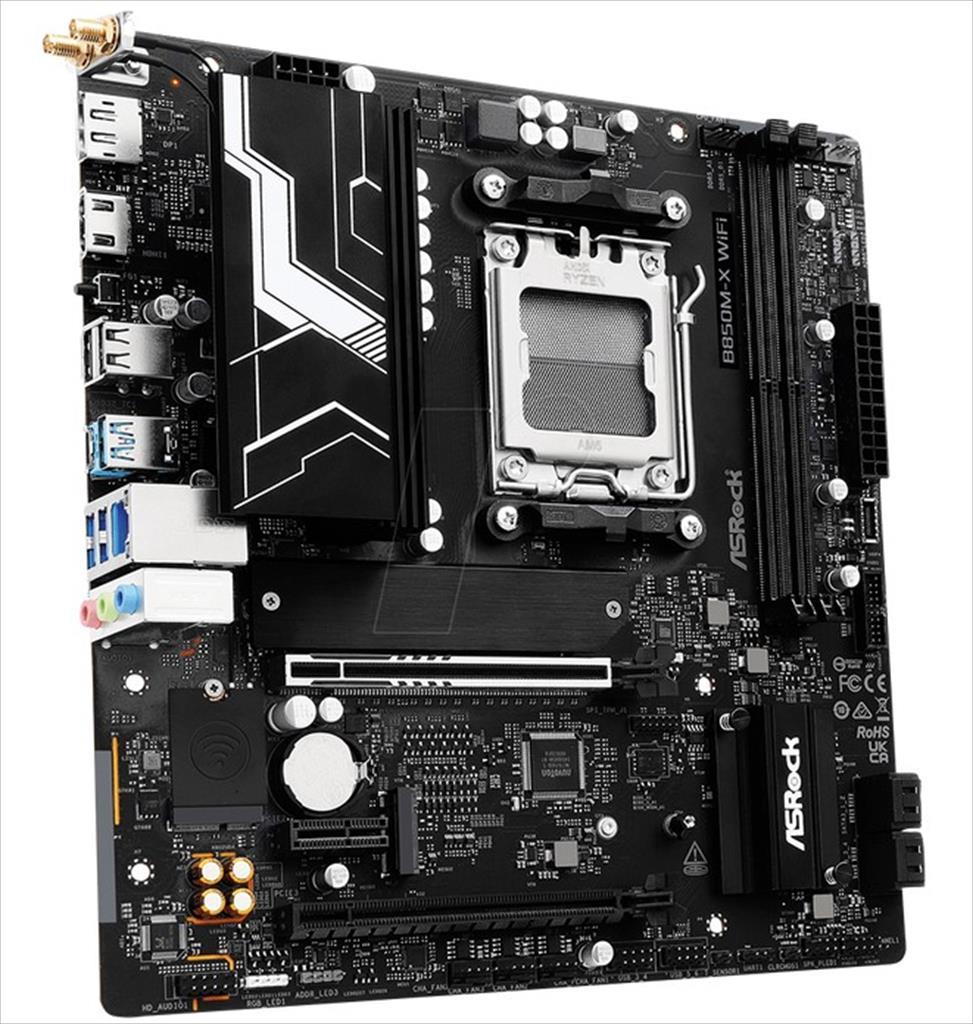

MB AM5 B850M-X Wifi R2.0 ASROCK 2xDDR5 8200Mhz (O.C), HDMI, DP, PCI-Ex16 5.0, 1xPCI-Ex4 4.0, 1xPCI-Ex1 4.0, 2x M.2 , 4xSATAIII, 2.5G LAN, WIFI6E, BT 5.2, 90-MXBSH0-A0UAYZ

Цена со ДДВ: 8.610 ден.
Шифра: 18637
Баркод: 4711581490765
Производител: ASROCK
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model Name: AM5 B850M-X Wifi R2.0 ASROCK 2xDDR5 8200Mhz

Specification :

  • CPU Support: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
  • Chipset: AMD B850
  • Memory:
    • Dual Channel DDR5 Memory Technology
    • 2 x DDR5 DIMM Slots, Max. capacity of system memory: 128GB
    • Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)
    • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
  • BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics:
    • Integrated AMD RDNA™ graphics
    • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
    • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
  • Audio:
    • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    • Nahimic Audio
  • LAN:
    • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    • Dragon RTL8125BG, Supports Dragon 2.5G LAN Software
  • Wireless LAN:
    • Wi-Fi 6E
    • BLUETOOTH 5.3
  • Slots:
    • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
    • 1 x PCIe 4.0 x1 Slot (PCIE2)
    • 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode, 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • Storage:
    • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
    • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
    • 4 x SATA3 6.0 Gb/s Connectors
  • RAID:
    • SATA: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    • NVMe: Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
  • USB:
    • Rear: 3 x USB 3.2 Gen1 Type-A, 1 x USB 2.0, 2 x USB 3.2 Gen1 Type-C
    • Front: 2 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A, 5 x USB 2.0 (1 Rear (USB_1)
  • Connectors:
    • 1 x Thermistor Cable Header
    • 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x RGB LED Header
    • 3 x Addressable LED Headers
    • 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control), 3 x Chassis/Water Pump Fan Connectors (4-pin)
    • 1 x AIO Pump Fan Connector (4-pin), 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector
    • 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
    • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

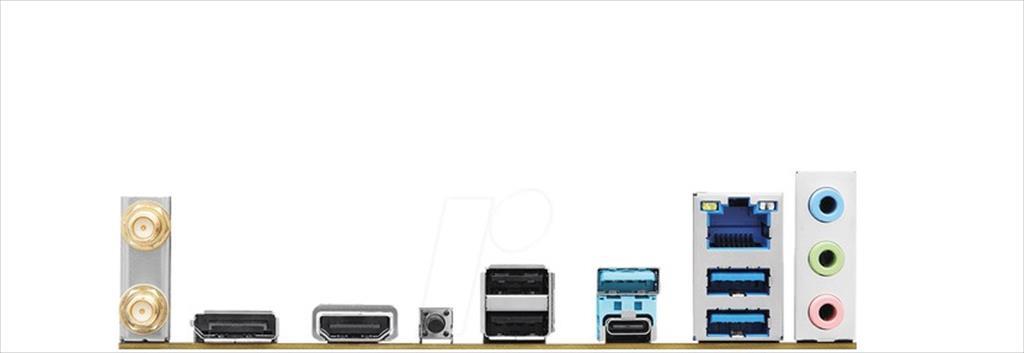

  • Rear Panel I/O:
    • 2 x Antenna Mounting Points, 1 x HDMI Port, 1 x DisplayPort 1.4
    • 1 x USB 3.2 Gen1 Type-C Port, 3 x USB 3.2 Gen1 Type-A Ports, 2 x USB 2.0 Ports
    • 1 x RJ-45 LAN Port, 1 x BIOS Flashback Button
    • HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI:
    • ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software
    • ASRock EZ Mode, ASRock Full HD UEFI
  • Form Factor: Micro ATX Form Factor: 24.4 cm x 22.6 cm
  • OS Support: Microsoft Windows® 10/11 64-bit
