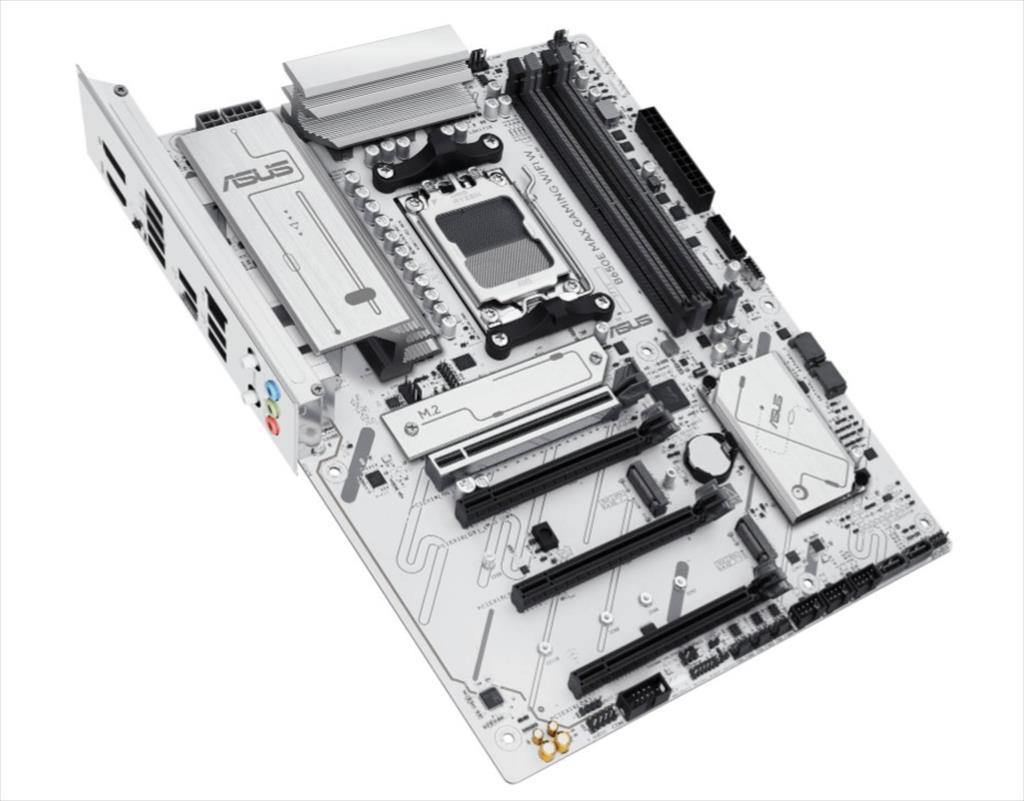

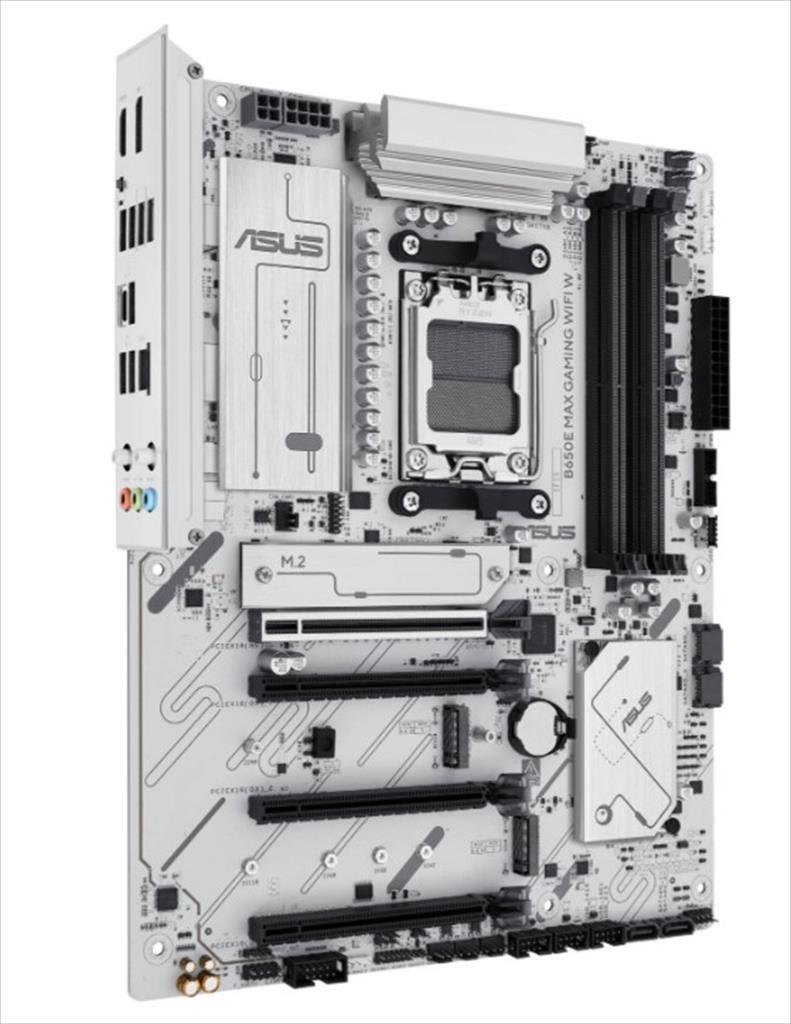

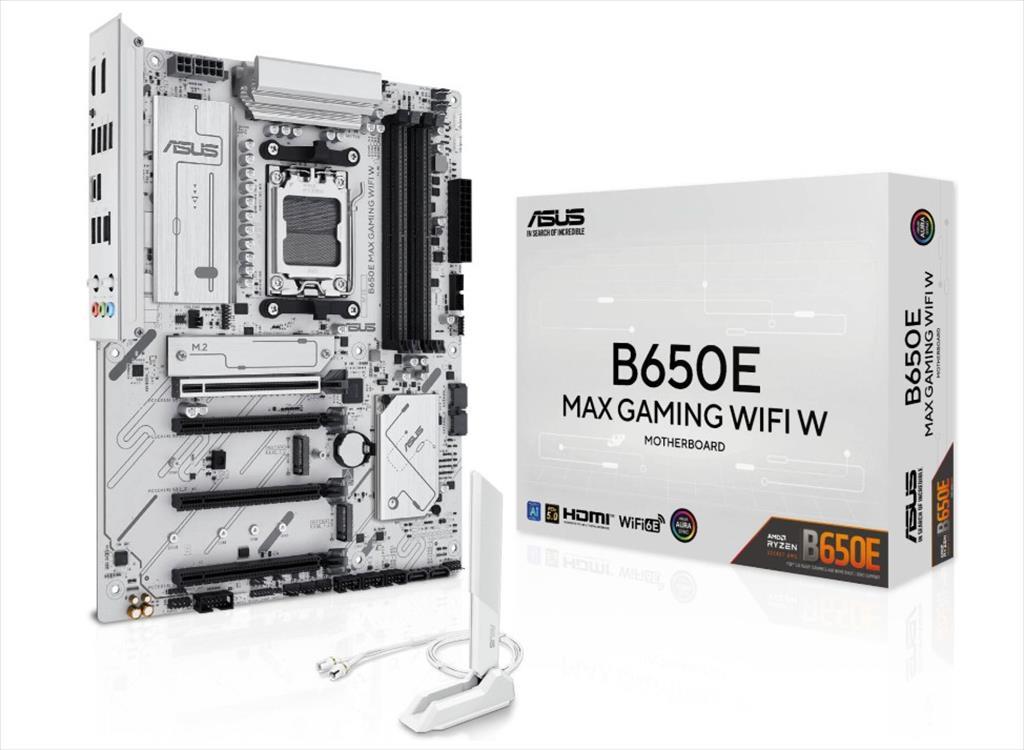

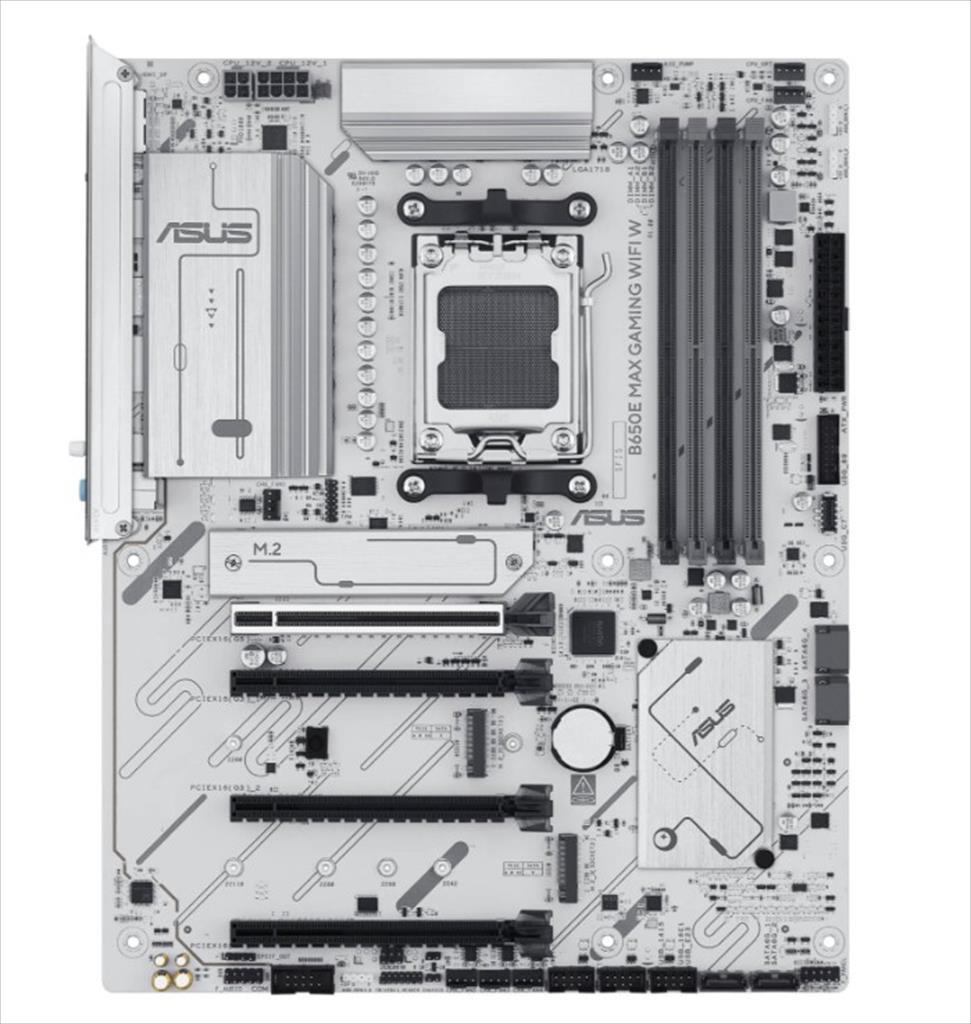

MB AM5 B650E MAX GAMING WIFI W ASUS 4xDDR5 8000Mhz (O.C), DP, HDMI, PCI-Ex16 5.0, 1xPCI-Ex4 4.0,2xPCI-Ex1 4.0, 3xM.2, 4xSATA3, 2.5Gb LAN, WIFI 6E, BT 5.3, 90MB1M00-M0EAY0

Цена со ДДВ: 13.930 ден.
Шифра: 18643
Баркод: 4711387975596
Производител: ASUS
Гаранција: 1050 дена
залиха: има на залиха
Спецификација

Model Name: AM5 B650E MAX GAMING WIFI W

Specification :

  • CPU Support: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
  • Chipset: AMD B650 Chipset
  • Memory:
    • Dual Channel DDR5 Memory Technology
    • 4x DDR5 slots
    • Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)
    • Max. capacity of system memory: 256GB
    • Supports a wide range of overclocked speeds, including 8000+
  • 256 Mbit Flash ROM, UEFI AMI
  • Graphics:
    • AMD B650 chipset
    • 1 x DisplayPort (supports 8K@60Hz as specified by DP 1.4)
    • 1 x HDMI™ port (supports 4K@60Hz
  • Audio:
    • 7.1-channel High Definition Audio
    • Realtek 7.1 Surround Sound High Definition Audio codec
    • Ensures precise analog/digital separation and reduces multi-lateral interference
    • Separate layers for left and right channels to ensure consistent quality
  • LAN:
    • Realtek 2.5Gb Ethernet Up to 2.5 Gbps (2500 Mbps)
    • ASUS LANGuard
  • Wireless :
    • Wi-Fi 6E
    • Supports 2.4/5/6GHz frequency band
    • 2x2 Wi-Fi 6E (802.11ax)
    • Bluetooth® v5.3
  • Slots:
    • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
    • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode, 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode
    • 2 x PCIe 3.0 x16 slots (support x1 mode)
  • Storage:
    • Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
    • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode),M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
    • 4 x SATA 6Gb/s ports
  • RAID:
    • SATA: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    • NVMe: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
  • USB:
    • Rear: 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C®), 2 x USB 5Gbps ports (2 x Type-A), 2 x USB 2.0 ports (2 x Type-A)
    • Front: 1 x USB 5Gbps connector (supports USB Type-C®),1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 3 x USB 2.0 headers support 6 additional USB 2.0 ports
  • Connectors:
    • Fan and Cooling Related:1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers
    • Power Related:1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connectors, 1 x 4-pin +12V CPU Power connectors
    • Storage Related:3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
    • USB:1 x USB 5Gbps connector (supports USB Type-C® ), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 3 x USB 2.0 headers support 6 additional USB 2.0 ports
    • Miscellaneous: 3 x Addressable RGB Gen 2 headers, 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header 1 x Thunderbolt™ (USB4®) header

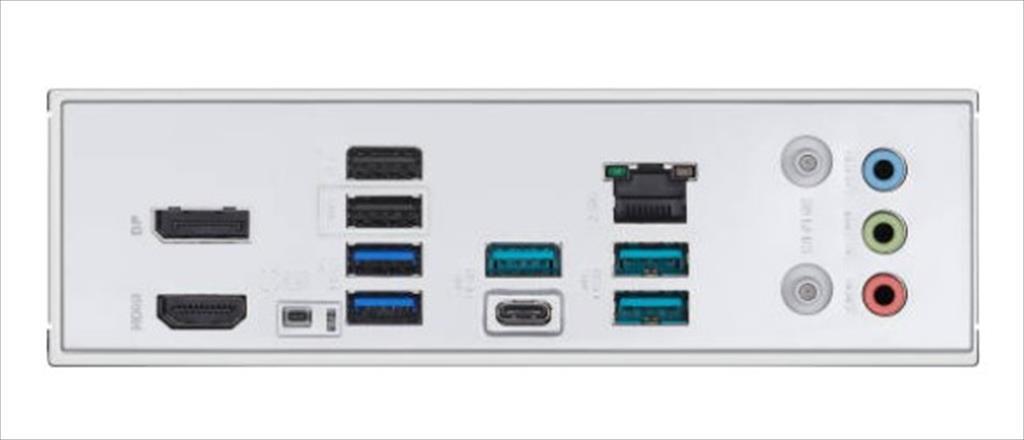

  • Rear Panel I/O:
    • 1x DP, 1x HDMI™
    • 1x 2.5Gb LAN
    • Wi-Fi module, 3x Audio jacks, BIOS Flashback
  • Software and UEFI:
    • ASUS Exclusive Software:Armoury Crate, AI Suite 3, ASUS Driver Hub, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial)
    • UEFI BIOS: ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
  • Form Factor: ATX (30.5 x 24.4 cm)
  • Windows® 11, Windows® 10 64-bit
  • Certifications: FCC, CE, ErP/EuP ready
