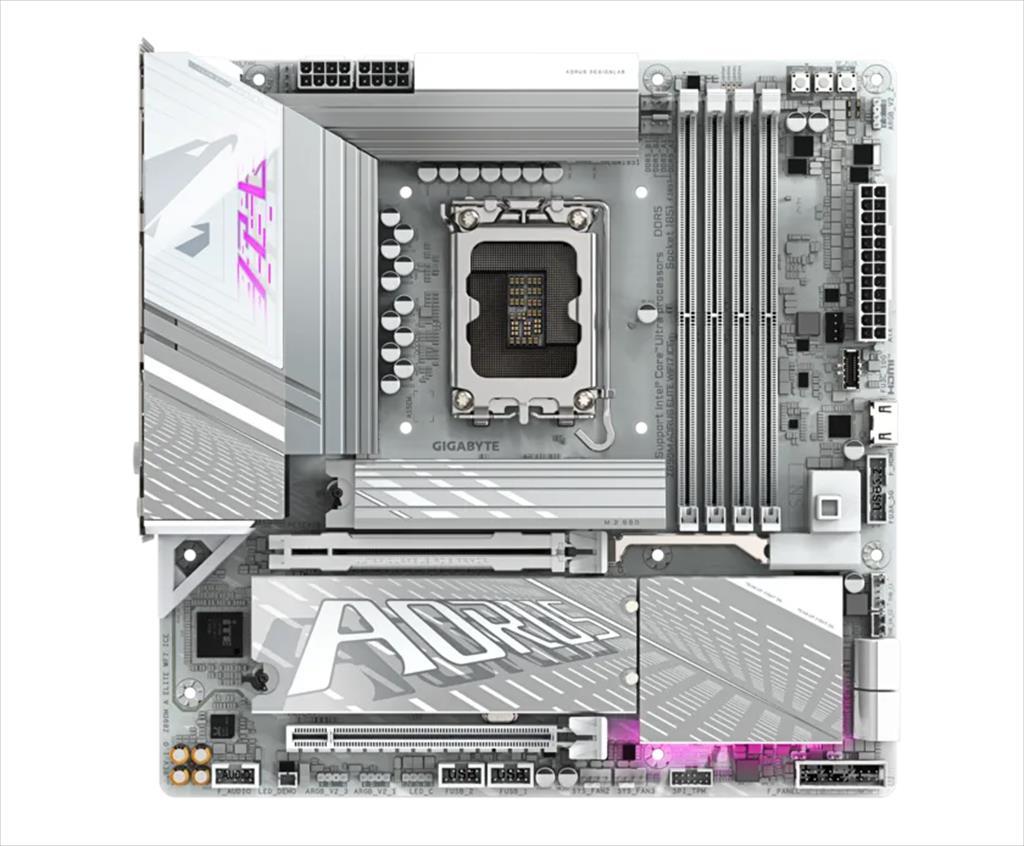

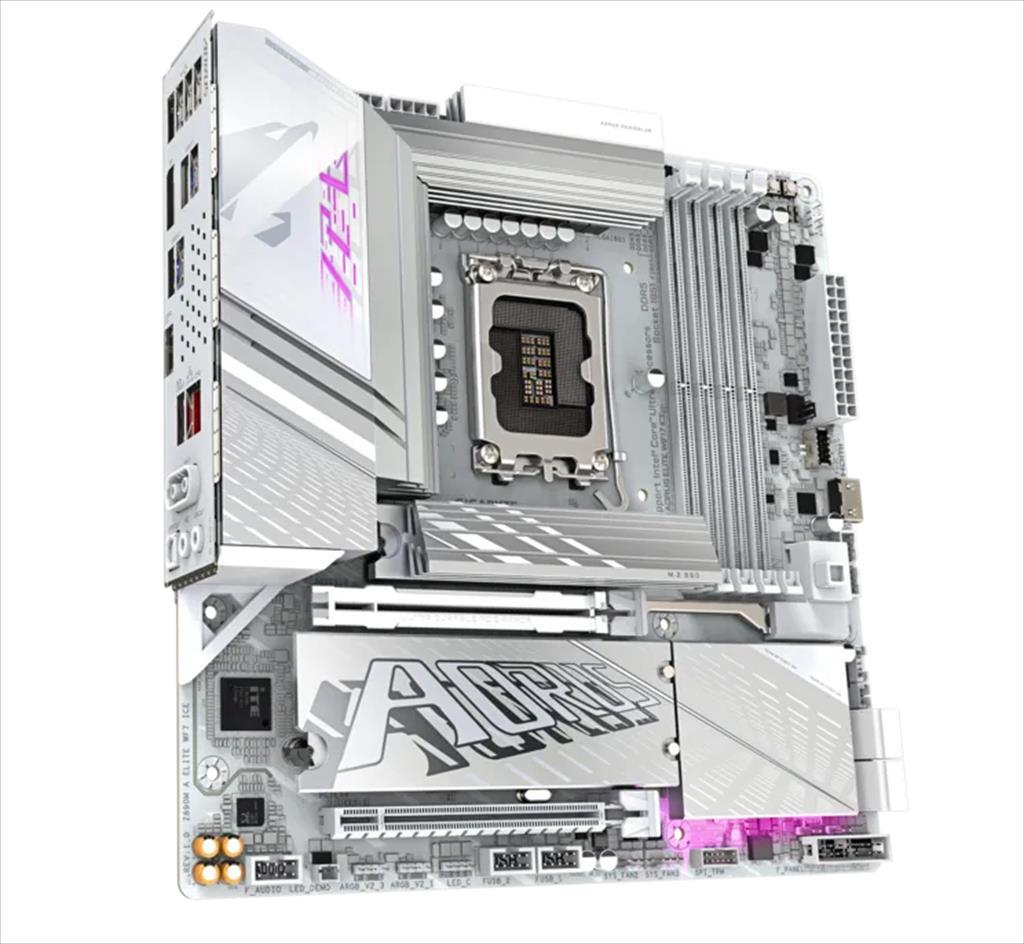

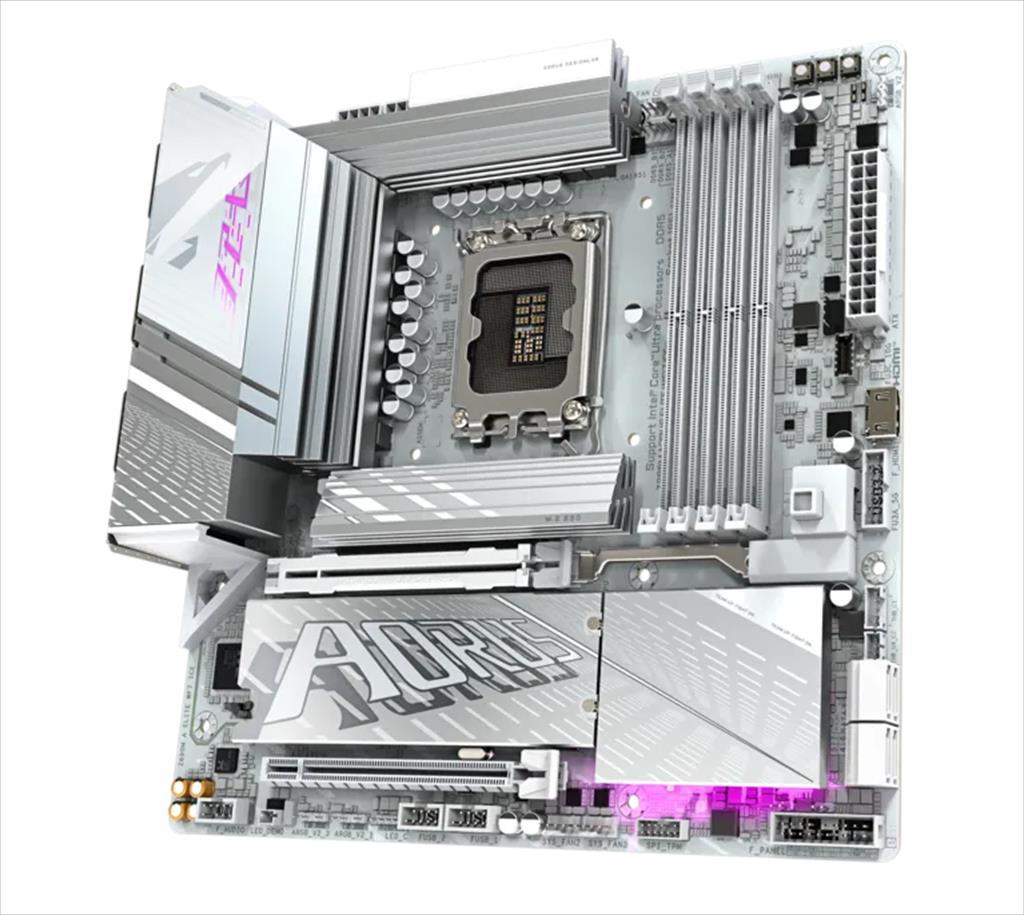

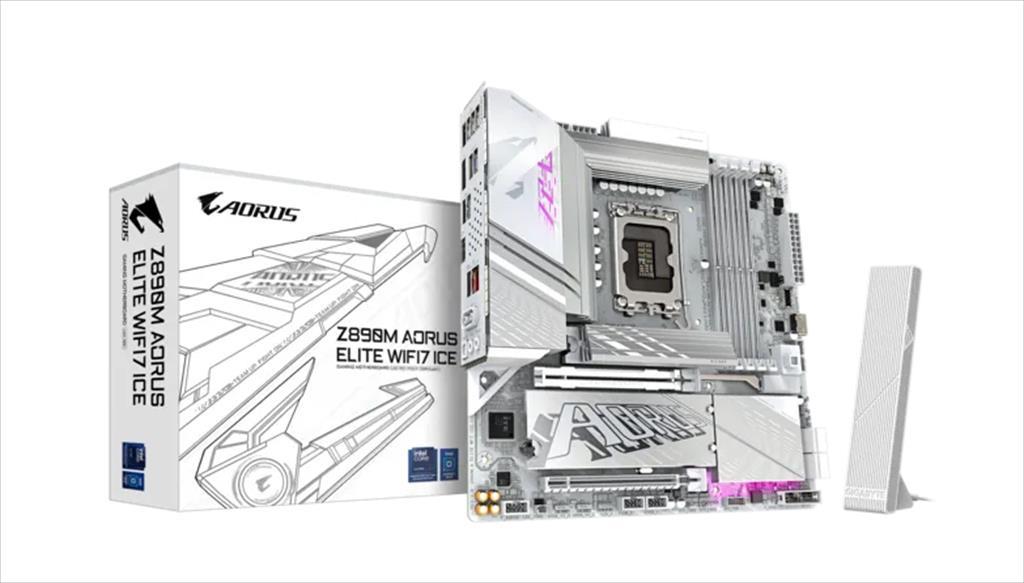

Model Name: GIGABYTE AORUS ELITE WIFI7 ICE

Specification :

• CPU Support: LGA1851 socket: Support for Intel® Core™ Ultra Processors
• Chipset: Intel® Z890 Express Chipset
• Memory:
  • Dual Channel DDR5 Memory Technology
  • 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 256GB
  • Support for Extreme Memory Profile (XMP) memory modules
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics:
  • Integrated Graphics Processor-Intel® HD Graphics
  • 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
  • 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz, 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
• Audio:
  • Realtek® Audio CODEC
  • 2/4/5.1/7.1-channel
• LAN:
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless LAN:
  • MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
  • 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  • Support for 11be 160MHz wireless standard
  • Supports Bluetooth 5.4
• Slots:
  • 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• Storage:
  • 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
  • 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
  • 4 x SATA 6Gb/s connectors
• RAID:
  • SATA: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  • NVMe: RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USB:
  • 1 x USB4® USB Type-C® port on the back panel
  • 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
  • 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
  • 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Connectors:
  • 1 x 24-pin ATX main power connector
  • 2 x 8-pin ATX 12V power connectors
  • 1 x CPU fan header
  • 1 x CPU fan/water cooling pump header
  • 3 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x USB Type-C® header, with USB 3.2 Gen 2 support
  • 2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
  • 2 x USB 2.0/1.1 headers
  • 1 x HDMI port

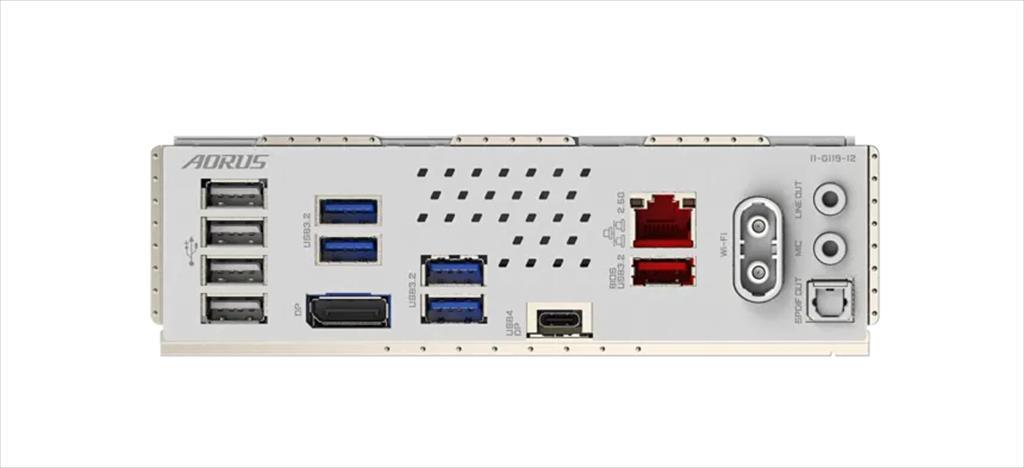

• Rear Panel I/O:
  • 1 x USB4® USB Type-C® port, 1 x USB 3.2 Gen 2 Type-A port, 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports
  • 2 x antenna connectors, 1 x DisplayPor
  • 1 x optical S/PDIF Out connector, 2 x audio jacks
• Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
• OS Support: Microsoft Windows® 11 64-bit
