MB 1700 B760 DS3H GEN5 DDR5 GIGABYTE, 4xDDR5 7600MHz(OC), 2xM.2, HDMI, DP, PCIex16 5.0, 4xPCIex1 3.0, 4xSATAIII

Цена со ДДВ: 7.970 ден.
Шифра: 18675
Баркод: 4719331872892
Производител: GIGABYTE
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model Name: GIGABYTE B760 DS3H GEN5

Intel B760 ATX motherboard · DDR5 memory support · PCIe 5.0 graphics slot
Up to 192GB DDR5 · 2x M.2 · Realtek GbE LAN · Realtek audio

Features

  • ATX motherboard based on the Intel B760 chipset for desktop PC systems
  • Supports DDR5 memory with four DIMM slots and a maximum capacity of up to 192GB
  • Dual-channel memory architecture for improved memory bandwidth
  • PCIe expansion layout includes one PCIe x16 slot and four PCIe x1 slots
  • GEN5 design with PCIe 5.0 support for compatible graphics cards
  • Includes two M.2 slots for high-speed SSD storage
  • Four SATA ports for additional storage drives and optical drives
  • Rear display outputs include HDMI and DisplayPort for CPUs with integrated graphics
  • Realtek GbE LAN provides wired network connectivity
  • Realtek audio codec supports onboard sound output and input

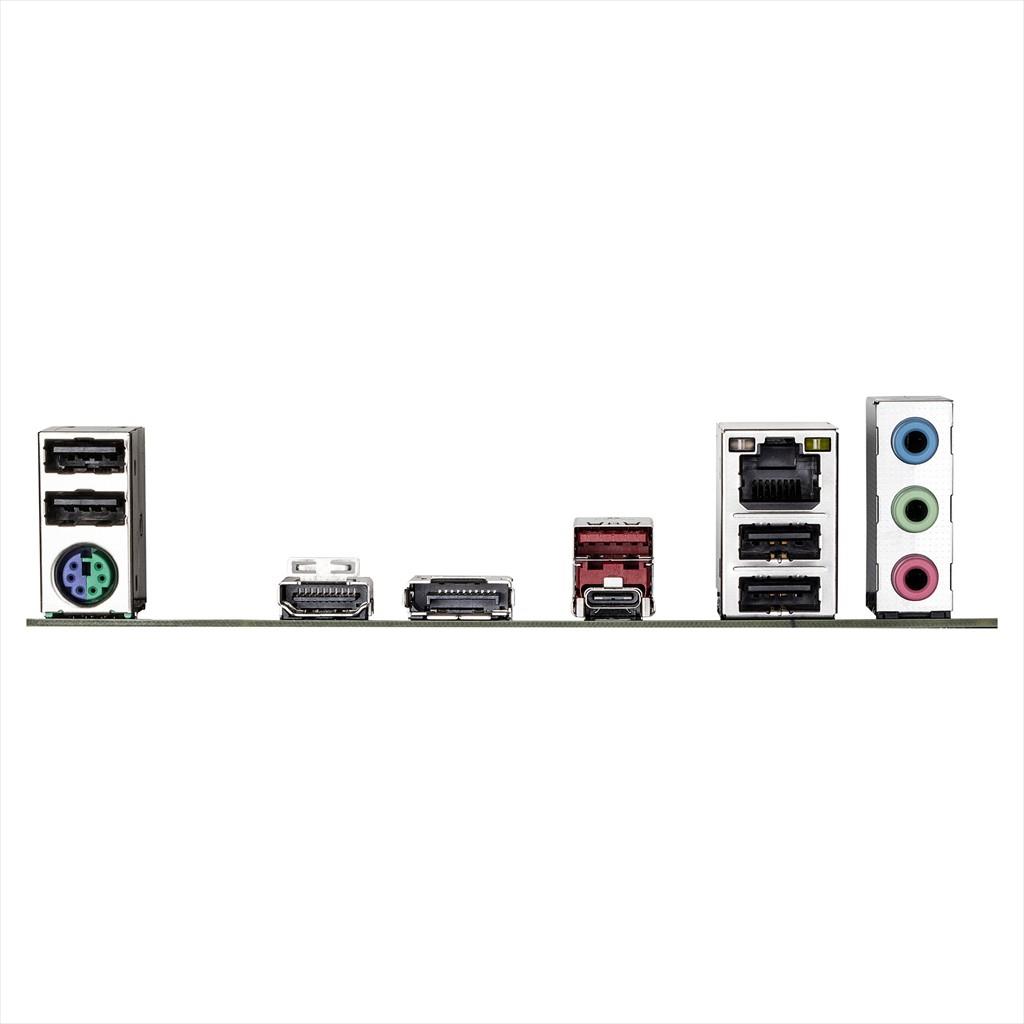

  • Rear I/O includes USB 3.2, USB 2.0, PS/2, audio and RJ-45 LAN connections
  • Six 4-pin PWM fan headers for system and cooling fan control
  • RGB support with one RGB LED header and three addressable RGB LED headers
  • 128 Mbit AMI UEFI BIOS provides modern firmware configuration options
  • Powered through standard 24-pin ATX and 8-pin EPS power connectors

Specification

  • Model name: GIGABYTE B760 DS3H GEN5
  • Usage: PC
  • Form factor: ATX
  • Chipset: Intel B760
  • BIOS: 128 Mbit AMI UEFI BIOS
  • Power supply connectors: 24-pin ATX + 8-pin EPS
  • Maximum memory capacity: 192 GB
  • Memory slots: 4x DDR5
  • Supported memory standard: DDR5-4800 MHz
  • Memory channels: 2
  • Memory ranks: 8
  • Memory controller: Integrated in the CPU
  • Expansion slots: 5 total
  • PCIe x16 slots: 1x PCIe x16
  • PCIe x1 slots: 4x PCIe x1
  • Internal SATA ports: 4
  • Internal M.2 slots: 2
  • M.2 note: The maximum usable speed of M.2 SSDs depends on the M.2 slot used and the installed processor
  • RGB LED header: 1
  • Addressable RGB LED headers: 3
  • 4-pin PWM fan headers: 6
  • SATA controller: Intel B760
  • USB controller: Intel B760
  • Rear PS/2 port: 1x mouse/keyboard combo
  • Rear USB-A 3.2 port: 1x USB-A 3.2, 10 Gbit/s
  • Rear USB-A 2.0 ports: 4x USB-A 2.0
  • Rear HDMI output: 1
  • Rear DisplayPort output: 1
  • Rear audio ports: 1x microphone, 1x line-in, 1x line-out
  • Rear LAN port: 1x RJ-45
  • Integrated graphics support: Motherboard display connectors can only be used with a CPU that has an integrated graphics chip
  • Sound: Realtek Audio CODEC
  • LAN: Realtek GbE LAN
