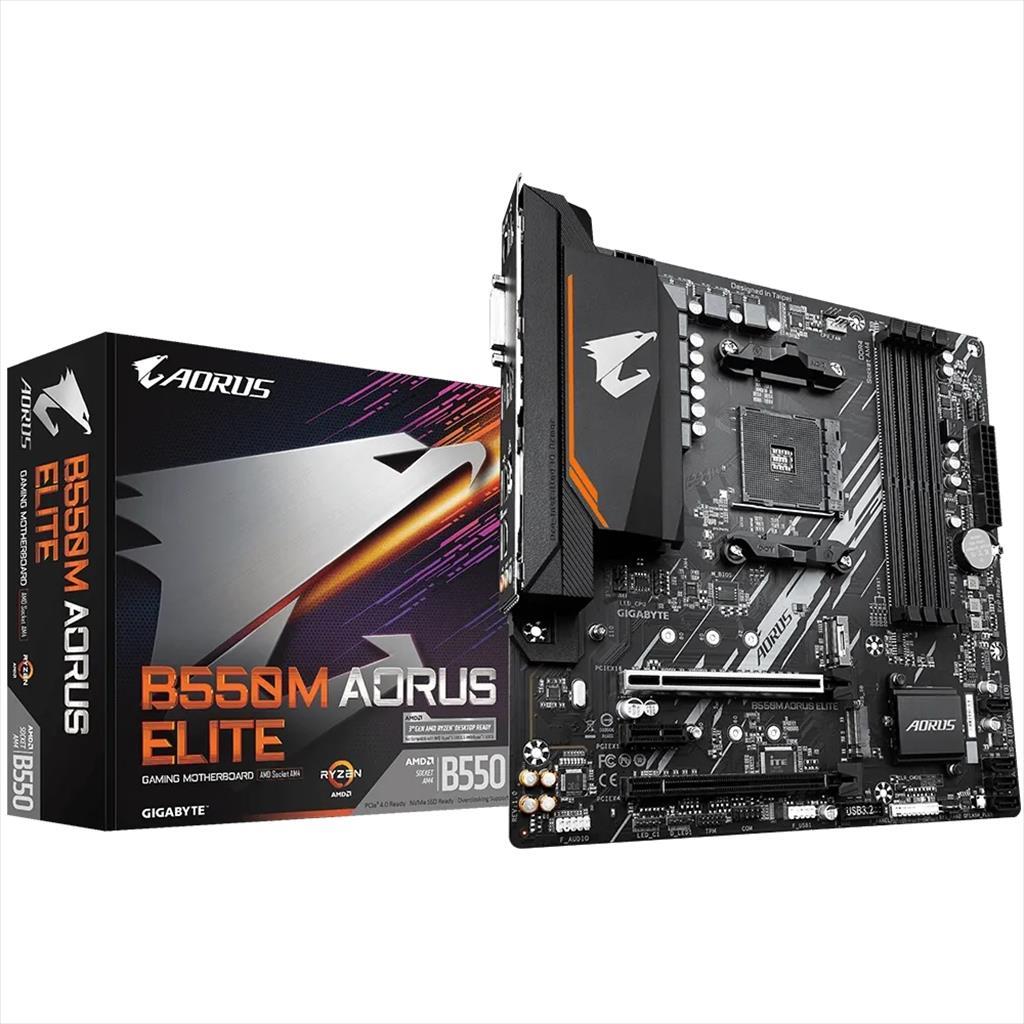

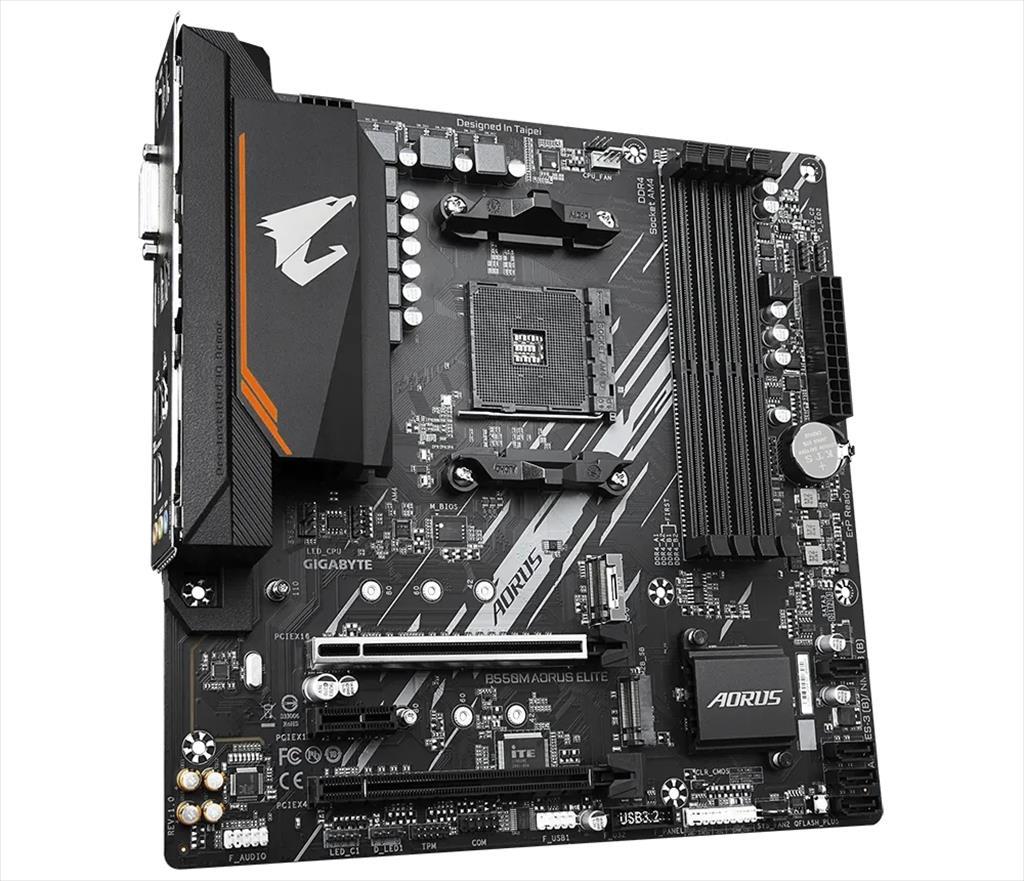

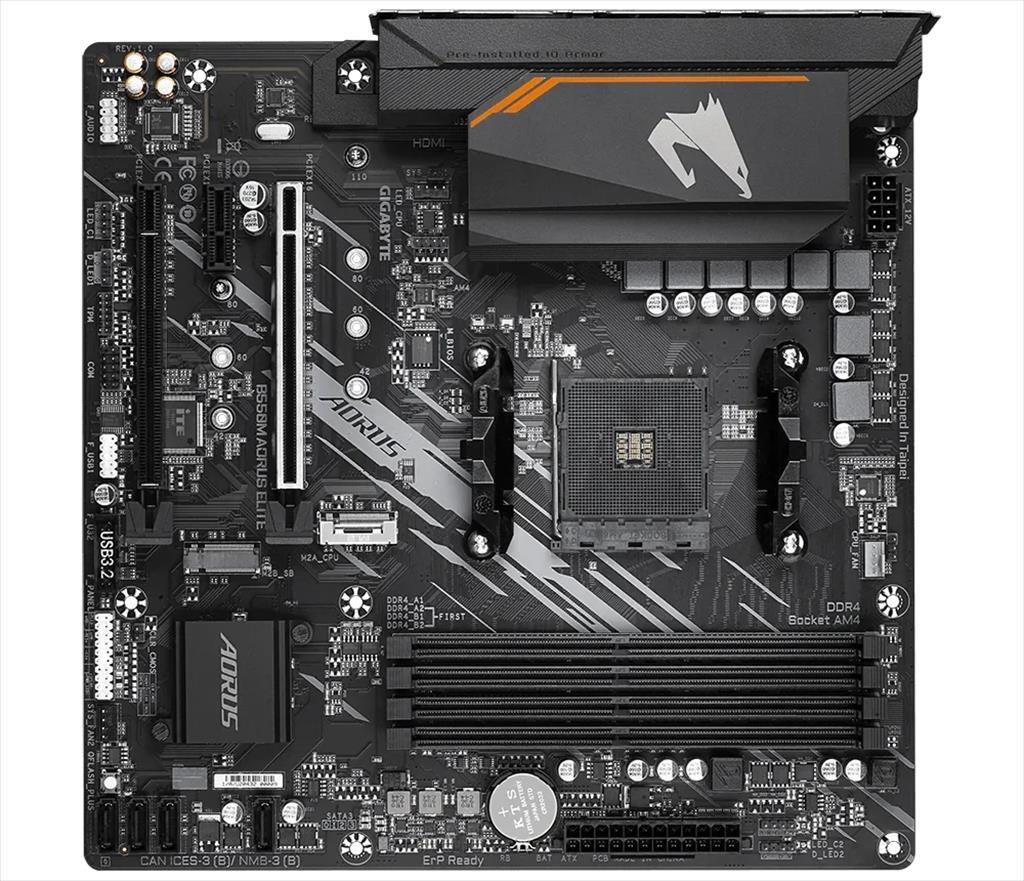

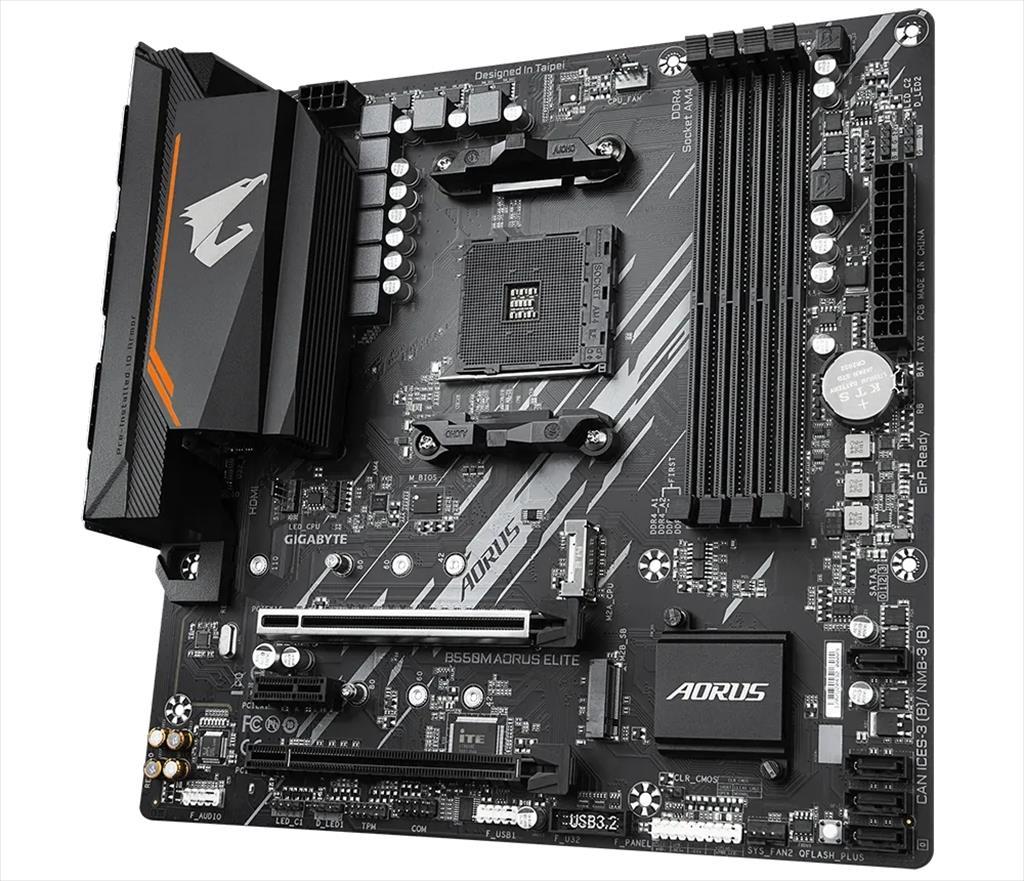

Model Name: GIGABYTE B550M AORUS ELITE

Specification

• CPU: AMD Socket AM4, support for AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
• Chipset: AMD B550
• Memory:
  • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Dual channel memory architecture
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules* (* ECC memory (ECC mode) support varies by CPU)
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
• Onboard Graphics:
  • Integrated Graphics Processor:
  • 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  • * The DVI-D port does not support D-Sub connection by adapter.
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
  • Maximum shared memory of 16 GB
• Audio: Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
• LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)
• Expansion Slots:
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    • AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
    • AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
    • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset: Supporting PCIe 3.0 x4 mode
  • 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1 mode
• Storage Interface:
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
    • AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
    • AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
  • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs
  • 4 x SATA 6Gb/s connectors, integrated in the Chipset: Support for RAID 0, RAID 1, and RAID 10
• USB:
  • CPU: 4 x USB 3.2 Gen 1 ports on the back panel
  • Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header
  • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 2 x system fan headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 1 x USB 2.0/1.1 header
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper
  • 1 x Q-Flash Plus button
  • * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

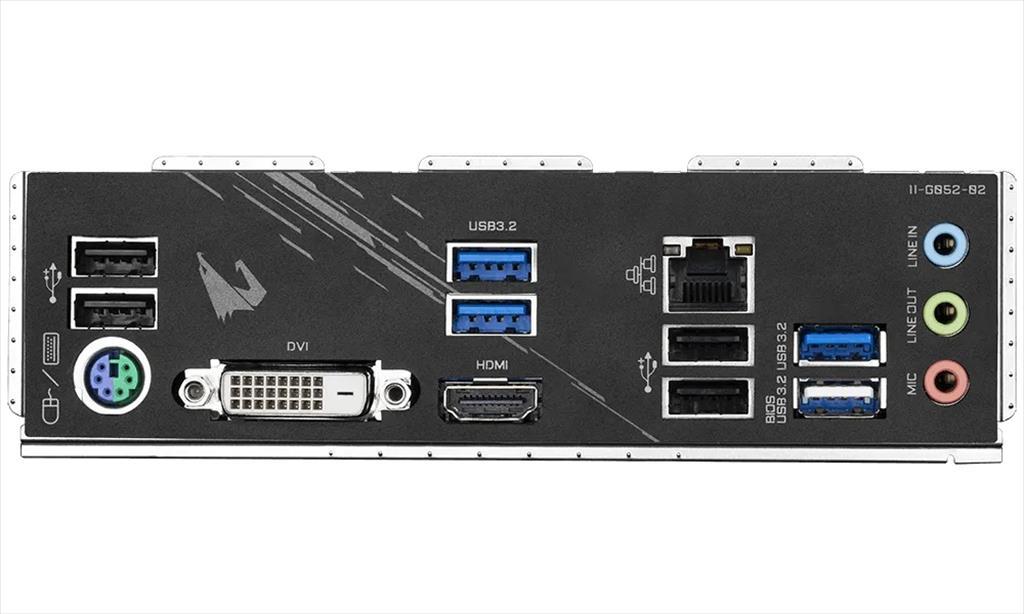

• Back Panel Connectors:
  • 1 x PS/2 keyboard/mouse port
  • 1 x DVI-D port
  • 1 x HDMI port
  • 4 x USB 3.2 Gen 1 ports
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks
• I/O Controller: iTE® I/O Controller Chip®
• H/W Monitoring:
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control (* Whether the fan speed control function is supported will depend on the cooler you install.)
• BIOS:
  • 1 x 256 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features:
  • Support for APP Center (* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.)
  • @BIOS
  • EasyTune
  • Fast Boot
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
