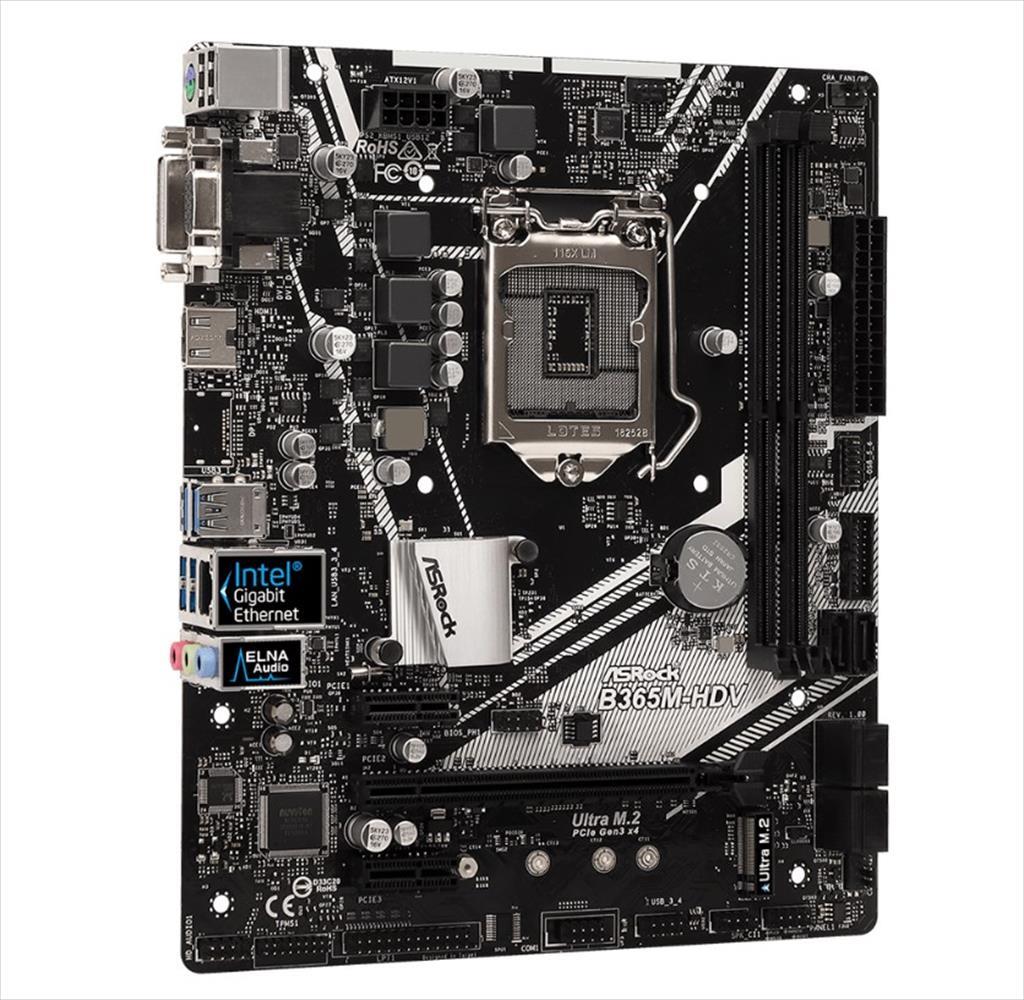

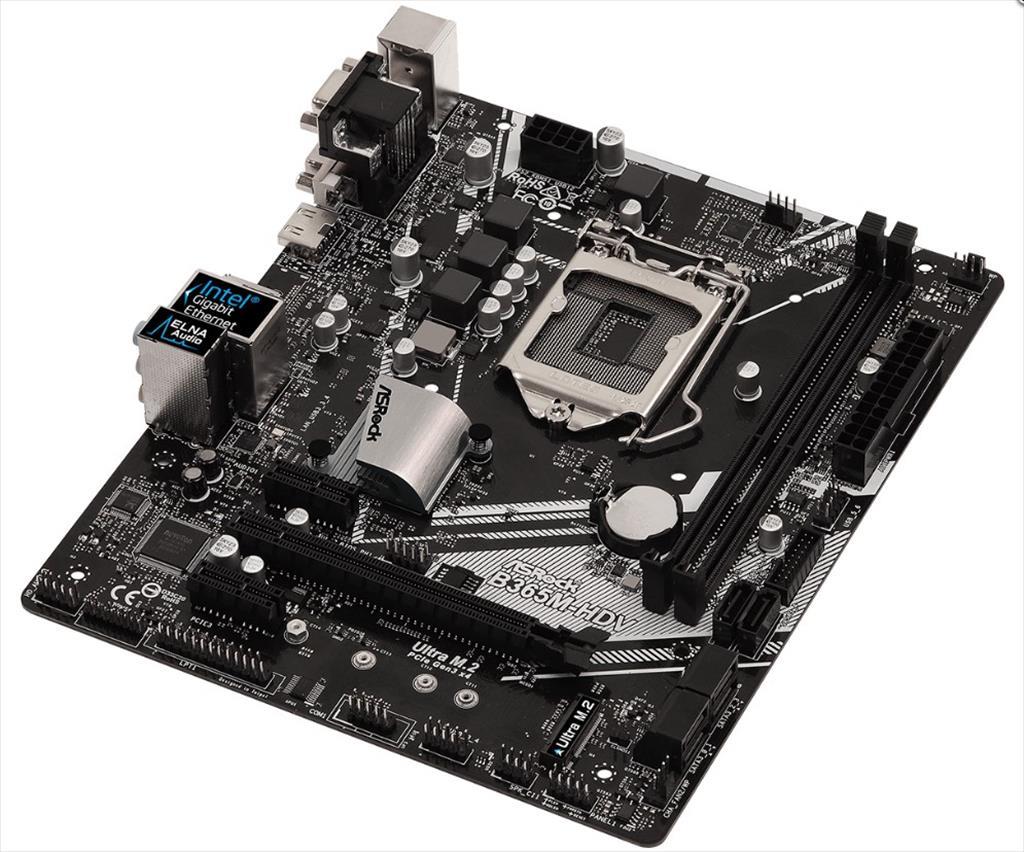

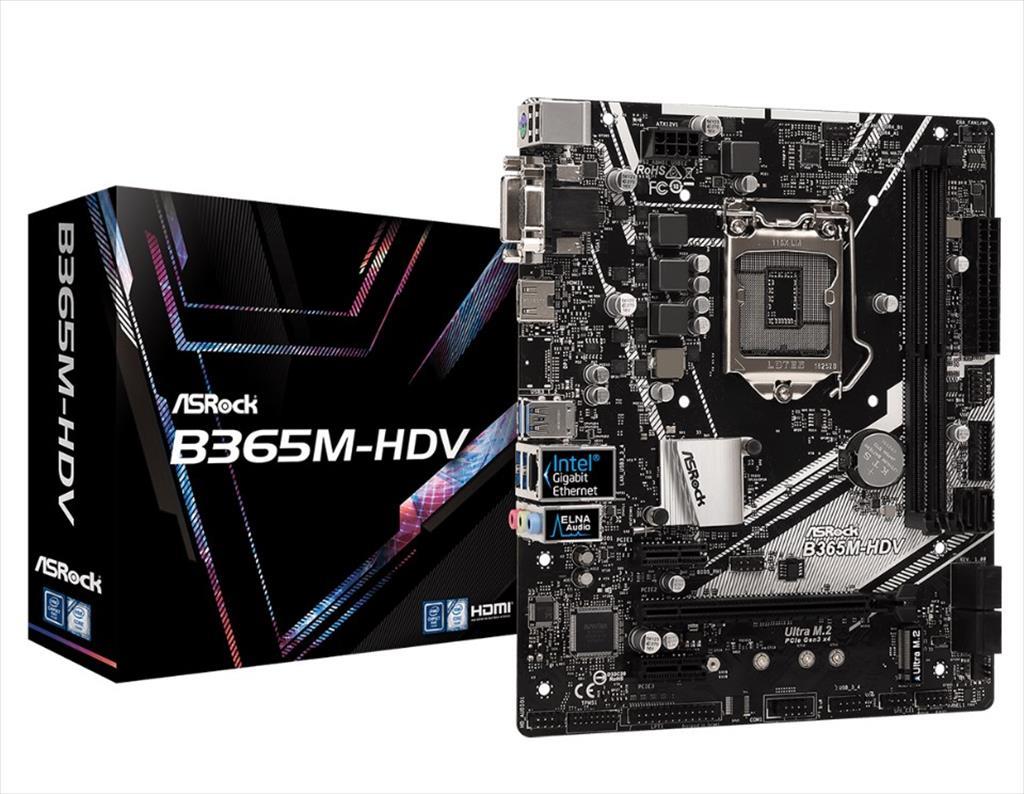

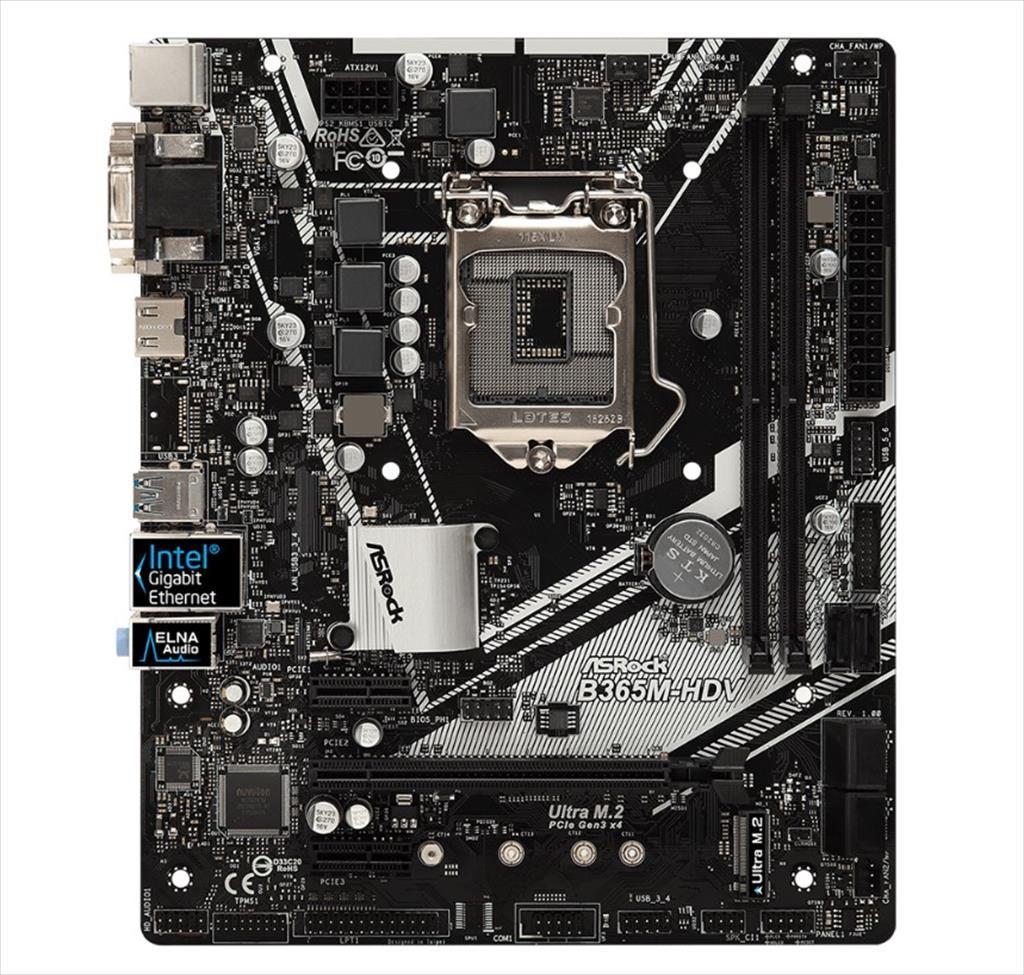

Model Name: ASROCK B365M-HDV

Specification :

• CPU Support: Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
• Chipset: Intel® B365
• Memory:
  • Dual Channel DDR4 Memory Technology
  • 2 x DDR4 DIMM Slots
  • Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
  • Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 32GB
  • Supports Intel® Extreme Memory Profile (XMP) 2.0
• 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• Graphics:
  • Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW
  • HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
  • Three graphics output options: D-Sub, DVI-D and HDMI
  • Supports Triple Monitor
  • Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
  • Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
  • Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
  • Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port
• Audio:
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • Supports Surge Protection
  • ELNA Audio Caps
• LAN:
  • Gigabit LAN 10/100/1000 Mb/s
  • Giga PHY Intel® I219V, Supports Wake-On-LAN, Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az, Supports PXE
• Wireless LAN:
  • Slots:
    • 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)
    • 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
  • Storage:
    • 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug
    • 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
  • Connectors:
    • 1 x Print Port Header, 1 x COM Port Header, 1 x TPM Header
    • 1 x Chassis Intrusion and Speaker Header
    • 1 x CPU Fan Connector (4-pin)
    • 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
    • 1 x 24 pin ATX Power Connector, 1 x 8 pin 12V Power Connector
    • 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    • 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

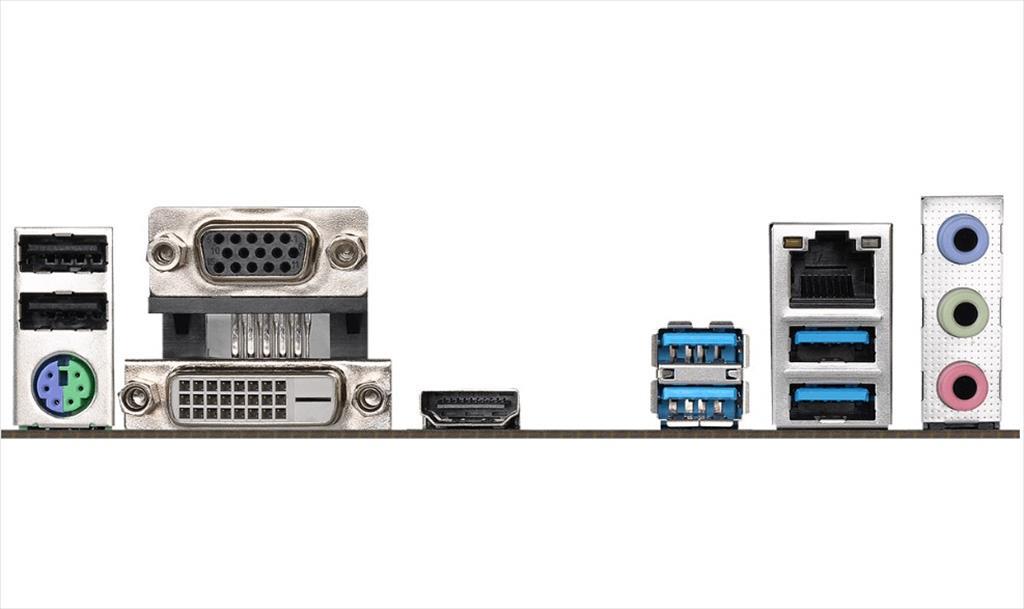

  • Rear Panel I/O:
    • 1 x PS/2 Mouse/Keyboard Port, 1 x D-Sub Port, 1 x DVI-D Port
    • 1 x HDMI Port, 2 x USB 2.0 Ports (Supports ESD Protection), 4 x USB 3.1 Gen1 Ports
    • 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    • HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI:
    • ASRock A-Tuning
    • ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI
  • Form Factor: Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
  • OS Support: Microsoft Windows® 10 64-bit / 11 64-bit
  • Certifications: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)
