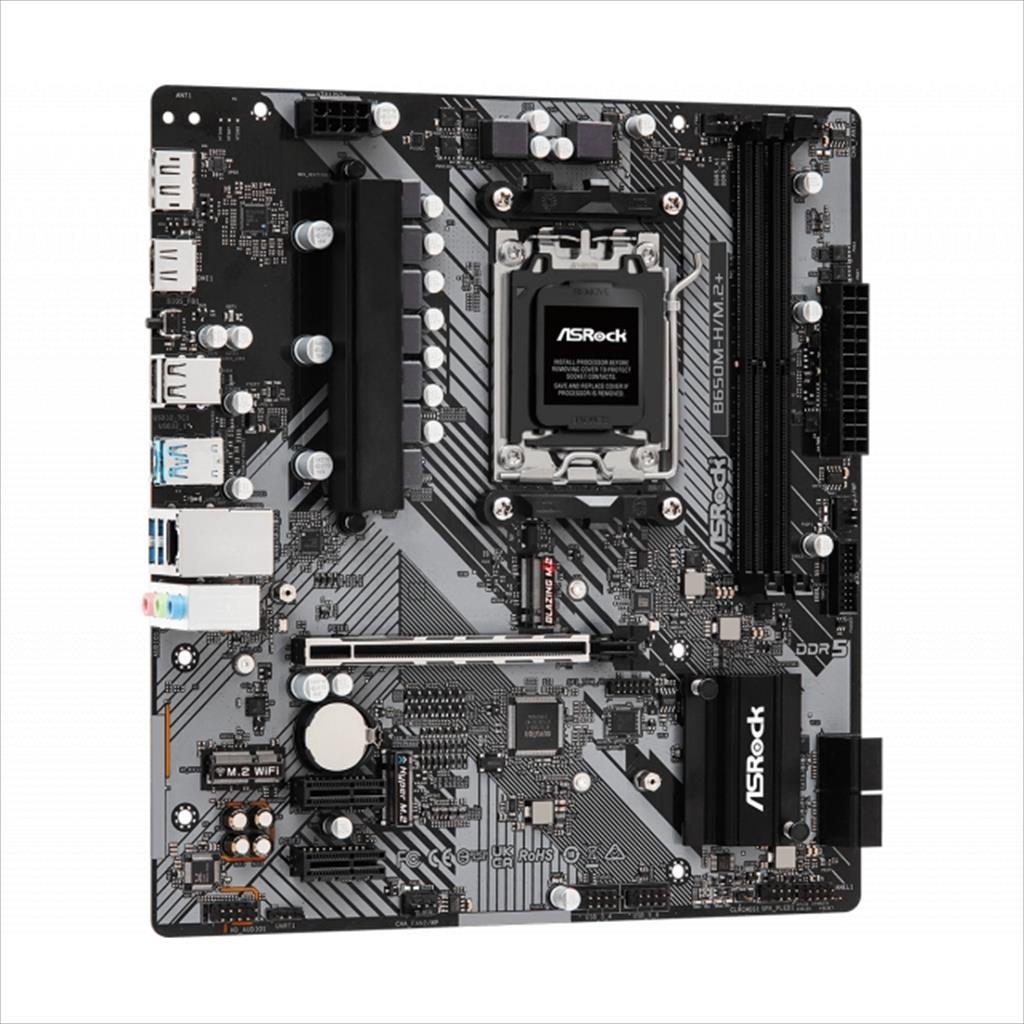

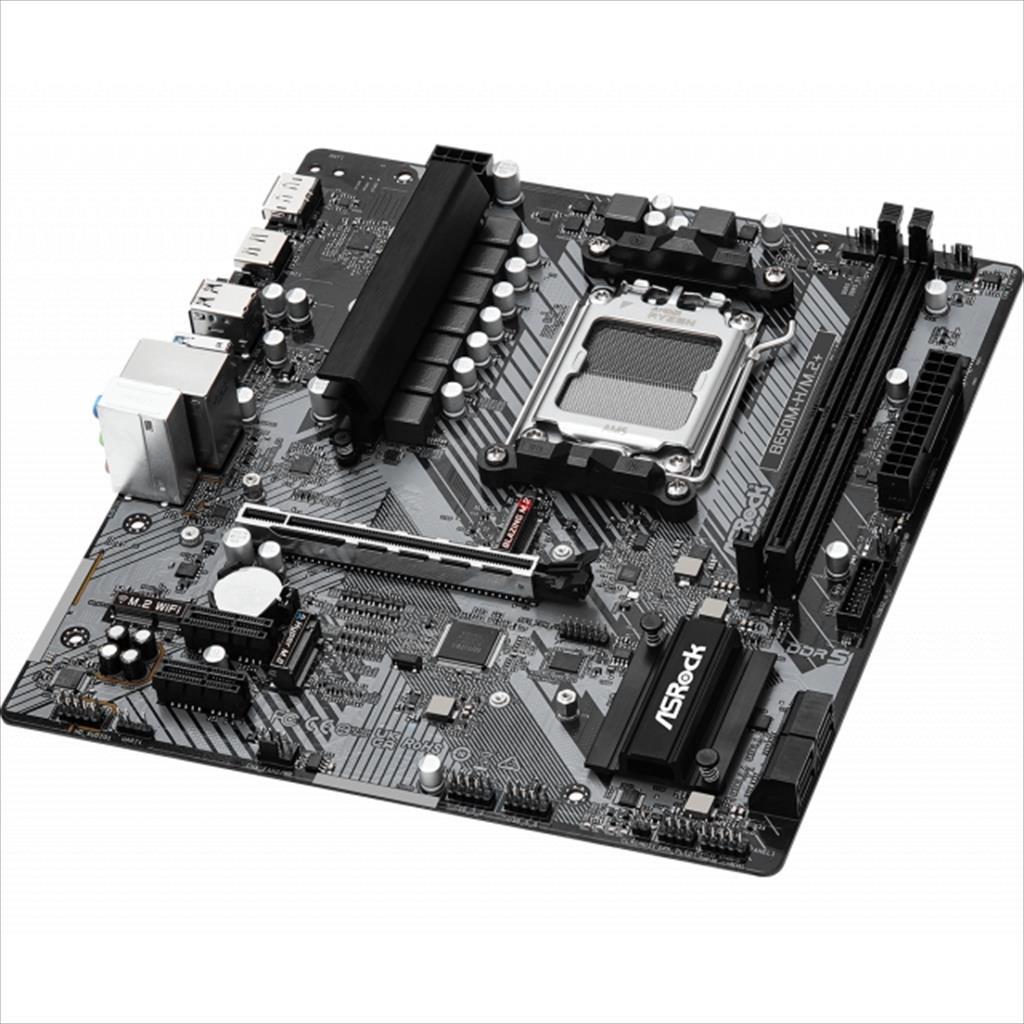

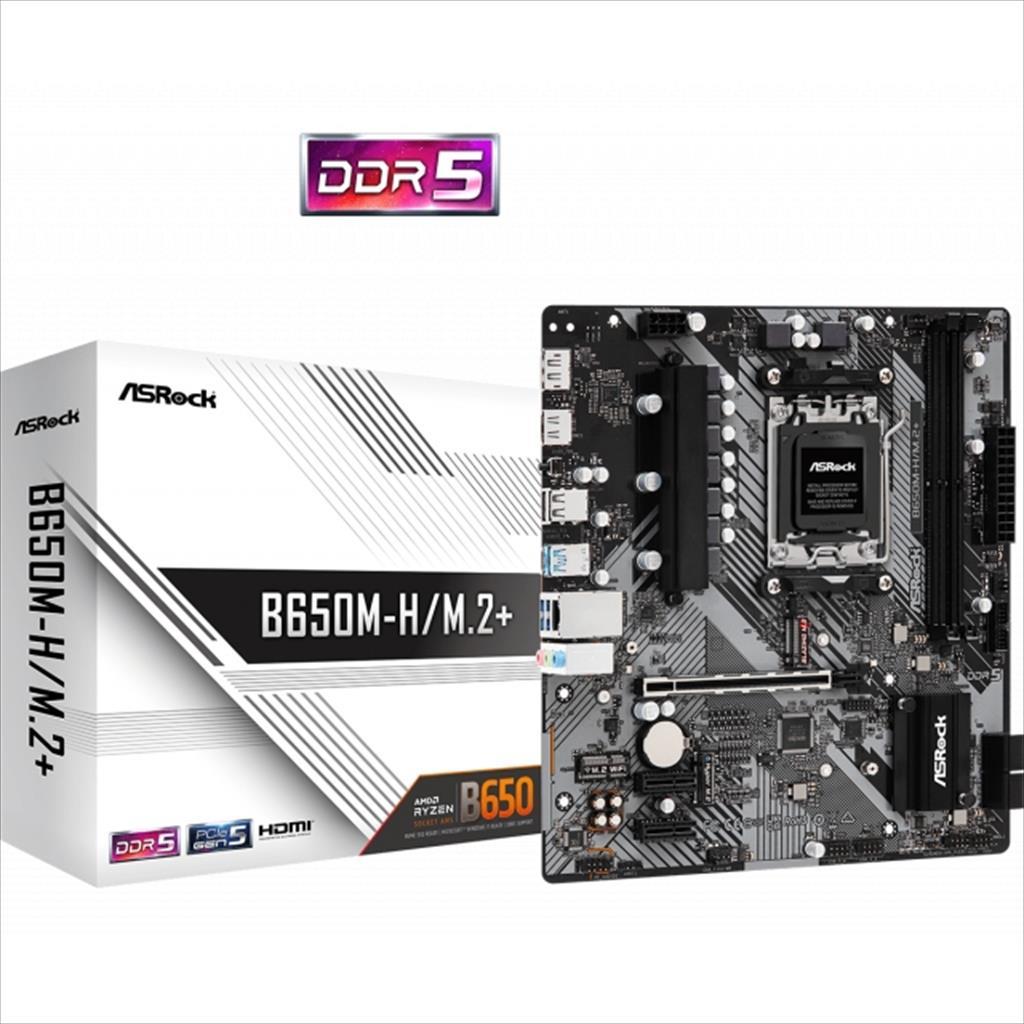

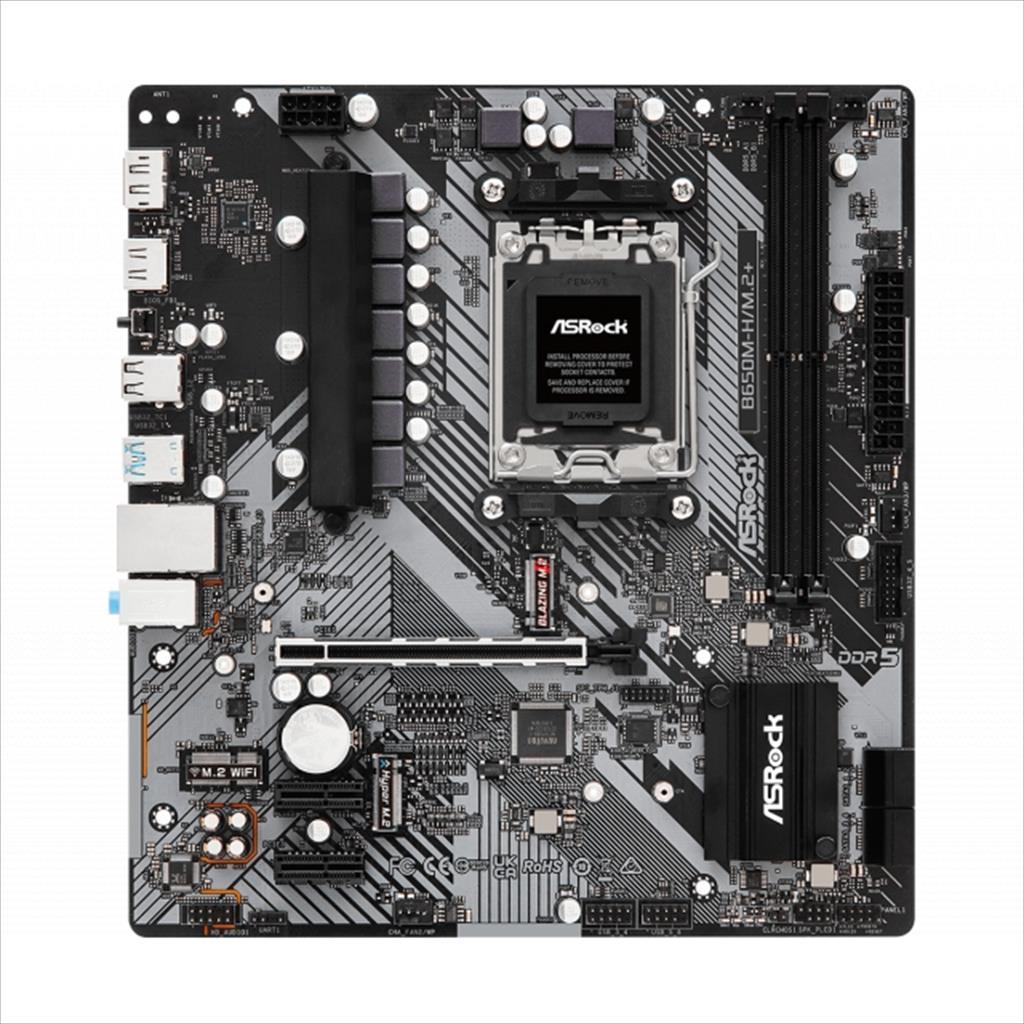

Model Name: ASROCK B650M-H/M.2+

CPU

• Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors*

Chipset

• AMD B650

Memory

• Dual Channel DDR5 Memory Technology
• 2 x DDR5 DIMM Slots
• Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)*
• Max. capacity of system memory: 96GB
• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

• 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

• Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

LAN

• Gigabit LAN 10/100/1000 Mb/s
• Realtek RTL8111H

Slots

CPU:

• 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

• 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module*
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Storage

CPU:

• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

• 4 x SATA3 6.0 Gb/s Connectors

RAID

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

• 1 x USB 3.2 Gen1 Type-C (Rear)
• 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)

Connector

• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

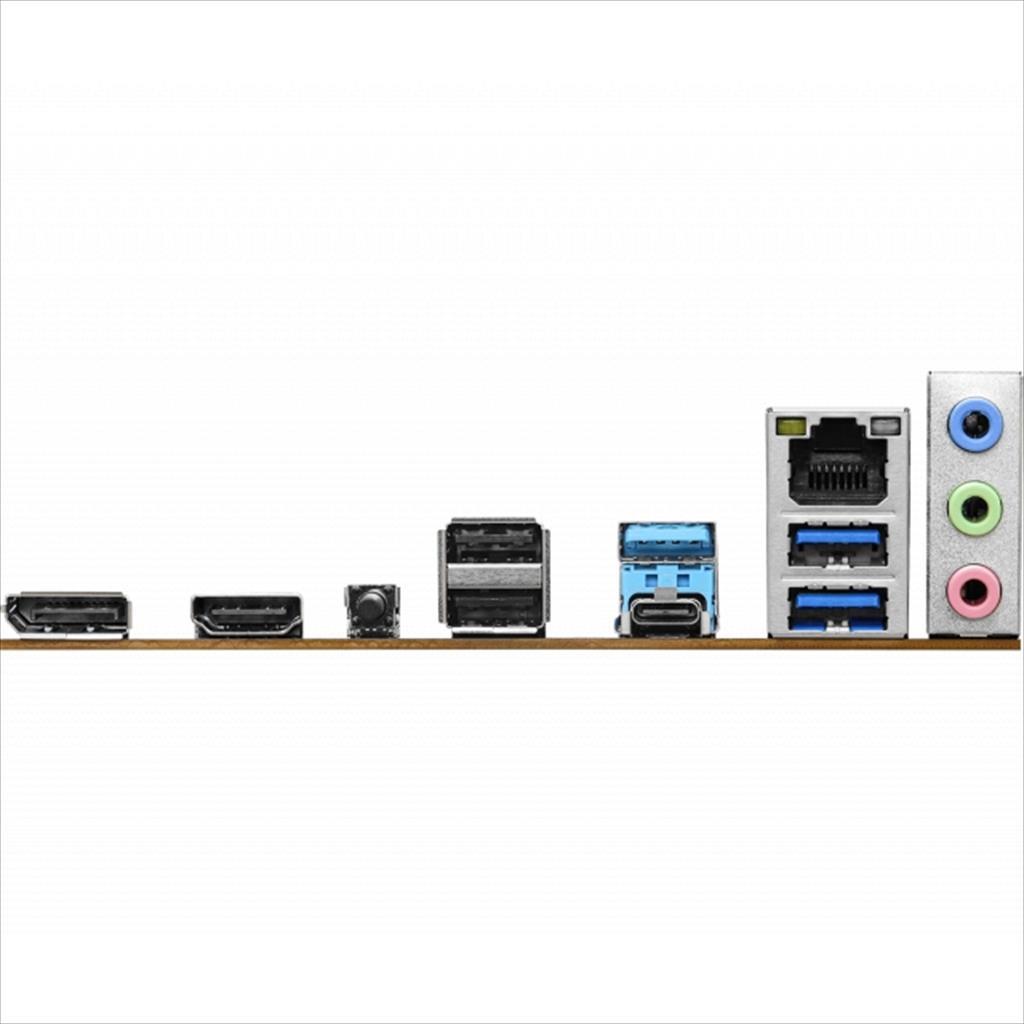

Rear Panel I/O

• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C Port
• 3 x USB 3.2 Gen1 Type-A Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

• ASRock Motherboard Utility (A-Tuning)
• ASRock XFast LAN

UEFI

• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

Form Factor

Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm

OS

Microsoft Windows® 10 64-bit / 11 64-bit

Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
