MB AM5 X870E TAICHI LITE ASROCK 4xDDR5 8200Mhz (O.C), HDMI, 2xPCI-Ex16 5.0, 4xM.2,6xSATA3,BT 5.4, 90-MXBPA0-A0UAYZ

Цена со ДДВ: 26.000 ден.
Шифра: 18683
Баркод: 4710483947445
Производител: ASROCK
Гаранција: 720 дена
залиха: Наскоро
Спецификација

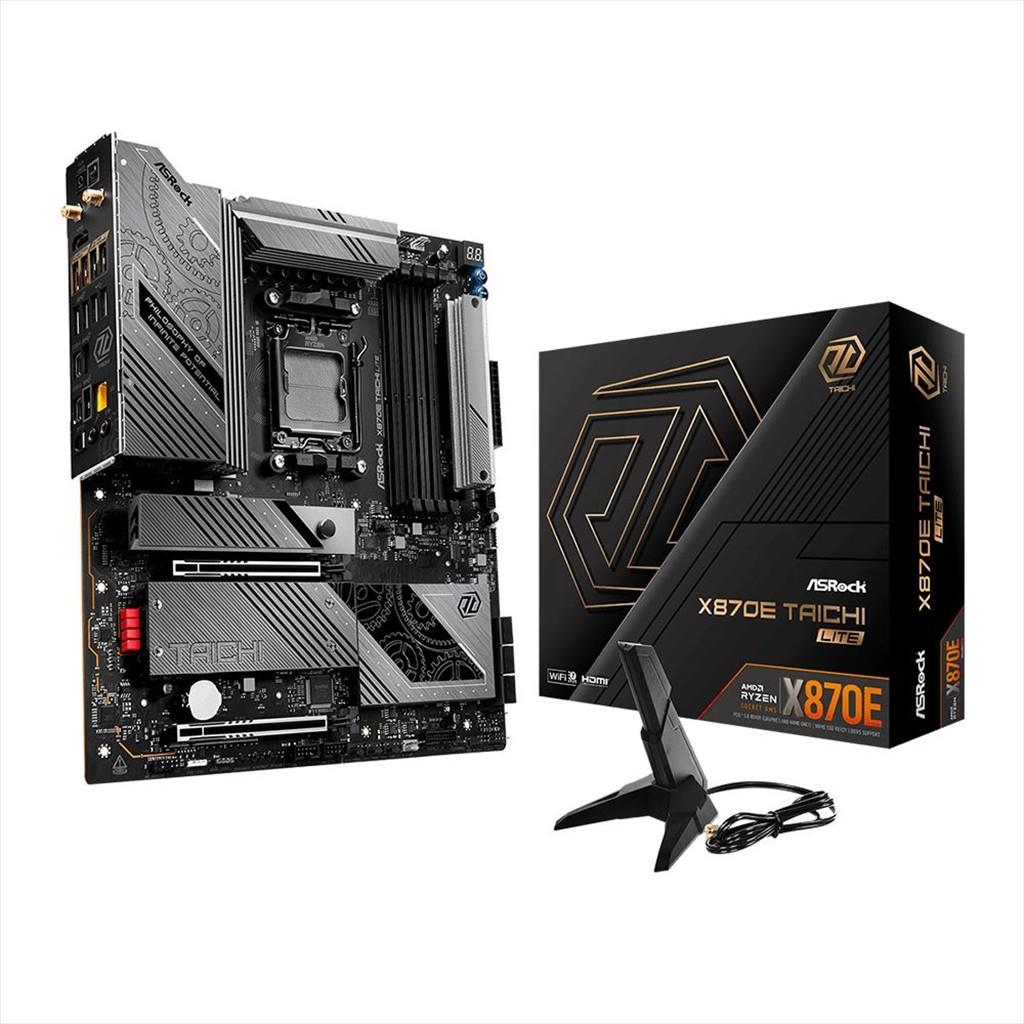

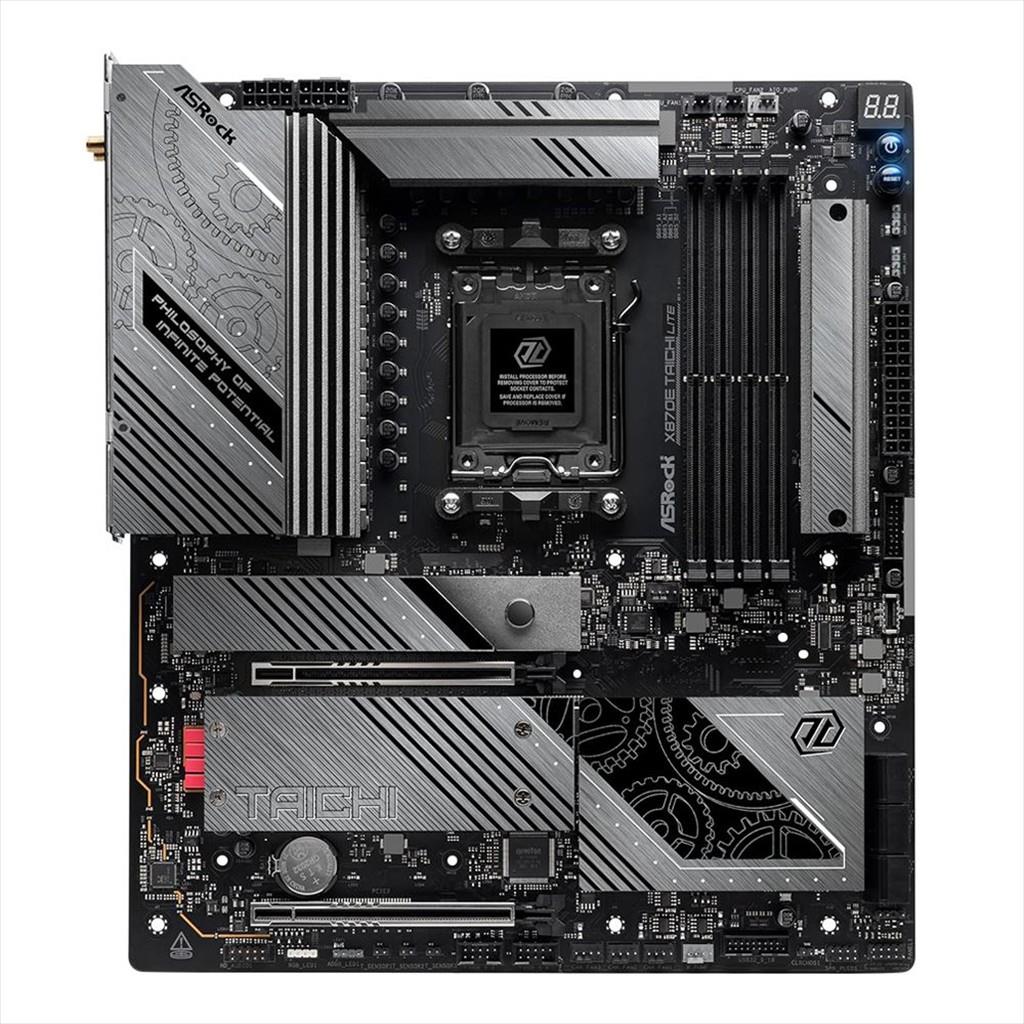

ASRock X870E Taichi Lite AM5 DDR5 EATX Motherboard

The ASRock X870E Taichi Lite is a high-performance EATX motherboard designed for AMD Socket AM5 processors. It supports DDR5 memory, PCIe 5.0 graphics, multiple high-speed NVMe storage devices, USB4 connectivity, 5Gbps Ethernet, and Wi-Fi 7 wireless networking.

Key Features

  • AMD Socket AM5 platform
  • AMD X870E chipset
  • Supports dual-channel DDR5 memory
  • Up to 256GB system memory capacity
  • PCIe 5.0 graphics support with x16 or x8/x8 operation
  • PCIe Gen5 and Gen4 M.2 storage support
  • USB4 Type-C connectivity up to 40Gbps
  • 5 Gigabit Ethernet
  • Integrated Wi-Fi 7 and Bluetooth 5.4
  • High-quality Realtek and ESS SABRE audio hardware

Memory

  • Memory Type: DDR5
  • Memory Slots: 4 x DDR5 DIMM
  • Memory Architecture: Dual-channel
  • Maximum Capacity: 256GB
  • Supported Memory: ECC and non-ECC unbuffered memory
  • Maximum Overclocked Speed: DDR5-8200+ (OC)
  • Memory Profiles: AMD EXPO and Intel XMP

Expansion Slots

  • 2 x PCIe 5.0 x16 slots
  • Supports x16 or x8/x8 operating modes
  • 1 x vertical M.2 Key E socket for 2230 Wi-Fi/Bluetooth modules

Graphics Outputs

  • 1 x HDMI 2.1 TMDS/FRL 8G-compatible port
  • Supports HDR and HDCP 2.3
  • Maximum HDMI resolution: 4K at 120Hz
  • 2 x USB4 Type-C ports with display output support
  • Maximum USB4 display resolution: 8K at 30Hz

Storage

  • 1 x Blazing M.2 socket, Key M, supporting 2280 PCIe Gen5 x4 mode up to 128Gbps
  • 3 x Hyper M.2 sockets, Key M, supporting 2280 PCIe Gen4 x4 mode up to 64Gbps each
  • 6 x SATA3 6.0Gbps connectors
  • Supports NVMe SSD boot drives
  • Supports RAID 0, RAID 1, and RAID 10 for SATA storage
  • Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage

Networking

  • Wired LAN: 1 x 5 Gigabit Ethernet port
  • LAN Controller: Realtek RTL8126CG
  • Supported Ethernet Speeds: 10/100/1000/2500/5000Mbps
  • Wireless Standard: Wi-Fi 7, IEEE 802.11be
  • Wireless Configuration: 2x2
  • Supported Wireless Standards: 802.11a/b/g/n/ac/ax/axe/be
  • Frequency Bands: 2.4GHz, 5GHz, and 6GHz
  • 6GHz Channel Bandwidth: Up to 160MHz
  • Bluetooth: Bluetooth 5.4
  • MU-MIMO support

USB Connectivity

  • 2 x USB4 Type-C ports on the rear panel, up to 40Gbps
  • 2 x USB 3.2 Gen2 Type-A ports on the rear panel
  • 1 x front-panel USB 3.2 Gen2x2 Type-C port, up to 20Gbps
  • 3 x USB 3.2 Gen2 Type-A ports on the rear panel, up to 10Gbps
  • 7 x USB 3.2 Gen1 Type-A ports, including 3 rear and 4 front ports
  • 6 x USB 2.0 ports, including 2 rear and 4 front ports
  • All USB ports feature ESD protection

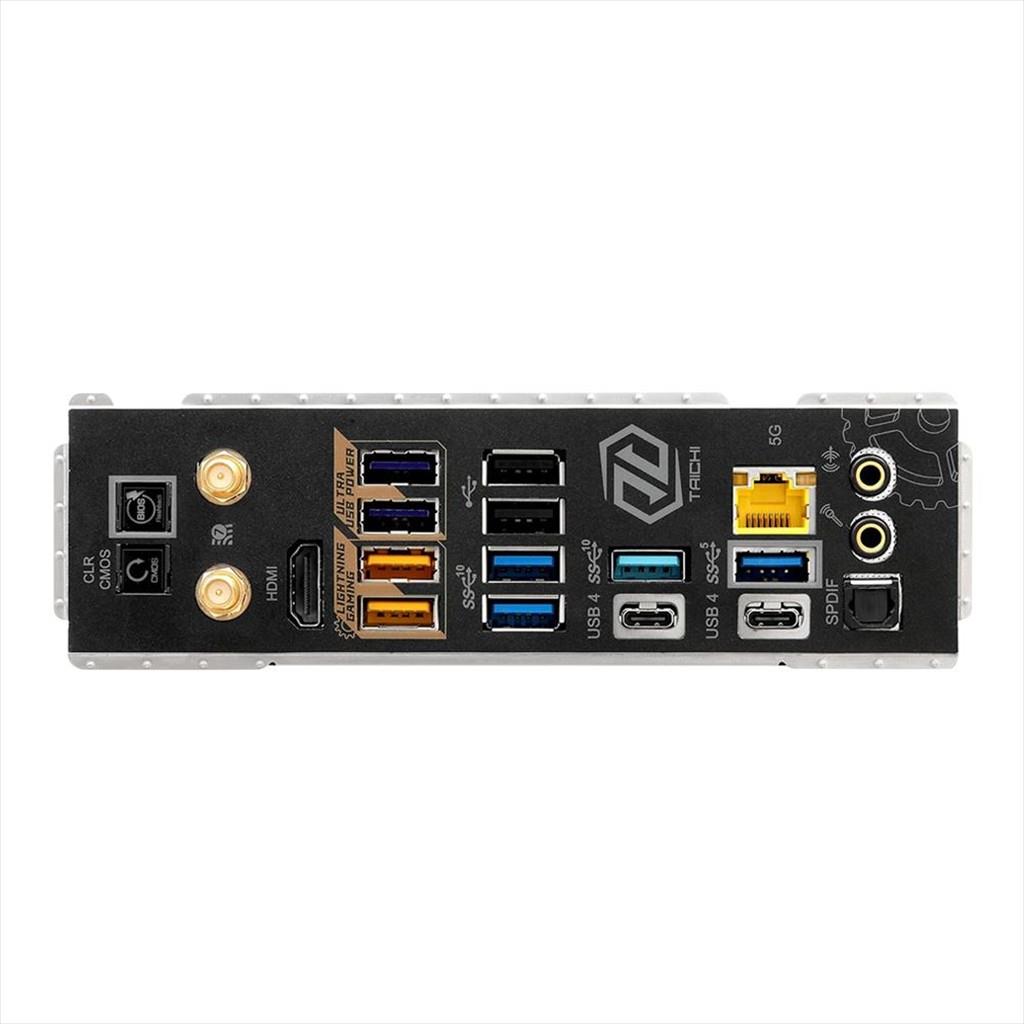

Rear Panel I/O

  • 2 x Wi-Fi antenna connectors
  • 1 x HDMI port
  • 1 x optical S/PDIF output
  • 2 x USB4 Type-C ports
  • 5 x USB 3.2 Gen2 Type-A ports
  • 3 x USB 3.2 Gen1 Type-A ports
  • 2 x USB 2.0 ports
  • 1 x RJ-45 5Gbps LAN port
  • 1 x Clear CMOS button
  • 1 x BIOS Flashback button
  • 1 x line-out jack with gold-plated connector
  • 1 x microphone input jack with gold-plated connector
