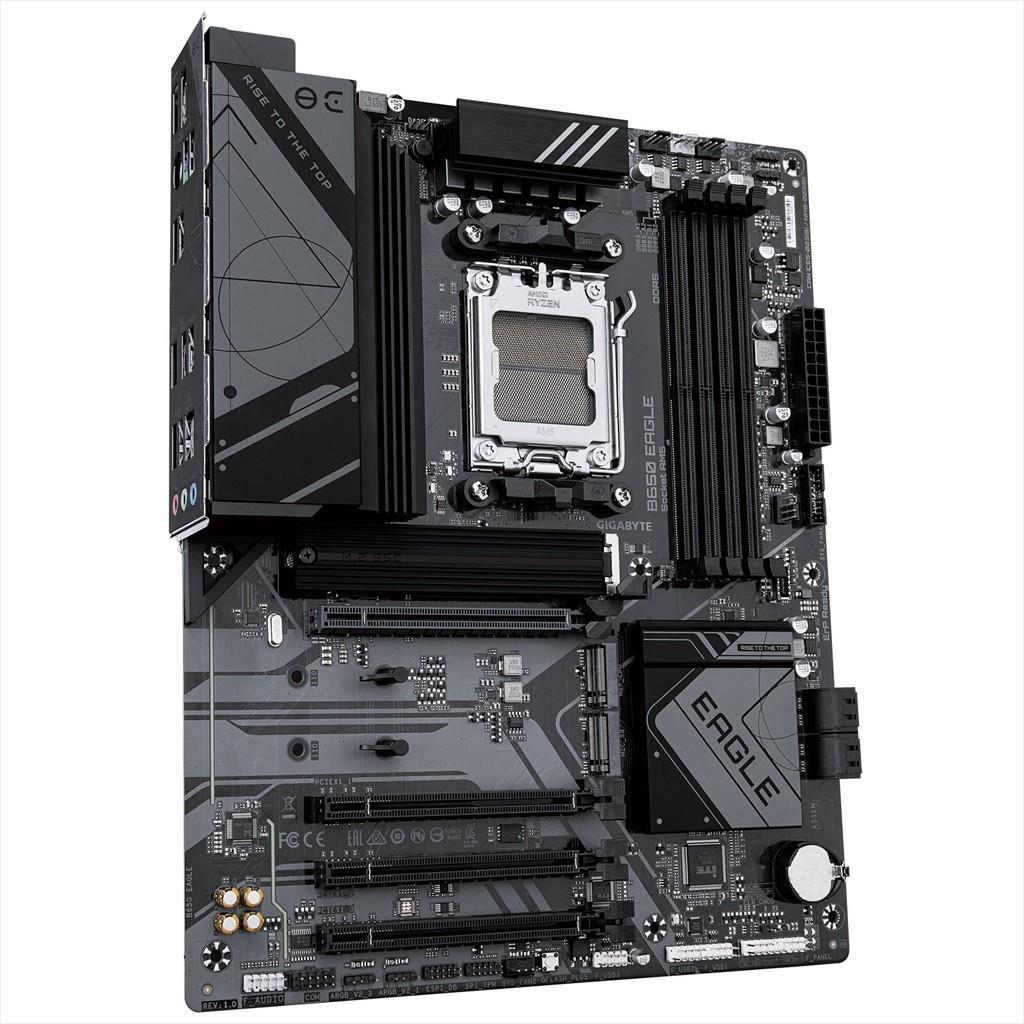

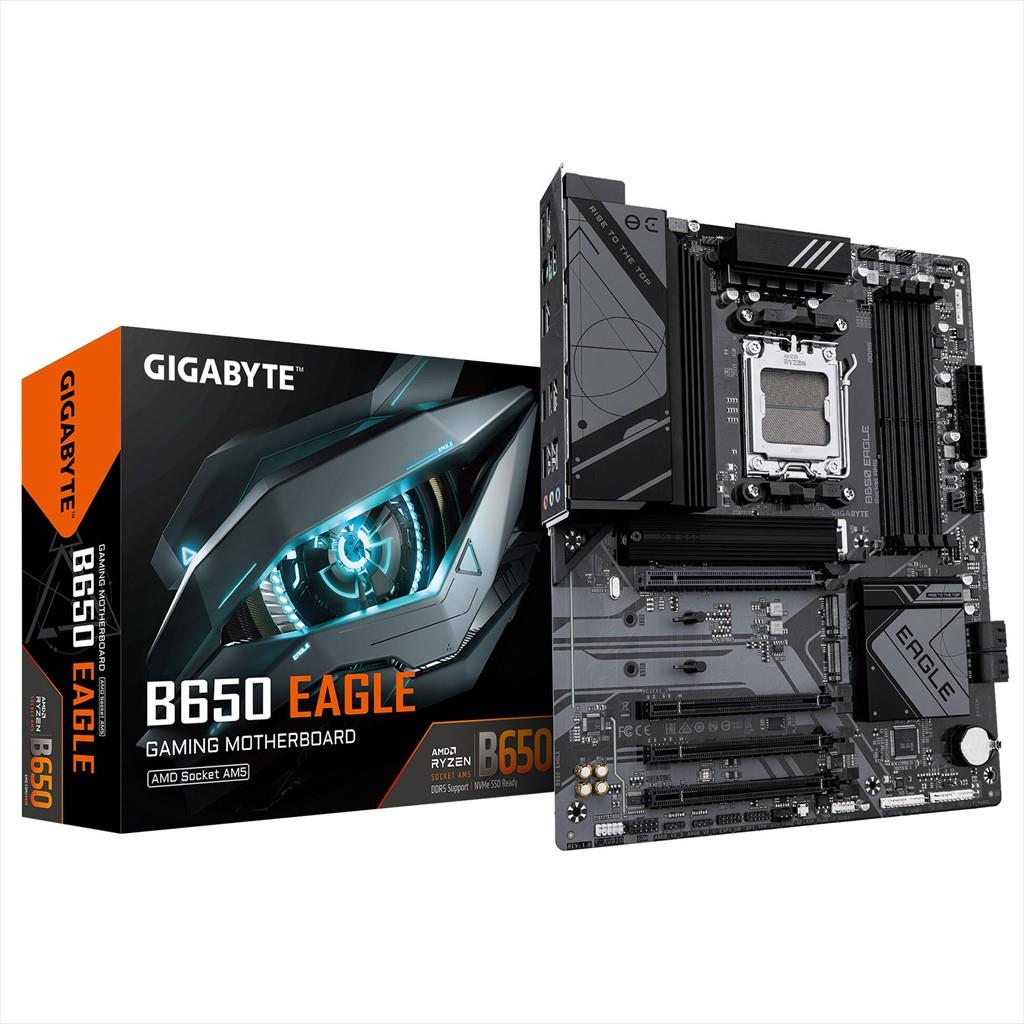

MB AM5 B650 EAGLE GIGABYTE 4xDDR5 8000Mhz (O.C), DP, HDMI, PCI-Ex16 4.0, 3xPCI-Ex16 3.0, M.2 PCIe 5.0, 2xM.2 4.0, 4xSATAIII

Цена со ДДВ: 7.990 ден.
Шифра: 18678
Баркод: 4719331863081
Производител: GIGABYTE
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model Name: GIGABYTE B650 Eagle motherboard, Socket AM5, AMD B650, ATX, DDR5

AMD B650 ATX motherboard · Socket AM5 · DDR5 support · PCIe 5.0 M.2 · Realtek ALC897 audio
ATX motherboard for AMD AM5 desktop systems with DDR5 memory, multiple M.2 slots and flexible expansion options

Features

  • Designed for AMD Socket AM5 processors using the AMD B650 chipset
  • ATX form factor provides broad compatibility with standard desktop PC cases
  • Four DDR5 DIMM slots support up to 192GB of system memory
  • Supports DDR5 memory speeds of up to 7600 MHz when overclocked
  • Includes one PCIe 4.0 x16 mechanical slot and three PCIe 3.0 x16 mechanical slots for expansion cards
  • Three M.2 slots provide high-speed SSD support, including one PCIe 5.0 x4 slot
  • Four internal SATA 6G ports support additional storage drives

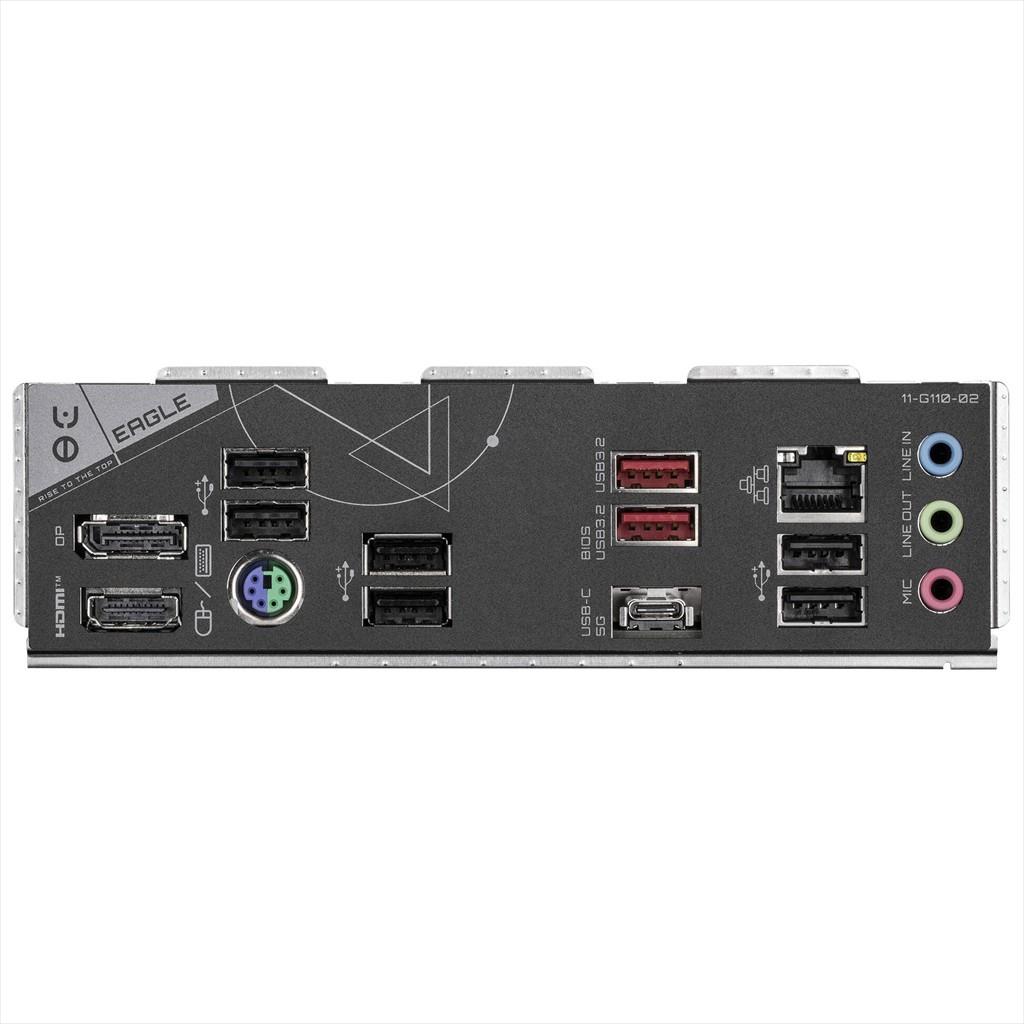

  • Rear I/O panel includes USB-C, USB-A 3.1 and USB-A 2.0 ports for peripheral connectivity
  • Integrated 1 Gbit/s LAN port provides wired network connectivity
  • Realtek ALC897 sound chip delivers onboard audio for everyday use
  • OC-focused features include 14 virtual phase VRMs, BIOS Flashback and Clear CMOS
  • Supports up to five 4-pin PWM fan connectors for system cooling control
  • Includes RGB and digital RGB headers for lighting customization
  • DisplayPort and HDMI outputs provide display connectivity when using a compatible processor with integrated graphics

Specification

  • Model name: GIGABYTE B650 Eagle motherboard, Socket AM5, AMD B650, ATX, DDR5
  • Brand: GIGABYTE
  • Product type: Motherboard
  • Form factor: ATX
  • CPU socket: Socket AM5
  • Chipset: AMD B650
  • Memory type: DDR5
  • Memory form factor: DIMM
  • Memory slots: 4
  • Maximum memory capacity: 192GB
  • Maximum memory speed: Up to 7600 MHz OC
  • PCIe x16 slots total: 4
  • PCIe 4.0 x16 mechanical slots: 1
  • PCIe 3.0 x16 mechanical slots: 3
  • M.2 PCIe 5.0 x4: 1
  • M.2 PCIe 4.0 x4: 1
  • M.2 PCIe 4.0 x2: 1
  • SATA 6G internal ports: 4
  • LAN ports: 1 × 1 Gbit/s
  • Sound chip: Realtek ALC897
  • CPU power supply connector: 1 × 8-pin
  • Fan connectors: Up to 5 × 4-pin PWM
  • OC features: 14 virtual phase VRMs, BIOS Flashback, Clear CMOS
  • Rear USB ports: 1 × USB-C 3.0, 2 × USB-A 3.1, 6 × USB-A 2.0
  • Internal USB Type-C possible ports: 1 × USB 3.0 / 3.1 / 3.2 Type-C
  • Internal USB 3.0 possible ports: 2
  • External USB 3.1 Type-A: 2
  • External USB 3.0 Type-C: 1
  • External USB 2.0 Type-A: 6
  • Display connectors: 1 × DisplayPort, 1 × HDMI
  • RGB / LED connectors: 1 × RGB 4-pin 5050 12VGRB, 3 × Digital RGB 3-pin 5VDG
