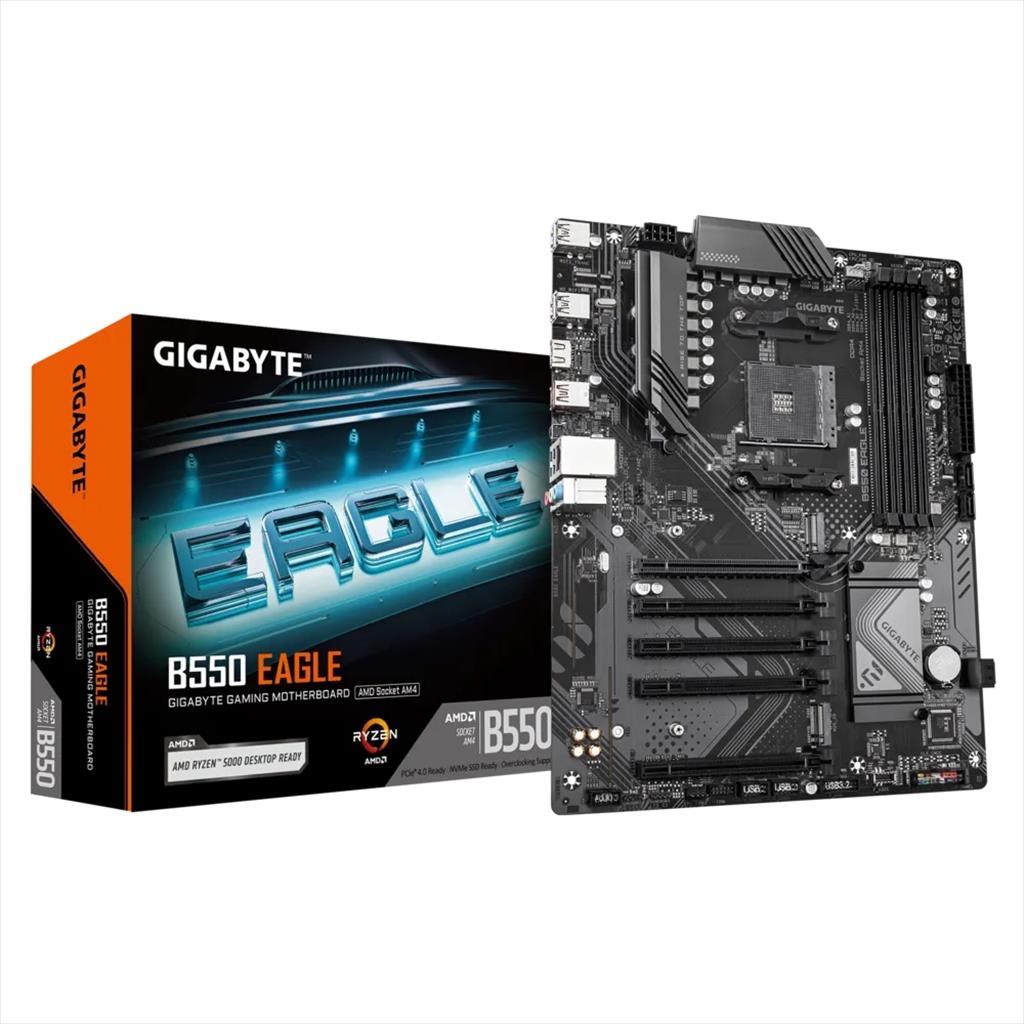

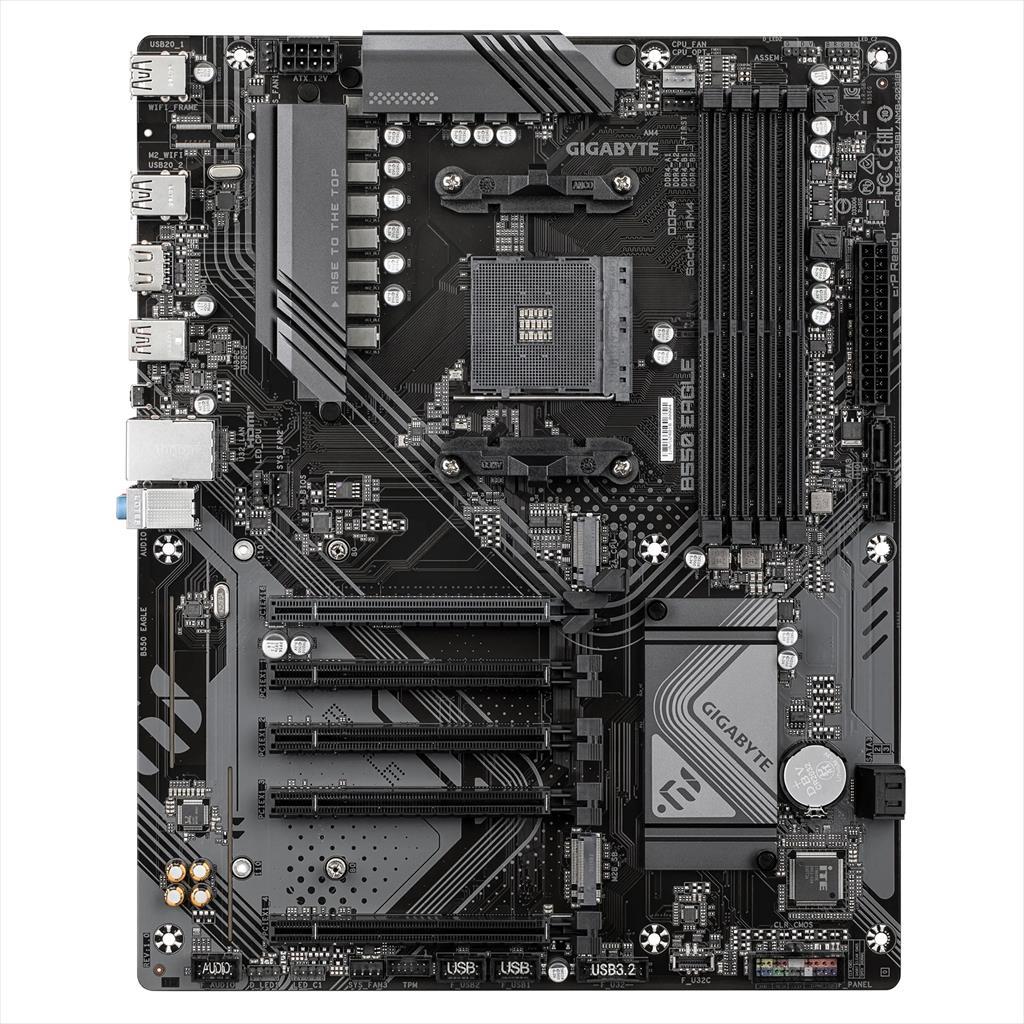

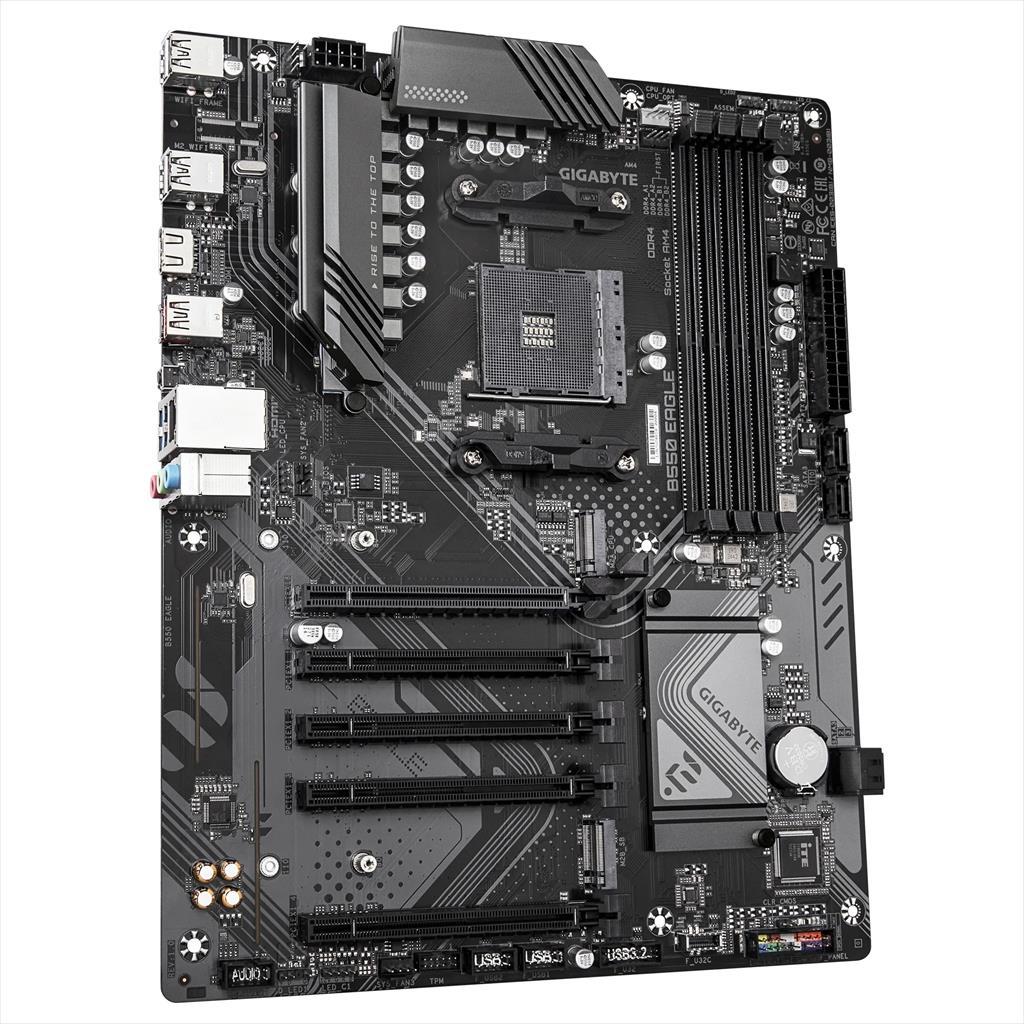

Model name: GIGABYTE B550 EAGLE

Specifications:

• CPU
  • AMD Socket: AM4
  • Supported Processors: AMD Ryzen™ 5000 G-Series / 5000 Series / 4000 G-Series / 3000 G-Series / 3000 Series
• Chipset: AMD B550
• Memory
  • 4 x DDR4 DIMM sockets, up to 128 GB (32 GB per DIMM)
  • Supported speeds: DDR4 3200/2933/2667/2400/2133 MT/s
  • Dual channel memory architecture
  • Supports ECC and non-ECC Un-buffered DIMMs
  • Supports Extreme Memory Profile (XMP)
• Onboard Graphics
  • Integrated Graphics Processor with AMD Radeon™ Graphics
  • 1 x HDMI port, max resolution 4096x2160@60 Hz
  • Maximum shared memory: 16 GB
• Audio
  • Realtek® Audio CODEC
  • High Definition Audio
  • 2/4/5.1/7.1-channel
• LAN
  • Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)
• Expansion Slots
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
    • Ryzen 5000/3000 Series: PCIe 4.0 x16
    • Ryzen 5000 G/4000 G/3000 G: PCIe 3.0 x16
    • Supports only graphics card or NVMe SSD; install graphics card in PCIEX16 slot if only one card
  • 4 x PCI Express x16 slots (Chipset), PCIe 3.0 at x1
• Storage Interface
  • 1 x M.2 (M2A_CPU), Socket 3, M key, type 22110/2280
    • Ryzen 5000/3000: SATA & PCIe 4.0 x4/x2
    • Ryzen 5000 G/4000 G/3000 G: SATA & PCIe 3.0 x4/x2
  • 1 x M.2 (M2B_SB), Socket 3, M key, 22110/2280, PCIe 3.0 x4/x2
  • 4 x SATA 6Gb/s connectors
  • RAID 0, 1, 10 support for NVMe & SATA devices
• USB
  • CPU:
    • USB 3.2 Gen 2 Type-A (red) / USB 3.2 Gen 1 (red)
    • 1 x USB Type-C® (USB 3.2 Gen 1)
    • 2 x USB 3.2 Gen 1 ports
  • Chipset:
    • 1 x USB Type-C® (USB 3.2 Gen 1, internal)
    • 2 x USB 3.2 Gen 1 (internal)
    • 4 x USB 2.0/1.1 (internal)
  • Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 (back panel)
• Internal I/O Connectors
  • 1 x 24-pin ATX main power
  • 1 x 8-pin ATX 12V power
  • 1 x CPU fan header
  • 1 x CPU fan / water cooling pump header
  • 3 x system fan headers
  • 2 x addressable LED headers
  • 2 x RGB LED headers
  • 1 x CPU cooler LED / RGB header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C® header (USB 3.2 Gen 1)
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x TPM header (2x6 pin, GC-TPM2.0_S only)
  • 1 x Clear CMOS jumper

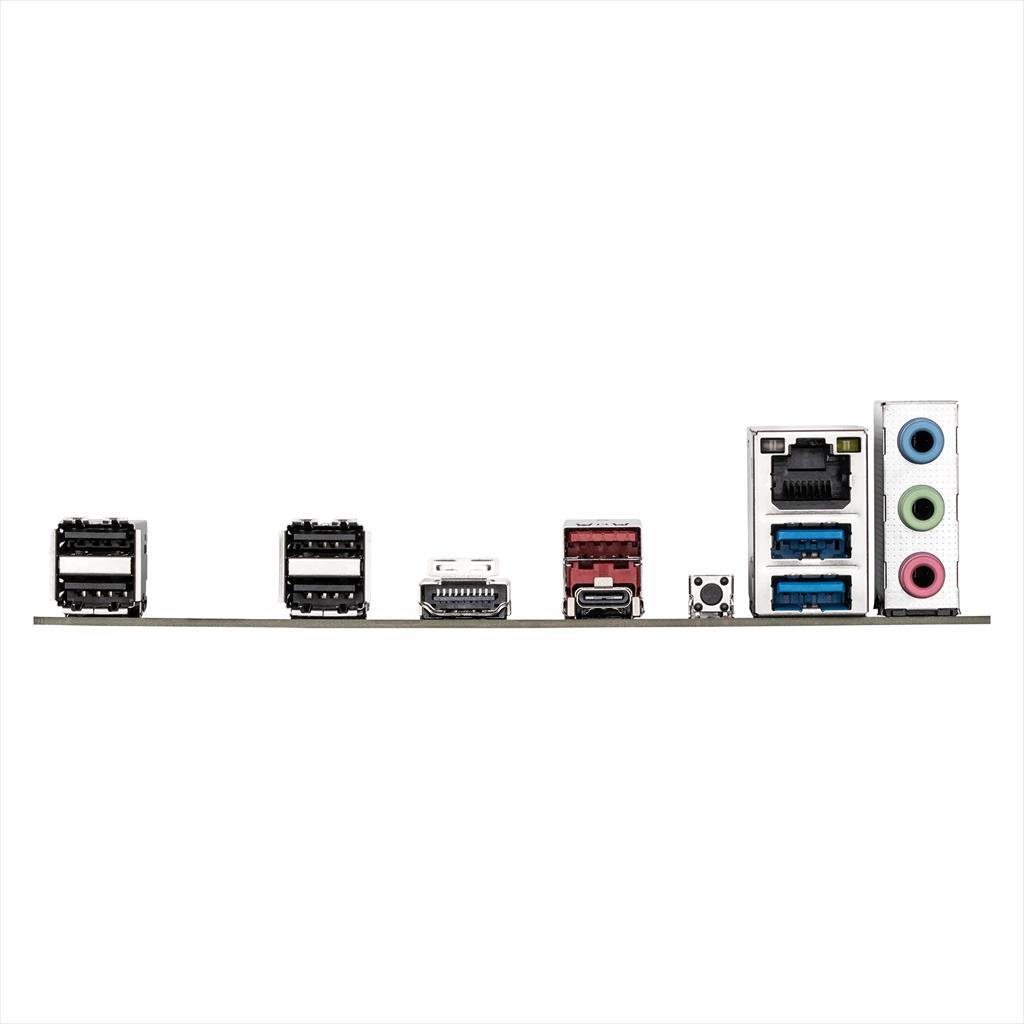

• Back Panel Connectors
  • 4 x USB 2.0/1.1
  • 1 x HDMI
  • 1 x USB 3.2 Gen 2 Type-A / USB 3.2 Gen 1 (red)
  • 1 x USB Type-C® (USB 3.2 Gen 1)
  • 1 x Q-Flash Plus button
  • 1 x RJ-45
  • 2 x USB 3.2 Gen 1
  • 3 x audio jacks
• I/O Controller: iTE® I/O Controller Chip
• H/W Monitoring
  • Voltage, temperature, fan speed, water flow rate detection
  • Fan fail warning & control
• BIOS
  • 128 Mbit flash, licensed AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  • APP Center, @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer
  • Q-Flash Plus & Q-Flash support
• Bundled Software
  • Norton® Internet Security (OEM)
  • LAN bandwidth management software
• Operating System
  • Windows 11 64-bit
  • Windows 10 64-bit
• Form Factor: ATX; 30.5 cm x 24.4 cm
