MB AM5 X870 STEEL LEGEND ASROCK 4xDDR5 8000(OC),1xPCIe5.0x16,1xPCIe4.0x16,1xM.2 Gen5,2xM.2 Gen4,4xSATAIII,HDMI,DP

Цена со ДДВ: 16.760 ден.
Шифра: 18667
Баркод: 4710483949340
Производител: ASROCK
Гаранција: 1080 дена
залиха: има на залиха
Спецификација

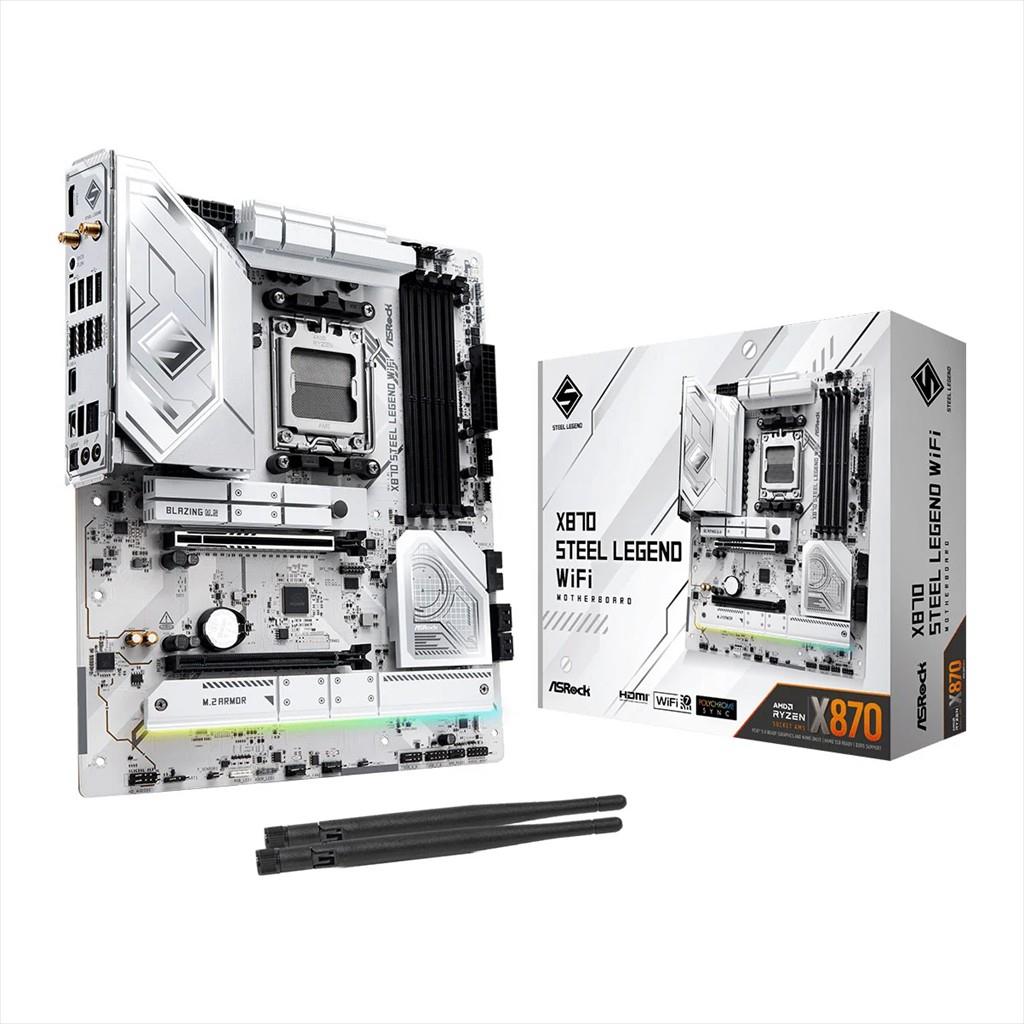

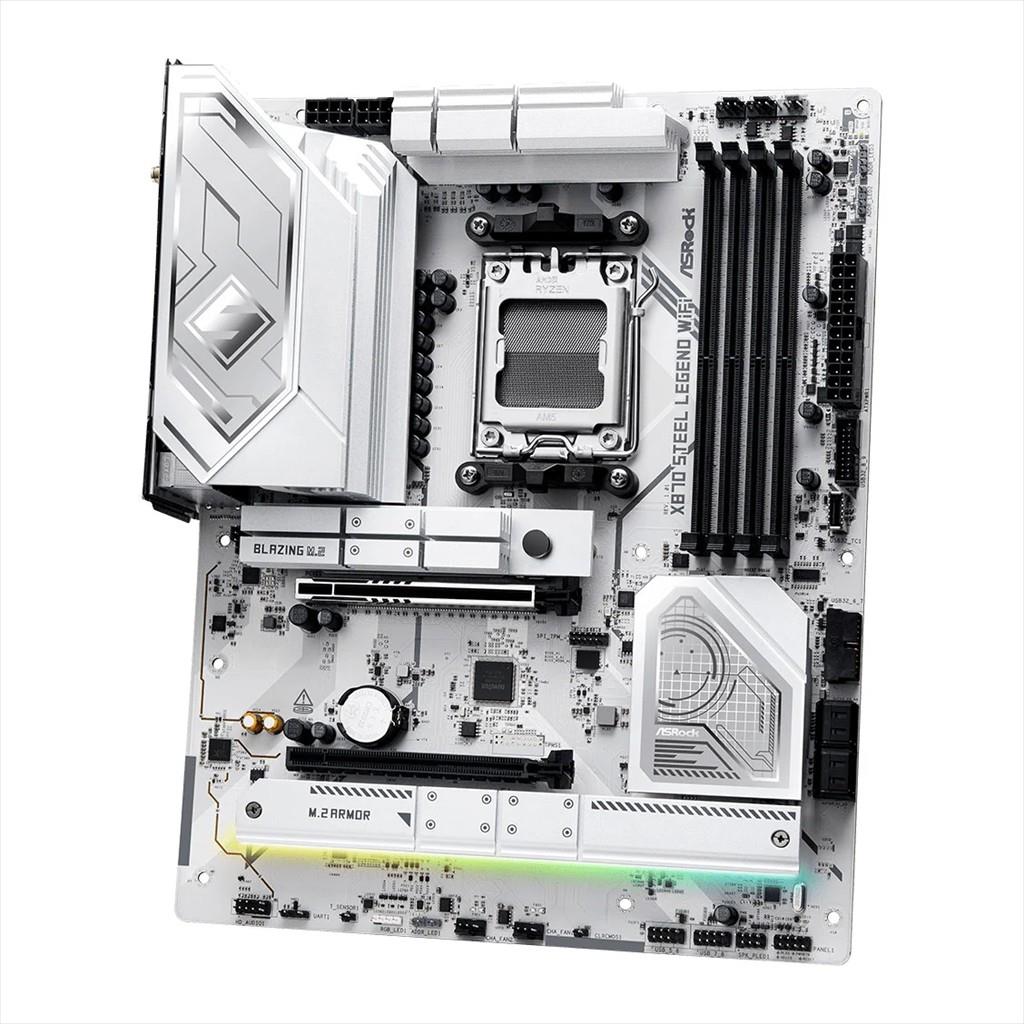

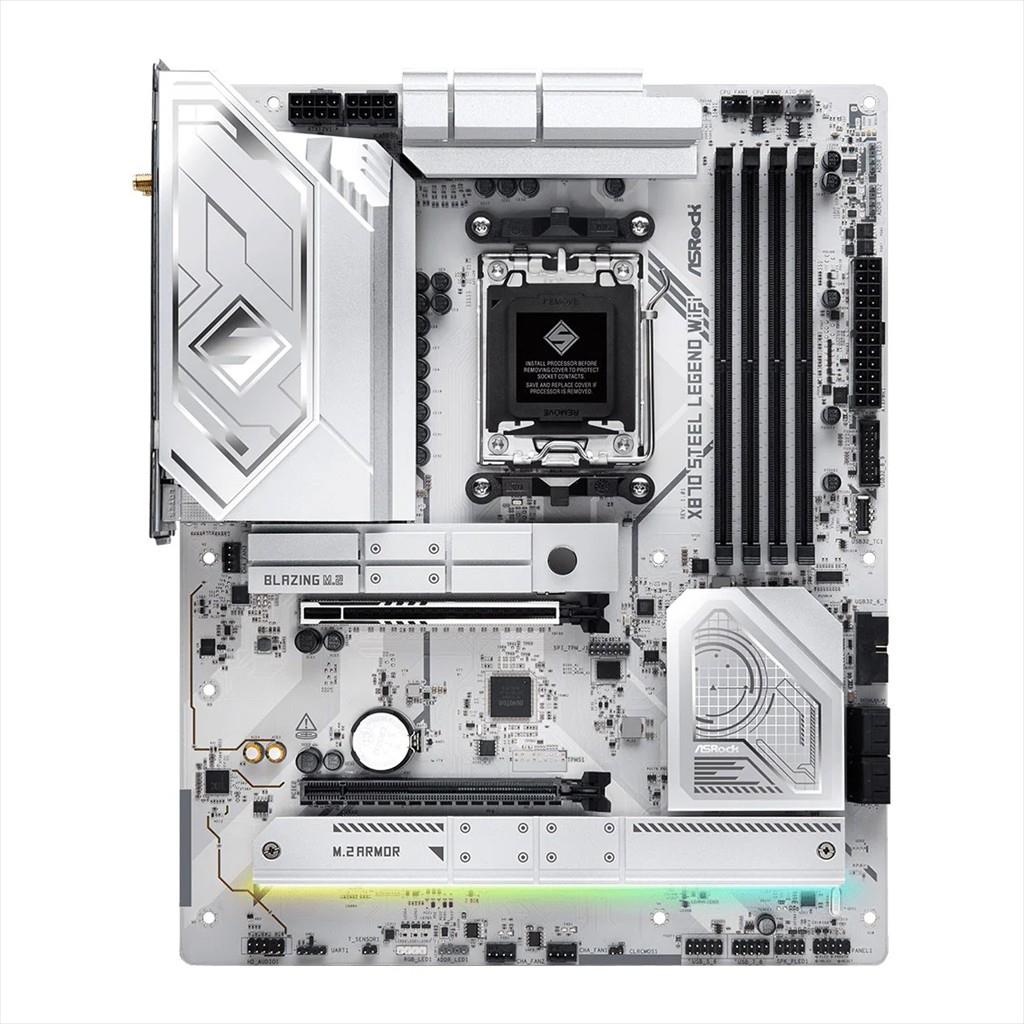

Model Name: ASRock X870 Steel Legend WiFi motherboard, socket AM5, AMD X870, ATX, DDR5

ATX AMD X870 gaming/OC motherboard · AM5 · DDR5 up to 8000 MT/s (OC)
PCIe 5.0 x16 · USB4 · Wi‑Fi & 2.5G LAN · 3× M.2 (incl. PCIe 5.0)

Features

  • Supports AMD AM5 processors on the AMD X870 chipset
  • 4 × DDR5 DIMM slots, up to 256 GB and 8000 MT/s (OC) with ECC support
  • 1 × PCIe 5.0 x16 (x16) and 1 × PCIe 5.0 x16 (wired x4) for next‑gen GPUs and expansion
  • 3 × M.2 slots (1 × PCIe 5.0 x4, 2 × PCIe 4.0 x4) plus 4 × SATA 6G for high-speed storage
  • Rich rear I/O with 2 × USB4 Type‑C, 2 × USB 3.1 Type‑A, 3 × USB 3.0 Type‑A and 4 × USB 2.0
  • OC‑ready 17‑phase VRM design and BIOS Flashback support
  • Integrated Wi‑Fi and 2.5 Gbit/s LAN for fast, flexible networking
  • 6 × 4‑pin PWM fan headers and M.2 heatsinks for advanced cooling
  • ARGB/RGB headers and onboard lighting for customisable RGB builds
  • High-end audio with Realtek ALC4082 codec

Specification

  • Form factor: ATX
  • CPU manufacturer: AMD
  • CPU socket: AM5
  • Chipset: AMD X870
  • Dual BIOS: No
  • Memory type: DDR5 DIMM
  • Memory slots: 4
  • Max memory: 256 GB
  • Max memory speed (OC): 8000 MT/s
  • ECC support: Yes
  • LAN: 1 × 2.5 Gbit/s
  • Wi‑Fi / Bluetooth: Yes
  • Expansion slots:
  • • 2 × PCIe x16 total
  • • 1 × PCIe 5.0 x16 (mechanical)
  • • 1 × PCIe 4.0 x4 (mechanical)
  • Storage:
  • • 1 × M.2 PCIe 5.0 x4
  • • 2 × M.2 PCIe 4.0 x4
  • • 1 × M.2 E‑Key
  • • 4 × SATA 6G (internal)

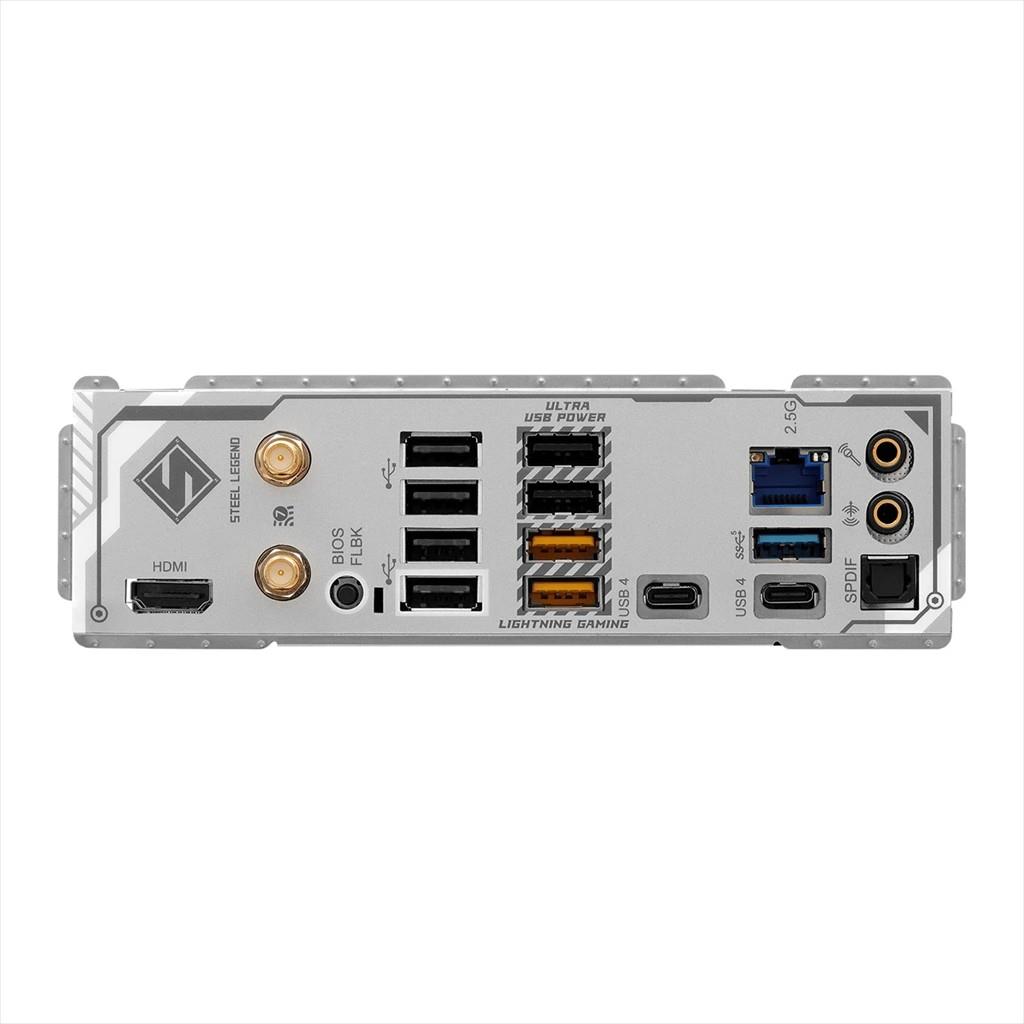

  • Rear USB:
  • • 2 × USB4 Gen 3×2 Type‑C
  • • 2 × USB 3.1 Type‑A
  • • 3 × USB 3.0 (USB 3.2 Gen1) Type‑A
  • • 4 × USB 2.0 Type‑A
  • Internal USB headers:
  • • 1 × USB 3.2 Type‑C header (5 Gb/s)
  • • 2 × USB 3.0 headers (up to 4 ports)
  • • 2 × USB 2.0 headers (up to 4 ports)
  • Display outputs: 1 × HDMI
  • RGB / LED headers: 1 × 12 V RGB (4‑pin 5050), 3 × 12 V RGB (4‑pin 5050)
  • Front panel audio header: Yes
  • CPU power: 2 × 8‑pin
  • Cooling: 6 × 4‑pin fan connectors, M.2 heatsinks
  • Watercooling integration: No
  • Audio codec: Realtek ALC4082
  • Lighting: RGB
  • Back‑connect design: No
  • VRM phases: 17‑phase VRM (OC feature)
