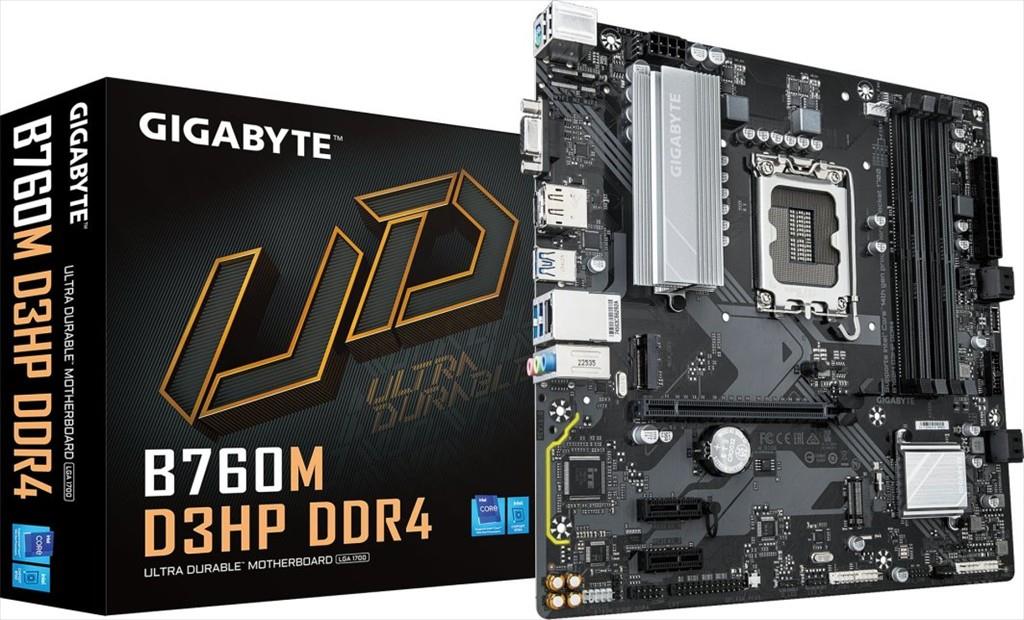

MB 1700 B760M D3HP DDR4 GIGABYTE, 4xDDR4 5333MHz(OC), 2xM.2, VGA, HDMI, PCIex16, 2xPCIex1, 4xSATAIII, 5xUSB3.2Gen1,2xUSB 2.0,1xType-C,2.5Gb LAN

Спецификација

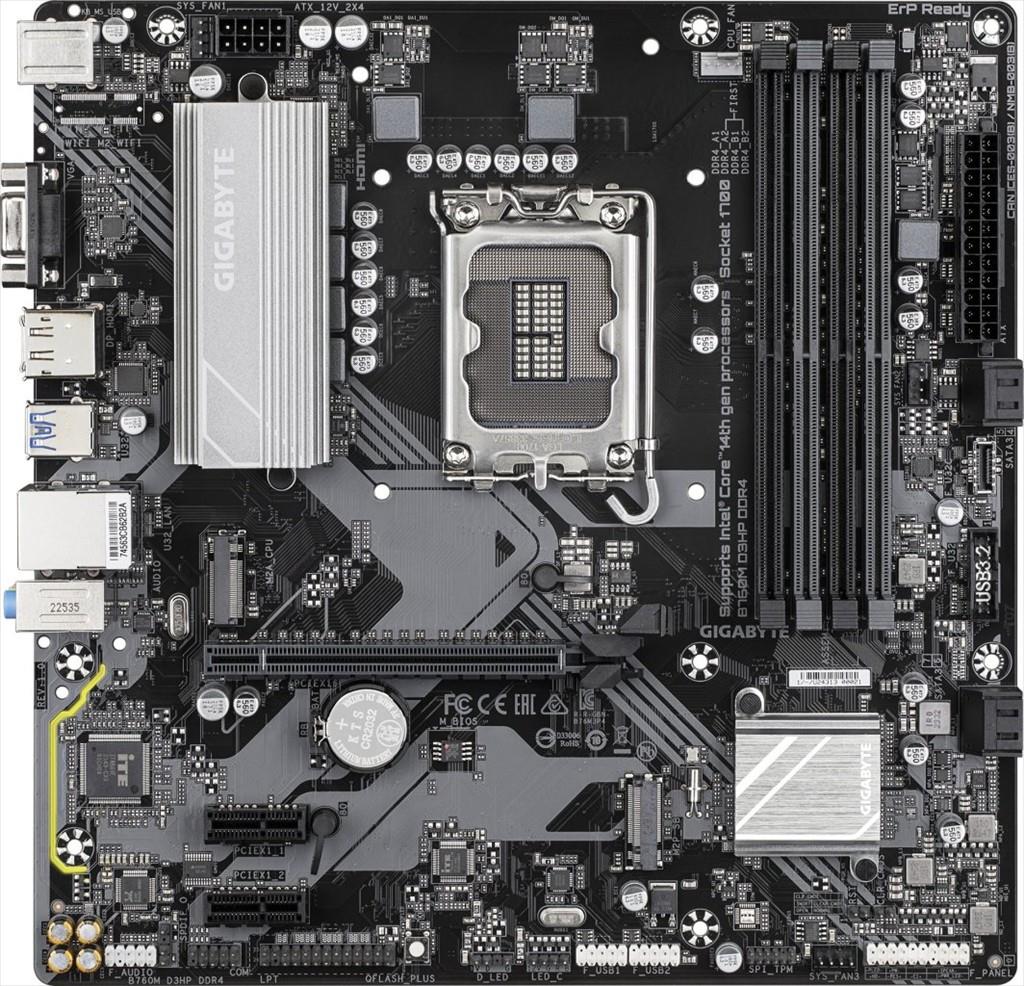

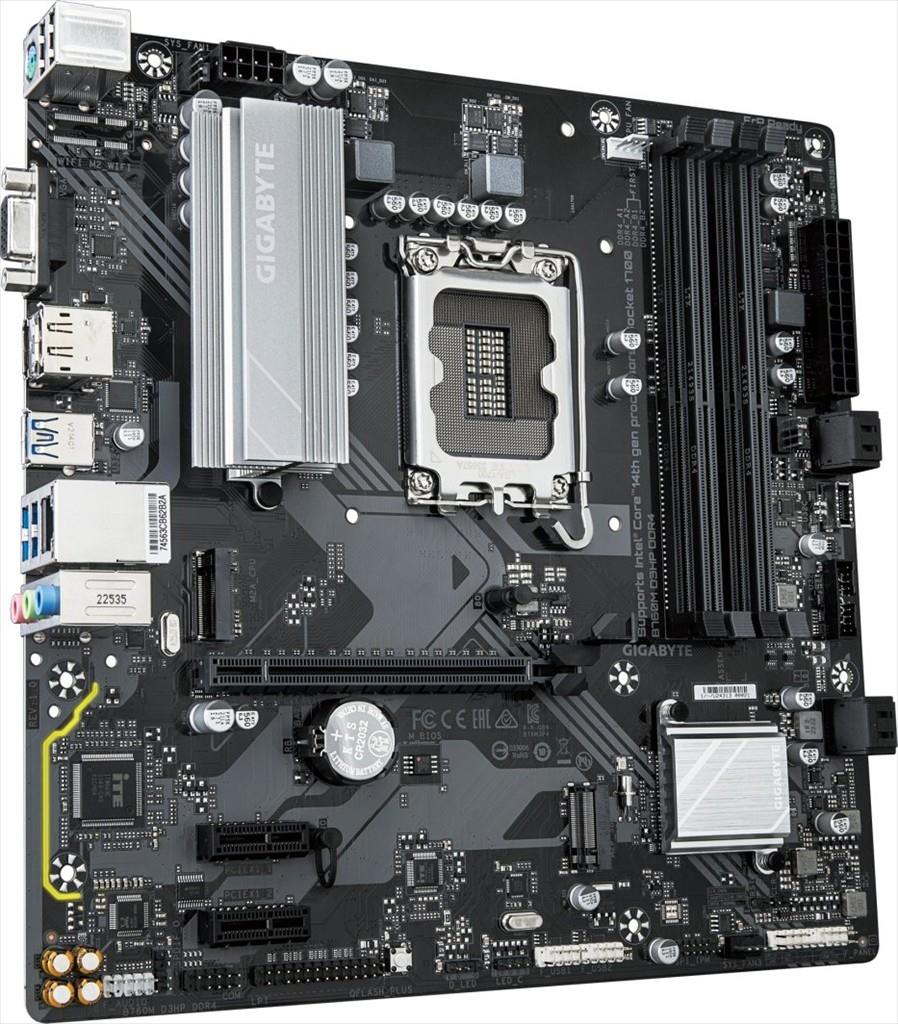

microATX Intel B760 motherboard · LGA 1700 · DDR4

4× DIMM up to 128 GB · 2× PCIe 4.0 M.2 · GbE LAN · USB‑C front header

Supports Intel® Core™ 14th / 13th / 12th Gen processors (LGA 1700)
Hybrid 4+1+1 phase digital VRM solution for stable CPU power delivery
Dual-channel DDR4 with 4 × DIMM slots and XMP support up to 128 GB
Next‑gen storage with 2 × PCIe 4.0 x4 M.2 connectors (2280 / 22110)
Fast networking via Gigabit Ethernet (GbE LAN)
Extended connectivity with front USB‑C 5 Gb/s, DP, HDMI and D‑Sub video outputs
Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP
Q‑Flash Plus enables BIOS updates without installing CPU, memory or GPU
RAID 0/1/5/10 support on SATA for flexible storage configurations
High Definition 7.1‑channel audio powered by Realtek codec

Form factor: microATX (244 × 244 mm)
CPU socket: Intel LGA 1700
Chipset: Intel B760
Memory type: DDR4
Memory slots: 4 × DIMM
Max total memory: 128 GB
Memory mode: Dual‑channel
Supported memory: Non‑ECC UDIMM, Unbuffered ECC memory (support), XMP profiles
PCIe slots:
• 1 × PCIe 4.0 x16 (x16 mode)
• 2 × PCIe 3.0 x1
M.2 slots: 2 × M.2 PCIe 4.0 (x4/x2, 2280 / 22110)
SATA ports: 4 × SATA III 6 Gb/s
RAID support: RAID 0 / 1 / 5 / 10 (SATA)
LAN: 1 × 1 Gbit/s (1000Base‑T), Realtek
Audio codec: Realtek High Definition Audio
Audio channels: 7.1 (8‑channel)

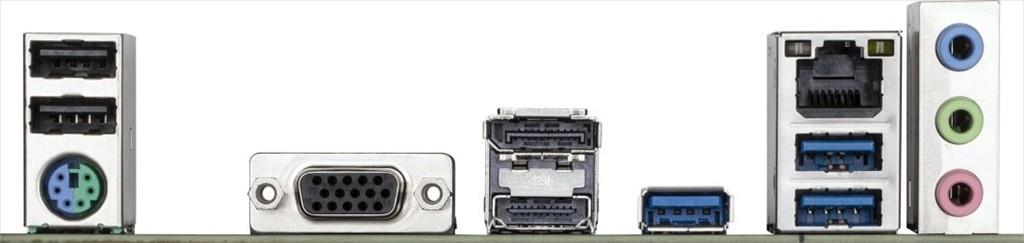

Rear video outputs: 1 × DisplayPort 1.2, 1 × HDMI 2.1, 1 × D‑Sub
Rear I/O (USB):
• 3 × USB‑A 5 Gb/s (USB 3.2 Gen 1)
• 2 × USB‑A 2.0
Rear I/O (other): 1 × RJ‑45 LAN, 3 × 3.5 mm audio jacks, 1 × PS/2 (keyboard or mouse)
Internal USB headers:
• 2 × USB 2.0 headers (up to 2 ports)
• 1 × USB 5 Gb/s (USB 3.2 Gen 1) header (up to 1 port)
• 1 × USB‑C header (USB 5 Gb/s, up to 1 port)
Front panel headers: Front panel audio, front panel connector
Legacy headers: 1 × serial port header, 1 × parallel port header
Power connectors: 1 × 24‑pin ATX main, 1 × 8‑pin ATX 12 V
Fan headers: 2 × 4‑pin fan connectors
Standards & features: UEFI BIOS, Q‑Flash Plus, Smart Fan 6
