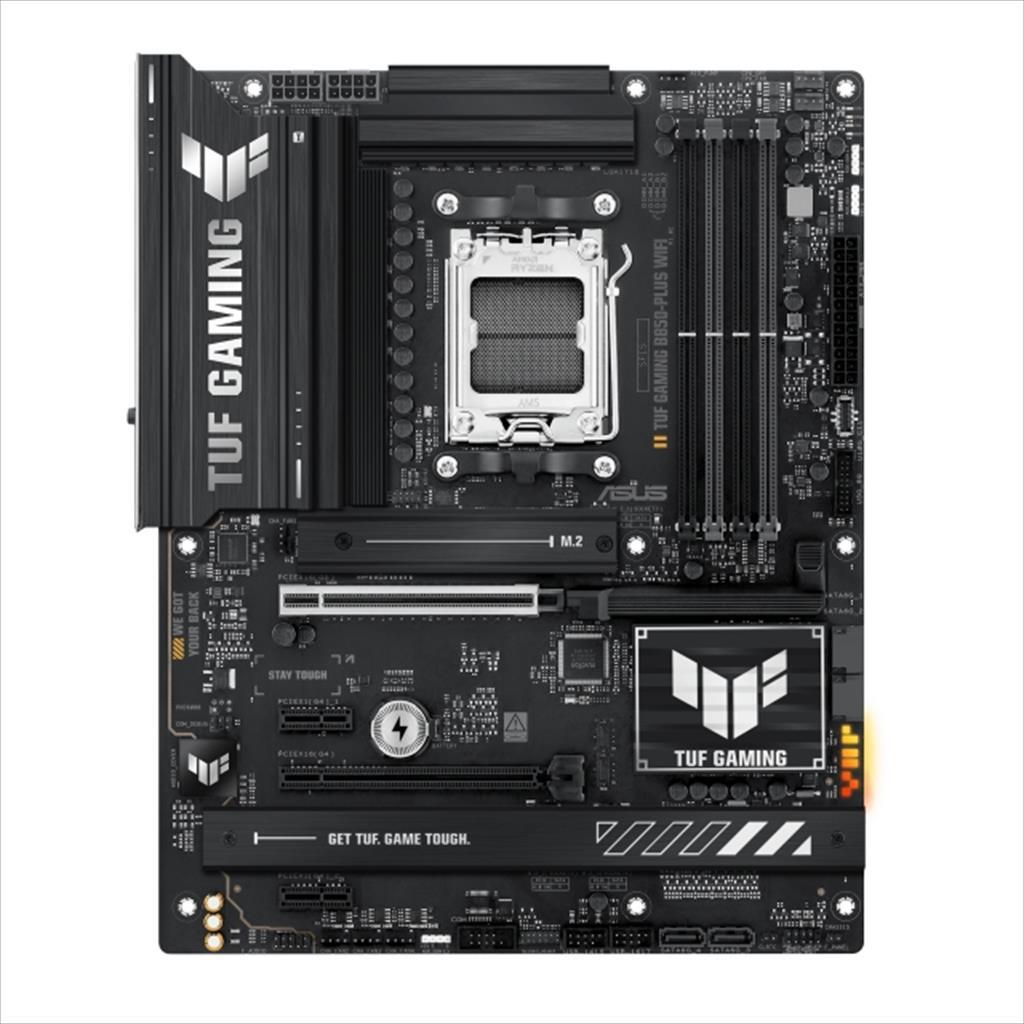

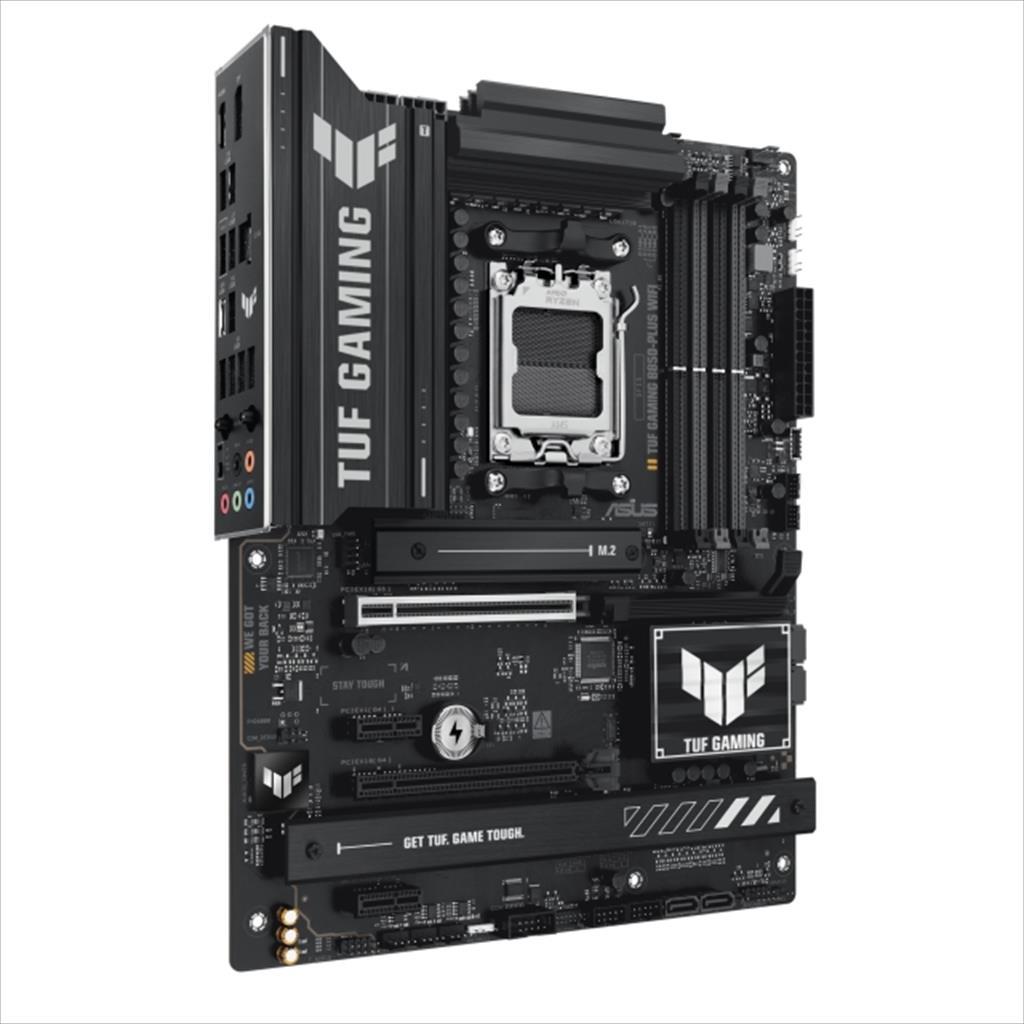

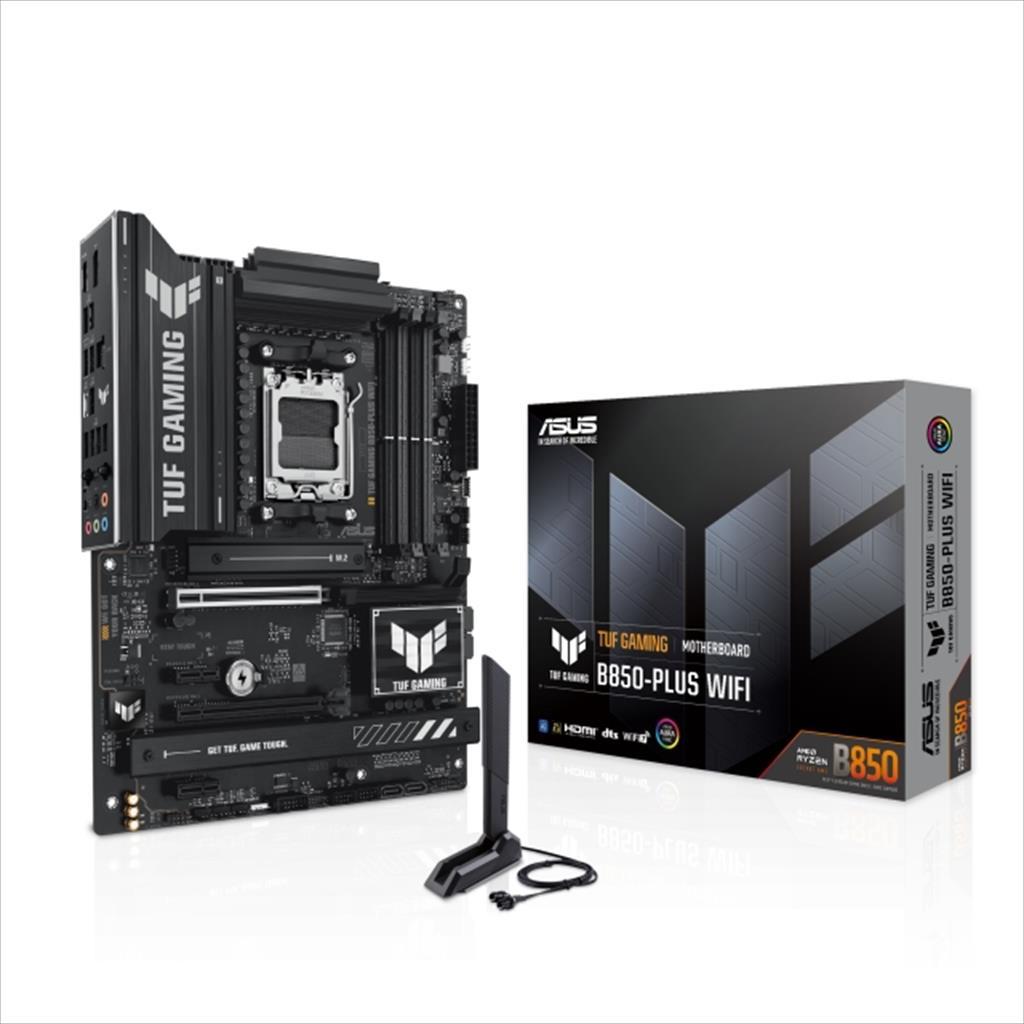

Model name: ASUS B850 PLUS WIFI

Specifications:

• CPU: AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors
• Chipset: AMD B850 Chipset
• Memory:
  • 4 x DIMM slots, max. 256GB DDR5
  • Supports up to 8000+MT/s (OC)
  • ECC & Non-ECC Un-buffered DIMM
  • Dual channel memory architecture
  • Supports AMD EXPO™ & ASUS AEMP
• Graphics:
  • 1 x DisplayPort (max. 8K@30Hz, DisplayPort 1.4)
  • 1 x HDMI™ port (max. 4K@60Hz, HDMI 2.1)
  • * Graphics specifications vary depending on CPU type
• Expansion Slots:
  • Ryzen™ 9000 & 7000: 1 x PCIe 5.0 x16 slot (x16 mode)
  • Ryzen™ 8000: 1 x PCIe 4.0 x16 slot (x8/x4 mode)
  • B850 Chipset: 1 x PCIe 4.0 x16 slot (x4 mode)
  • 2 x PCIe 4.0 x1 slots
• Storage:
  • Total: 3 x M.2 slots + 4 x SATA 6Gb/s ports
  • M.2_1: PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 (Ryzen 8000)
  • M.2_2: PCIe 4.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4/x2 (Ryzen 8000)
  • M.2_3 (chipset): PCIe 4.0 x4 (shared with PCIEX16(G4))
  • 4 x SATA 6Gb/s ports
  • RAIDXpert2:
    • Ryzen 9000: RAID 0/1/5/10
    • Ryzen 8000: RAID 0/1
    • Ryzen 7000: RAID 0/1/10
• Ethernet: Realtek 2.5Gb Ethernet with TUF LANGuard
• Wireless & Bluetooth:
  • Wi-Fi 7 (802.11be), 2x2 MU-MIMO
  • Supports 2.4/5/6GHz frequency bands
  • 160MHz bandwidth, up to 2.9Gbps transfer rate
  • Bluetooth® v5.4
• USB:
  • Rear (10 ports):
    • 1 x USB 20Gbps (Type-C)
    • 3 x USB 10Gbps (Type-A)
    • 4 x USB 5Gbps (Type-A)
    • 2 x USB 2.0 (Type-A)
  • Front (7 ports):
    • 1 x USB 10Gbps connector (Type-C)
    • 1 x USB 5Gbps header (2 ports)
    • 2 x USB 2.0 headers (4 ports)
  • * USB Type-C® power delivery output: max. 5V/3A
• Audio:
  • Realtek ALC1220P 7.1 Surround HD Audio CODEC
  • Impedance sense for front/rear headphone outputs
  • Integrated amplifier for headphones/speakers
  • Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • 120 dB SNR playback, 113 dB SNR recording
  • Up to 32-Bit/192 kHz playback
  • Audio Features: Audio shielding, premium capacitors, dedicated PCB layers, de-pop circuit

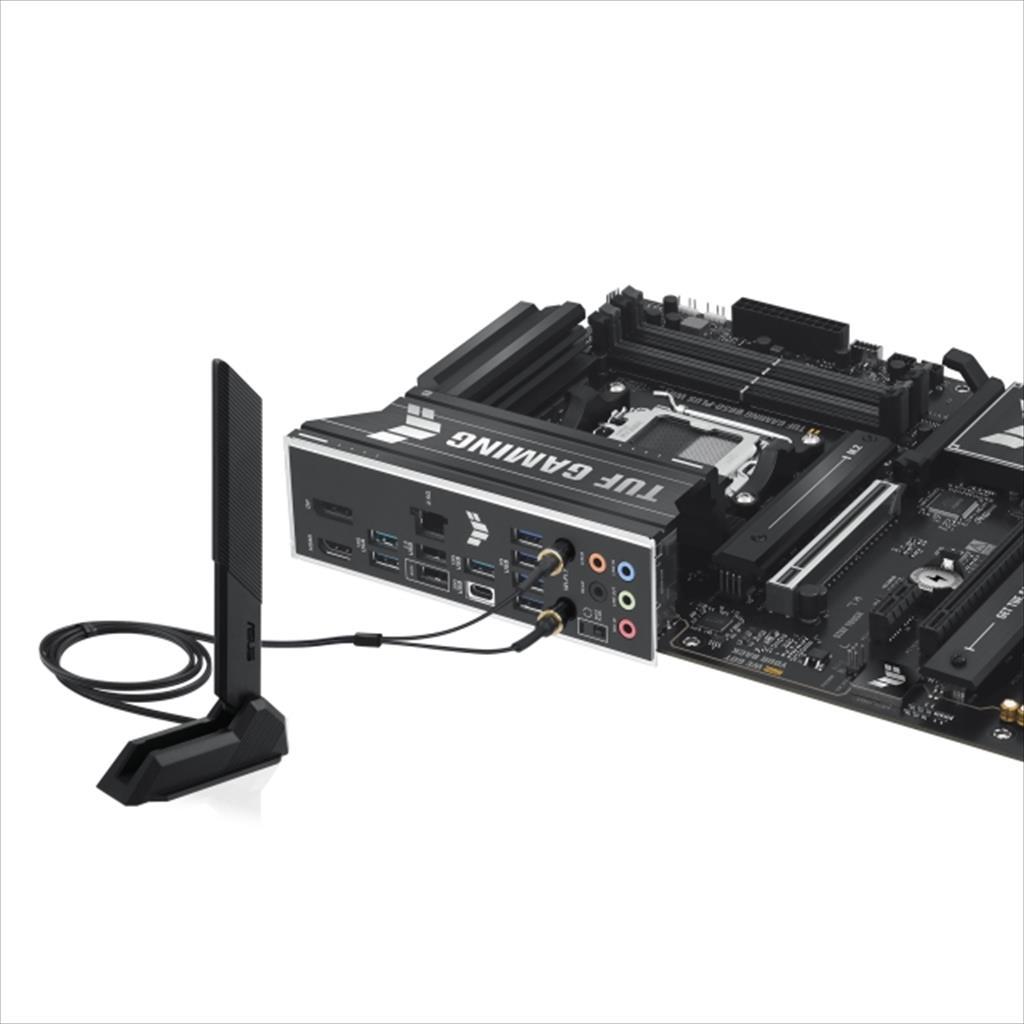

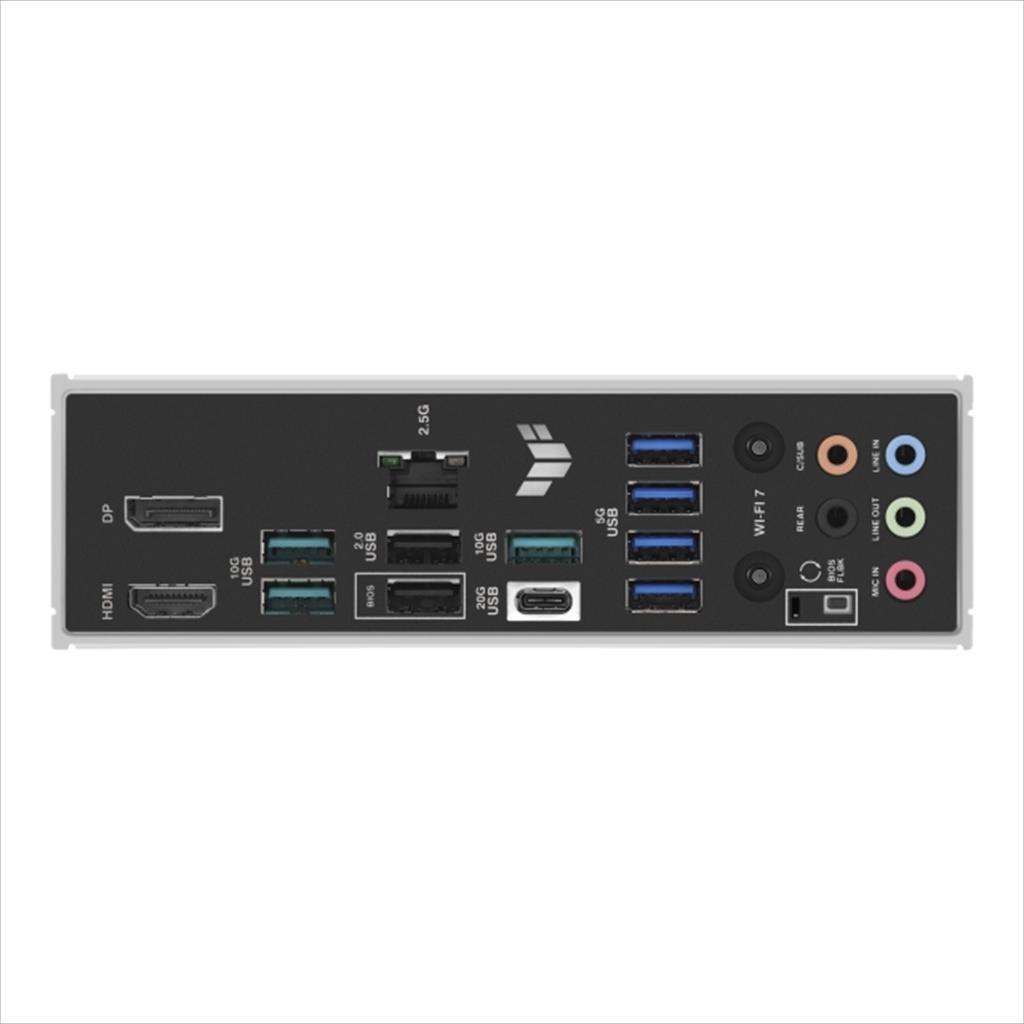

• Back Panel I/O:
  • 1 x USB 20Gbps (Type-C)
  • 3 x USB 10Gbps (Type-A)
  • 4 x USB 5Gbps (Type-A)
  • 2 x USB 2.0 (Type-A)
  • 1 x DisplayPort
  • 1 x HDMI™
  • 1 x Wi-Fi module
  • 1 x Realtek 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x BIOS FlashBack™ button
• Internal I/O Connectors:
  • Cooling: 1 x CPU Fan, 1 x CPU OPT Fan, 1 x AIO Pump, 4 x Chassis Fan
  • Power: 1 x 24-pin ATX, 2 x 8-pin CPU
  • Storage: 3 x M.2 slots, 4 x SATA 6Gb/s
  • USB: 1 x USB 10Gbps Type-C, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports)
  • Misc: 3 x ARGB Gen 2 headers, Clear CMOS, Chassis Intrusion, COM Port, Front Audio, System Panel, Thunderbolt™ (USB4®) header
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
• Manageability: WOL by PME, PXE
• Operating System: Windows 11
• Form Factor: ATX (30.5 cm x 24.4 cm)
