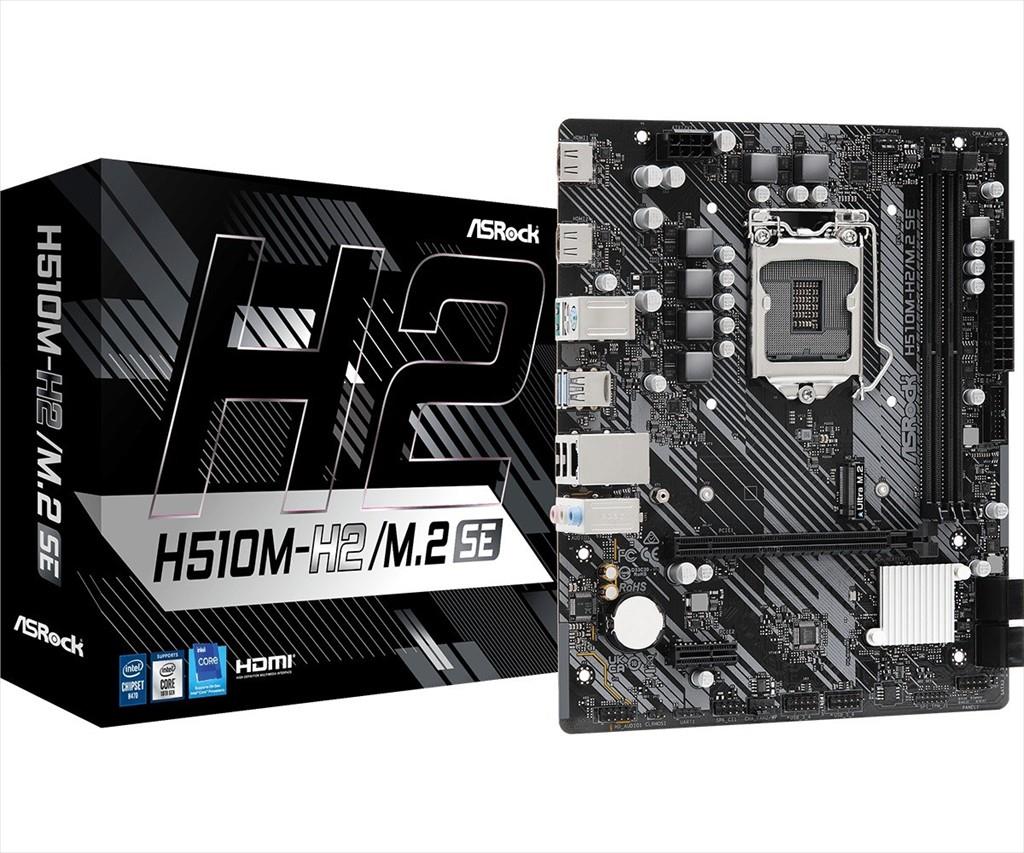

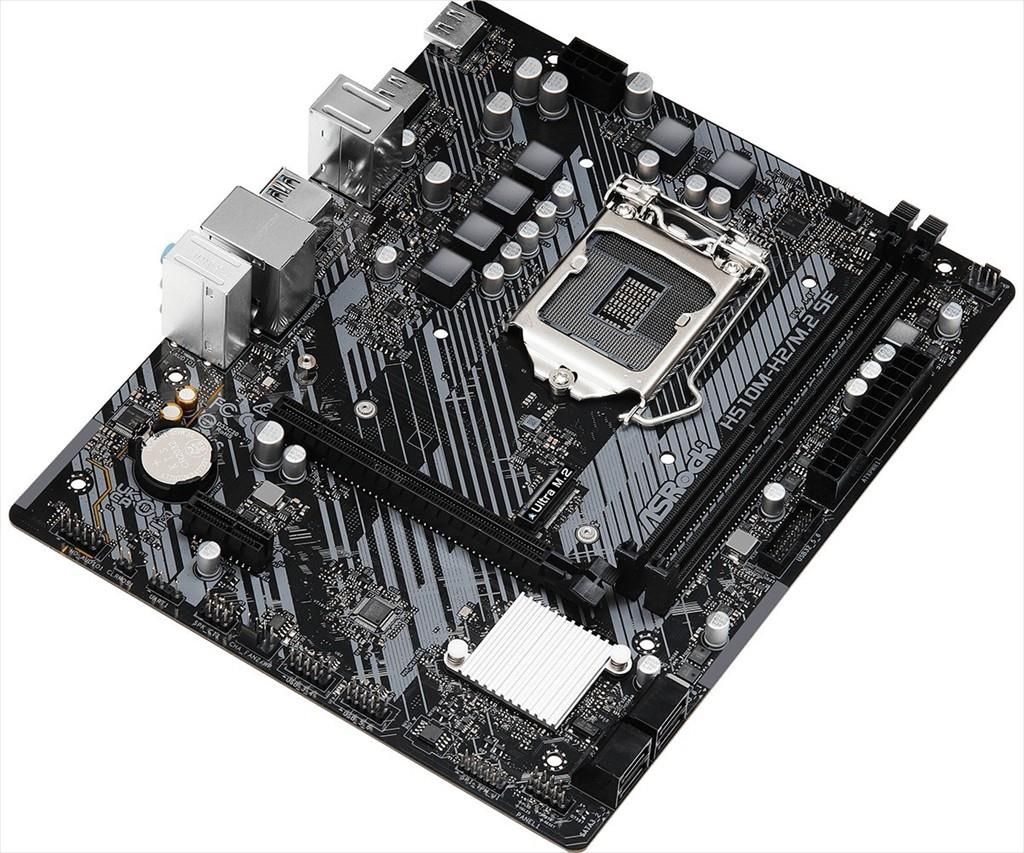

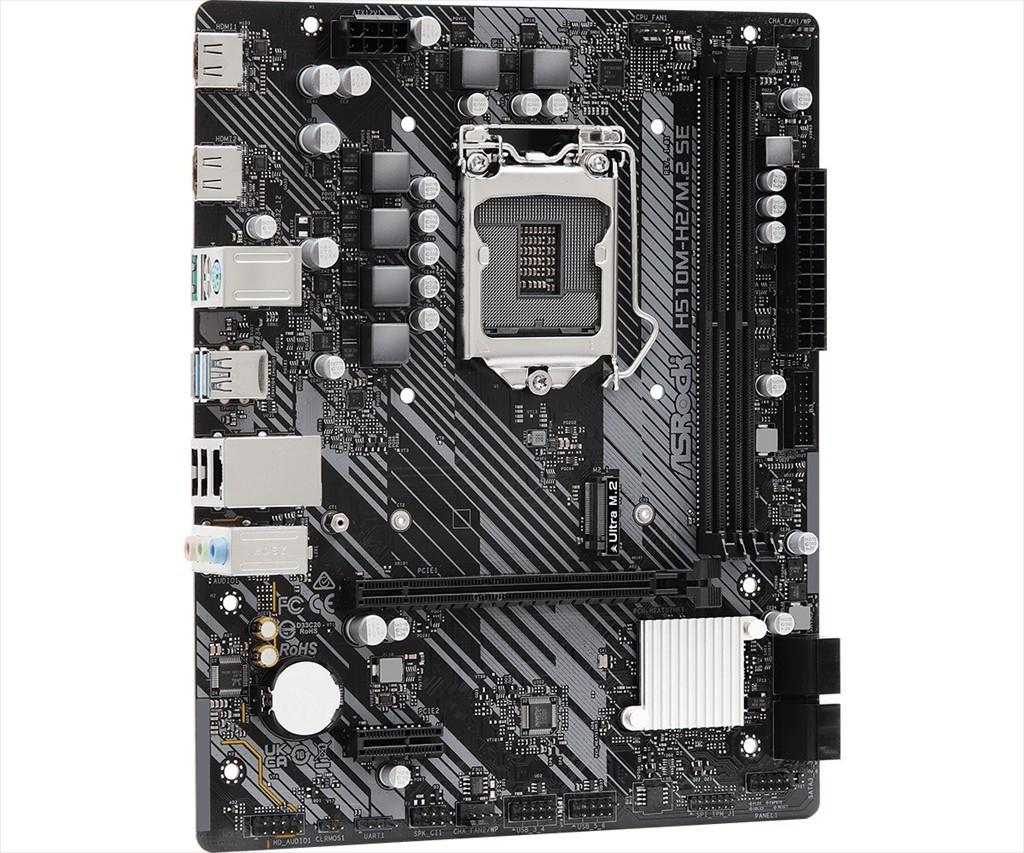

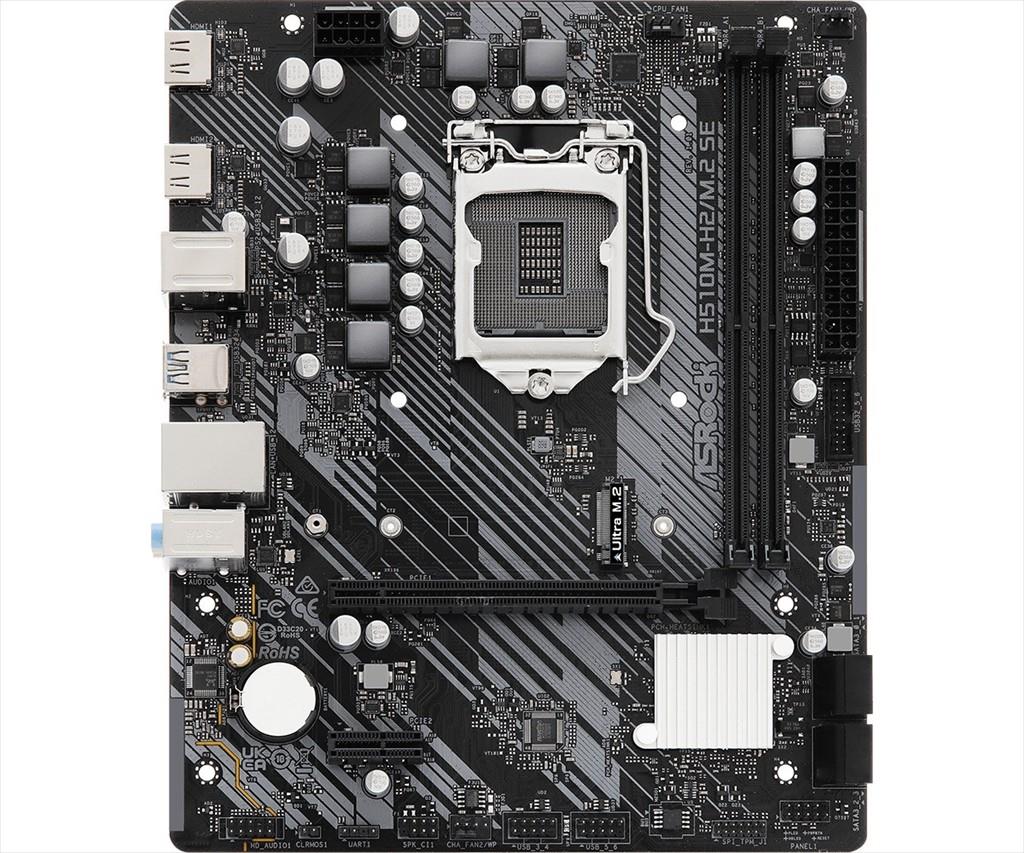

MB 1200 H510M H2/M.2 SE ASROCK, 2xDDR4 3200MHz, VGA,HDMI, PCIex16, PCIex1, 4xSATAIII, 1xM.2, 4xUSB 3.2 Gen1, 2xUSB 2.0, 7.1 Channels, H510M-H2/M.2 SE

Спецификација

microATX Intel LGA 1200 motherboard · DDR4

PCIe 4.0 x16 · M.2 & 4× SATA III · Gigabit LAN · HDMI ×2

microATX motherboard for Intel® Core™ i3/i5/i7/i9 (LGA 1200)
Dual‑channel DDR4 memory support up to 64 GB (2 × DIMM)
PCIe 4.0 x16 slot for modern graphics cards plus PCIe 3.0 x1 expansion slot
M.2 and 4 × SATA III ports for HDD and SSD storage with RAID 0/1/5/10 support
Realtek 8111H Gigabit Ethernet for reliable wired networking
Realtek ALC897 7.1‑channel HD audio via 3 audio jacks
Two HDMI outputs supporting up to 7680 × 4320 resolution plus PS/2 and USB legacy support
PC health monitoring (voltage, temperature, CPU, fan) via UEFI AMI BIOS
Includes SATA cables and drivers for easy setup

Form factor: micro ATX
Dimensions (W × D): 231 × 187 mm
Chipset family: Intel
Chipset: Intel H470
CPU socket: LGA 1200
Processor manufacturer: Intel
Supported CPU series: Intel® Core™ i3 / i5 / i7 / i9, Pentium® Gold, Celeron® (LGA 1200)
Max SMP processors: 1
Memory type: DDR4‑SDRAM (unbuffered)
Memory channels: Dual‑channel
Memory slots: 2 × DIMM
Max memory: 64 GB
Supported memory speeds: 2133 / 2400 / 2666 / 2800 / 2933 / 3200 MHz
Graphics outputs: 2 × HDMI, 1 × VGA (D‑Sub)
Max resolution: 7680 × 4320 pixels
HDCP: Yes
PCIe slots:
• 1 × PCIe x16 (Gen 4.x)
• 1 × PCIe x1 (Gen 3.x)
Storage interfaces: M.2, SATA III
Storage types: HDD & SSD
M.2 support: Yes
SATA III ports: 4
RAID support: Yes (RAID 0, 1, 5, 10)
LAN: Realtek 8111H Gigabit Ethernet
Ethernet: 1 × RJ‑45 (1 Gbit/s)
Wi‑Fi: No
Audio codec: Realtek ALC897
Audio jacks: 3 × 3.5 mm
Front panel audio header: Yes
Power connectors: 1 × 24‑pin ATX, 1 × 12 V (8‑pin) CPU
CPU fan connector: Yes
TPM connector: Yes
USB (internal headers): 2 × USB 2.0, 1 × USB 3.2 Gen 1 (5 Gb/s)
USB (rear I/O): 2 × USB 2.0, 4 × USB 3.2 Gen 1 Type‑A (5 Gb/s)
Other rear I/O: 1 × PS/2 (keyboard or mouse), audio connectors, LAN
Supported OS: Windows 10 x64, Windows 11 x64
BIOS: UEFI AMI
PC health monitoring: Voltage, temperature, CPU, fan
Cables included: SATA
Drivers included: Yes
