MB 1700 B760M-P DDR4 MSI, 4xDDR4 4800MHz(OC), 2xM.2, VGA, HDMI, DP, PCIex16, 2x PCIex1, 4xSATAIII, USB3.2Gen1, Type-C, Gb LAN, 7.1 Channels

Спецификација

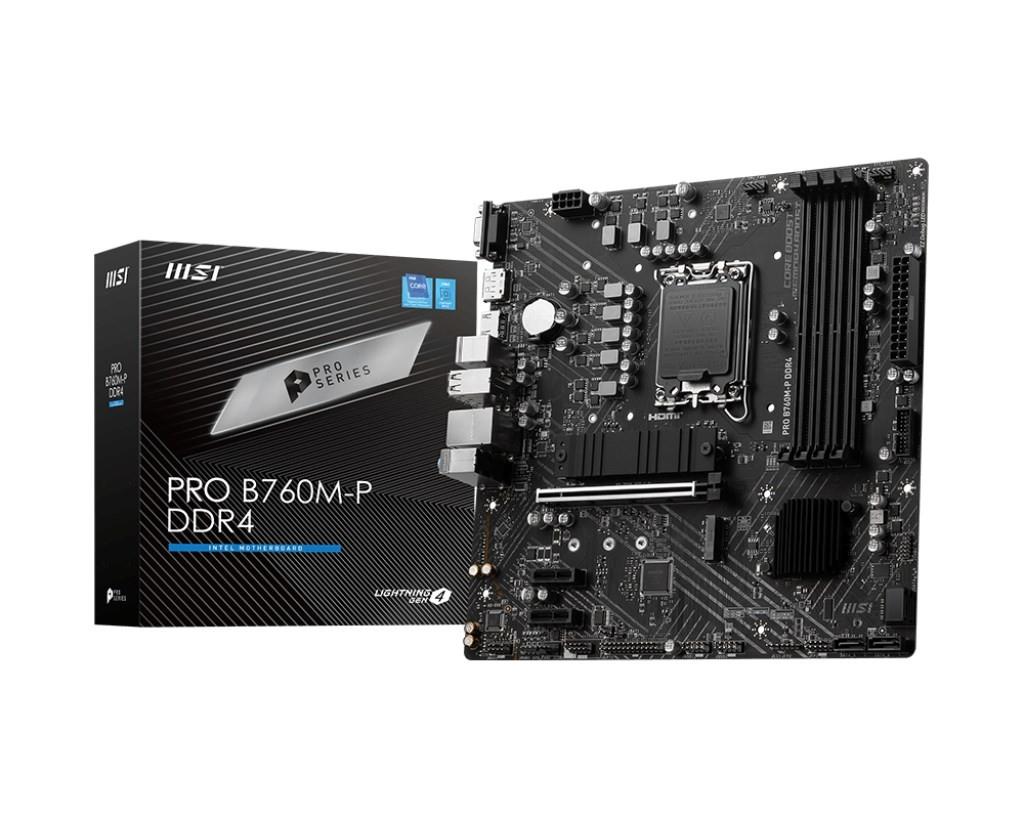

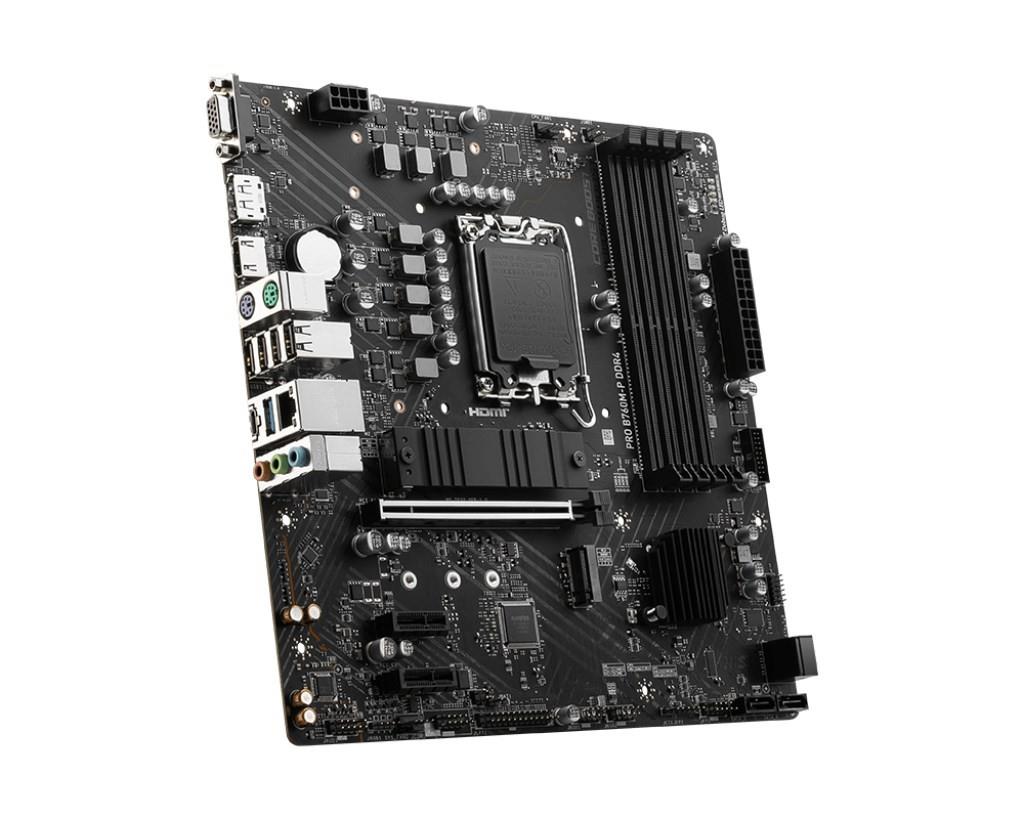

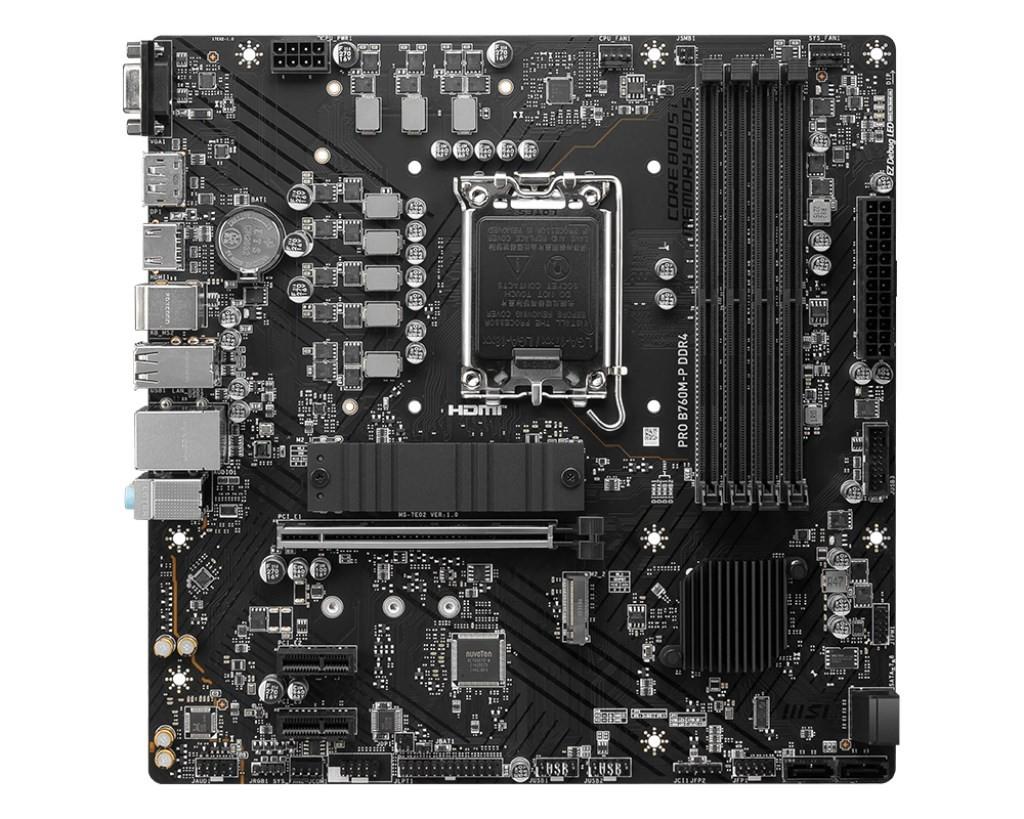

microATX Intel B760 gaming motherboard · LGA 1700 · DDR4

Core / Memory Boost · PCIe 4.0 & dual M.2 · HDMI / DP / VGA

Supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® processors (LGA 1700)
4 × DDR4 DIMM slots, dual‑channel, up to 128 GB and 4800+ MHz (OC)
Core Boost digital power design for better multi‑core performance
Memory Boost for clean data signals, stability and compatibility
Lightning Gen4 PCIe 4.0 x16 slot and dual PCIe 4.0 x4 M.2 (with M.2 Shield Frozr)
Onboard video outputs: HDMI 1.4, DisplayPort 1.4 and VGA
Realtek® ALC897 7.1‑channel HD Audio with AUDIO BOOST for immersive sound
Realtek® RTL8111H Gigabit LAN for reliable wired networking
Steel Armor PCIe slot to protect GPU against bending and EMI
Rear I/O includes USB 3.2 Gen 1 Type‑A and USB 3.2 Gen 2 Type‑C

Form factor: microATX
Chipset: Intel B760
CPU socket: LGA 1700
CPU support: Intel Core 14th / 13th / 12th Gen, Pentium Gold, Celeron
Memory type: DDR4
Memory slots: 4 × DIMM
Max memory: 128 GB
Memory mode: Dual channel
OC support: DDR4 4800+ MHz (OC)
PCIe slots:
• 1 × PCIe x16 (PCIe 4.0, Steel Armor)
• 2 × PCIe x1
M.2 slots:
• M.2_1 (from CPU): PCIe 4.0 x4, 2242/2260/2280
• M.2_2 (from chipset): PCIe 4.0 x4 / SATA, 2242/2260/2280
SATA ports: 4 × SATA 6 Gb/s
LAN: Realtek RTL8111H Gigabit LAN (1 Gbit/s)
Audio: Realtek ALC897, 7.1‑channel HD Audio (AUDIO BOOST)
Rear video outputs: 1 × HDMI 1.4 (up to 4K 30 Hz), 1 × DisplayPort 1.4 (up to 4K 60 Hz), 1 × VGA

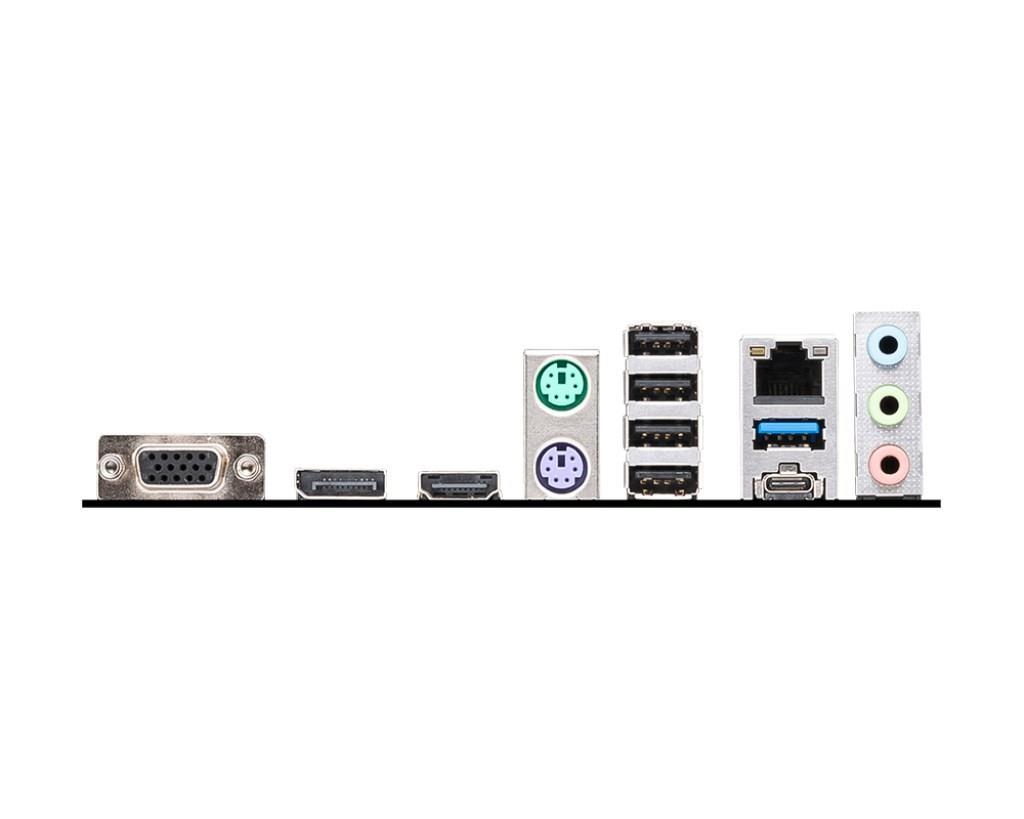

Rear I/O USB: USB 2.0, USB 3.2 Gen 1 5 Gb/s Type‑A, USB 3.2 Gen 2 10 Gb/s Type‑C
Other rear I/O: PS/2 keyboard/mouse, LAN port, audio connectors
Main power: 24‑pin ATX main connector
Key technologies: Core Boost, Memory Boost, Lightning Gen4 PCIe & M.2, M.2 Shield Frozr, AUDIO BOOST, Steel Armor
