MB AM5 B850-S PRO WIFI6E MSI 4xDDR5 8200Mhz(O.C), HDMI, DP, PCI-Ex16 5.0,PCI-Ex4 4.0,2xPCI-Ex1 3.0,2xM.2,4xSATA3,Wi-Fi 6E, BT 5.3, 7E80-002R

Цена со ДДВ: 9.920 ден.
Шифра: 18677
Баркод: 4711377365338
Производител: MSI
Гаранција: 720 дена
залиха: нема на залиха
Спецификација

Model Name: MSI PRO B850-S WIFI6E Motherboard

AMD B850 motherboard · DDR5 support · PCIe 5.0 M.2 · 2.5G LAN · Wi-Fi 6E
Professional desktop motherboard with high-speed storage, modern wireless connectivity and support for DDR5 memory

Features

  • Built with the AMD B850 chipset for modern AMD desktop platforms
  • Four DDR5 UDIMM slots support a maximum memory capacity of up to 256GB
  • Supports DDR5 memory speeds from 5600 to 8200 MT/s when overclocked, and 4800 to 5600 MT/s according to JEDEC standards
  • Includes HDMI™ 2.1 output with support for up to 4K resolution at 60Hz
  • DisplayPort 1.4 output supports up to 4K resolution at 60Hz
  • Two PCI-E x16 slots and one PCI-E x1 slot provide expansion options for graphics cards and add-in cards

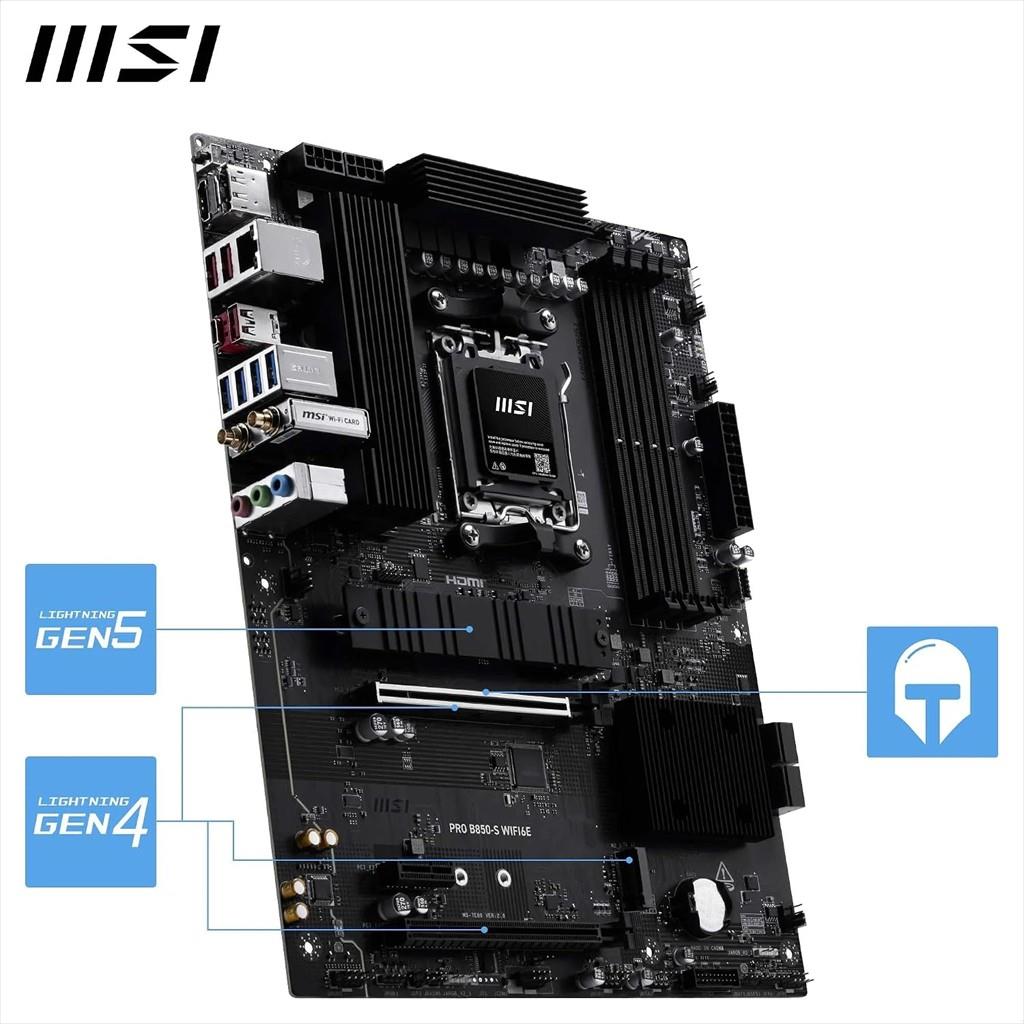

  • Two M.2 slots enable high-speed SSD installation, including one PCIe 5.0 x4 M.2 slot from the CPU
  • Four SATA 6G ports support additional storage drives
  • Realtek® 8125 2.5G LAN provides fast wired network connectivity
  • Integrated Wi-Fi 6E module offers modern wireless networking and Bluetooth connectivity
  • Realtek® ALC897 audio delivers 7.1-channel high-definition sound
  • Back panel includes Clear CMOS and Flash BIOS buttons for easier system maintenance and firmware recovery
  • USB 10Gbps Type-A and Type-C ports provide high-speed peripheral connectivity

Specification

  • Model name: MSI PRO B850-S WIFI6E Motherboard
  • Brand: MSI
  • Product type: Motherboard
  • Chipset: AMD B850
  • Memory slots: 4 × DDR5 UDIMM
  • Maximum memory capacity: 256GB
  • Memory support: DDR5 8200–5600 MT/s OC, DDR5 5600–4800 MT/s JEDEC
  • Video outputs: 1 × HDMI™, 1 × DisplayPort
  • HDMI support: HDMI™ 2.1, up to 4K at 60Hz
  • DisplayPort support: DisplayPort 1.4, up to 4K at 60Hz
  • Expansion slots: 2 × PCI-E x16, 1 × PCI-E x1
  • Audio chipset: Realtek® ALC897
  • Audio channels: 7.1-channel High Definition Audio
  • M.2 slots: 2
  • M.2_1: From CPU, supports up to PCIe 5.0 x4, supports 22110/2280 devices
  • M.2_2: From CPU, supports up to PCIe 4.0 x4, supports 2280/2260 devices
  • SATA ports: 4 × SATA 6G
  • LAN: Realtek® 8125 2.5G LAN
  • Wireless connectivity: Wi-Fi 6E
  • Wireless module: Pre-installed in the M.2 Key-E slot

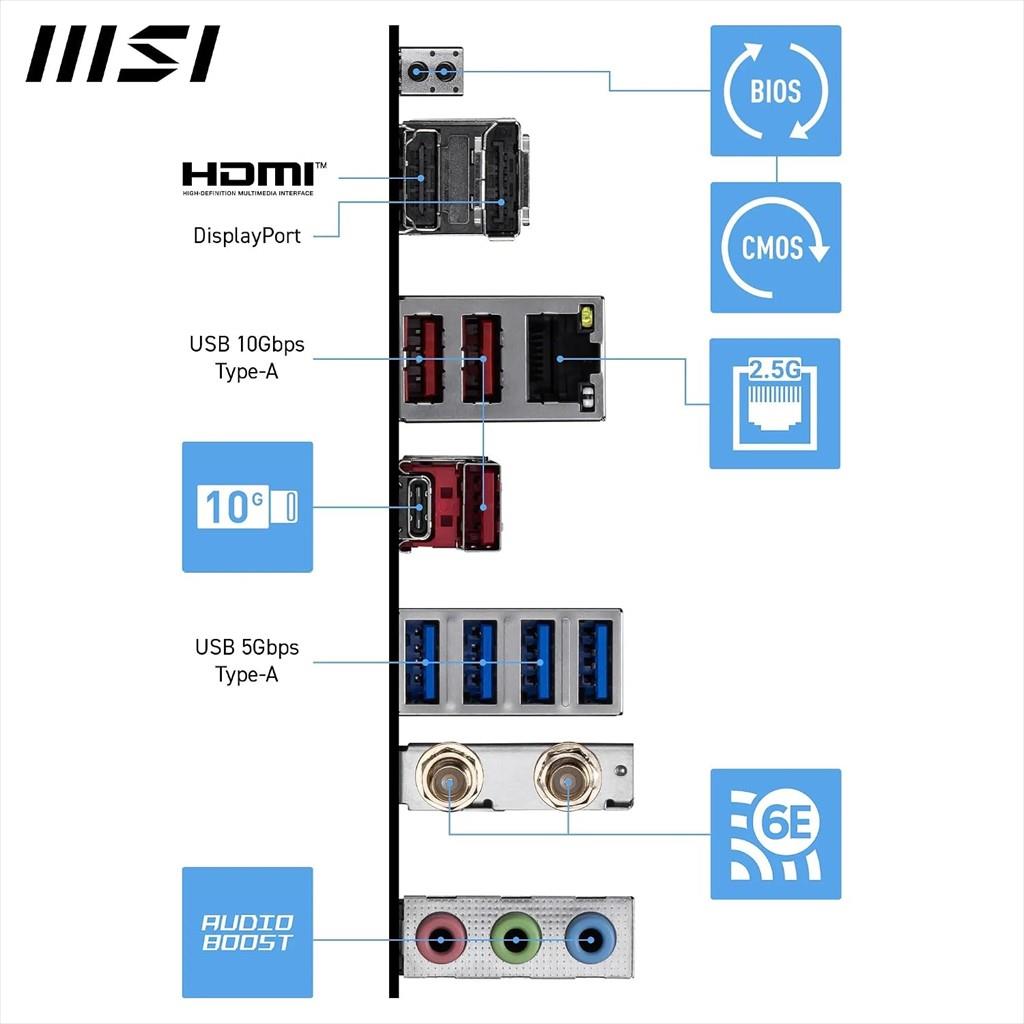

  • Back panel ports and buttons: Clear CMOS Button, DisplayPort, 2.5G LAN, USB 10Gbps Type-A, USB 5Gbps Type-A, Wi-Fi / Bluetooth connectors, Audio Connectors, Flash BIOS Button, HDMI™, USB 10Gbps Type-A, USB 10Gbps Type-C
