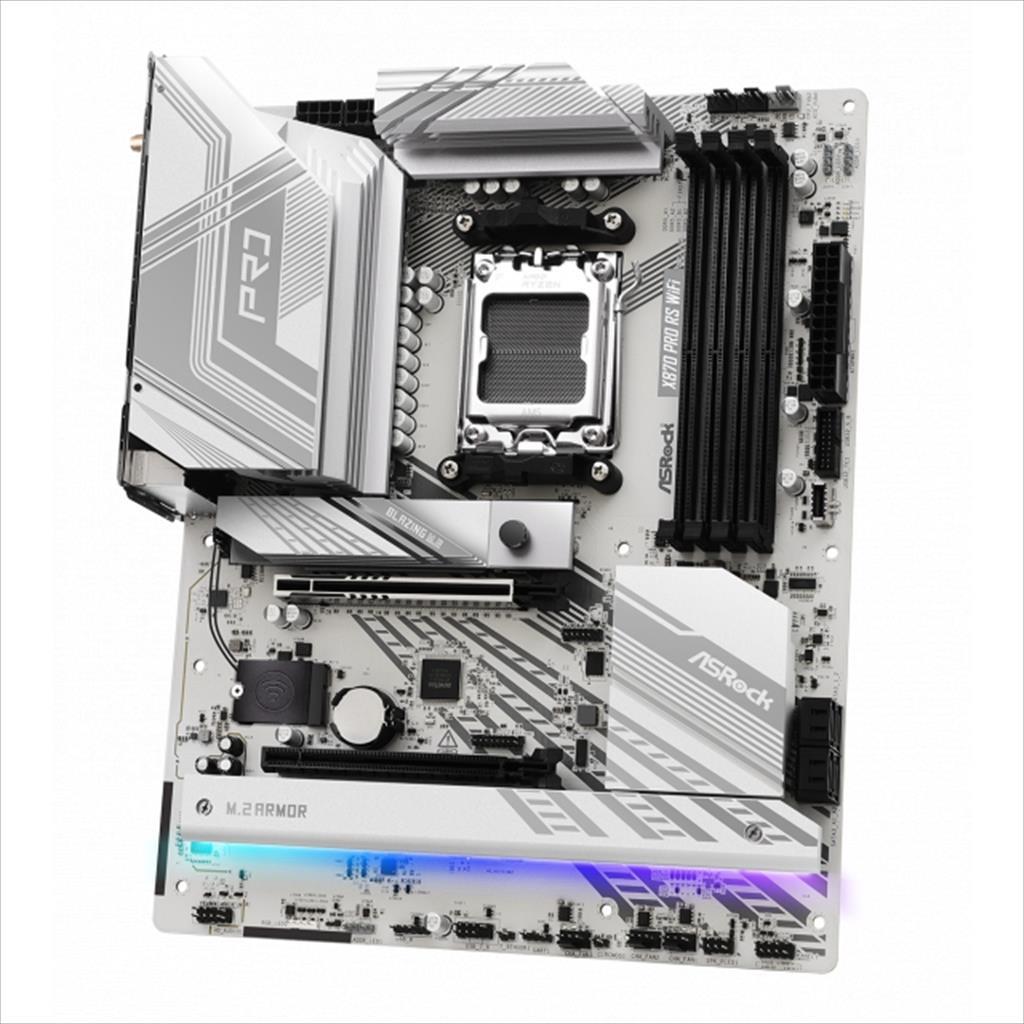

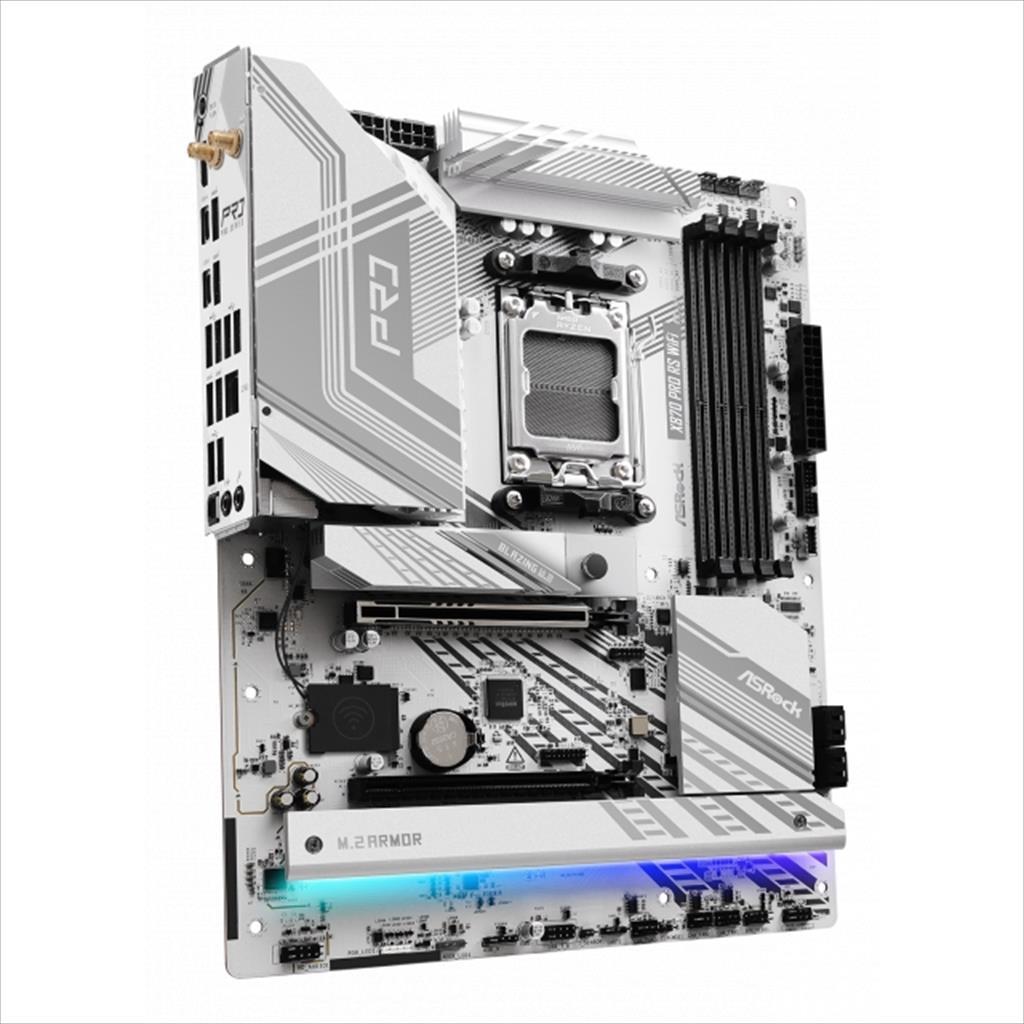

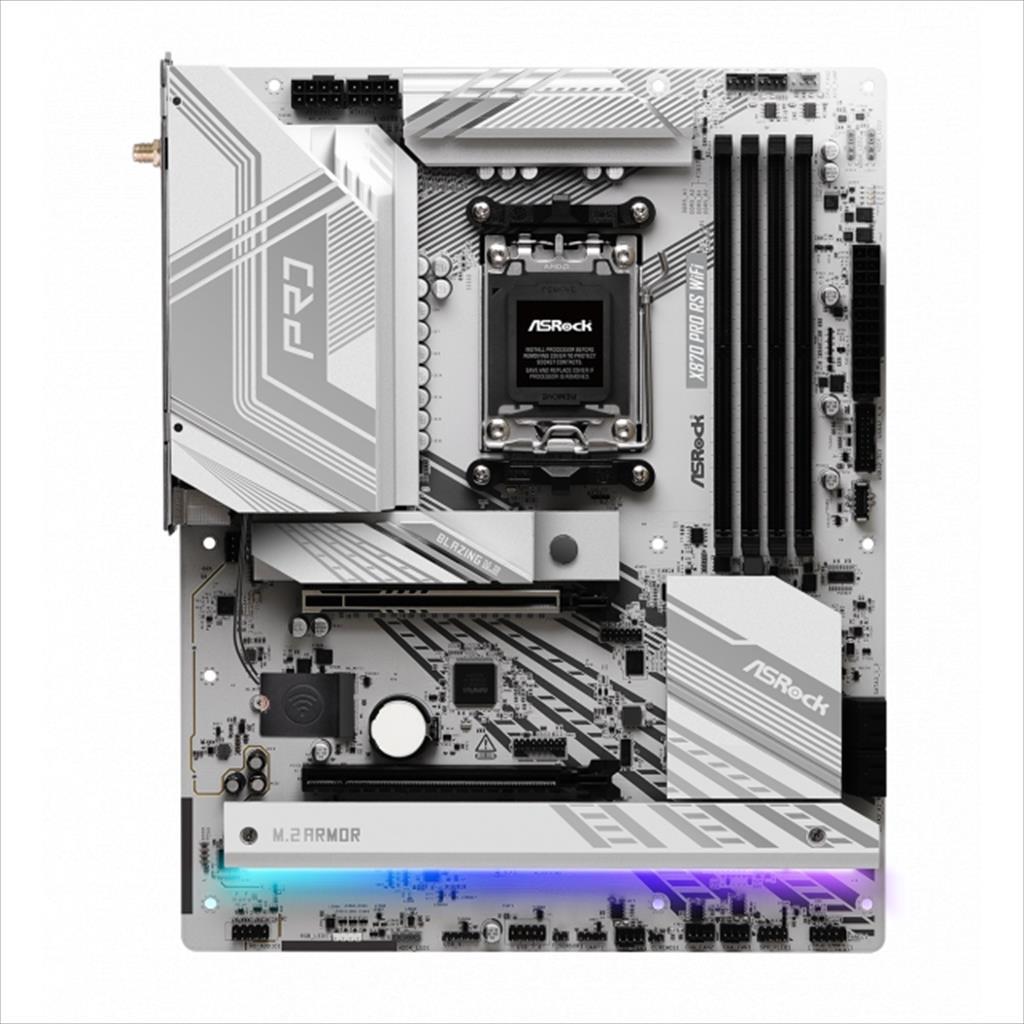

Model name: ASROCK X870 Pro RS WIFI

Specification

• Superb Productivity:
• PCIe Gen5 (Graphics, M.2)
• Dual Channel DDR5
• USB4 Type-C Ports (40 Gb/s)
• Rock-Solid Durability:
• 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor
• Flexible Integrated I/O Shield
• Ultrafast Connectivity:
• 2.5G LAN, 802.11be Wi-Fi 7 Module
• EZ Update:
• BIOS Flashback Button
• ASRock Auto Driver Installer
• CPU: Supports AMD Socket AM5 Ryzen™ 9000, 8000, and 7000 Series Processors*
• Memory:
• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
• Max. capacity of system memory: 256GB
• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics:
• Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*
• Audio:
• 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• Impedance Sensing on Rear Out port
• Individual PCB Layers for R/L Audio Channel
• Nahimic Audio
• LAN:
• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control
• Wireless LAN:
• 802.11be 2x2 Wi-Fi 7 Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
• Supports 2.4GHz/5GHz/6GHz* frequency band
• Supports 160MHz channel bandwidth with 6GHz* frequency band
• 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.4
• Supports MU-MIMO
• Slots:
• CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset:
• 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• Supports AMD CrossFire™
• 15μ Gold Contact in VGA PCIe Slot (PCIE1)
• Storage:
• CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
• Chipset:
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
• 2 x SATA3 6.0 Gb/s Connectors
• ASMedia ASM1061: 2 x SATA3 6.0 Gb/s Connectors
• RAID:
• Supports RAID 0 and RAID 1 for SATA storage devices
• Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices*
• USB:
• CPU:
• 2 x USB4 Type-C (Rear)
• 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2))
• Chipset:
• 1 x USB 3.2 Gen2x2 Type-C (Front)
• 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front)
• 9 x USB 2.0 (6 Rear, 3 Front)
• Connector:
• 1 x Thermistor Cable Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header*
• 3 x Addressable LED Headers**
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
• 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• 1 x 24 pin ATX Power Connector
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

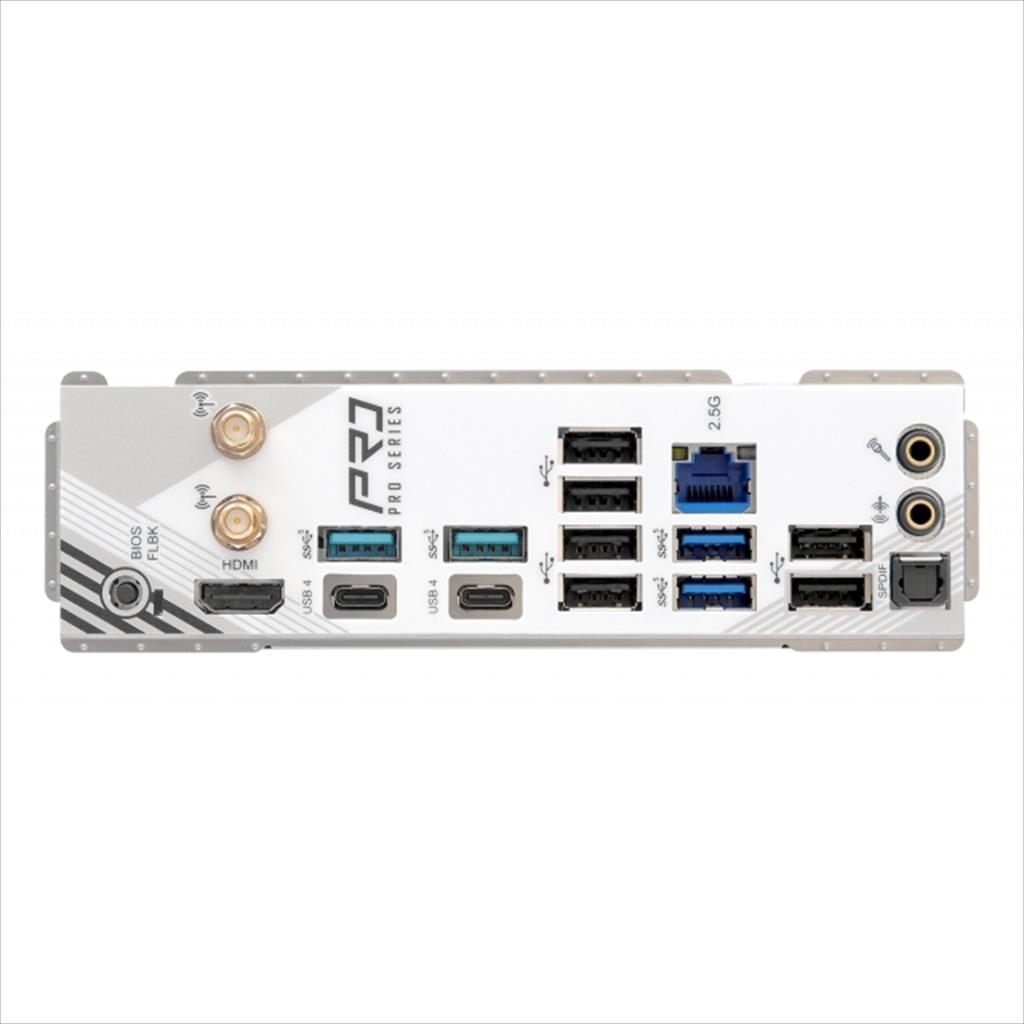

• Rear Panel I/O:
• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x USB4 Type-C Ports (40 Gb/s)*
• 4 x USB 3.2 Gen1 Type-A Ports
• 6 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)
• Software and UEFI:
• Software:
• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC*
• UEFI:
• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash

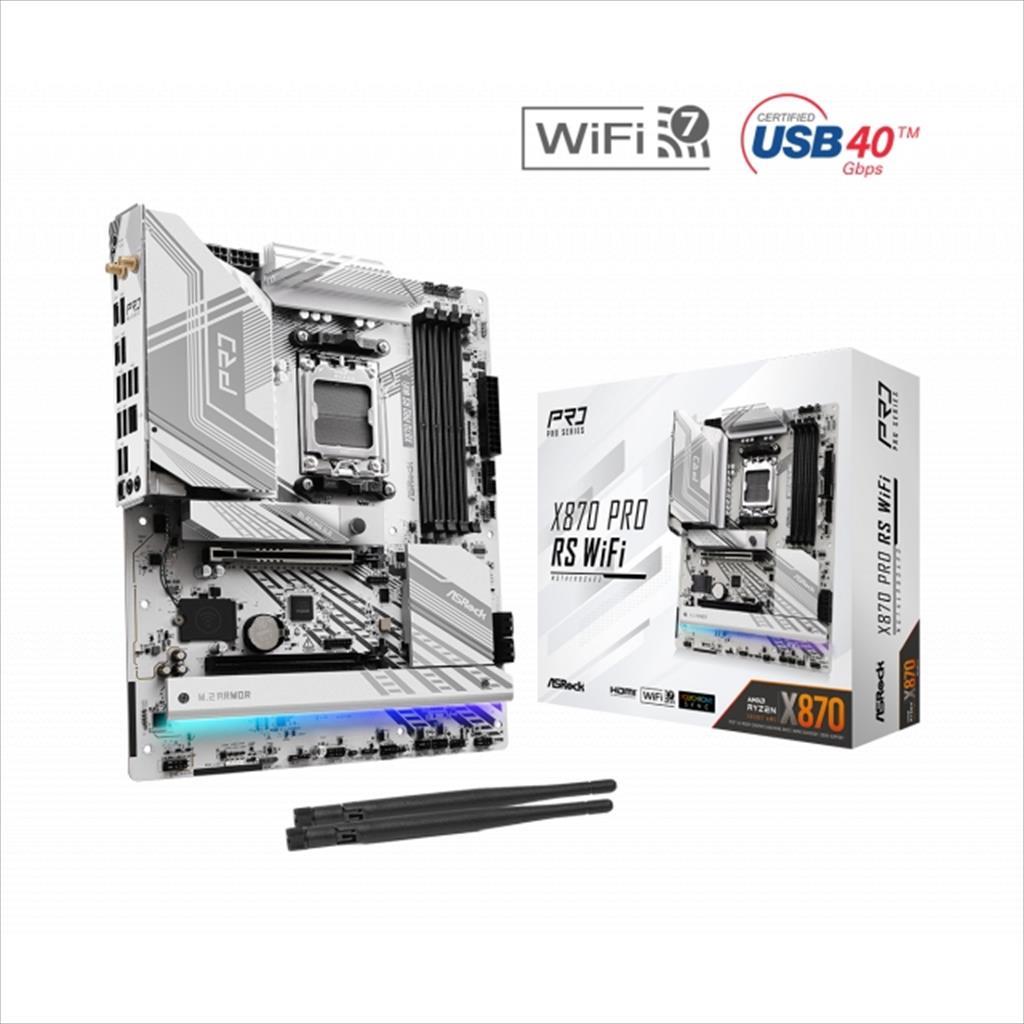

• Accessories: 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• Form Factor: ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, 8 Layer PCB
• OS: Microsoft Windows® 10 64-bit / 11 64-bit
