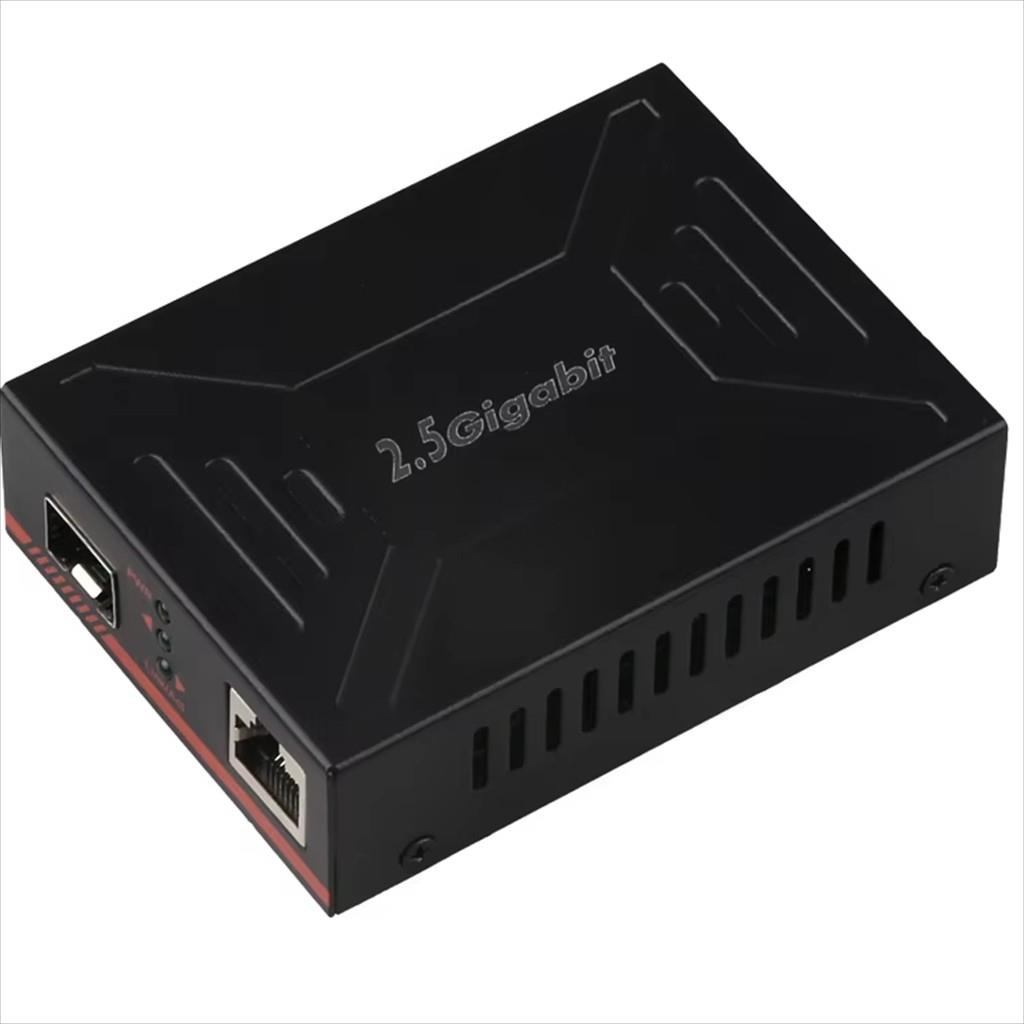

DIEWU TXE350 2.5Gbps Copper-to-SFP+ Media Converter

The DIEWU TXE350 is a compact network media converter designed to convert copper Ethernet connections into 2.5GBASE-X optical connectivity. It supports 100Mbps, 1Gbps, and 2.5Gbps Ethernet operation on the copper side and can be used to connect RJ45-based network equipment to an SFP/SFP+ optical network.

Technical Specifications

• Brand: DIEWU
• Model: TXE350
• Product Type: Copper-to-fiber Ethernet media converter
• Copper Interface: 1 x 2.5G/1G/100M RJ45 Ethernet port
• Optical Interface: 1 x 2.5GBASE-X SFP+ port
• Supported Copper Speeds: 100Mbps, 1Gbps, and 2.5Gbps
• Communication Mode: 100Mbps half/full duplex; 1Gbps and 2.5Gbps full duplex
• RJ45 Features: Auto-negotiation and Auto-MDI/MDI-X
• Power Requirement: 5V DC, 1A maximum

Features

• Converts 2.5Gbps copper Ethernet to 2.5GBASE-X optical connectivity.
• Supports 100Mbps, 1Gbps, and 2.5Gbps network speeds.
• Includes one multi-speed RJ45 copper Ethernet port.
• Provides an SFP+ slot for compatible optical transceivers.
• Supports Auto-MDI/MDI-X, eliminating the need for crossover cables.
• Supports automatic speed negotiation on the copper interface.
• Suitable for network switches, fiber uplinks, and long-distance Ethernet connections.

Product Description

The DIEWU TXE350 enables network devices with copper RJ45 ports to connect to a fiber-optic network through a compatible 2.5GBASE-X SFP+ module. Its multi-speed RJ45 interface supports 100Mbps, 1Gbps, and 2.5Gbps Ethernet, while the optical side provides a high-speed fiber connection for network extension and uplink applications.

The SFP+ optical module is not specified as included and should be selected according to the required fiber type, wavelength, connector, and transmission distance.
