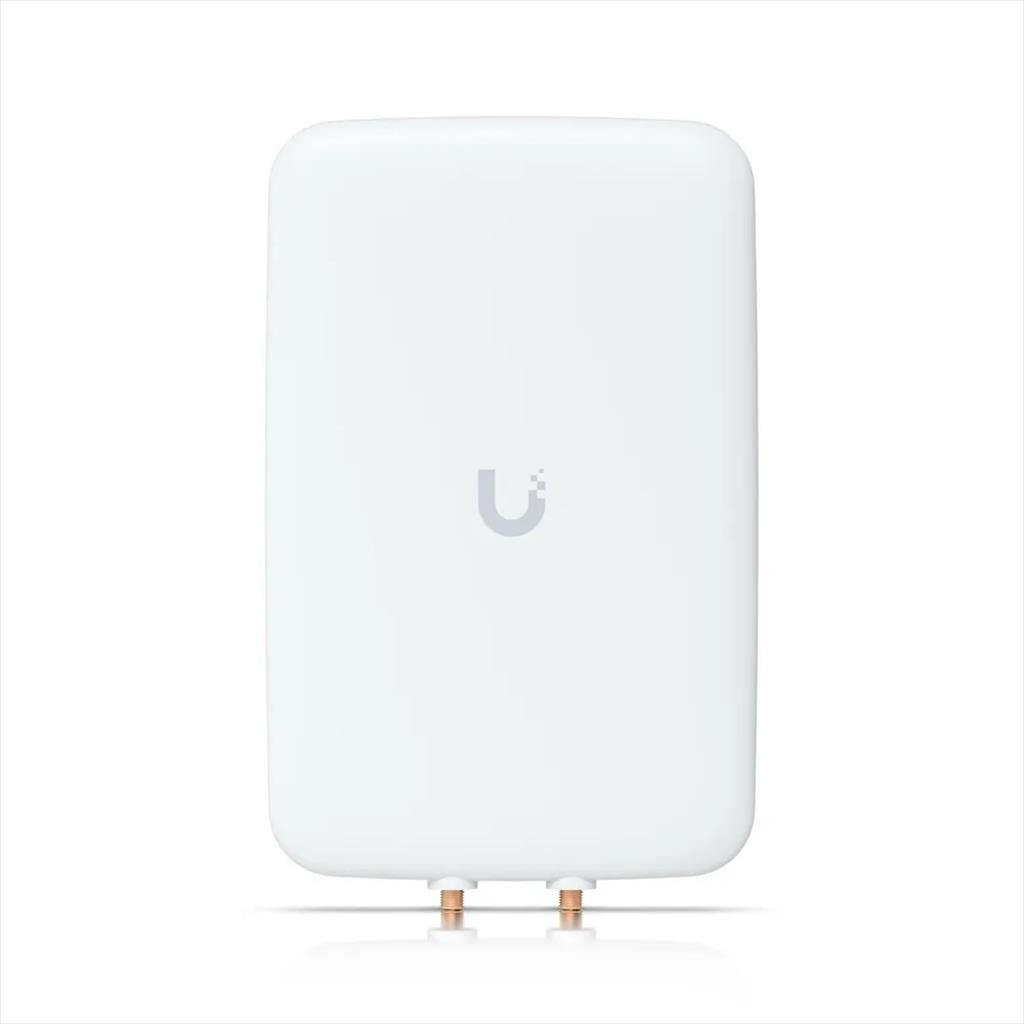

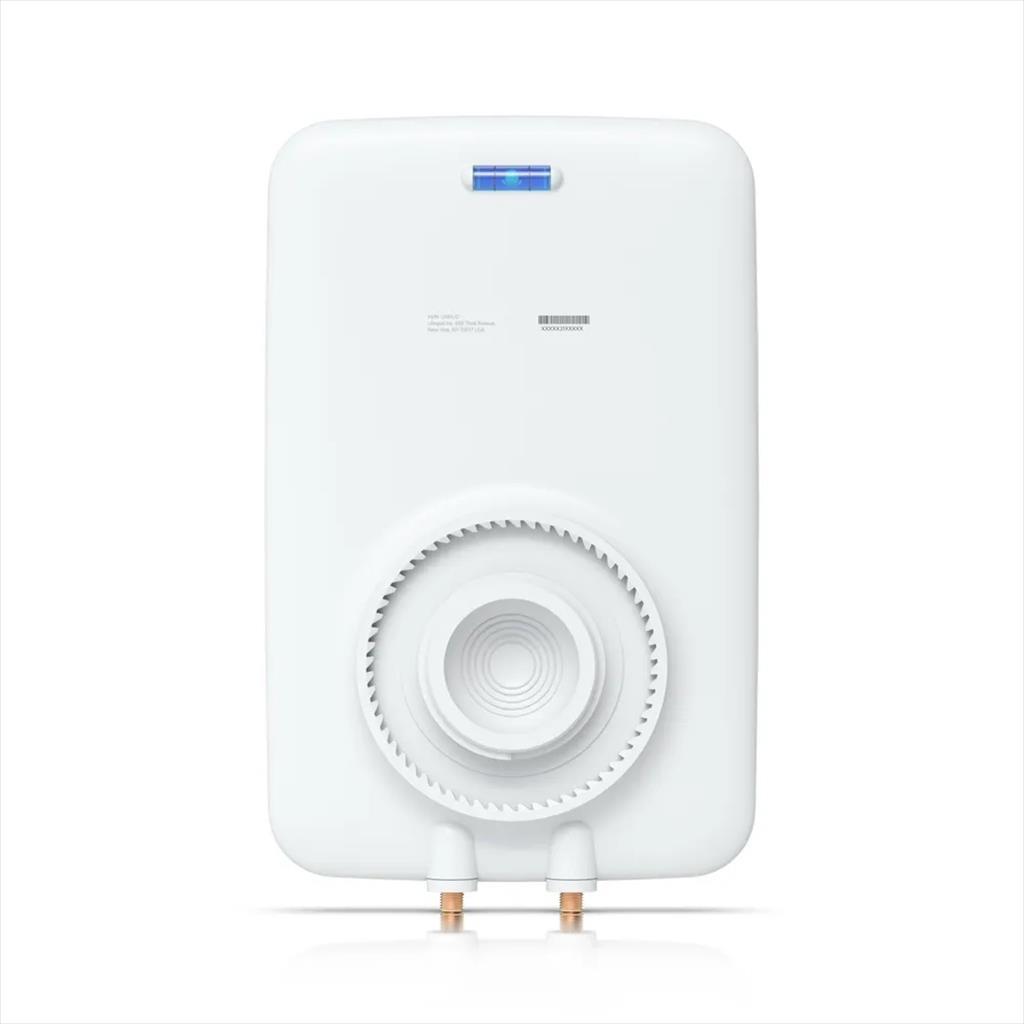

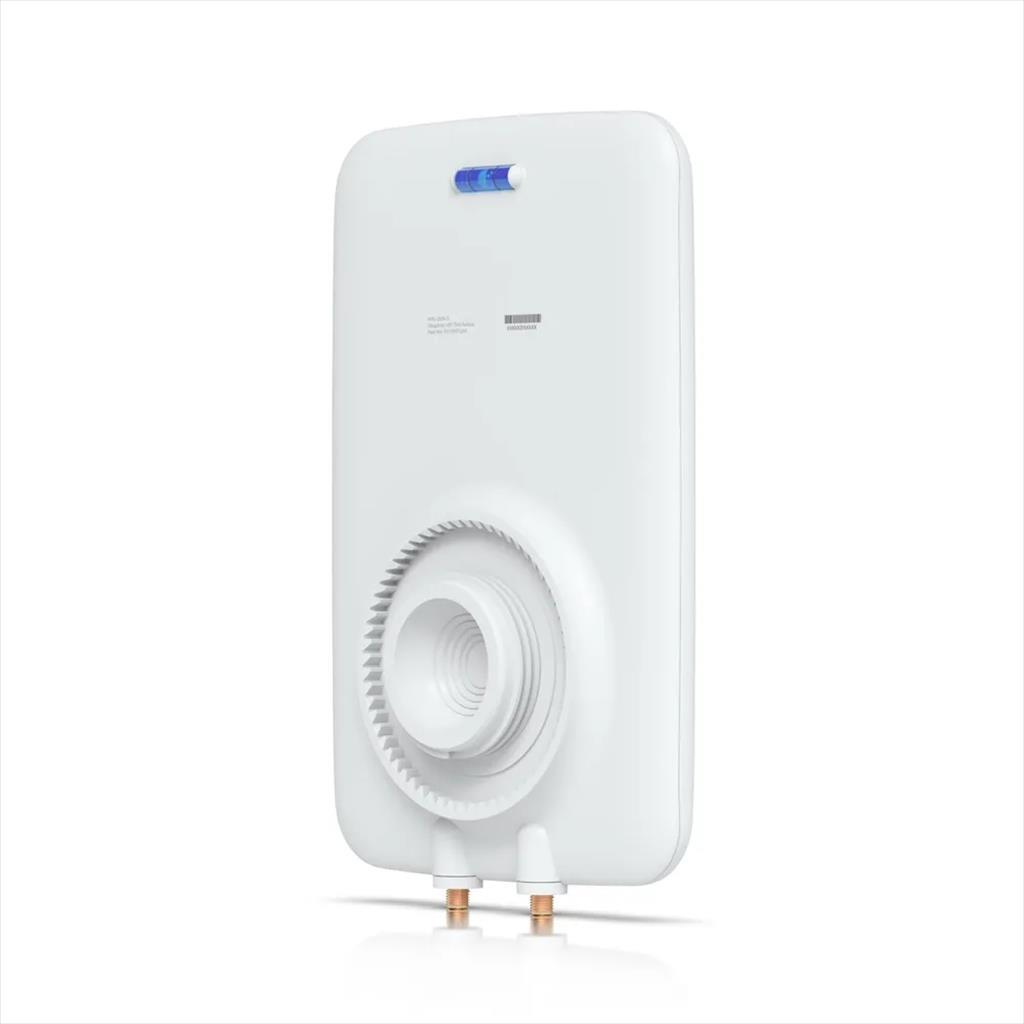

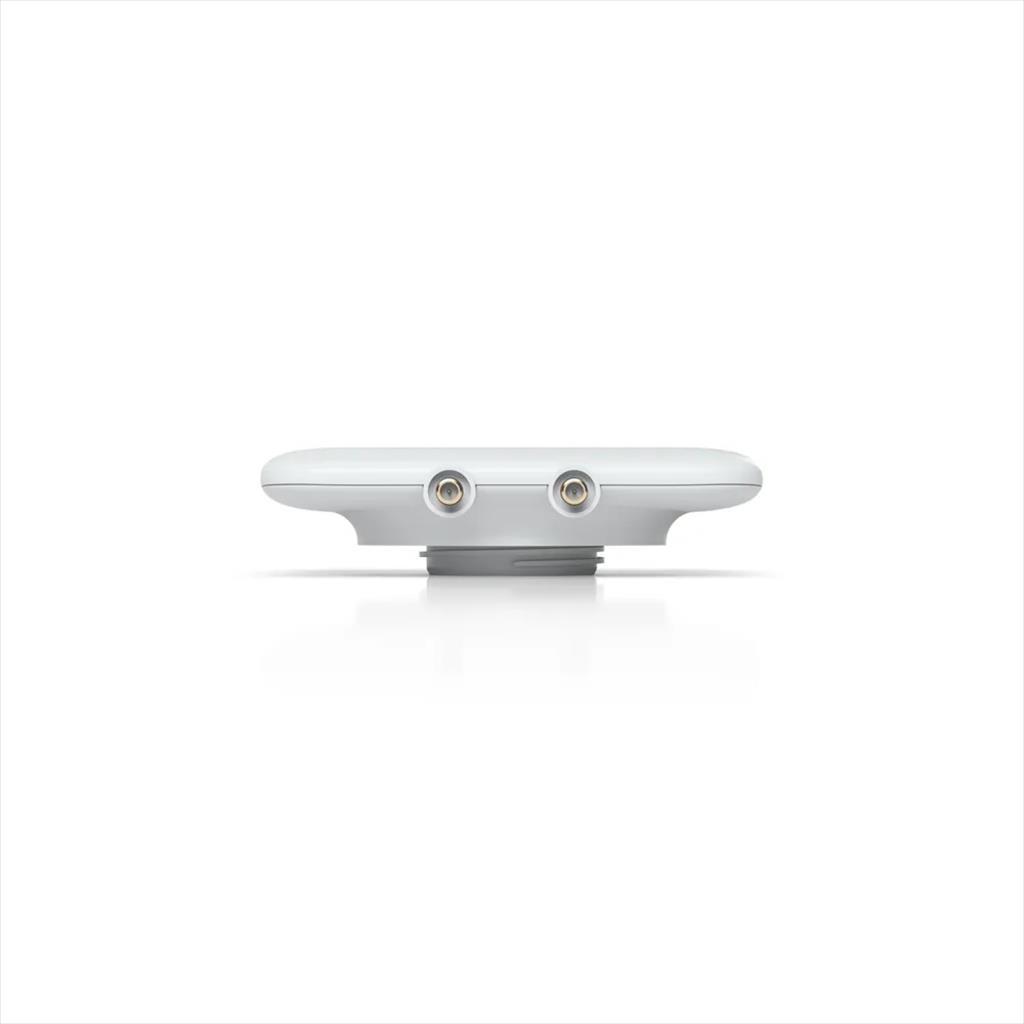

NET DIRECTIONAL DUAL-BAND ANTENNA FOR ACCESS POINT MESH UBIQUITI UAP-AC-M

Цена со ДДВ: 8.100 ден.
Шифра: 17636
Баркод: 0817882022736
Производител: UBIQUITI
Гаранција: 360 дена
залиха: има на залиха
Спецификација

Model name: UBIQUITI DIRECTIONAL DUAL-BAND ANTENNA

Specifications:

  • Mechanical
    • Dimensions: 201.3 x 128 x 32.5 mm (7.9 x 5 x 1.3")
    • Weight: Without mount: 400 g (0.9 lb), With mount: 480 g (1.1 lb)
    • Enclosure material: Outdoor UV-stabilized plastic
  • Hardware
    • Supported frequency range: 2.4–2.5 GHz, 5.1–5.9 GHz
    • RF Connections: (2) RP-SMA
    • Gain:
      • 2.4 GHz: 10 dBi
      • 5 GHz: 15 dBi
    • HPOL beamwidth:
      • 2.4 GHz: 90°
      • 5 GHz: 45°
    • VPOL beamwidth:
      • 2.4 GHz: 90°
      • 5 GHz: 45°
    • Elevation beamwidth:
      • 2.4 GHz: 90°
      • 5 GHz: 45°
    • Max VSWR: 2:1
    • Polarization: Dual-linear
    • Cross-pol isolation:
      • 2.4 GHz: 25 dB
      • 5 GHz: 30 dB
    • NDAA Compliant: Yes
