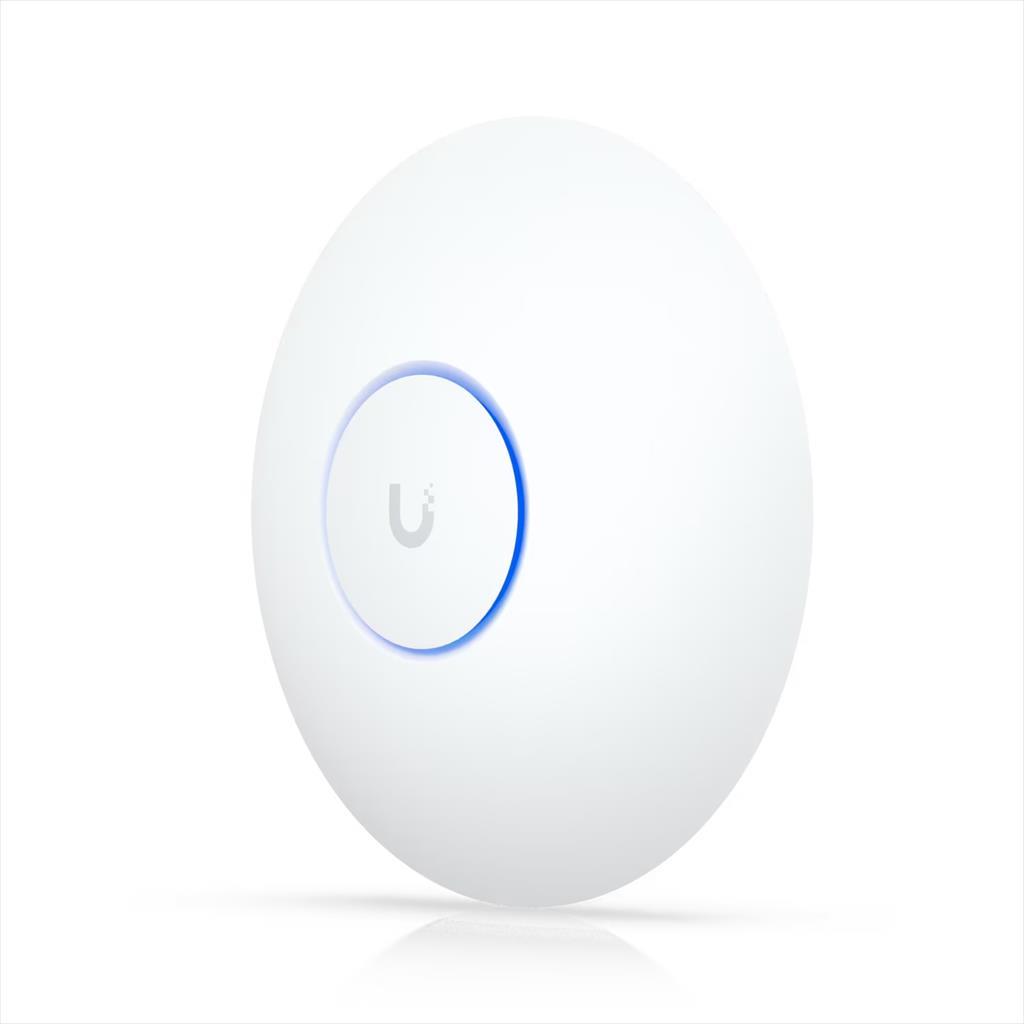

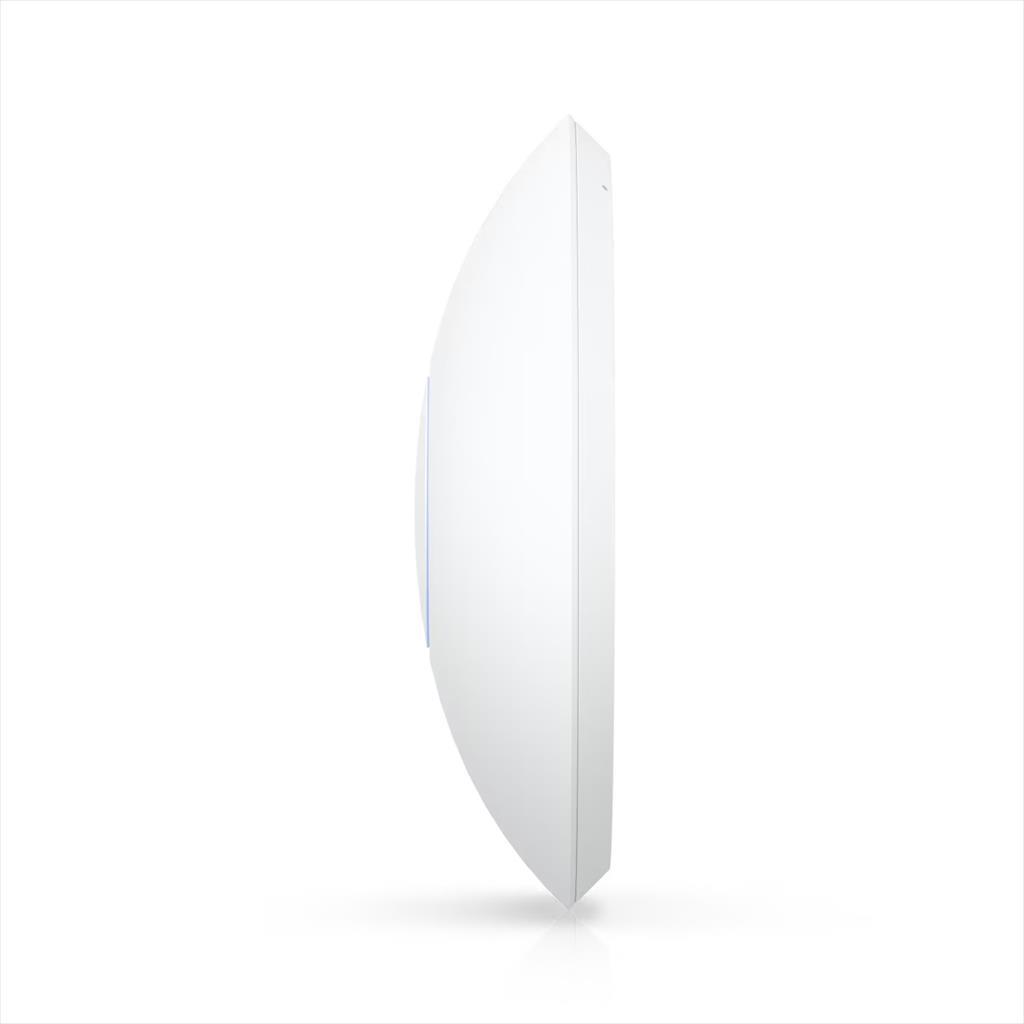

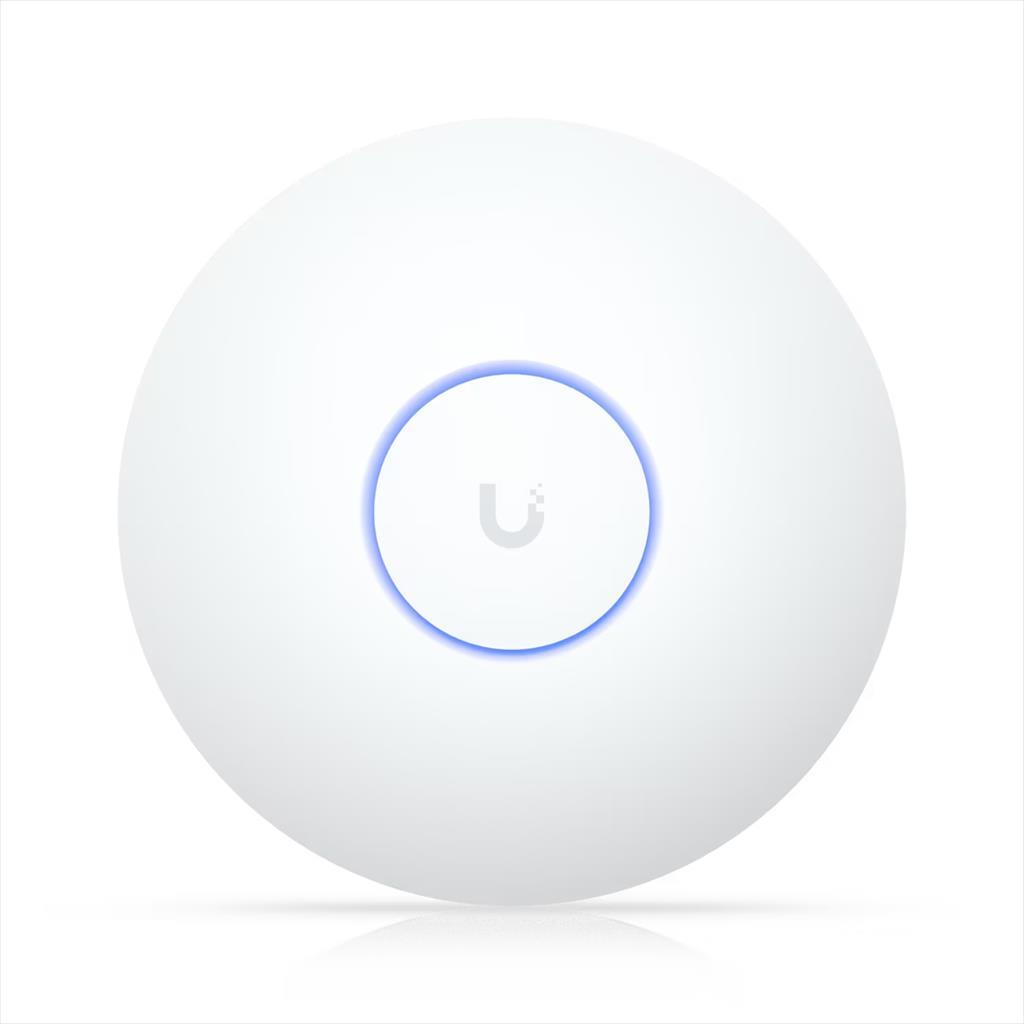

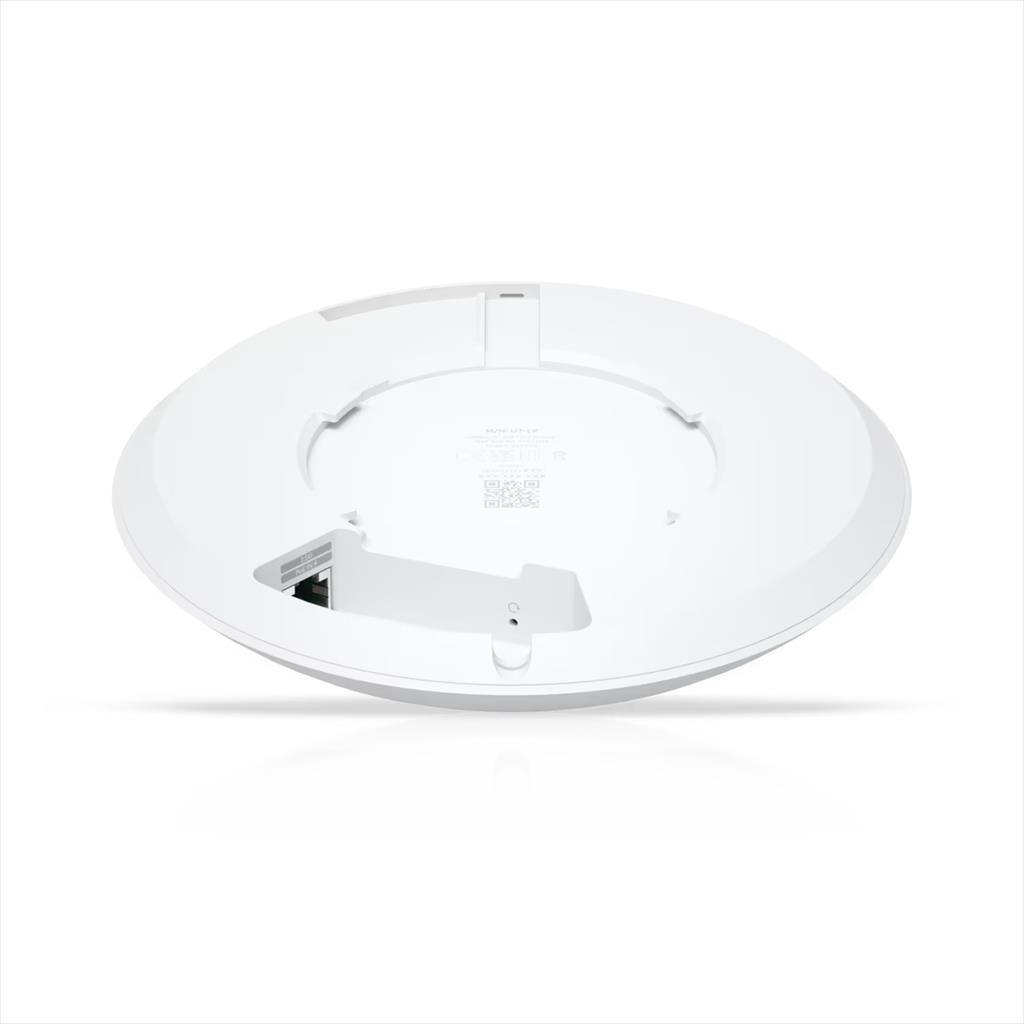

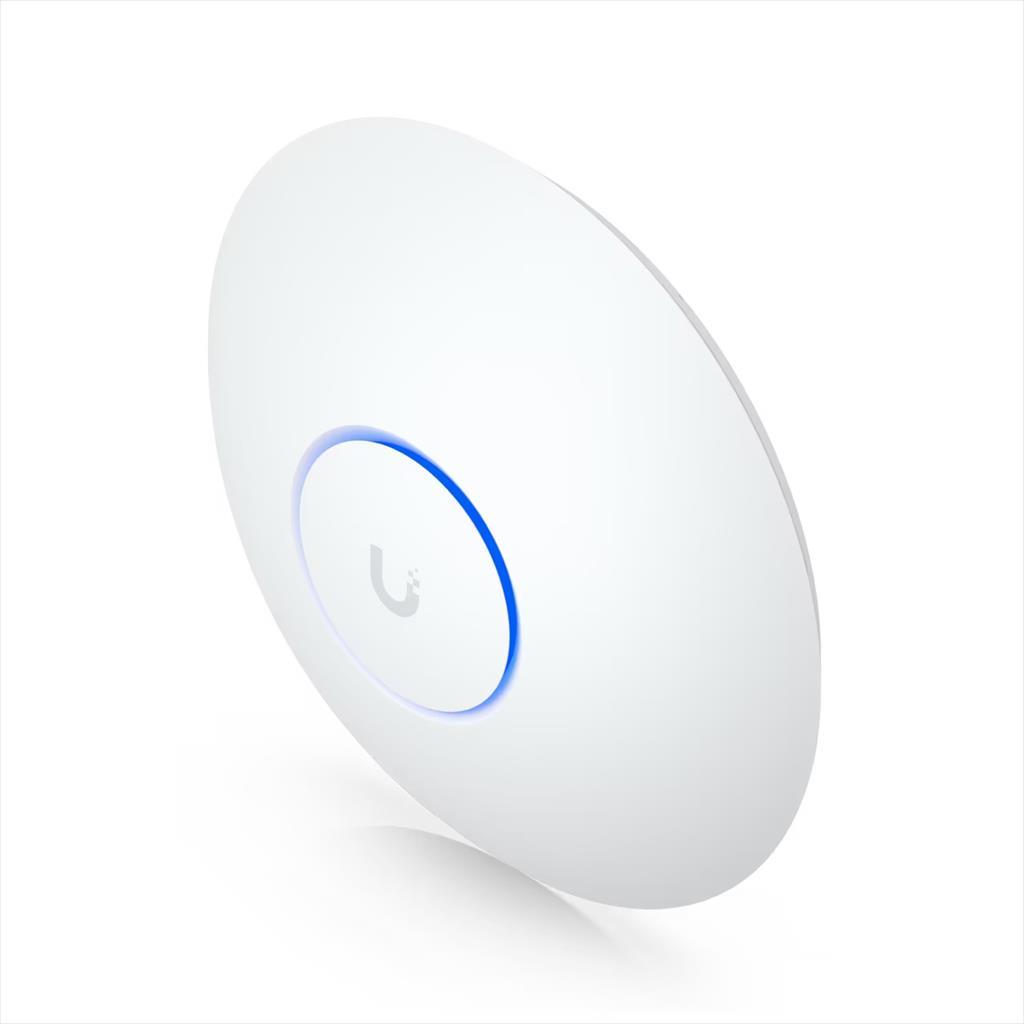

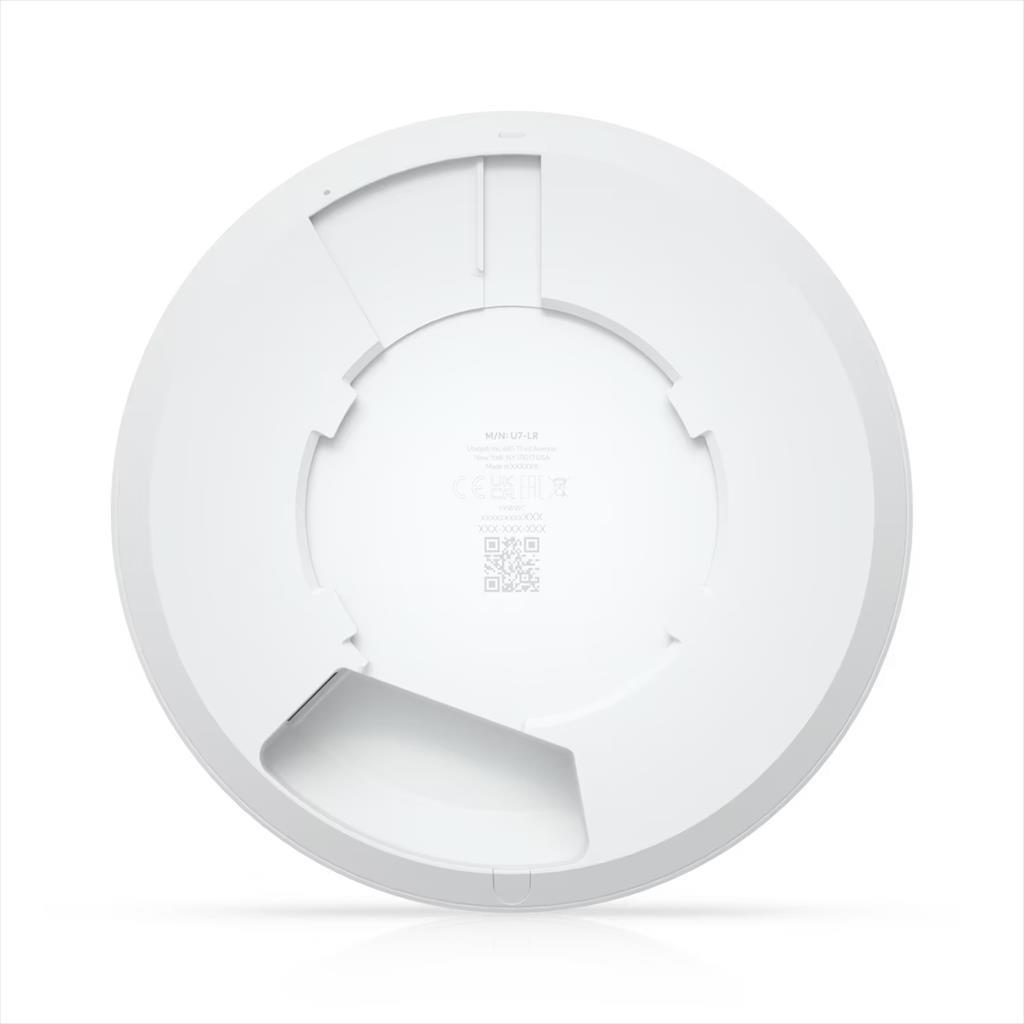

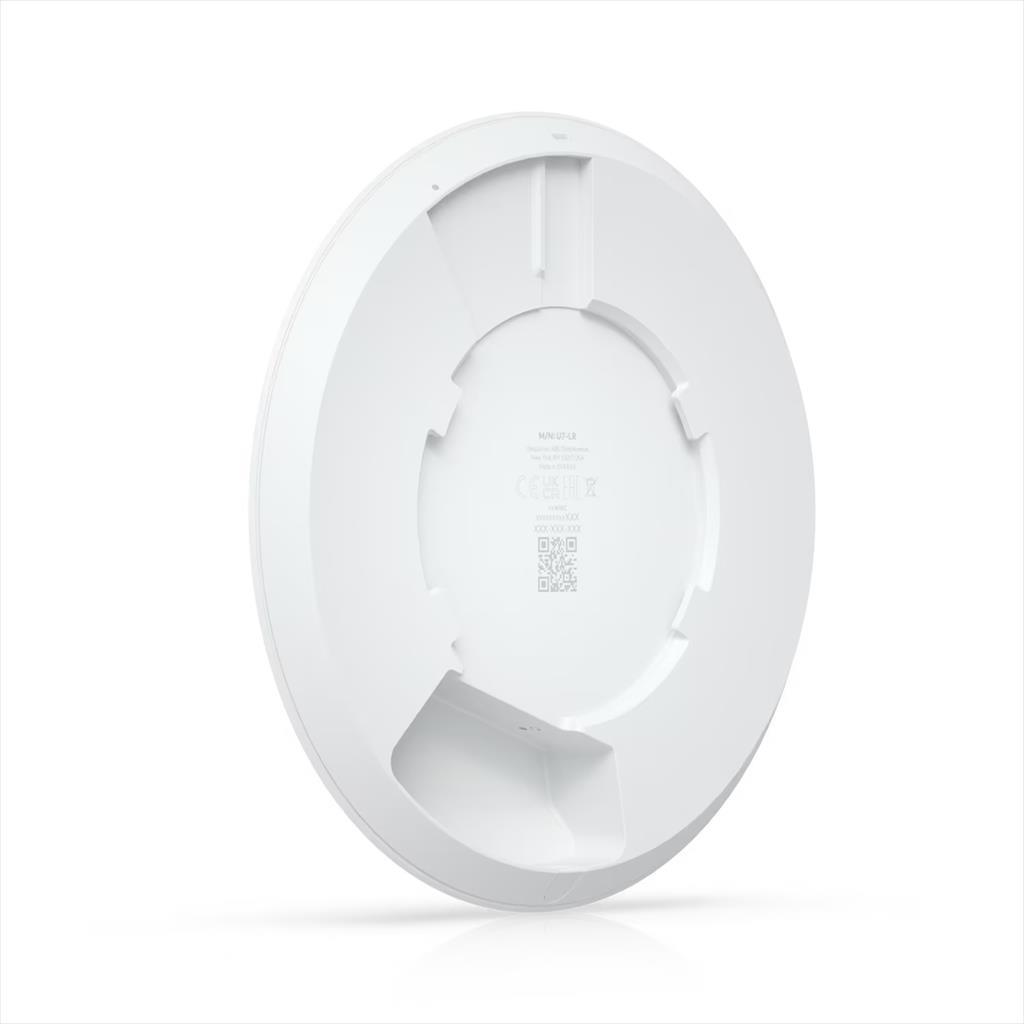

Model name: UBIQUITI U7-LR

Specifications:

• WiFi Standard: WiFi 7
• Spatial Streams: 5
• Coverage Area: 160 m² (1,750 ft²)
• Max. Client Count: 300+
• Uplink: 2.5 GbE
• Mounting: Ceiling, Wall (Plastic Mounting Plate included)
• Power Method: PoE
• Performance:
  • MIMO:
    • 5 GHz: 3 x 3 (DL/UL MU-MIMO)
    • 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
  • Max. Data Rate:
    • 5 GHz: 4.3 Gbps (BW160)
    • 2.4 GHz: 688 Mbps (BW40)
  • Antenna Gain:
    • 5 GHz: 6 dBi
    • 2.4 GHz: 4 dBi
  • Max. TX Power:
    • 5 GHz: 27 dBm
    • 2.4 GHz: 26 dBm
  • Supported Data Rates:
    • 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps
    • 802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps
    • 802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps
    • 802.11n: 6.5 Mbps to 450 Mbps
• Features:
  • Wireless Meshing ✓
  • Band Steering ✓
  • 802.11v / 802.11r / 802.11k support ✓
  • Advanced Radio Management ✓
  • Passpoint (Hotspot 2.0) ✓
  • Captive Hotspot Portal with custom branding ✓
  • Voucher / Payment-Based Authentication ✓
  • External Portal Server Support ✓
  • Password Authentication ✓
  • Guest Network Isolation ✓
  • Private Pre-Shared Key (PPSK) ✓
  • WiFi Speed Limiting ✓
  • Client Device Isolation ✓
  • WiFi Schedules ✓
  • RADIUS over TLS (RadSec) ✓
  • Dynamic RADIUS-assigned VLAN ✓
• Hardware:
  • Max. Power Consumption: 14W
  • Supported Voltage Range: 42.5–57V DC
  • Networking Interface: 1 x 2.5 GbE RJ45 port
  • Weight: 448 g (15.8 oz)
  • Enclosure Material: Polycarbonate, aluminum alloy
  • Mount Material: Polycarbonate, galvanized steel (SGCC)
  • LEDs: System – White/Blue
  • Channel Bandwidth: HT/VHT/HE/EHT 20/40/80/160 MHz
  • NDAA Compliant: ✓
  • Certifications: CE, FCC, IC, Anatel, SRRC
  • Operating Temperature: -30°C to 50°C
  • Operating Humidity: 5–95% non-condensing
• Software:
  • Controller: UniFi Network (v9.1.120 and later)
  • Mobile App:
    • iOS: version 10.20.2 and later
    • Android: version 10.21.7 and later
