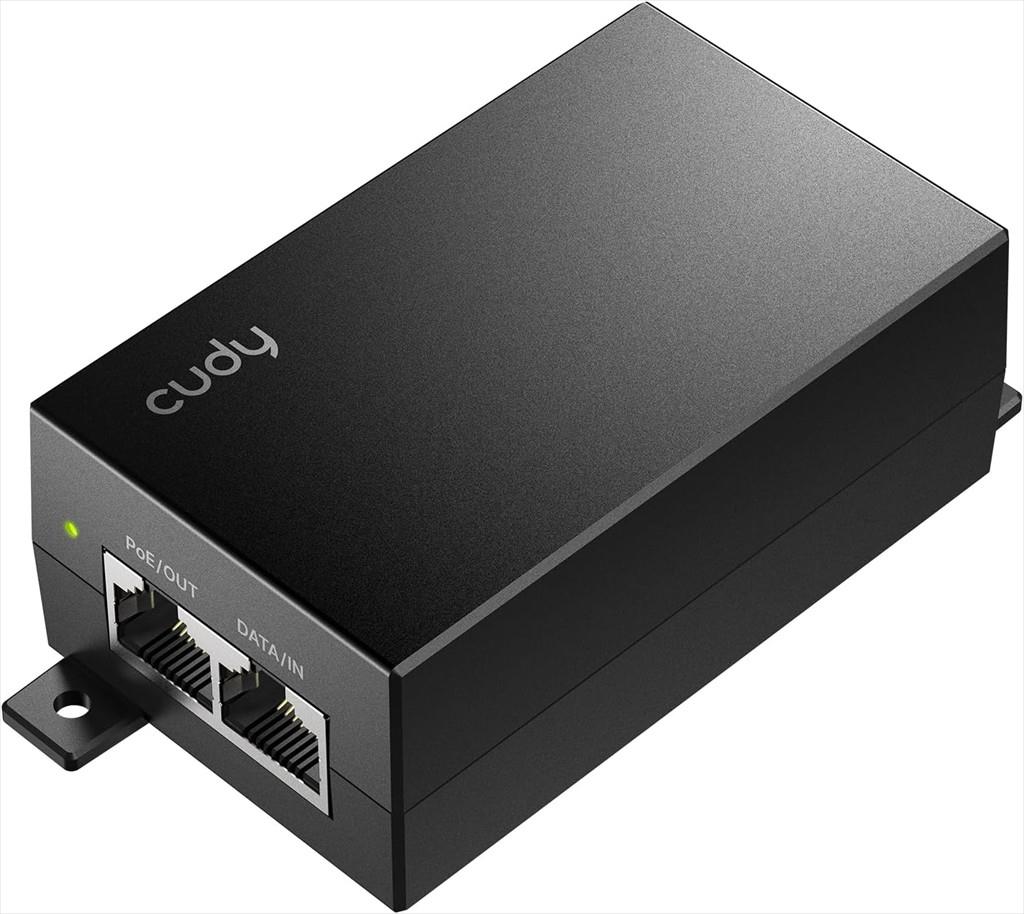

NET INJECTOR CUDY POE48, POE+/POE, 2x10/100/1000Mbps, 18W, POE48-18W

Цена со ДДВ: 690 ден.
Шифра: 17707
Баркод: 6971690795160
Производител: CUDY
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model Name: Injector Cudy POE48, PoE+/PoE POE48-18W 1.0

Gigabit PoE+/PoE injector · 18 W output at 48 V
Mode B passive PoE · Surge, ESD & overvoltage protection · Desktop or wall-mount

Features

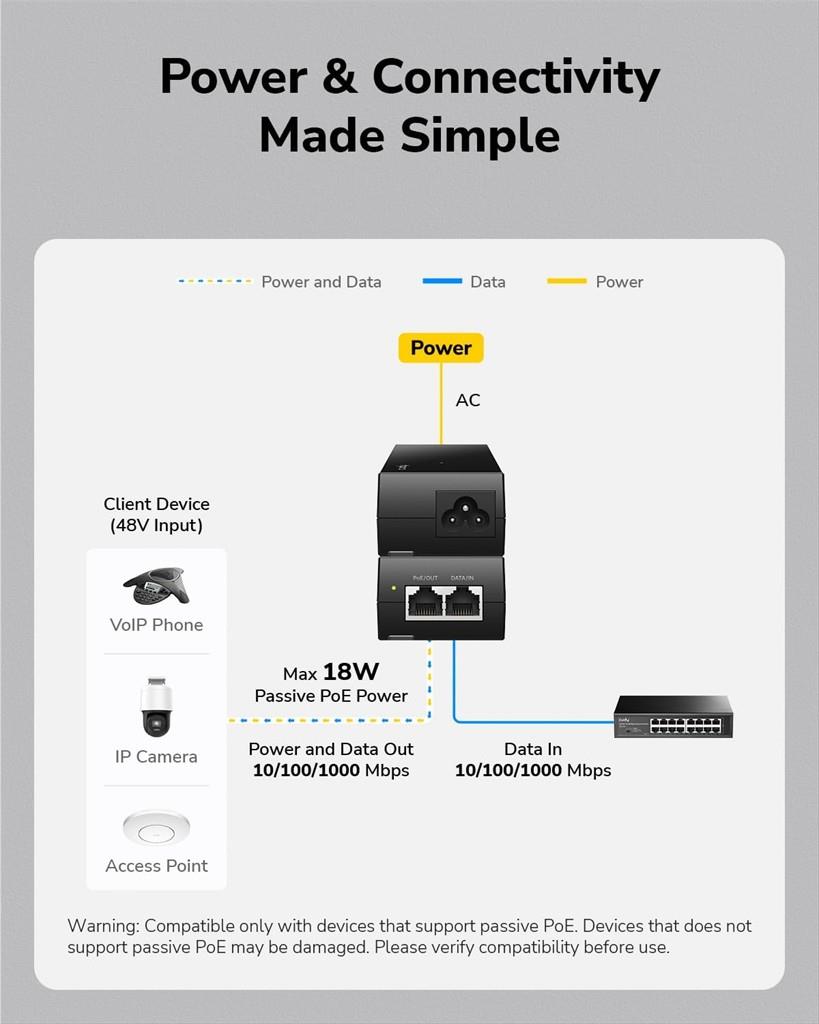

  • Gigabit PoE injector supporting PoE+/PoE for powering compatible network devices
  • Compliant with IEEE 802.3i/802.3u/802.3ab for 10/100/1000 Mbps over twisted pair
  • 1 × GbE uplink and 1 × GbE passive PoE downlink (Mode B)
  • Up to 18 W power output at 48 V DC (0.38 A)
  • Transmission distance up to 100 m over Cat 5e or higher cable
  • Built-in surge, ESD, overvoltage and short-circuit protection for reliability
  • Desktop or wall-mount installation with included mounting kit
  • Wide input voltage range (100–240 V AC) with three-prong grounded plug
  • Compatible with a range of Cudy AP and outdoor devices

Specification

  • Product type: Gigabit PoE+/PoE injector
  • Model: POE48-18W 1.0
  • Standards / Protocols: IEEE 802.3i (10 Mbps), 802.3u (100 Mbps), 802.3ab (1 Gbps) over twisted pair
  • Uplink stream: 1 × GbE
  • Downlink stream: 1 × GbE, passive PoE
  • Downlink pin assignment: Mode B
  • Transmission distance: Up to 100 m (Cat 5e or higher; uplink + injector + downlink counted as one segment)
  • LED indicators: Power
  • Power method: AC input
  • Power input: 100–240 V~ 50/60 Hz, 0.5 A
  • Max power output: 18 W, 48 V⎓ 0.38 A
  • Grounding: Three-prong plug
  • Protection: Surge protection, ESD protection, Overvoltage protection, Short-circuit protection
  • EMC: IEC/EN 61000-4-2 Level 3 (ESD: contact 6 kV, air 8 kV); IEC/EN 61000-4-5 Level 3 (surge: power DM 2 kV, CM 2 kV; RJ45 CM 4 kV)
  • Safety: IEC/EN 62368
  • Operating temperature: 0–40 ℃ (32–104 ℉)
  • Storage temperature: -40–70 ℃ (-40–158 ℉)
  • Operating humidity: 10–90% RH (non-condensing)
  • Storage humidity: 10–95% RH (non-condensing)
  • Certifications: FCC, CE, CCC
  • Installation: Desktop, Wall-mount
  • Dimensions (main part): 80.1 × 48.9 × 31.9 mm (3.15 × 1.93 × 1.26")
  • Bracket thickness (each): 9 mm (0.35")
  • Casing material: Plastic
  • Product weight: 83.5 g (2.95 oz)
  • Package contents: POE48-18W, Power cord, Mounting kit, Installation guide
  • Compatible products: AP3000 1.0, LT700 Outdoor 1.0, AP3000 Outdoor 1.0, AP11000 1.0, AP3000_P 1.0, AP3600 1.0, AP6500 1.0, LT700 Outdoor 2.0, AP3600 Outdoor 1.0
