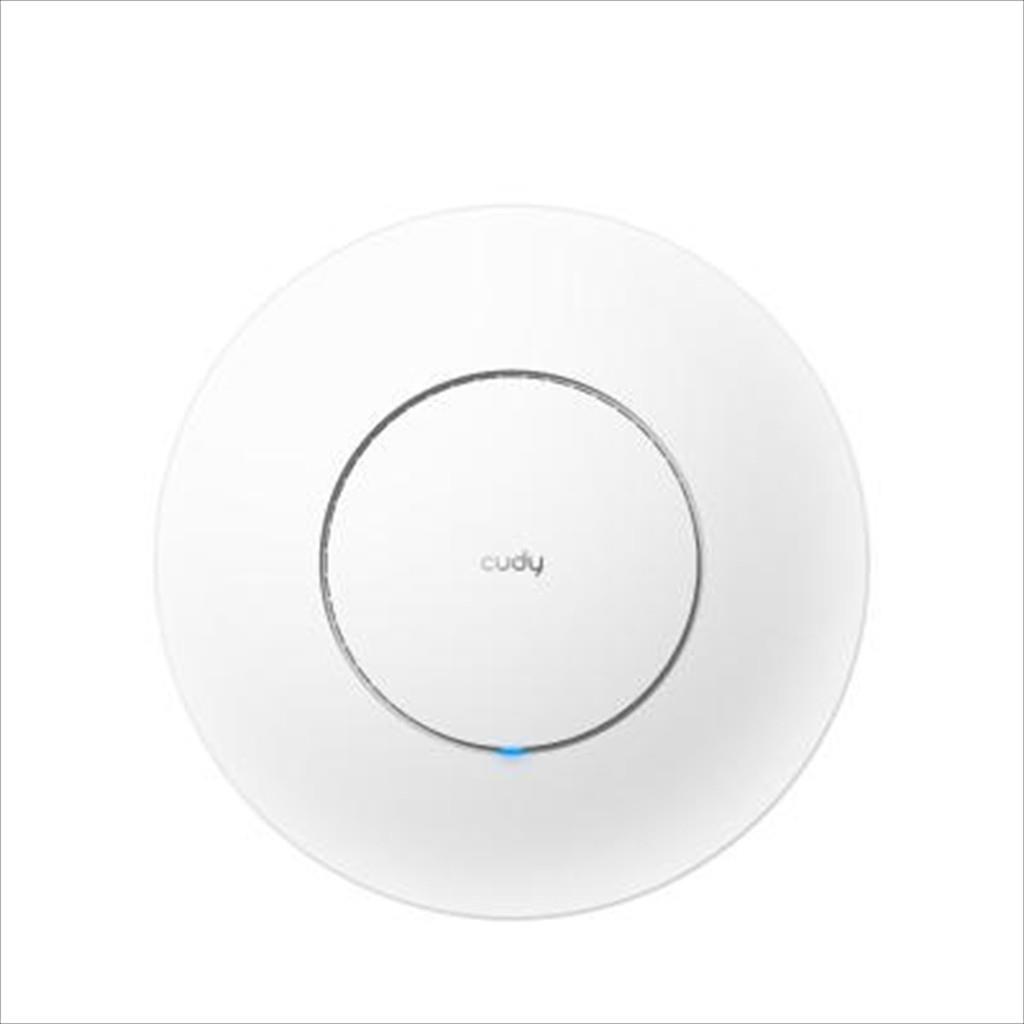

NET ACCESS POINT CUDY AP3600-P, BE3600 2.5GbE PoE, 5-Stream Dual-Band Wi-Fi 7, 130m2, wall/ceiling-mount, (POE Adapter included), AP3600-P

Цена со ДДВ: 6.000 ден.
Шифра: 17718
Баркод: 6971690794002
Производител: CUDY
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model Name: BE3600 2.5G Wi‑Fi 7 Access Point AP3600 1.0

Wi‑Fi 7 BE3600 dual-band access point · 2.5G PoE in + 1G PoE out
Up to 2882 + 688 Mbps · Covers ~120 m² · Up to 200 connected devices

Features

  • Wi‑Fi 7 BE3600 4‑stream dual-band AP with up to 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz)
  • Powered by a Broadcom 2.0 GHz quad‑core ARM Cortex‑A7 CPU for high concurrent client performance
  • Covers up to 120 m² (1,300 ft²) with support for around 200 connected devices
  • 1 × 2.5 GbE PoE in and 1 × GbE PoE out for flexible deployment and daisy‑chaining
  • Supports 802.3at PoE, passive PoE and 12 V DC input
  • 4 × internal high‑gain antennas with beamforming and integrated FEM/PA/LNA
  • Multi‑AP management, watchdog and schedule reboot for reliable, scalable networks
  • Captive portal and multi‑SSID for guest access and segmenting user groups
  • Optimised range up to 220 m in open space, with strong wall penetration performance
  • Available as AP3600 (no adapter) or AP3600_P (PoE adapter included)

Specification

  • Product type: Wi‑Fi 7 access point
  • Model: AP3600 1.0 (BE3600 2.5G Wi‑Fi 7)
  • CPU: 2.0 GHz quad‑core ARM Cortex‑A7 (Broadcom)
  • Flash / ROM: 128 MB (1 Gbit) NAND
  • DDR / RAM: 512 MB (4 Gbit) DDR3L
  • Wi‑Fi standard: Wi‑Fi 7, dual band
  • 5 GHz Wi‑Fi speed: 2882 Mbps
  • 2.4 GHz Wi‑Fi speed: 688 Mbps
  • 5 GHz Wi‑Fi streams: 2 spatial streams
  • 2.4 GHz Wi‑Fi streams: 2 spatial streams
  • Wi‑Fi antennas: 4 × internal
  • 5 GHz antenna gain (max): 5.5 dBi
  • 2.4 GHz antenna gain (max): 5.4 dBi
  • FEM / PA/LNA: 5 GHz – 2 × internal; 2.4 GHz – 2 × internal
  • Beamforming: Yes
  • Coverage (typical): ~120 m² (1,300 ft²)
  • Range performance (max): 220 m (722 ft) in open space
  • Wall performance: Two wooden walls < 10 cm; or one concrete wall < 20 cm; or two concrete walls < 10 cm
  • Recommended clients: Up to ~200 connected devices
  • 2.5G RJ45 ports: 1 (PoE in)
  • Gigabit RJ45 ports: 1 (PoE out)
  • Ethernet notes: Accepts PoE powering
  • LED indicators: System
  • Buttons: Reset button
  • Power input type: DC jack, PoE via Ethernet port
  • Power methods: 12 V DC, Passive PoE, 802.3at/af PoE
  • DC input: 12 V⎓1 A
  • Passive PoE input: 48–57 V⎓
  • PoE input: 802.3at/af
  • Max power consumption: 10 W
  • Power adapter in box: AP3600 – none; AP3600_P – 48 V passive PoE adapter (100–240 V~, 50/60 Hz input)
  • Advanced reliability: Hardware watchdog
  • EMC: ESD contact 4 kV, air 8 kV
  • Operating temperature: 0–40 ℃ (32–104 ℉)
  • Storage temperature: -40–70 ℃ (-40–158 ℉)
  • Humidity (operating): 10–90% RH (non‑condensing)
  • Humidity (storage): 5–95% RH (non‑condensing)
  • Certifications: FCC, CE
  • Management features: Multi‑AP management, Watchdog, Schedule reboot, Captive portal, Multi‑SSID
