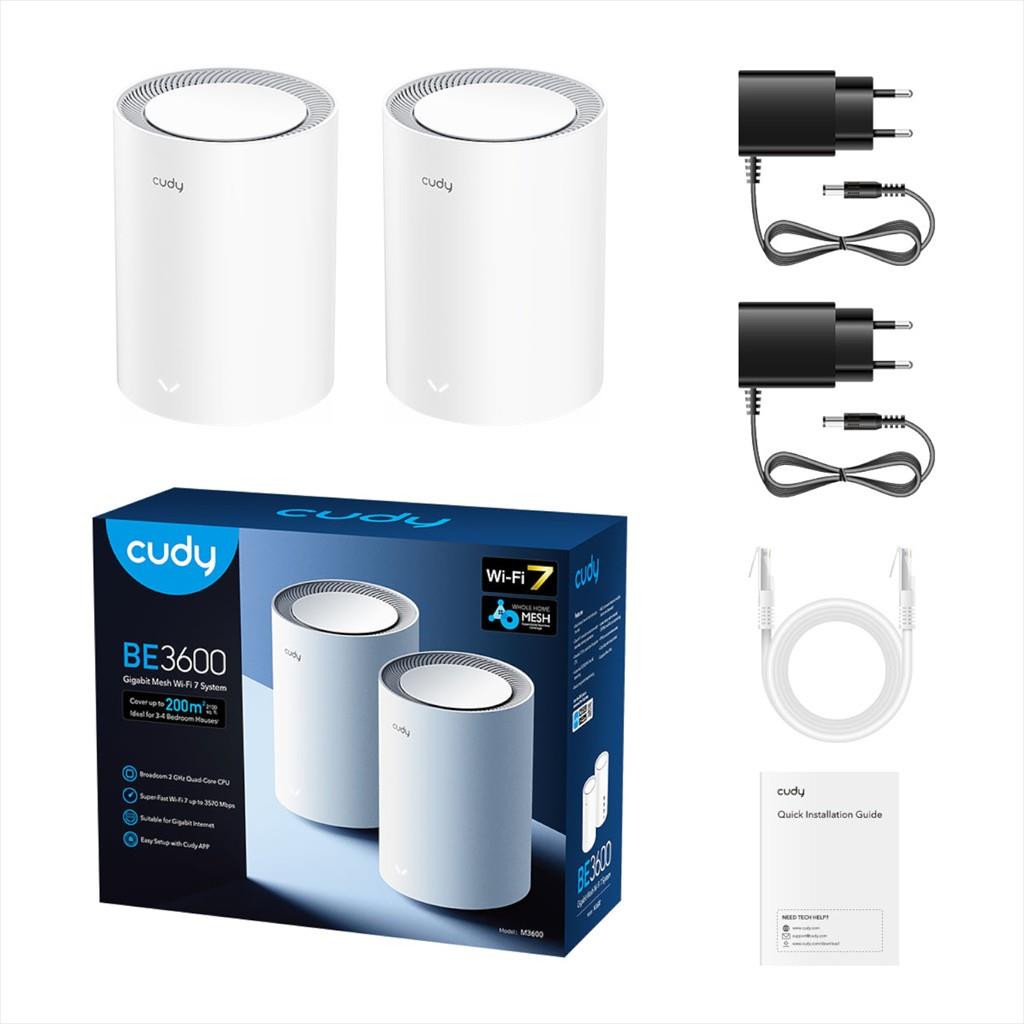

NET ROUTER MESH SYSTEM Wi-Fi 7 CUDY M3600, 802.11 a/b/g/n/ac/ax/be, WHITE, (2-Pack), CUDY-M3600-2-pack

Спецификација

Dual-band Wi‑Fi 7 mesh system · up to 2882 + 688 Mbps

3× Gigabit ports · up to 200 devices · Cudy Mesh & VPN (server/client)

4‑stream dual‑band Wi‑Fi 7 with combined speeds up to 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz)
Powerful 2.0 GHz quad‑core ARM Cortex‑A7 CPU with 512 MB RAM and 128 MB flash
Cudy Mesh technology for seamless whole‑home coverage
Supports up to 200 connected devices
Built‑in VPN server and client for secure remote access
3× Gigabit Ethernet ports (1× WAN, 2× LAN) for high-speed wired connections
Cudy App and cloud control for easy setup and remote management
True beamforming with internal antennas and external FEM/PA for extended range
Mesh packs cover up to 200 m² (2‑pack) or 270 m² (3‑pack) with wireless backhaul

Model version: M3600 1.0
CPU: 2.0 GHz quad‑core ARM Cortex‑A7
Flash / ROM: 128 MB (1 Gbit) NAND
RAM: 512 MB (4 Gbit) DDR3L
Wi‑Fi standard: Wi‑Fi 7 (dual‑band)
5 GHz speed: up to 2882 Mbps
2.4 GHz speed: up to 688 Mbps
5 GHz streams: 2 spatial streams
2.4 GHz streams: 2 spatial streams
Antennas: 4 × internal
FEM / PA / LNA: 5 GHz: 2 × external; 2.4 GHz: 2 × internal
Beamforming: Yes (true)
Range (max): up to 220 m (722 ft) in open space
Wall performance: two wooden walls <10 cm; one concrete wall <20 cm or two concrete walls <10 cm
Indoor coverage reference: 2‑pack: 200 m² (2100 sq ft); 3‑pack: 270 m² (2900 sq ft), wireless backhaul
Gigabit RJ45 ports: 3 (1 × WAN, 2 × LAN)
LED indicators: System; speed/link/ACT per Ethernet port
Buttons: WPS, Reset
Power interface: DC jack
Power input: 12 V ⎓ 1 A (adapter input 100–240 V~, 50/60 Hz)
Max power consumption: 9 W
Operating temperature: 0 – 40 °C (32 – 104 °F)
Storage temperature: -40 – 70 °C (-40 – 158 °F)
Operating humidity: 10% – 90% non‑condensing
Storage humidity: 5% – 95% non‑condensing
Certifications: FCC, CE
