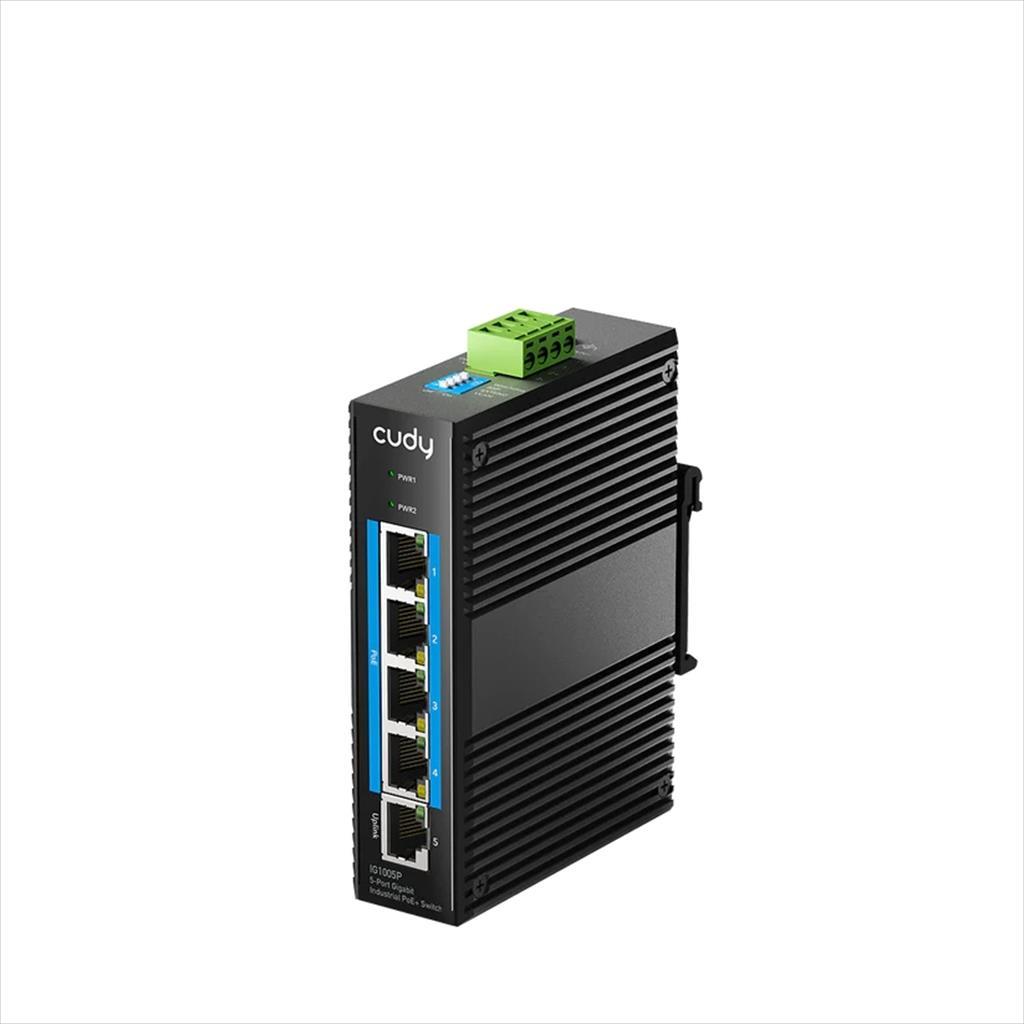

Model name: CUDY IG1005P

Specification :

• Interfaces:
  • Gigabit RJ45 Ports: 5
  • Gigabit RJ45 PoE Ports: #1~#4
  • Max Power on a Single PoE Port: 30W
  • PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.
  • Shielded RJ45 Port: True
  • Extend Mode Ports: #1~#4
  • VLAN Mode Ports: #1~#4
• LED:
  • Power 1
  • Power 2
  • Link/ACT of Each Ethernet Port
  • PoE Status of Each PoE Port
• Power Interfaces: 4-Pin Terminal Block
• Physical Buttons:
  • PoE Watchdog On/Off
  • VLAN On/Off
  • Extend On/Off
  • Broadcast Storm Prevention On/Off
  • Physical Buttons Note: The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
• Performance:
  • Copper Speed and Distance:
    • Cat. 3 or higher cable: 100 meters at 10 Mbps
    • Cat. 5 or higher cable: 100 meters at 100 Mbps
    • Cat. 5e or higher cable: 100 meters at Gigabit
    • Cat. 5e or higher cable: 250 meters at 10 Mbps
    • Copper Speed and Distance Note: 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
  • MAC Address Table: 2048
  • Max Switching Capacity: 10 Gbps
  • Max Forwarding Rate: 7.44 Mpps
  • Jumbo Frame: 2 KB
  • Packet Buffer: 2 Mbit
• Power:
  • Power Methods: DC
  • Power Redundancy: Dual Inputs
  • Power Input: 44-57V⎓
  • Max Power Consumption: 120W
  • Max Power Excluding PoE: 2.0W
  • Idle Power Consumption: 1.4W
  • Polarity Reverse Protection: True
  • Short Circuit Protection: True
• Switching:
  • 802.3 Protocols:
    • 802.3at PoE
    • 802.3af PoE
    • 802.3i 10BASE-T
    • 802.3u 100BASE-TX
    • 802.3ab 1000BASE-T
    • 802.3x Flow Control
• Reliability:
  • Grounding Methods: Grounding Point
• Safety: IEC/EN 62368
• EMC / EMI / EMS:
  • EMC:
    • EN55032 Class A
    • EN55035 Class A
  • EMI: FCC 47 CFR Part 15B Class A
  • EMS:
    • IEC/EN 61000-4-2, Level 4 ESD: Contact: 8kV; Air: 15kV
    • IEC/EN 61000-4-3, Level 4 RS: 80 MHz to 1 GHz: 30 V/m
    • IEC/EN 61000-4-4, Level 4 EFT: Power: 2kV; RJ45: 4kV
    • IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
    • IEC/EN 61000-4-6, Level 3 CS: 10V
    • IEC/EN 61000-4-8, Level 5 PFMF
    • IEC/EN 61000-4-9, Level 5 PMF
    • IEC/EN 61000-4-10, Level 5 DOMF
    • EMS Note: The levels listed in each EMS field are the highest level defined in the IEC/EN standard.
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
• Free Fall: IEC 60068-2-32
• Environment:
  • Operating Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉)
  • Storage Temperature: -40 ℃ ~ 85 ℃ (-40 ℉ ~ 185 ℉)
  • Operating Humidity: 5% ~ 95% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
