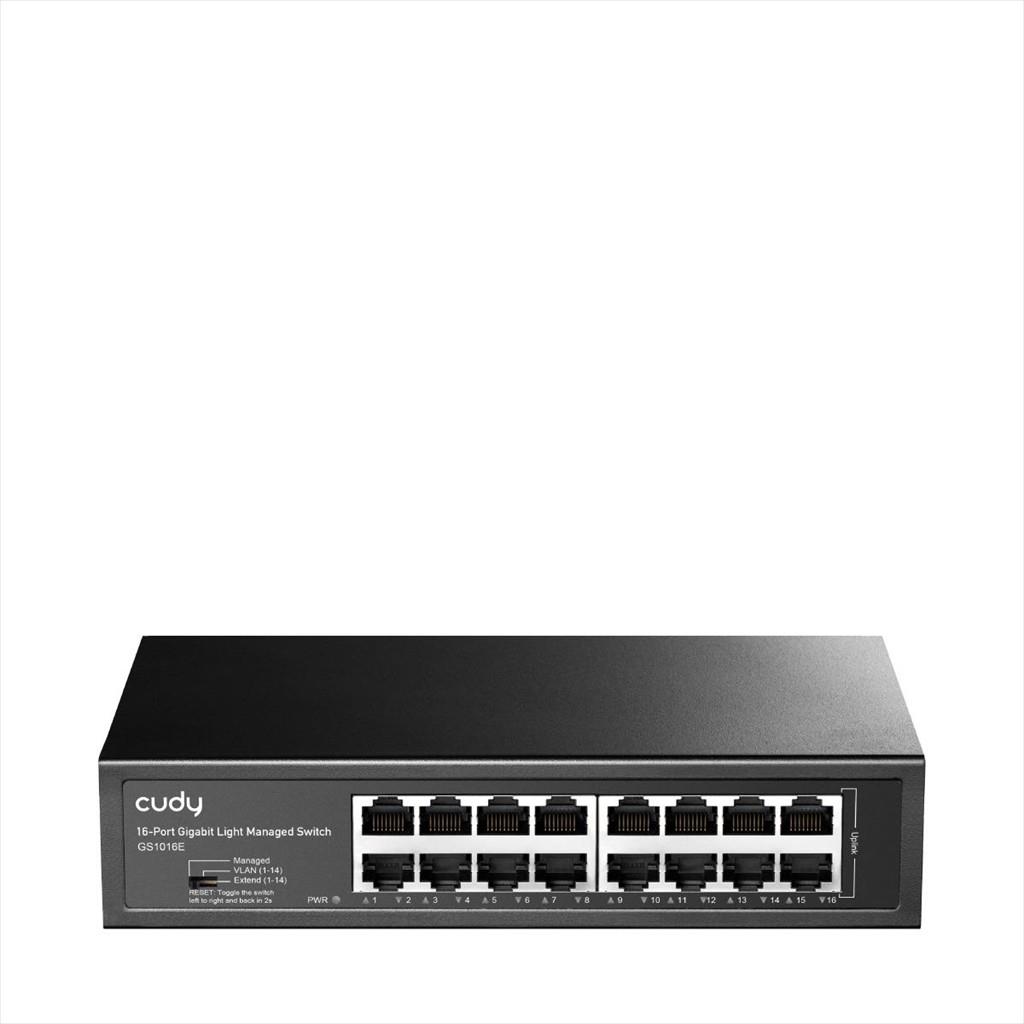

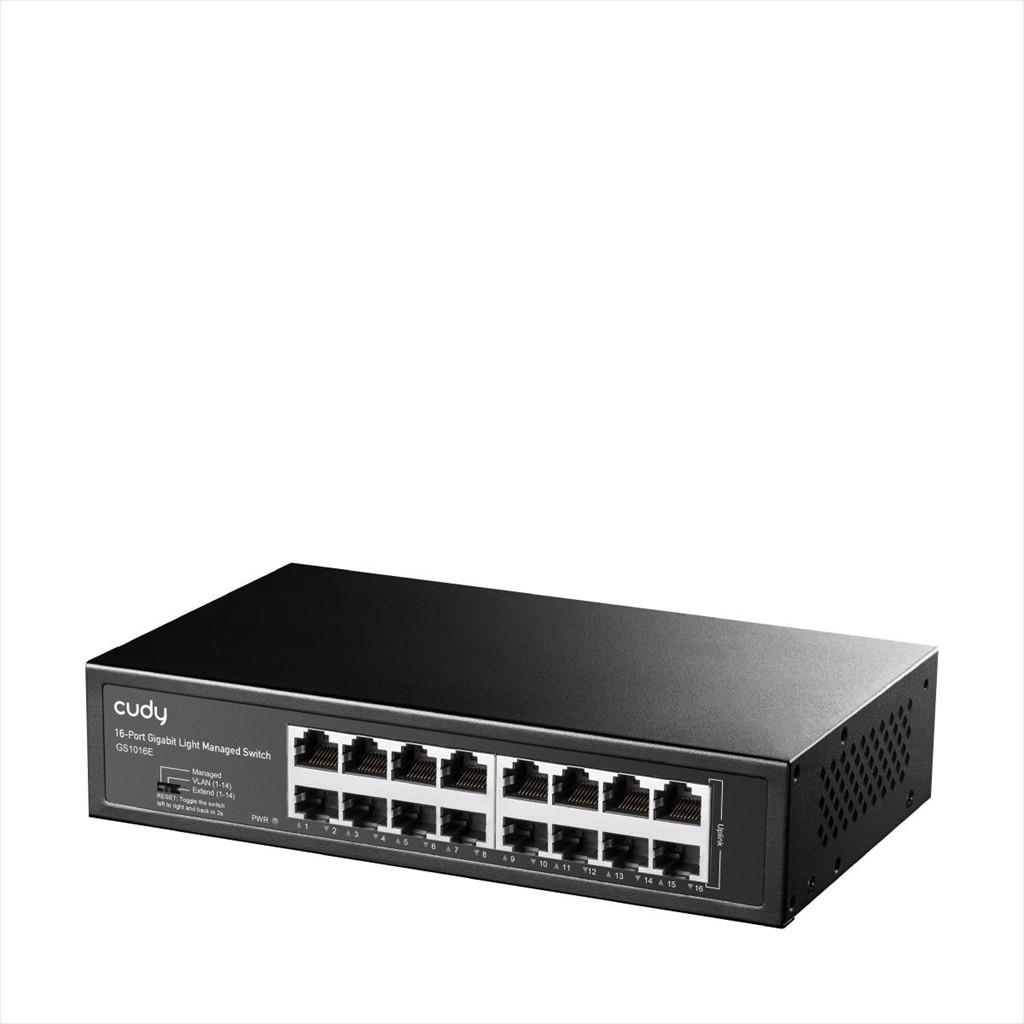

Cudy GS1016E 16-Port Gigabit Managed Switch

Expand your wired network with the Cudy GS1016E, a 16-port Gigabit switch with web management, SNMP, and Cudy app and cloud control. VLAN and QoS options, port mirroring, static aggregation, and loop detection and prevention provide tools for managing network traffic and configuration.

Choose from Managed, VLAN, and Extend preset modes. In Extend Mode, supported ports can provide transmission distances of up to 250 metres at 10 Mbps. In Managed Mode, this distance is available when the port speed is set to 10 Mbps in the software. The metal-housed switch supports desktop or rack-mount installation.

Specifications

• Brand: Cudy
• Model: GS1016E
• Ports: 16 × Gigabit Ethernet (10/100/1000 Mbps)
• Management: Web management, SNMP, Cudy app, cloud control
• Preset modes: Managed, VLAN, Extend
• VLAN: 802.1Q, MTU, and port-based; up to 4096 VLANs
• QoS: 802.1p, DSCP, and port-based
• Additional features: Port mirroring, static aggregation, loop detection and prevention, DHCP snooping, IGMP snooping
• MAC address table: 8192 entries
• Maximum switching capacity: 32 Gbps
• Maximum forwarding rate: 23.808 Mpps
• Jumbo frame: 15 KB
• Packet buffer: 4 Mbit
• Maximum copper distance: 100 m at 10 Mbps over Cat 3 or higher; 100 m at 100 Mbps over Cat 5 or higher; 100 m at Gigabit over Cat 5e or higher; 150 m at Gigabit over Cat 6 or higher
• Extended distance: Up to 250 m at 10 Mbps over Cat 5e or higher on supported ports, subject to mode and configuration
• Housing: Metal
• Installation: Desktop or rack-mount
• Dimensions (W × D × H): 200 × 118 × 44 mm (7.87 × 4.65 × 1.73 in)
