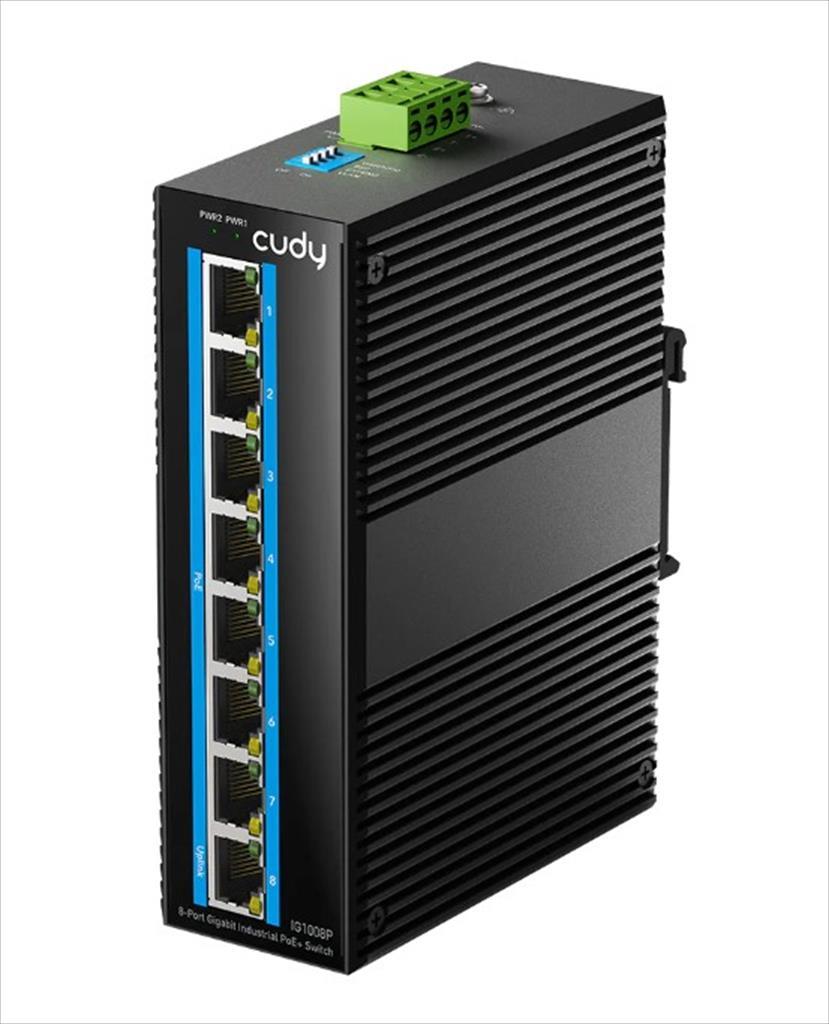

NET Switch CUDY INDUSTRIAL 8-port, IG1008P 8x10/100/1000M PoE+ Switch 65W

Цена со ДДВ: 4.300 ден.
Шифра: 17698
Баркод: 6971690792336
Производител: CUDY
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model name: CUDY INDUSTRIAL Switch IG1008P

Specification :

  • Interfaces:
    • Gigabit RJ45 Ports: 8
    • Gigabit RJ45 PoE Ports: #1~#8
    • Max Power on a Single PoE Port: 30W
    • PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.
    • Shielded RJ45 Port: True
    • Extend Mode Ports: #1~#4
    • VLAN Mode Ports: #1~#7
  • LED:
    • Power 1
    • Power 2
    • Link/ACT of Each Ethernet Port
    • PoE Status of Each PoE Port
  • Power Interfaces: Power Input Terminal
  • Physical Buttons:
    • PoE Watchdog On/Off
    • VLAN On/Off
    • Extend On/Off
    • Broadcast Storm Prevention On/Off
  • Performance:
    • Copper Speed and Distance:
      • Cat. 3 or higher cable: 100 meters at 10 Mbps
      • Cat. 5 or higher cable: 100 meters at 100 Mbps
      • Cat. 5e or higher cable: 100 meters at Gigabit
      • Cat. 5e or higher cable: 250 meters at 10 Mbps
    • MAC Address Table: 4096
    • Max Switching Capacity: 16 Gbps
    • Max Forwarding Rate: 11.904 Mpps
    • Jumbo Frame: 9 KB
    • Packet Buffer: 1.5 Mbit
  • Power:
    • Power Methods: DC via Terminal Block
    • Power Redundancy: Dual Inputs
    • Power Input: 44-57V⎓
    • Max Power Consumption: 240W
    • Max Power Excluding PoE: 2.75W
    • Idle Power Consumption: 2.2W
    • Polarity Reverse Protection: True
    • Short Circuit Protection: True
  • Switching:
    • 802.3 Protocols:
      • 802.3at PoE
      • 802.3af PoE
      • 802.3i 10BASE-T
      • 802.3u 100BASE-TX
      • 802.3ab 1000BASE-T
      • 802.3x Flow Control
  • Reliability:
    • Grounding Methods: Grounding Point
  • Safety: IEC/EN 62368
  • EMC / EMI / EMS:
    • EMC:
      • EN55032 Class A
      • EN55035 Class A
    • EMI: FCC 47 CFR Part 15B Class A
    • EMS:
      • IEC/EN 61000-4-2, Level 4 ESD: Contact: 8kV; Air: 15kV
      • IEC/EN 61000-4-3, Level 4 RS: 80 MHz to 1 GHz: 30 V/m
      • IEC/EN 61000-4-4, Level 4 EFT: Power: 2kV; RJ45: 4kV
      • IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
      • IEC/EN 61000-4-6, Level 3 CS: 10V
      • IEC/EN 61000-4-8, Level 5 PFMF
      • IEC/EN 61000-4-9, Level 5 PMF
      • IEC/EN 61000-4-10, Level 5 DOMF
  • Shock: IEC 60068-2-27
  • Vibration: IEC 60068-2-6
  • Free Fall: IEC 60068-2-32
  • Environment:
    • Operating Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉)
    • Storage Temperature: -40 ℃ ~ 85 ℃ (-40 ℉ ~ 185 ℉)
    • Operating Humidity: 5% ~ 95% non-condensing
    • Storage Humidity: 5% ~ 95% non-condensing
