Model name: CUDY GP3000V

Specification :

• CPU:
  • CPU Details: 1 GHz Dual-Core
• Memory/Storage:
  • Flash/ROM: 128 MB (1 Gbit) NAND
  • DDR/RAM: 512 MB (4 Gbit) DDR3L
• xPON:
  • Protocols:
    • GPON (ITU G. 984 standard | Class B+)
    • EPON (802.3ah)
  • Speed:
    • GPON: 2.488 Gbps Downstream / 1.244 Gbps Upstream
    • EPON: 1.25 Gbps Downstream / Upstream
  • Wavelength:
    • TX: 1310 nm
    • RX: 1490 nm
  • Max Transmission Distance: 20 km
• Wireless:
  • 5 GHz Wi-Fi Speed: 2402 Mbps
  • 2.4 GHz Wi-Fi Speed: 574 Mbps
  • 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • Wi-Fi Antennas: 4× Fixed
  • FEM or PA/LNA:
    • 5 GHz: 2× External
    • 2.4 GHz: 2× External
  • Beamforming: True
  • Range Performance: Max: 170 m

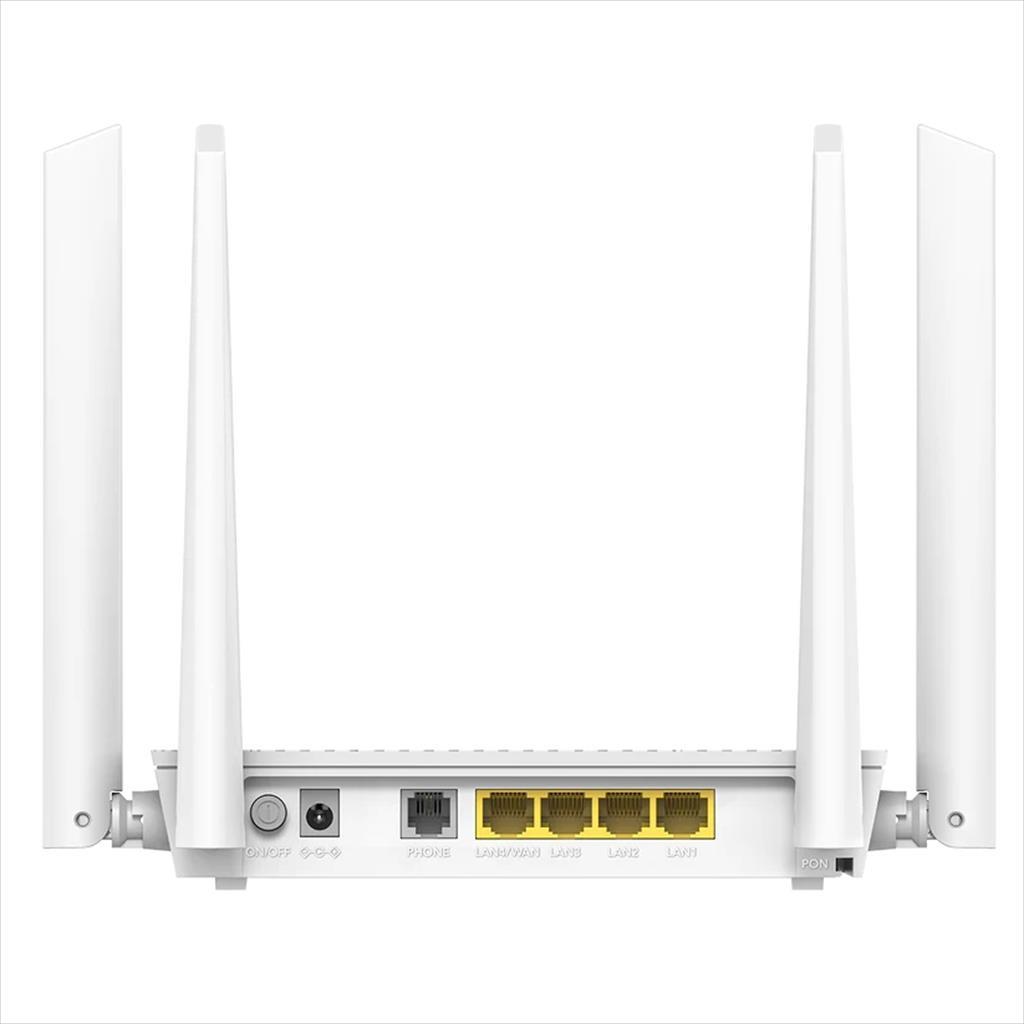

• Interfaces:
  • SC/APC Port: 1
  • Gigabit RJ45 Ports: 4
  • Ethernet Notes: 1× LAN/WAN port, the rest are LAN ports.
  • FXS Ports: 1× RJ11
  • USB-A 3.0 Ports: Optional for ISP Order
  • LED:
    • Power
    • PON
    • LOS
    • Internet
    • 2.4 GHz Wi-Fi
    • 5 GHz Wi-Fi
    • WPS
    • LAN
• Physical Buttons:
  • Power On/Off Button
  • Reset Button
  • WPS Button
  • Wi-Fi On/Off Button
• Power Input:
  • DC Jack
• Power:
  • Power Methods: DC
  • DC Input: 12V 1.5A
  • Power Adapter:
    • Input: 100-240V~, 50/60 Hz
    • Output: 12V⎓1.5A
• Reliability / Environment:
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
• Certifications: FCC, CE
