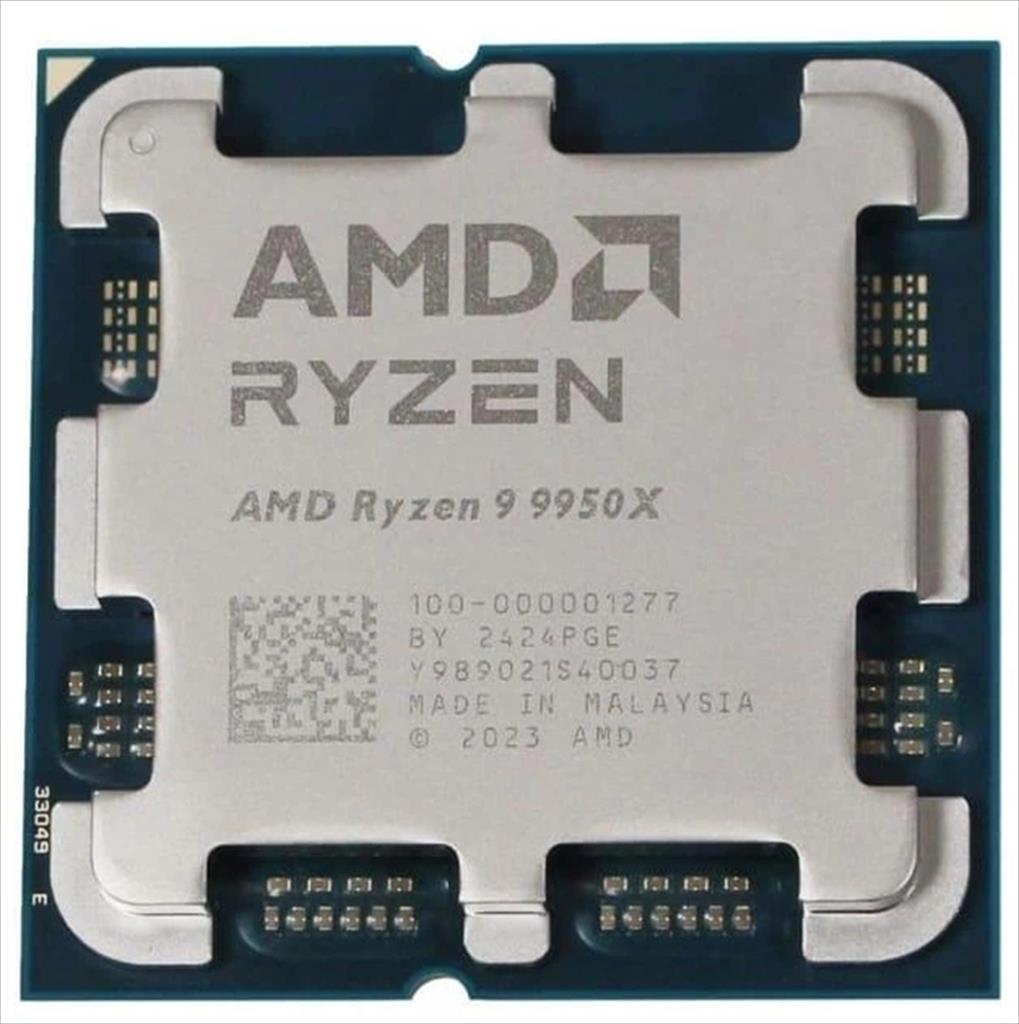

Model name: AMD RYZEN 9 9950X

Specification :

• Series: Ryzen 9000 Series
• Form Factor: Desktops, Boxed Processor
• Market Segment: Enthusiast Desktop
• AMD PRO Technologies: No
• Regional Availability: Global
• Former Codename: Granite Ridge AM5
• Processor Architecture: Zen 5
• # of CPU Cores: 16
• Multithreading (SMT): Yes
• # of Threads: 32
• Max. Boost Clock: Up to 5.7 GHz
• Base Clock: 4.3 GHz
• L1 Cache: 1280 KB
• L2 Cache: 16 MB
• L3 Cache: 64 MB
• Default TDP: 170W
• Processor Technology for CPU Cores: TSMC 4nm FinFET
• Processor Technology for I/O Die: TSMC 6nm FinFET
• Package Die Count: 3
• Unlocked for Overclocking: Yes
• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes
• CPU Socket: AM5
• Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Thermal Solution (PIB): Not Included
• Recommended Cooler: Liquid cooler recommended for optimal performance
• Max. Operating Temperature (Tjmax): 95°C
• OS Support: Windows 11 - 64-Bit, Windows 10 - 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit
• Native USB 3.2 Gen 2 (10Gbps): 4
• Native USB 2.0 (480Mbps): 1
• PCI Express® Version: PCIe® 5.0
• Native PCIe® Lanes (Total/Usable): 28, 24
• Additional Usable PCIe Lanes from Motherboard:
  • X870E: 8x Gen4
  • X870: 4x Gen4
  • X670E: 12x Gen4
  • X670: 12x Gen4
  • B650E: 8x Gen4
  • B650: 8x Gen4
• NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
• System Memory Type: DDR5
• Memory Channels: 2
• Max. Memory: 192 GB
• System Memory Subtype: UDIMM
• Max Memory Speed: 2x1R DDR5-5600, 2x2R DDR5-5600, 4x1R DDR5-3600, 4x2R DDR5-3600
• Graphics Model: AMD Radeon™ Graphics
• Graphics Core Count: 2
• Graphics Frequency: 2200 MHz
• USB Type-C® DisplayPort™ Alternate Mode: Yes
