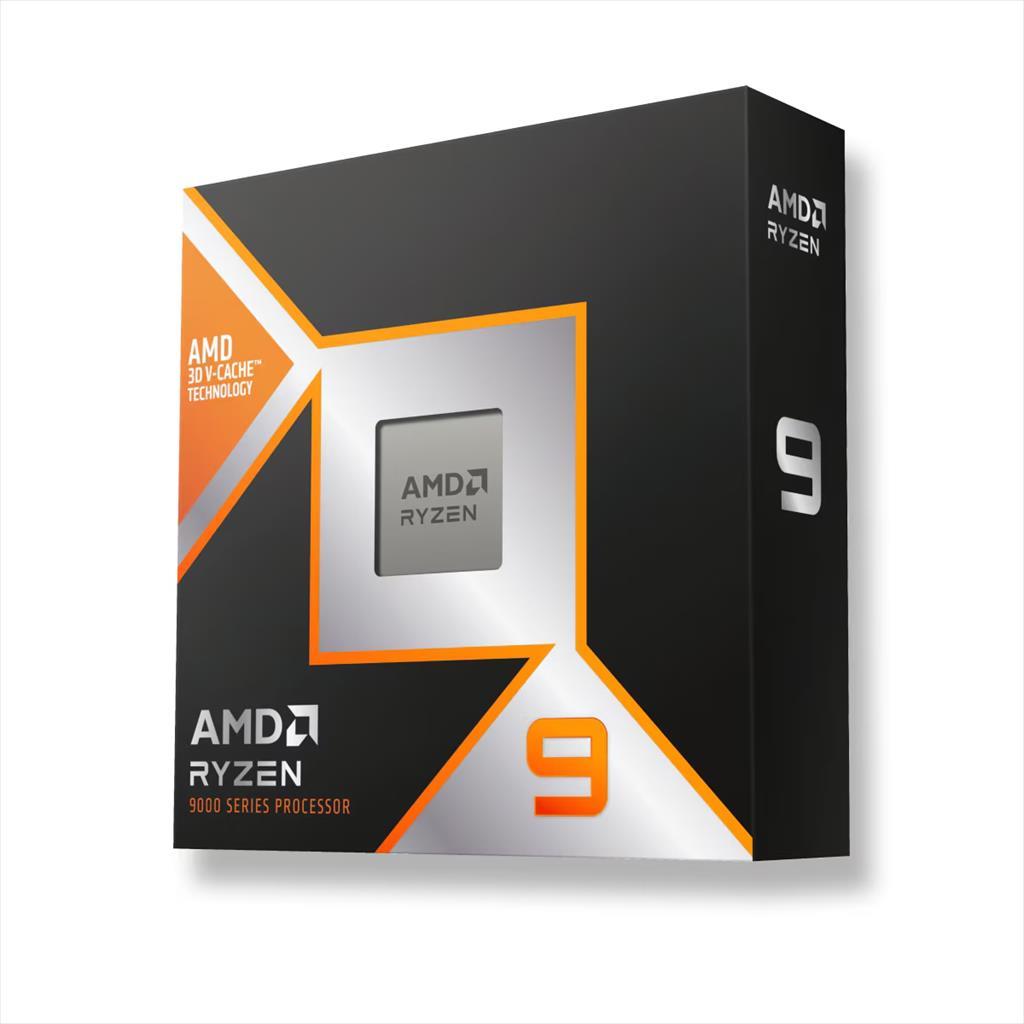

Model name: AMD RYZEN 9 9950X3D

Specifications:

• AMD PRO Technologies: No
• Regional Availability: Global
• Former Codename: Granite Ridge AM5
• Processor Architecture: Zen 5
• # of CPU Cores: 16
• Multithreading (SMT): Yes
• # of Threads: 32
• Max. Boost Clock: Up to 5.7 GHz
• Base Clock: 4.3 GHz
• L1 Cache: 1280 KB
• L2 Cache: 16 MB
• L3 Cache: 128 MB
• Default TDP: 170W
• Processor Technology for CPU Cores: TSMC 4nm FinFET
• Processor Technology for I/O Die: TSMC 6nm FinFET
• Package Die Count: 3
• Unlocked for Overclocking: Yes
• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes
• CPU Socket: AM5
• Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions: AES, AVX512, AVX2, AVX, FMA3, MMX-plus, SSE2, SSE4.2, SSE4A, SSE4.1, SSE3, SSSE3, SSE, x86-64
• Thermal Solution (PIB): Not Included
• Recommended Cooler: Liquid cooler recommended for optimal performance
• Max. Operating Temperature (Tjmax): 95°C
• OS Support: Windows 11 64-bit, Windows 10 64-bit, RHEL x86 64-bit, Ubuntu x86 64-bit
• Connectivity:
  • Native USB 3.2 Gen 2 (10Gbps): 4
  • Native USB 2.0 (480Mbps): 1
  • PCI Express® Version: PCIe® 5.0
  • Native PCIe® Lanes (Total/Usable): 28, 24
  • NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10
• System Memory:
  • Memory Type: DDR5
  • Memory Channels: 2
  • Max. Memory: 192 GB
  • System Memory Subtype: UDIMM
  • Max Memory Speed:
    • 2x1R DDR5-5600
    • 2x2R DDR5-5600
    • 4x1R DDR5-3600
    • 4x2R DDR5-3600
  • ECC Support: Yes (requires motherboard support)
• Graphics Capabilities:
  • Graphics Model: AMD Radeon™ Graphics
  • Graphics Core Count: 2
  • Graphics Frequency: 2200 MHz
  • USB Type-C® DisplayPort™ Alternate Mode: Yes
