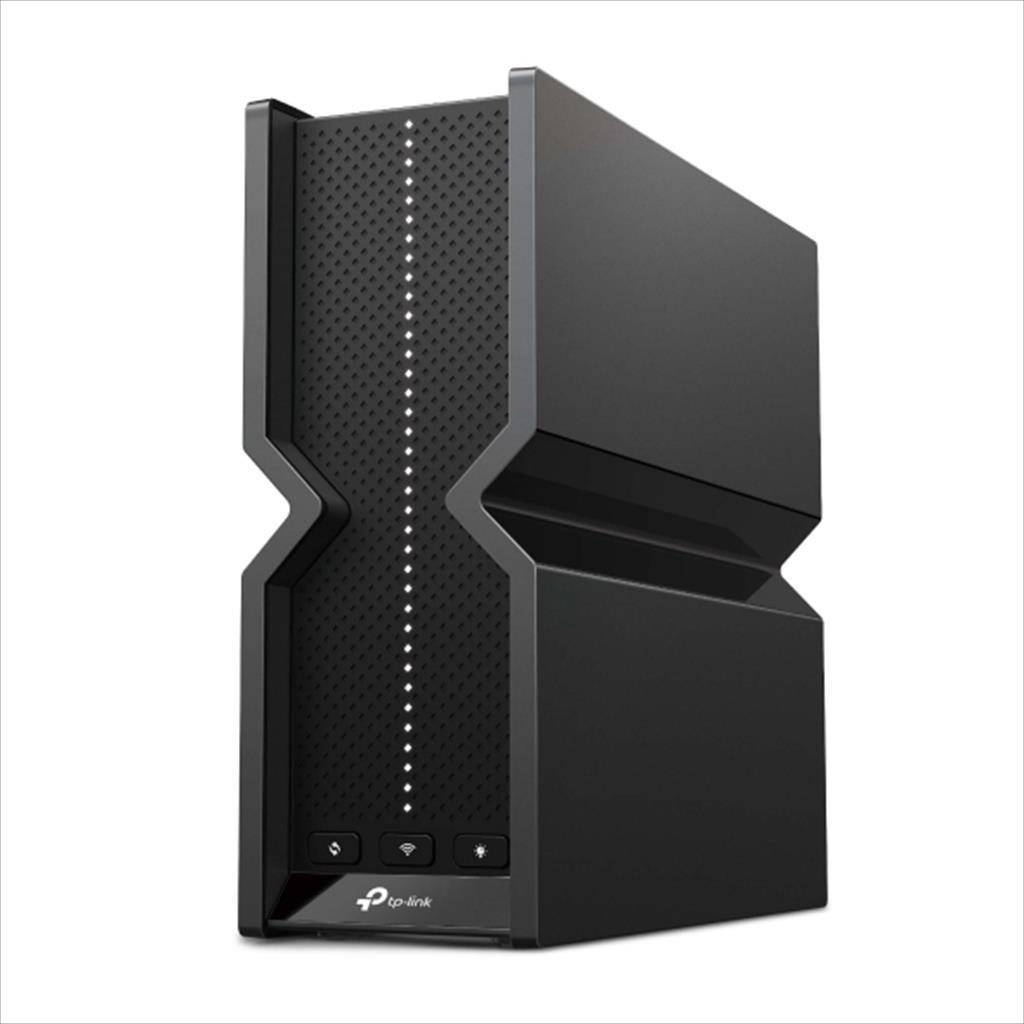

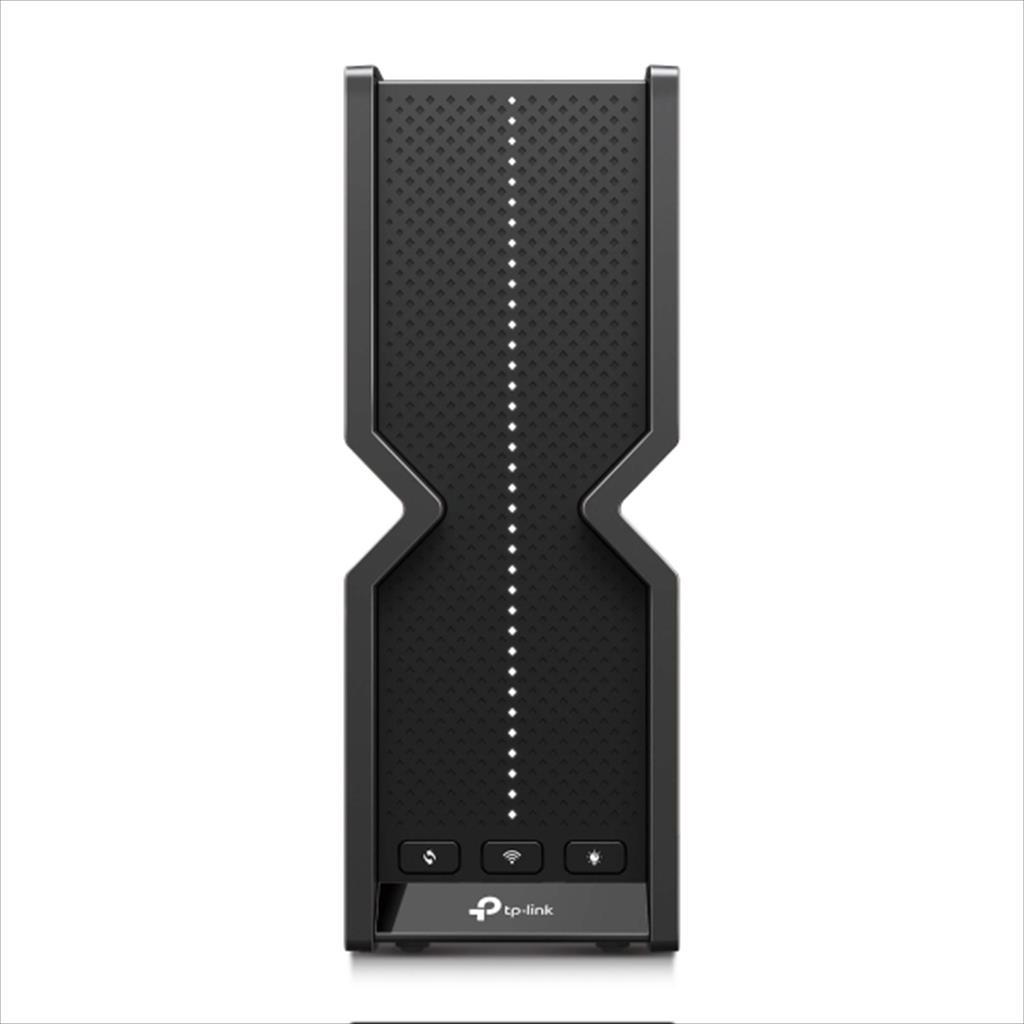

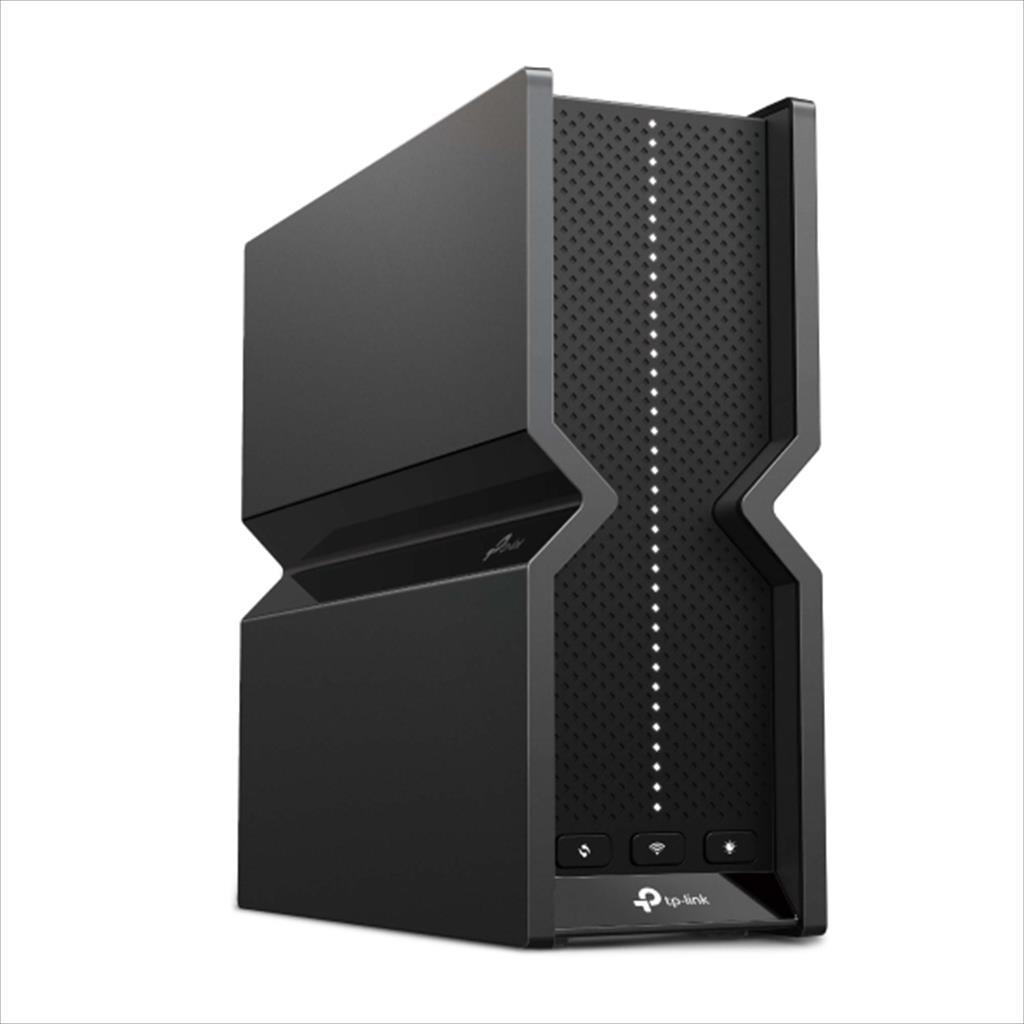

Model name: TP-LINK ARCHER BE550

Specifications:

• WiFi Speeds:
  • BE9300
  • 6 GHz: 5760 Mbps (802.11be)
  • 5 GHz: 2880 Mbps (802.11be)
  • 2.4 GHz: 574 Mbps (802.11ax)
• WiFi Range:
  • 4 Bedroom Houses
  • 6× Optimally Positioned Antennas
  • Multiple antennas form a signal-boosting array to cover more directions and large areas
  • Beamforming – Concentrates wireless signal strength towards clients
  • High-Power FEM – Improves transmission power to strengthen signal coverage
• WiFi Capacity:
  • High
  • Tri-Band – Allocate devices to different bands for optimal performance
  • 2×2 MU-MIMO – Simultaneously communicates with multiple clients
  • OFDMA – Simultaneously communicates with multiple clients
  • Airtime Fairness – Improves network efficiency
  • DFS – Access an extra band to reduce congestion
  • 6 Streams – Connect devices to more bandwidth
• Working Modes:
  • Router Mode
  • Access Point Mode
• Advanced Features:
  • Multi-Link Operation (MLO)
  • 320 MHz Channel
  • 4K-QAM
  • Multi-RUs
  • EasyMesh-Compatible
  • Works with Alexa and Google Assistant
  • IoT Network
• Security:
  • Network Security – SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
  • HomeShield Security – IoT Protection, Malicious Site Blocker, Intrusion Prevention, DDoS Defense, Network Scanner
  • Guest Network – 6 GHz, 5 GHz, 2.4 GHz
  • VPN Server – OpenVPN, PPTP, L2TP
  • VPN Client – OpenVPN, PPTP, L2TP
  • WiFi Encryption – WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
• Hardware:
  • Processor – High-Performance CPU

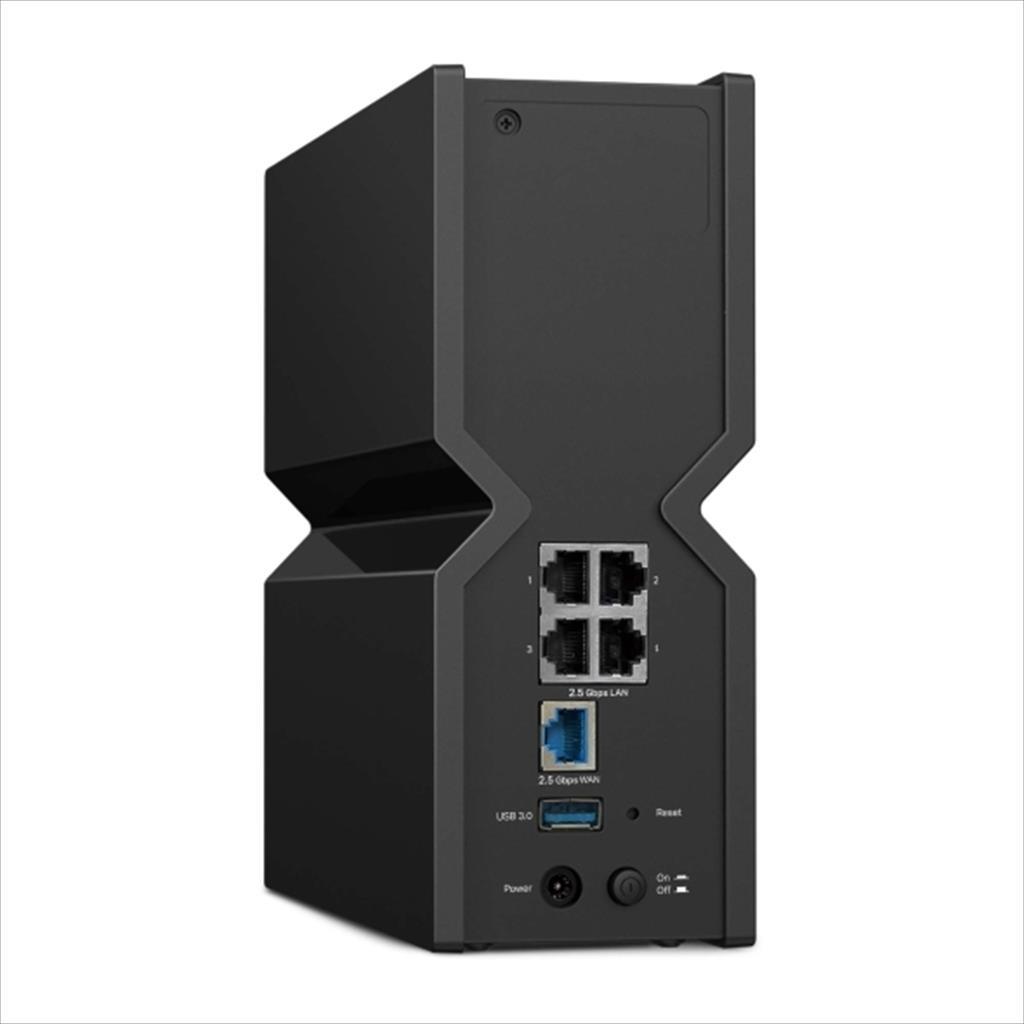

  • Ethernet Ports – 1× 2.5 Gbps WAN, 4× 2.5 Gbps LAN
  • USB Support – 1× USB 3.0
    • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
    • Supported Functions: FTP Server, Media Server, Samba Server
  • Buttons – Power, Wi-Fi, LED, WPS, Reset
  • Power – 12 V ⎓ 3.3 A
• Software:
  • Protocols – IPv4, IPv6
  • Service Kit – HomeShield
  • EasyMesh – Compatible
  • Parental Controls – Custom Profiles, Filters, Family Time, Bedtime, Off Time, Reports
  • WAN Type – Dynamic IP, Static IP, PPPoE, PPTP, L2TP
  • QoS – Device-based
  • Cloud Service – Auto Firmware Upgrade, TP-Link ID, DDNS
  • NAT Forwarding – Port Forwarding, Port Triggering, DMZ, UPnP
  • IPTV – IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
  • DHCP – Address Reservation, Client List, Server
  • DDNS – TP-Link, NO-IP, DynDNS
  • Management – Tether App, Webpage
• Other:
  • Network Services Enabled by Default:
    • Web Server – Ports 80/443 (TCP)
    • DNS – Port 53 (TCP/UDP)
    • DHCP Server – Port 67 (UDP)
    • App Management – Ports 20001, 30001 (TCP), 20002 (UDP)
  • System Requirements – Modern browser, Modem (if needed), Active ISP subscription
  • Certifications – CE, FCC, RoHS
  • Environment – 0~40°C, 10%~90% RH (non-condensing)
