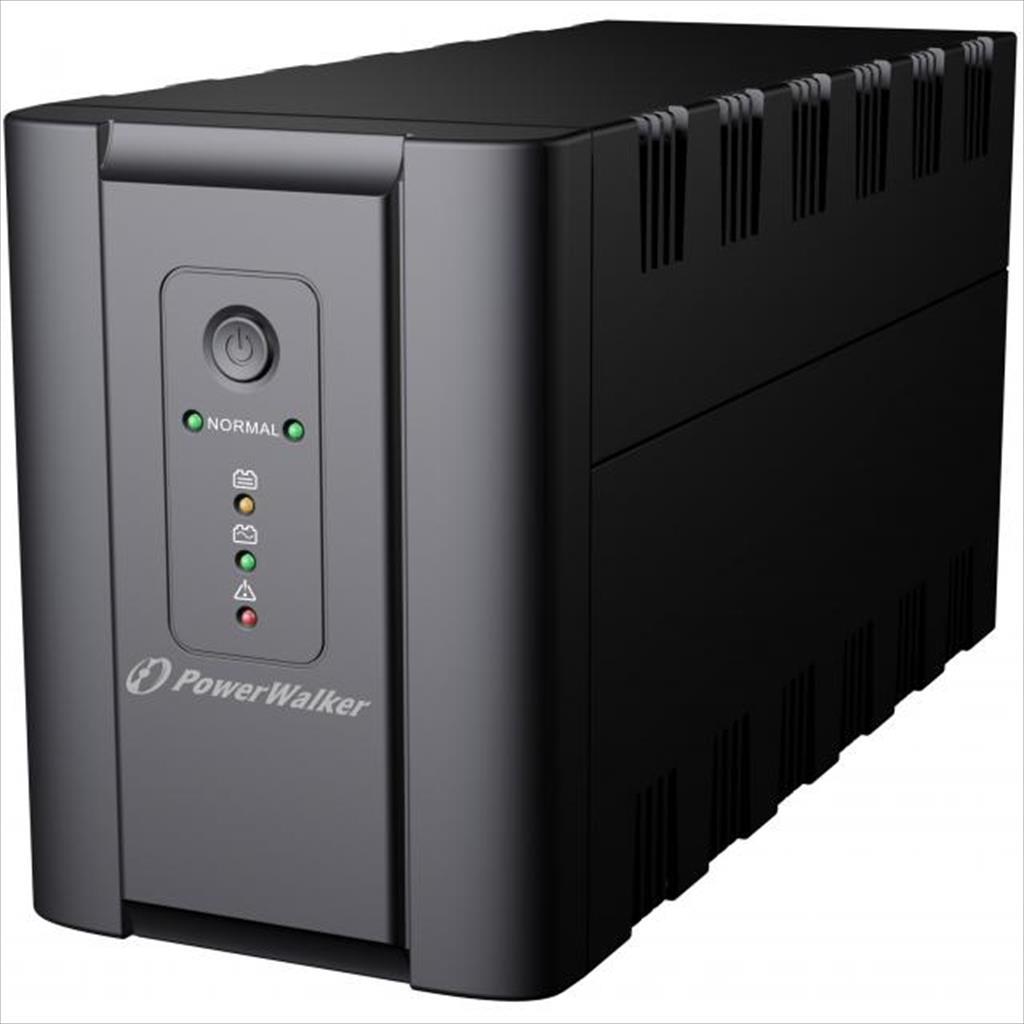

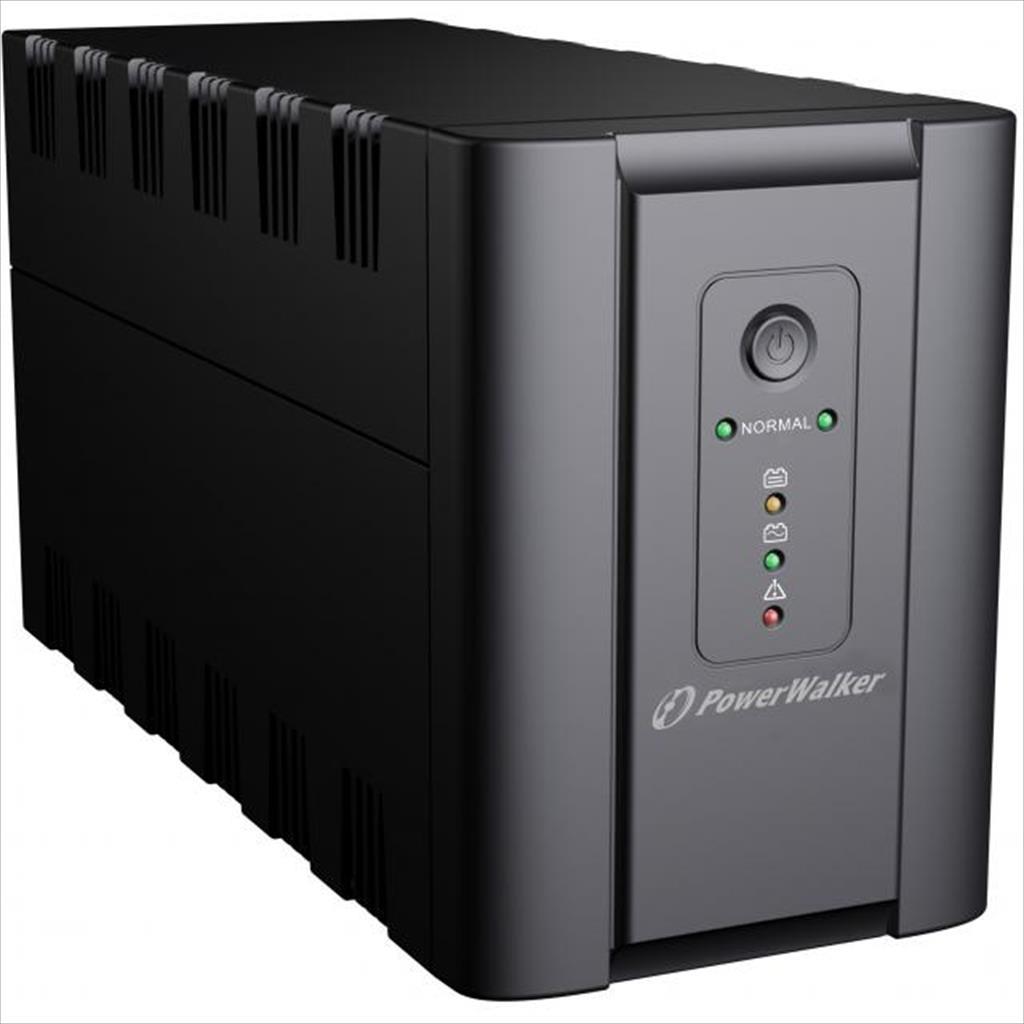

UPS 2200VA / 1200W POWERWALKER VI 2200 SH, 6xIEC, USB

Цена со ДДВ: 10.690 ден.
Шифра: 12125
Баркод: 4260074975888
Производител: POWERWALKER
Гаранција: 360 дена
залиха: има на залиха
Спецификација

Model name: POWERWALKER VI 2200 SH

Specifications:

  • Type: Line-Interactive (VI)
  • Phases (IN-OUT): 1-1
  • Form Factor: Tower
  • Power Capacity: 2200VA / 1200W
  • Output Power Factor: 0.55
  • Input:
    • Input Voltage Range: 170-280 VAC ±7%
    • Frequency Range: 50Hz or 60Hz (self-adaptive)
  • Output:
    • Waveform: Simulated Sine Wave
    • VA: 2200
    • Nominal Output Voltage: 230 VAC
    • Frequency (Battery Mode): ±1Hz
    • Output Power Factor: 0.55

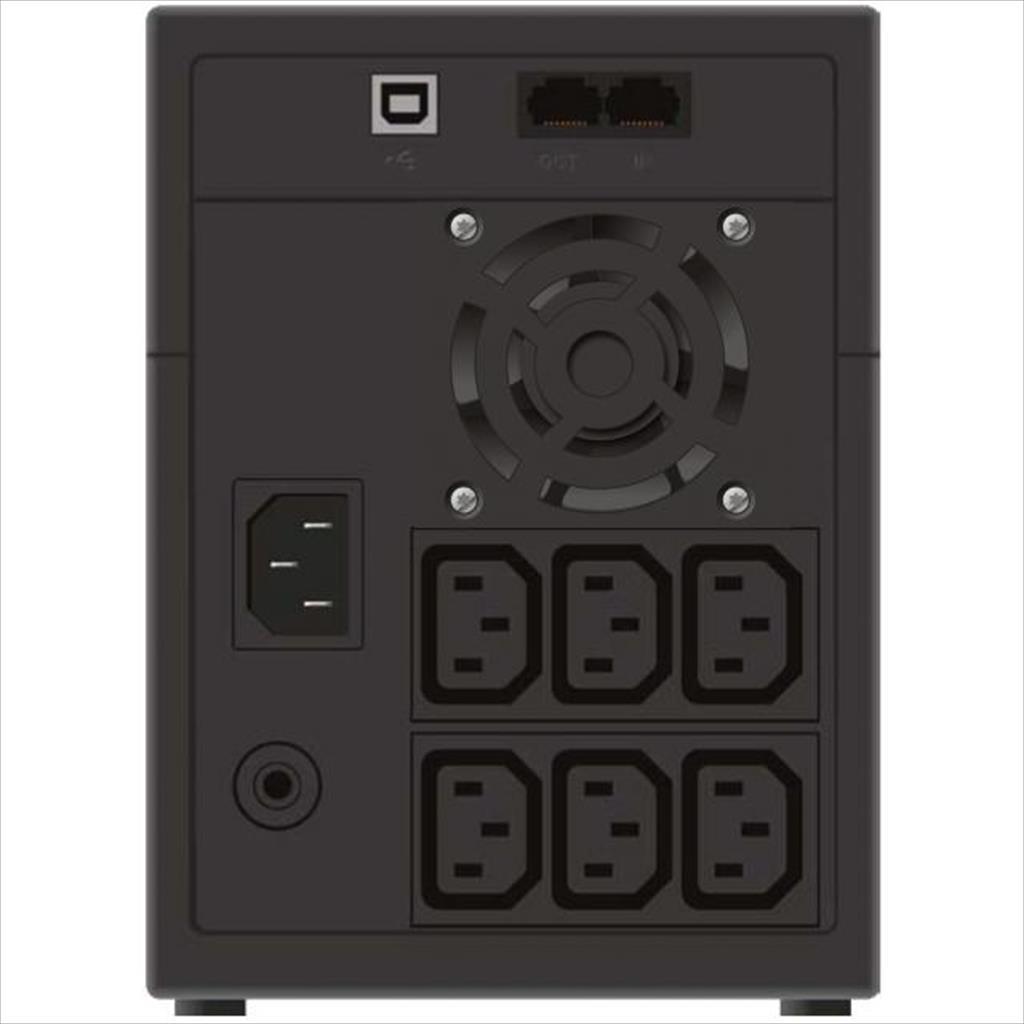

  • Input & Output Connectors:
    • Input Connector: C14
    • IEC C13: 6
  • Technical Details:
    • LINE Mode Efficiency: 95.0% (Full Load)
    • Battery Mode Efficiency: 60.0% (Full Load)
    • Transfer Time (AC / Line Mode to Battery Mode): 4-8 ms
    • Data Line Protection: RJ-11 Port, RJ-45 Port (100 mbit)
    • Additional Features: Circuit Breaker Reset, HID – Human Interface Device, AVR – Automatic Voltage Regulator
    • IEC 62040-3 classification: VI-SY-333
  • Batteries and Autonomy:
    • Batteries: 2x 12.0V / 9.0Ah
    • DC Voltage: 2x 12.0V
    • Recharge Time: 4h to 90%
    • Full Load Backup Time: 0.5 min
    • Half Load Backup Time: 5.0 min
    • Charger: 1.2A
  • Communication:
    • Communication: USB Type B – for Monitoring Software
    • Software: WinPower
  • Management and Environment:
    • Noise Level: < 45 dB
    • Fan Logic:
      • Fan Off: LINE Mode and Load < 50%
      • Otherwise Always On, Automatic Fan Control (Battery Mode, AVR ON)
    • Temperature: 0°C – 40°C
    • Humidity: 0% – 90% RH (non-condensing)
    • IP: IP 20
