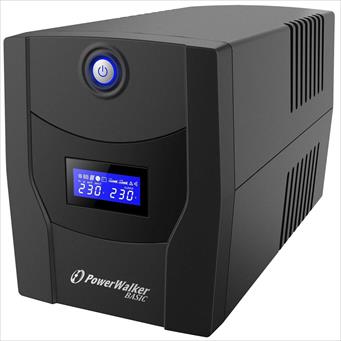

Model name: POWERWALKER BASIC VI 650 SB

Specifications:

• General Features
• Type: Line-Interactive (VI)
• Phases (IN-OUT): 1-1
• Form Factor: Tower
• Power Capacity: 650VA / 360W
• Output Power Factor: 0.55
• Input
• Input Voltage Range: 162-290 VAC
• Frequency Range: 50Hz or 60Hz (self-adaptive)
• Output
• Waveform: Simulated Sine Wave
• VA: 650
• Nominal Output Voltage: 230 VAC
• Frequency (Battery Mode): ±0.05Hz
• Output Power Factor: 0.55
• Input & Output Connectors
• Input Connector: CEE 7/7
• Type F (CEE 7/3): 2
• Technical Details
• LINE Mode Efficiency [%] (Full Load): 95.3
• Transfer Time (AC / Line Mode to Battery Mode) [ms]: 4ms
• Additional Features: HID – Human Interface Device, AVR – Automatic Voltage Regulator, Cold-Start Function
• IEC 62040-3 classification: VI-SY-333
• Batteries and Autonomy
• Batteries: 1x 12.0V/5.0Ah
• DC Voltage: 1x 12.0V
• Recharge Time: 8h to 90%
• Full Load Backup Time [min]: 0.0
• Half Load Backup Time [min]: 4.5
• Charger: 0.7A
• Recharge Time: 8h to 90%
• Communication
• Communication: USB Type B – for Monitoring Software
• Software: PowerMaster
• Management and Environment
• Software: PowerMaster
• Communication: USB Type B – for Monitoring Software
• Noise Level: < 30dB
• Fan Logic: No fan
• Temperature: 0°C – 40°C
• Humidity: 0% – 90% RH (non-condensing)
• IP: IP 20
