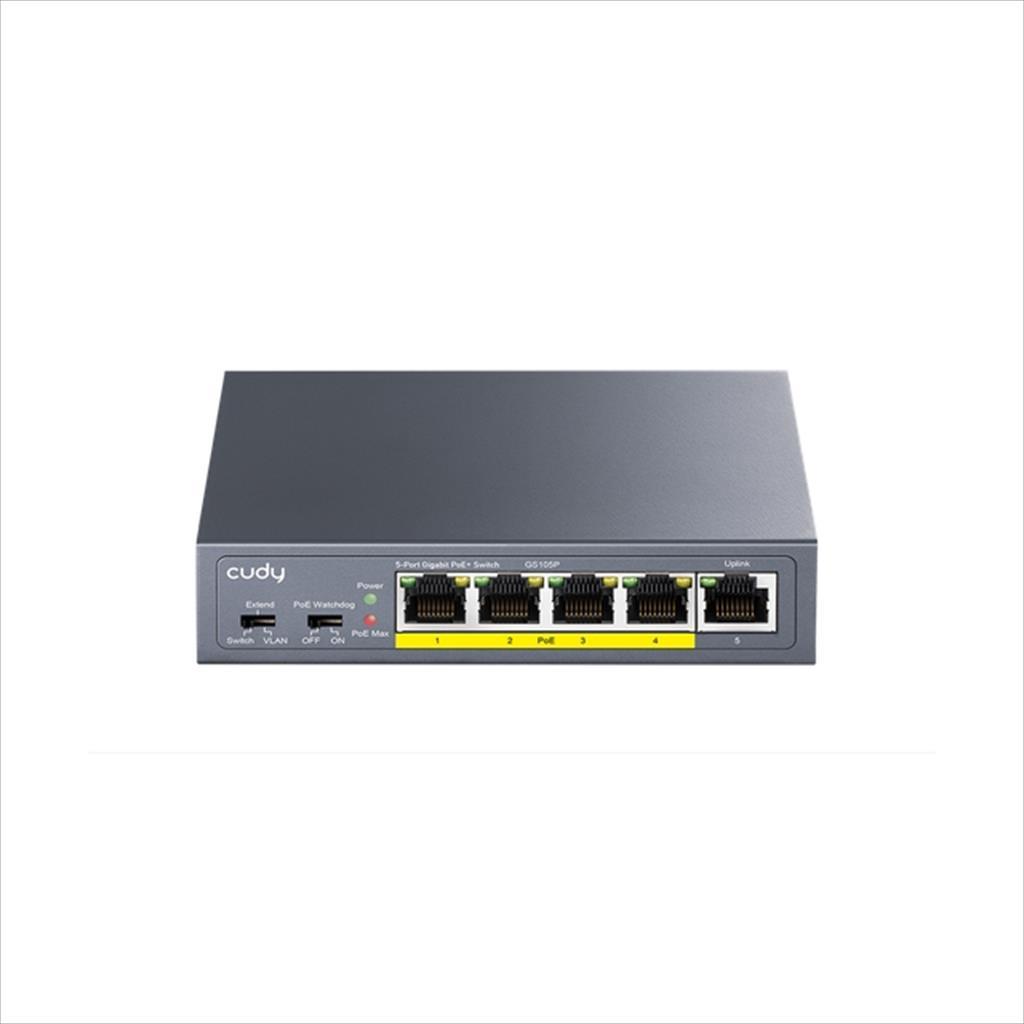

Model name: CUDY GS105P

Specifications:

• Interfaces:
• Gigabit RJ45 Ports: 5
• Gigabit RJ45 PoE Ports: #1~#4
• Max Power on a Single PoE Port: 30W
• PoE Port Notes: The PoE ports comply with IEEE 802.3at/af standards.
• PoE Priority: Intelligent Power Management - Automatically disconnects the lastly powered device when power exceeds budget.
• Shielded RJ45 Port: True
• Extend Mode Ports: #1~#4
• VLAN Mode Ports: #1~#4
• LED Indicators:
• Power
• PoE Status of Each PoE Port
• Link/ACT of Each Ethernet Port
• PoE Max Status
• Power Input: DC Jack
• Physical Buttons:
• VLAN/Default/Extend DIP Switch
• PoE Watchdog On/Off
• Watchdog Note: The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not enable it for clients with online auto-upgrade feature.
• Performance:
• Copper Speed and Distance:
• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit
• Cat. 5e or higher cable: 250 meters at 10 Mbps
• Copper Speed and Distance Note: 250-meter transmission is only available on Extend Mode ports when Extend Mode is activated.
• MAC Address Table: 2048
• Max Switching Capacity: 10 Gbps
• Max Forwarding Rate: 7.44 Mpps
• Jumbo Frame: 15 KB
• Packet Buffer: 3 Mbit
• Power:
• Power Methods: DC
• DC: 54V⎓0.66A
• Power Adapter: Input 100-240V~, 50/60Hz / Output 54V⎓0.66A
• Power Supply: 36W
• Max Power Excluding PoE: 4W
• Switching:
• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3ab 1000BASE-T
• 802.3x Flow Control
• 802.3af PoE
• 802.3at PoE
• PoE Management: Intelligent Power Management
• Reliability:
• Grounding Methods: Three-Prong Plug
• EMS: IEC/EN 61000-4-2, Level 3 ESD: Contact 6kV; Air 8kV
• IEC/EN 61000-4-5, Level 4 Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kV
• Environment:
• Operating Temperature: 0~40 ℃ (32~104 ℉)
• Storage Temperature: -40~70 ℃ (-40~158 ℉)
• Operating Humidity: 10~90% non-condensing
• Storage Humidity: 10~95% non-condensing
