MB AM5 B850 GAMING PLUS WIFI MSI 4xDDR5 8200Mhz (O.C), DP,PCI-Ex16 5.0,PCI-Ex4 4.0,2xPCI-Ex1 3.0,3xM.2,4xSATA3,2.5G, Wi-Fi 7,BT 5.4, 7E56-001R

Цена со ДДВ: 13.980 ден.
Шифра: 18606
Баркод: 4711377285438
Производител: MSI
Гаранција: 720 дена
залиха: има на залиха
Спецификација

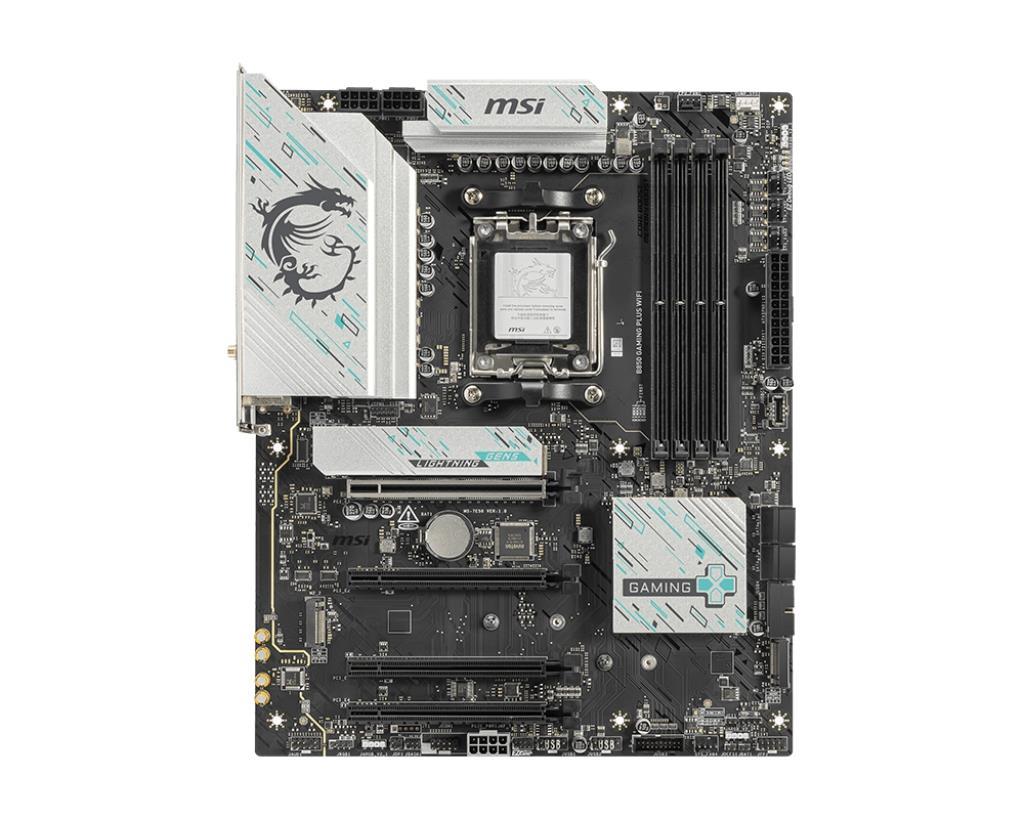

Model name: MSI B850 GAMING PLUS WIFI

Specifications:

  • Chipset: AMD B850
  • CPU: Supports AMD Ryzen™ 9000/8000/7000 Series Desktop Processors
  • Socket: AM5
  • Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
    • Memory Support: DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
    • Ryzen™ 9000 Series Max Frequency:
      • 1DPC 1R: up to 8200+ MT/s
      • 1DPC 2R: up to 6400+ MT/s
      • 2DPC 1R: up to 6400+ MT/s
      • 2DPC 2R: up to 4800+ MT/s
    • Supports AMD POR Speed and JEDEC Speed
    • Supports Memory Overclocking and AMD EXPO™
    • Supports Dual-Channel mode
    • Supports Non-ECC, Un-buffered memory
    • Supports CUDIMM, Clock Driver bypass mode only
  • Onboard Graphics: 1x DisplayPort (1.2, max resolution 4K 60Hz)
  • Slot: 4x PCI-E x16 slots
    • PCI_E1 Gen PCIe 5.0 x16 (From CPU)
    • PCI_E2 Gen PCIe 3.0 x1 (From Chipset)
    • PCI_E3 Gen PCIe 4.0 x4 (From Chipset)
    • PCI_E4 Gen PCIe 3.0 x1 (From Chipset)
    • PCI_E1 Slot:
      • PCIe 5.0 x16 (Ryzen 9000/7000)
      • PCIe 4.0 x8 (Ryzen 8700/8600/8400)
      • PCIe 4.0 x4 (Ryzen 8500/8300)
    • *PCI_E2, PCI_E3, and PCI_E4 share bandwidth; PCI_E3 runs at x2 when devices are installed in PCI_E2 or PCI_E4.
  • Audio: Realtek® ALC897, 7.1-Channel High Definition Audio
  • Storage: 3x M.2, 4x SATA 6G
    • M.2_1 (From CPU): PCIe 5.0 x4, supports 2280/2260
    • M.2_2 (From CPU): PCIe 4.0 x4, supports 22110/2280
    • M.2_3 (From Chipset): PCIe 4.0 x2, supports 2280/2260
    • M.2_1 slot:
      • PCIe 5.0 x4 (Ryzen 9000/7000)
      • PCIe 4.0 x4 (Ryzen 8000)
  • RAID:
    • RAID 0 and 1 for SATA storage
    • RAID 0 and 1 for M.2 NVMe
  • USB:

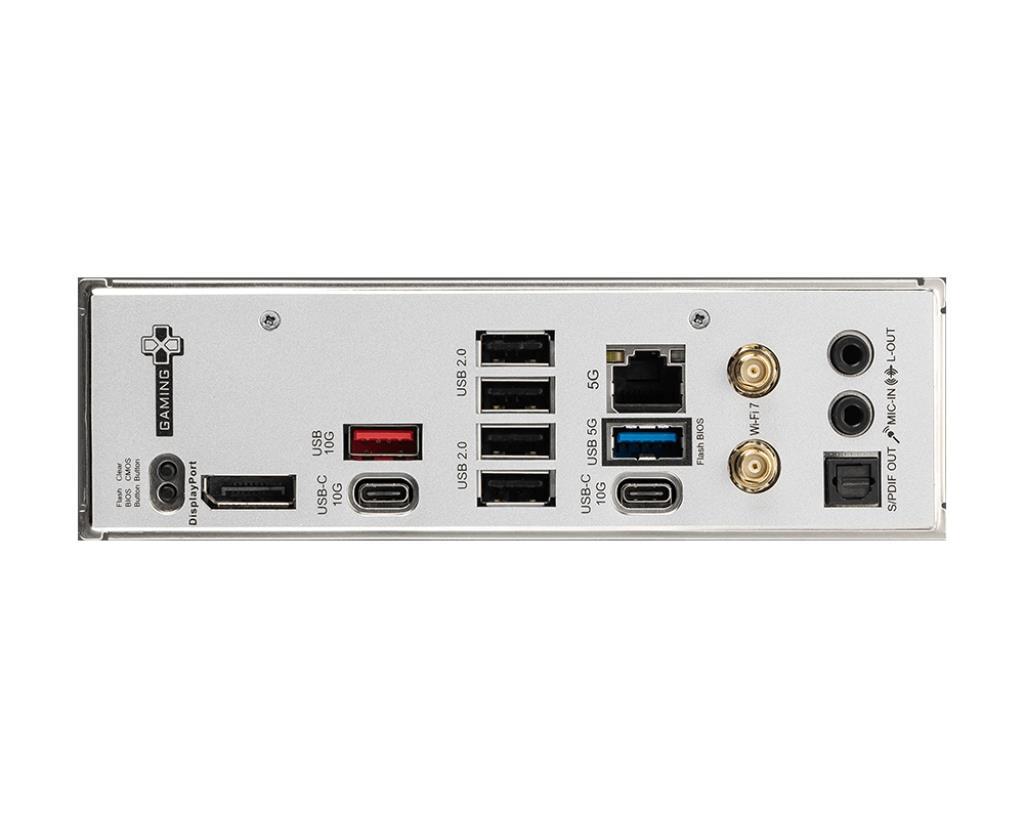

    • Rear: 4x USB 2.0, 1x USB 5Gbps Type-A, 1x USB 10Gbps Type-A, 2x USB 10Gbps Type-C
    • Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
  • LAN: Realtek® 8126VB 5G LAN
  • Internal IO:
    • 1x ATX Power
    • 2x CPU Power
    • 1x PCIE Power (8pin)
    • 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 4x System Fan
    • 2x Front Panel (JFP)
    • 1x Chassis Intrusion (JCI)
    • 1x Front Audio (JAUD)
    • 1x Com Port (JCOM)
    • 1x Tuning Controller (JDASH)
    • 3x ARGB V2 (JARGB_V2)
    • 1x RGB (JRGB)
    • 1x TPM Header (TPM 2.0)
    • USB Headers: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
  • Wireless LAN & Bluetooth: Wi-Fi 7 (pre-installed in M.2 Key-E)
    • Supports 802.11 a/b/g/n/ac/ax/be
    • Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (320MHz) up to 5.8Gbps
    • Bluetooth® 5.4, MLO, 4KQAM
  • LED Feature: 4x EZ Debug LED
  • Operating System: Windows® 11 64-bit
  • PCB Info: ATX, 243.84mm x 304.8mm
