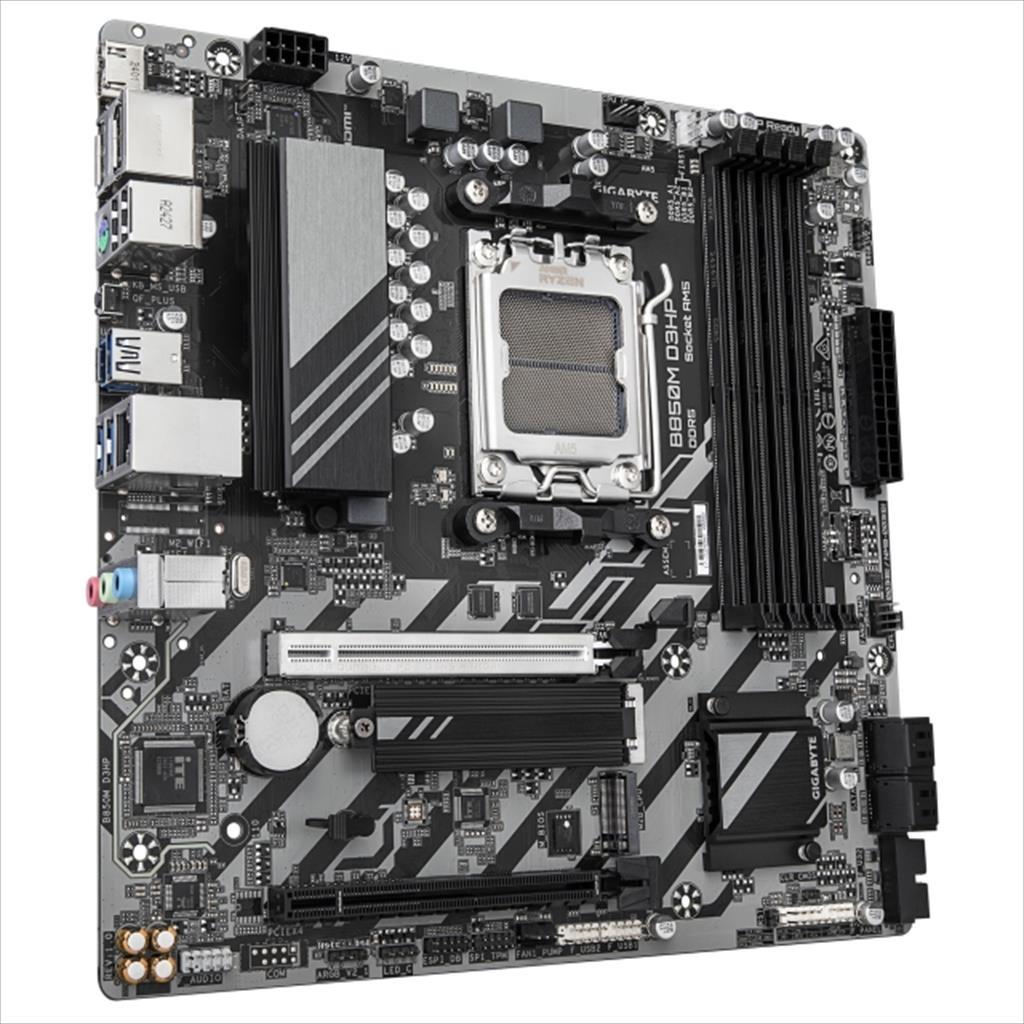

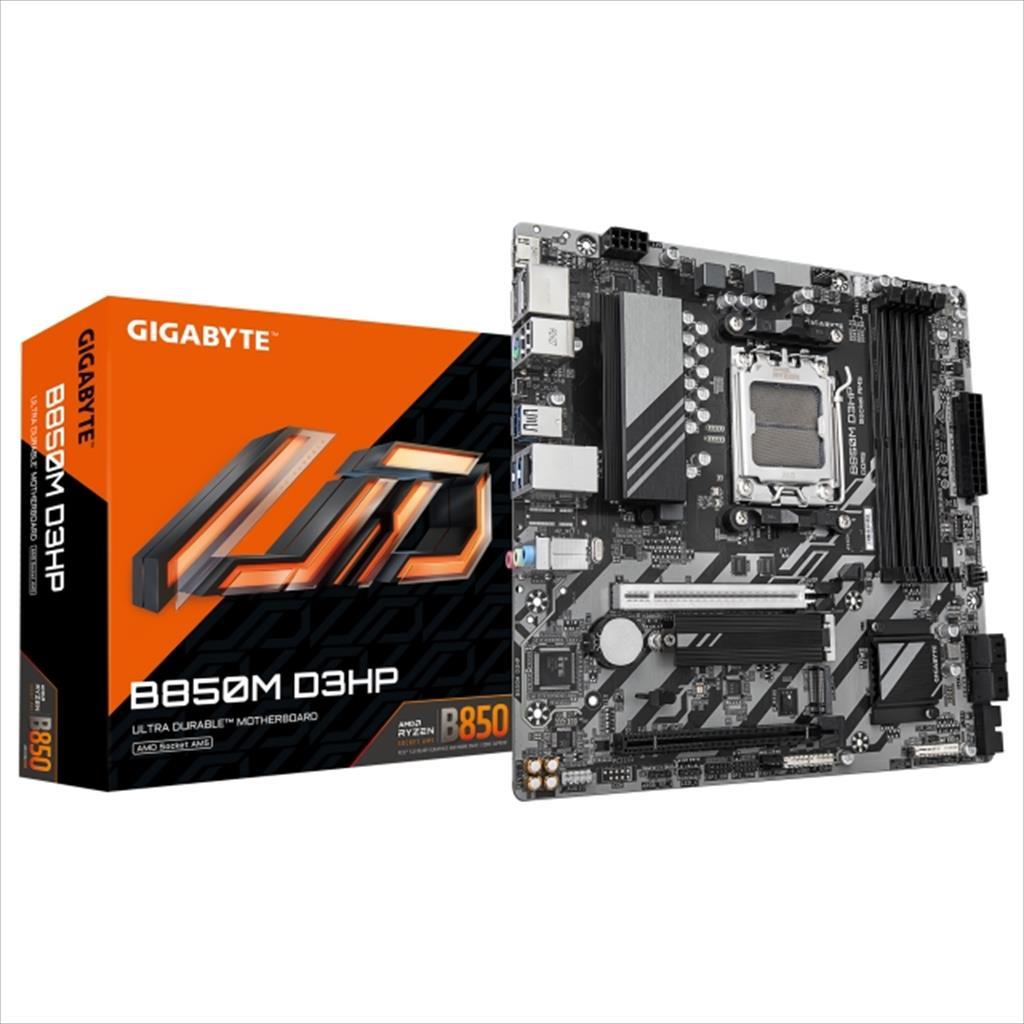

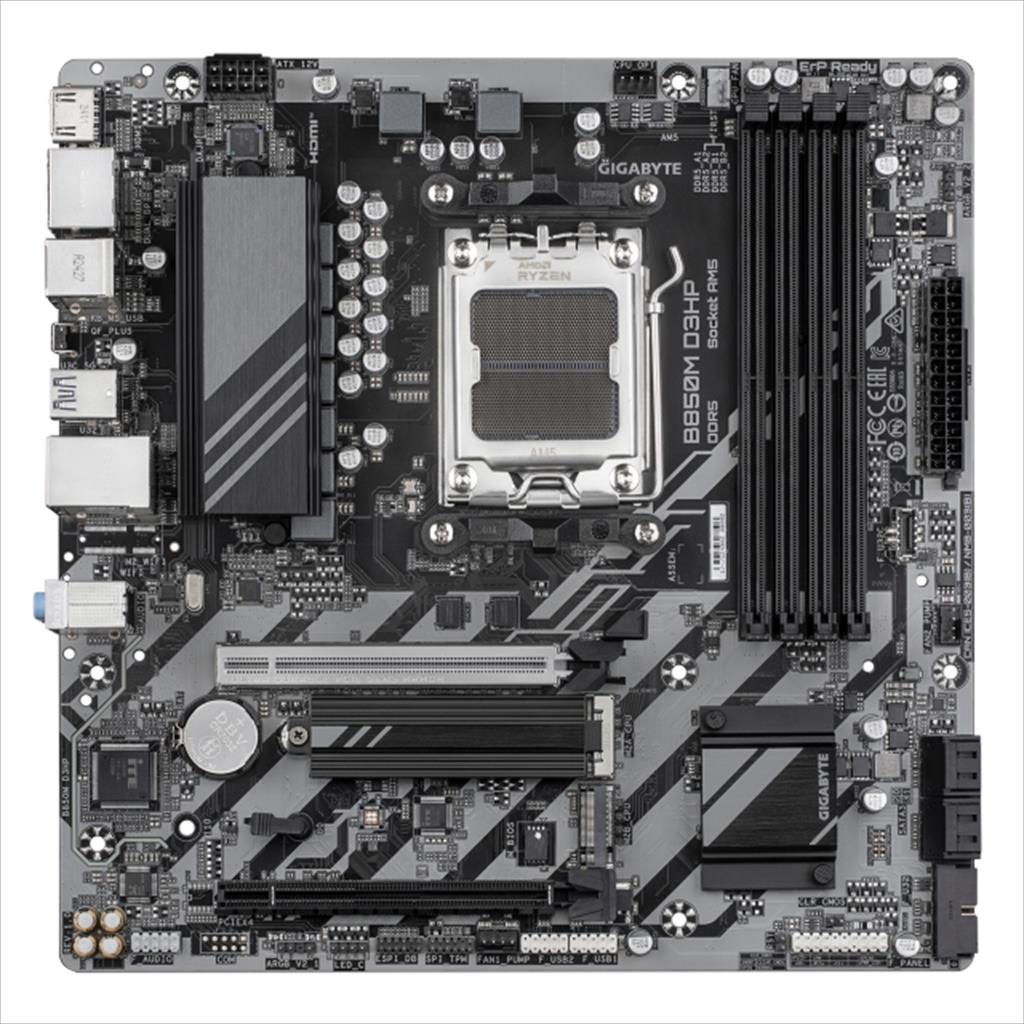

MB AM5 B850M D3HP GIGABYTE 4xDDR5 8200Mhz (O.C), 2xDP, HDMI, PCI-Ex16 5.0, PCI-Ex16 3.0, 2xM.2, 4xSATA3

Цена со ДДВ: 9.620 ден.
Шифра: 18599
Баркод: 4719331867058
Производител: GIGABYTE
Гаранција: 720 дена
залиха: има на залиха
Спецификација

Model Name: GIGABYTE B850M-D3HP

Specification :

  • CPU
    • AMD Socket AM5
    • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
  • Chipset
    • AMD B850
  • Memory
    • Supports DDR5 up to 8200(OC)
    • 4 x DDR5 DIMM slots, max 256 GB
    • Dual channel architecture
    • Supports AMD EXPO™ and XMP profiles
  • Onboard Graphics
    • Integrated AMD Radeon™ Graphics
    • 1 x HDMI: 4096x2160@60Hz
    • 2 x DisplayPort: 3840x2160@144Hz
  • Audio
    • Realtek® Audio CODEC
    • High Definition Audio, up to 7.1 channels
  • LAN
    • Realtek® GbE LAN chip (1 Gbps)
  • Expansion Slots
    • 1 x PCIe x16 from CPU (PCIe 5.0 / 4.0 / 4.0 depending on CPU)
    • 1 x PCIe x4 from Chipset (PCIe 3.0)
  • Storage Interface
    • M2A_CPU: PCIe 5.0/4.0 x4 SSDs (type 2580/2280)
    • M2B_CPU: PCIe 4.0 x4/x2 SSDs (type 22110/2280)
    • 4 x SATA 6Gb/s
    • RAID 0/1/5/10 for NVMe
    • RAID 0/1/10 for SATA
  • USB Ports
    • From CPU:
      • 1 x USB-C (USB 3.2 Gen 1)
      • 1 x USB 3.2 Gen 1
      • 1 x USB 2.0
    • From Chipset:
      • 1 x USB-C header (USB 3.2 Gen 1)
      • 4 x USB 3.2 Gen 1 (2 rear, 2 internal)
      • 5 x USB 2.0 (1 rear, 4 internal)
  • Internal I/O Connectors
    • 1 x 24-pin ATX power
    • 1 x 8-pin CPU power
    • 2 x M.2 slots
    • 4 x SATA ports
    • Fan and RGB headers
    • USB headers (Type-C, USB 3.2, USB 2.0)
    • Front panel, audio, TPM, Clear CMOS, reset jumper

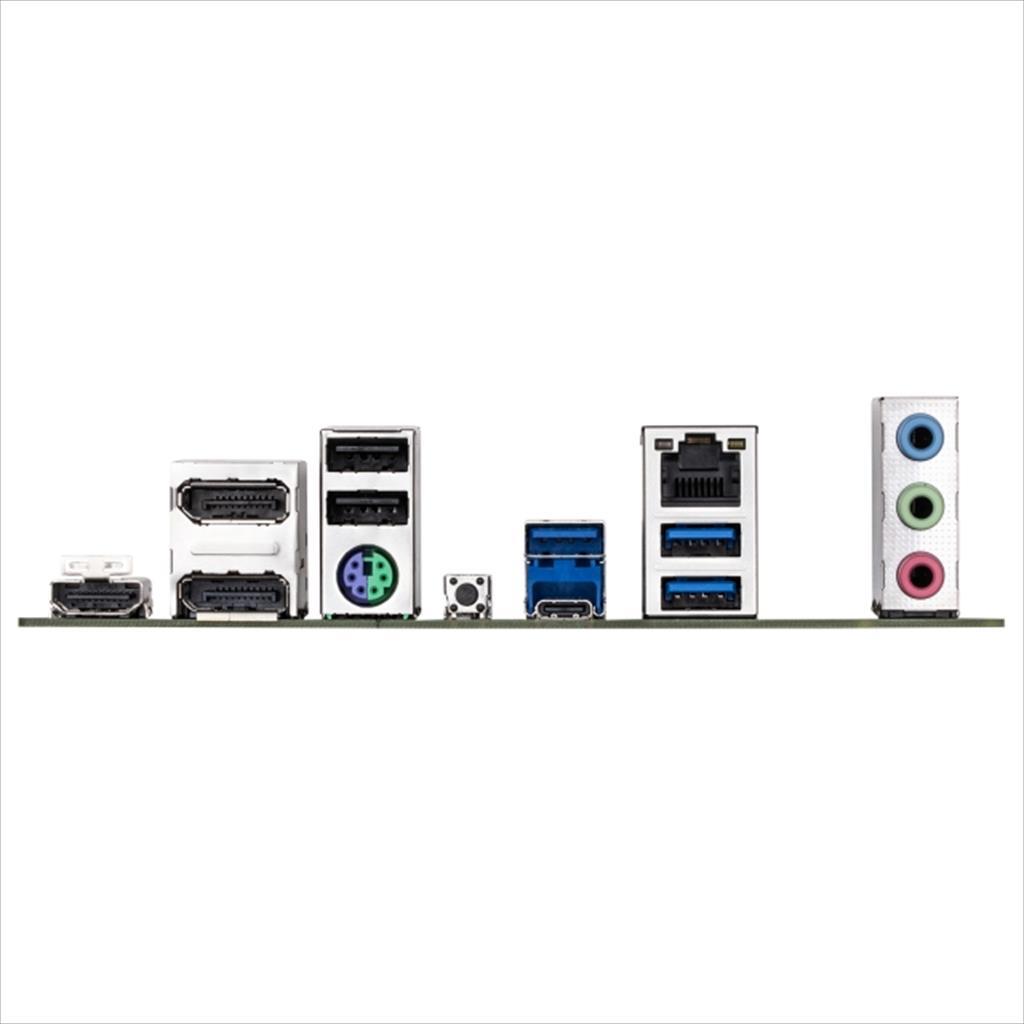

  • Back Panel
    • 1 x HDMI
    • 2 x DisplayPort
    • 1 x PS/2 port
    • 1 x Q-Flash Plus button
    • 1 x USB-C
    • 3 x USB 3.2
    • 2 x USB 2.0
    • 1 x RJ-45 LAN
    • 3 x Audio jacks
  • I/O Controller
    • iTE® I/O Controller Chip
  • Hardware Monitoring
    • Voltage, temperature, fan and water flow rate detection
    • Fan fail warning and speed control
  • BIOS
    • 256 Mbit AMI UEFI BIOS
    • Supports ACPI 5.0, DMI 2.7
  • Bundled Software
    • Norton® Internet Security (OEM)
    • LAN bandwidth management
  • Operating System
    • Windows 11 64-bit
    • Windows 10 64-bit
  • Form Factor
    • Micro ATX (24.4cm x 24.4cm)
