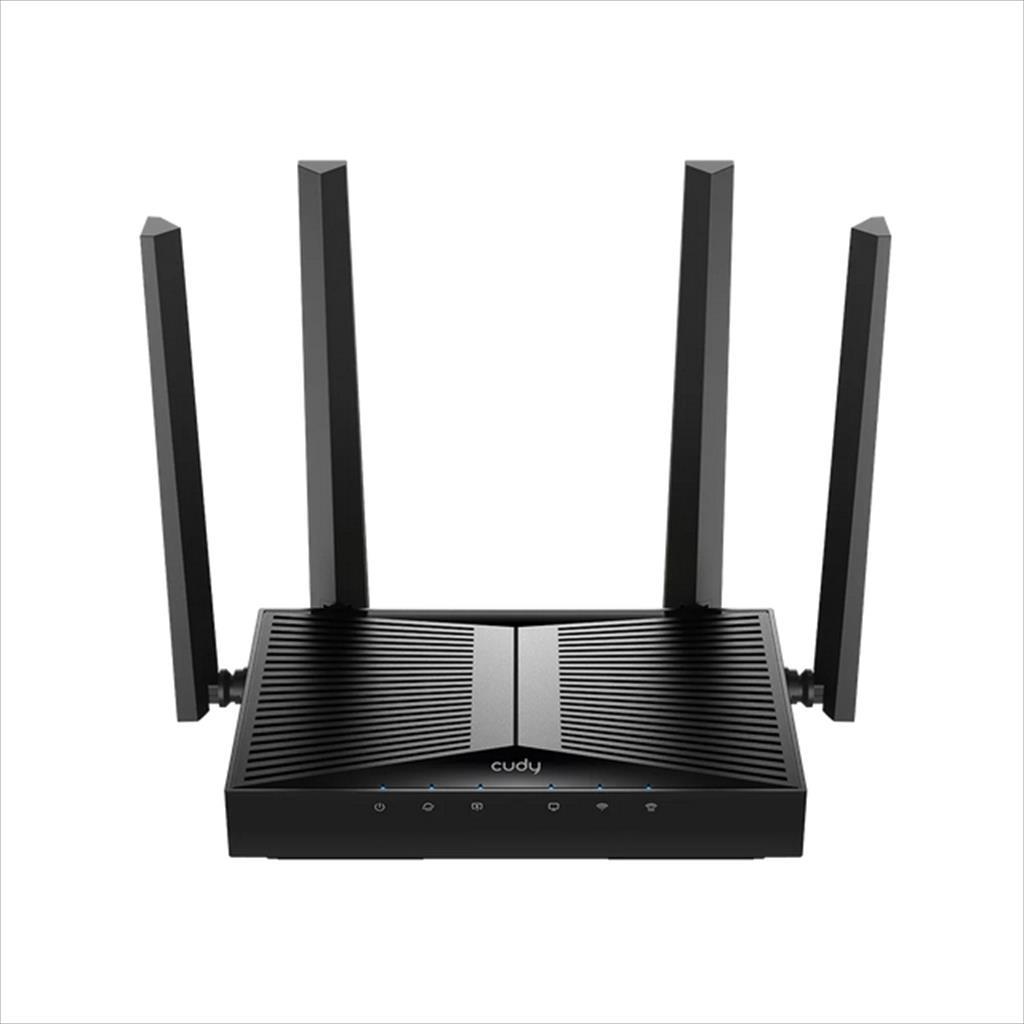

Model name: CUDY BE3600

Specifications:

• CPU Chipset: BCM6764
• CPU Details: 2.0 GHz Quad-Core, ARM Cortex-A7
• Memory/Storage:
  • Flash/ROM: 128 MB (1 Gbit) NAND
  • DDR/RAM: 512 MB (4 Gbit) DDR3L
• Wireless:
  • 5 GHz Wi-Fi Speed: 2882 Mbps
  • 2.4 GHz Wi-Fi Speed: 688 Mbps
  • 5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
• Wi-Fi Antennas: 4× Fixed
• 5 GHz Antenna Gain Max: 5.5dBi
• 2.4 GHz Antenna Gain Max: 5.4dBi
• FEM or PA/LNA:
  • 5 GHz: 2× External
  • 2.4 GHz: 2× Internal
• Beamforming: True
• Range Performance: Max: 220 m (722 ft)
• Wall Performance:
  • Two wooden walls < 10 cm (4")
  • One concrete wall < 20 cm (7") or two concrete walls < 10 cm (4")
• Interfaces:

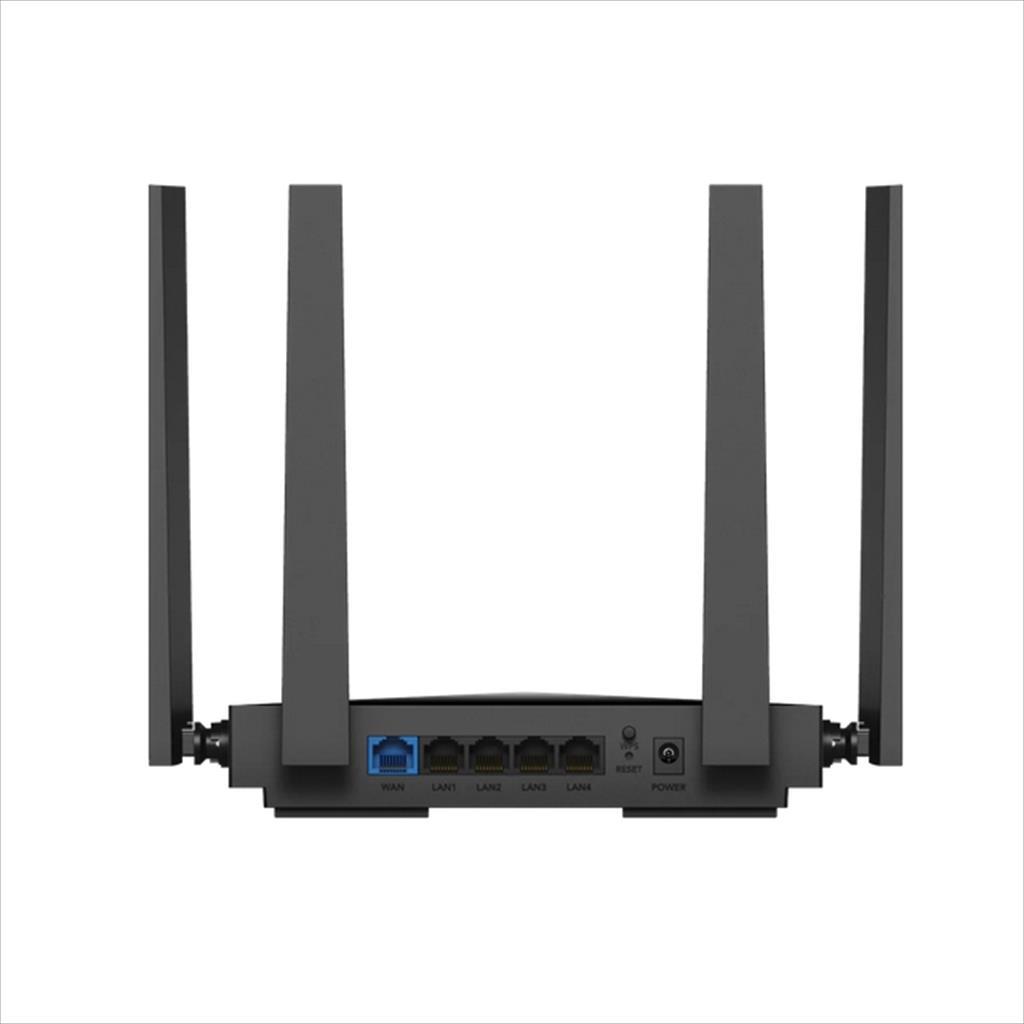

  • Gigabit RJ45 Ports: 5 (1× WAN, 4× LAN)
• LED Indicators: Power, Internet, WAN, LAN, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi
• Physical Buttons: WPS, Reset
• Power:
  • Power Input: DC Jack
  • DC: 12V 1A
  • Adapter Input: 100 ~ 240 V, 50/60 Hz AC
  • Adapter Output: 12V 1A DC
  • Max Power Consumption: 9W
• Reliability – Environment:
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
• Certifications: FCC, CE
