PSU 850W LIAN LI EDGE GOLD EG0850 80+ GOLD PCIe 5.1 (L-Shape, w/x4 USB 2.0 & 6 PWM headers), FULL MODULAR Black, EG0850G

Цена со ДДВ: 6.770 ден.
Шифра: 26366
Баркод: 4718466016232
Производител: LIAN LI
Гаранција: 1800 дена
залиха: има на залиха
Спецификација

Model Name: EDGE GOLD 850 80 PLUS Gold power supply, PCIe 5.1, ATX 3.1 - 850 watts, black

850 W fully modular ATX 3.1 power supply · 80 PLUS Gold
PCIe 5.1 (12VHPWR) · L-shaped design for dual-chamber cases · Semi-passive 120 mm fan

Features

  • L-shaped design simplifies cable management in dual-chamber cases
  • 80 PLUS Gold efficiency and Cybenetics ETA Gold rating for high energy efficiency
  • Steel housing with mesh panel and removable dust filter for easy cleaning
  • 120 mm fan with semi-passive mode for quiet, low-load operation
  • PCIe 5.1 standard support with dual-coloured 12VHPWR (12V-2x6) connector for modern GPUs

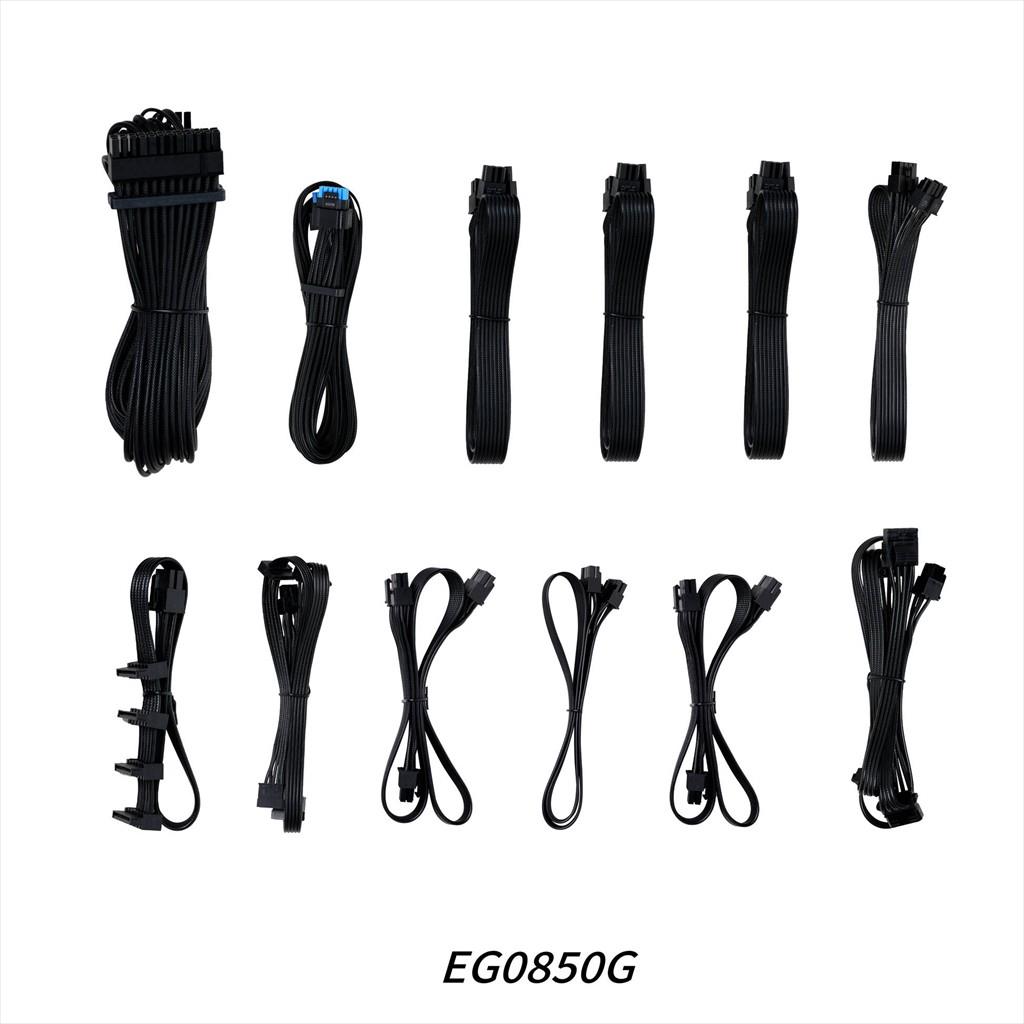

  • Fully modular design with individually sleeved cables and included cable combs
  • Comprehensive protection: OVP, UVP, SCP, OPP, OTP, OCP
  • Compatible with the Lian Li EDGE USB HUB

Specification

  • Product series: EDGE
  • PSU format: ATX
  • ATX standard: ATX 3.1
  • Total power output: 850 W
  • +12 V rails output: 850 W (single rail)
  • +3.3 V output: 66 W
  • +5 V output: 100 W
  • +3.3 V & +5 V combined: 120 W
  • -12 V output: 3.6 W
  • +5 Vsb output: 15 W
  • Efficiency class: 80 PLUS Gold
  • Cybenetics efficiency (230 V): ETA Gold
  • Modularity: Fully modular
  • 12 V distribution: Single rail
  • Cooling fan: 120 mm
  • Semi-passive: Yes (passive type, non-switchable)
  • Dimensions (W × D × H): 150 × 182 × 86 mm
  • Primary colour: Black
  • Protection circuits: OCP, OPP, OTP, OVP/UVP, SCP, UVP
  • CPU power connectors: 2 × 12V ATX/EPS (1 × 4+4-pin, 1 × 8-pin)
  • 12V-2x6 power connectors: 1
  • 8-pin PCIe power connectors: 3
  • 6+2-pin PCIe power connectors: 1
  • SATA power connectors: 12
  • 4-pin Molex power connectors: 4
  • Max 24-pin motherboard cable length: 620 mm
  • Max CPU power cable length: 750 mm
  • Max 12V-2x6 cable length: 650 mm
  • Max PCIe power cable length: 650 mm
  • Max SATA cable length: 400 mm
  • Max Molex cable length: 500 mm
  • USB hub support: Compatible with Lian Li EDGE USB HUB (hub not included)
  • Lighting: No RGB
