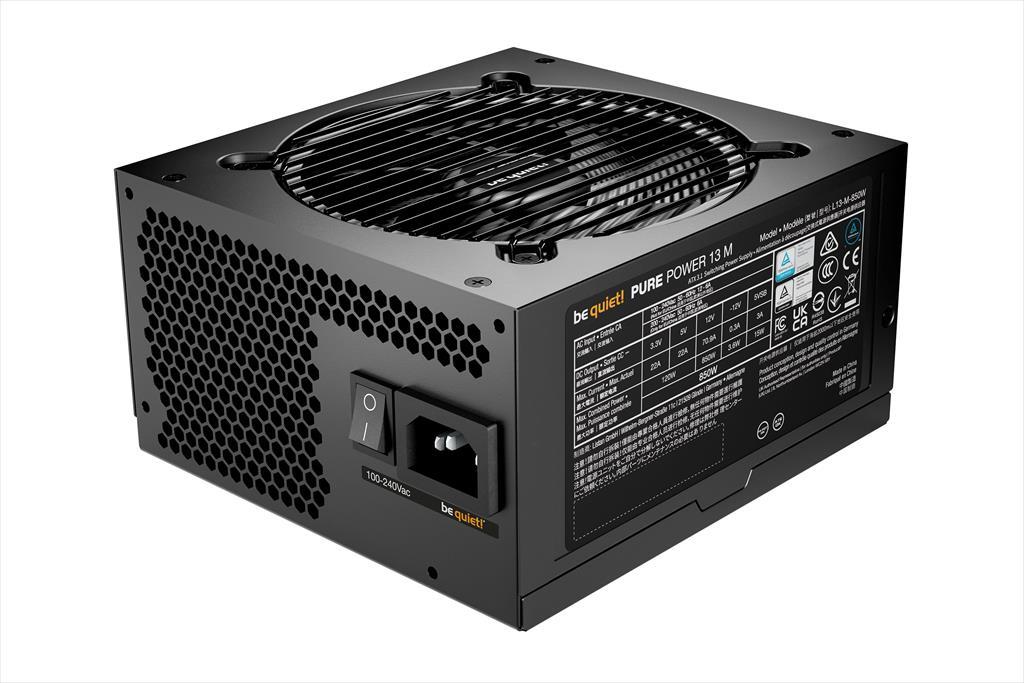

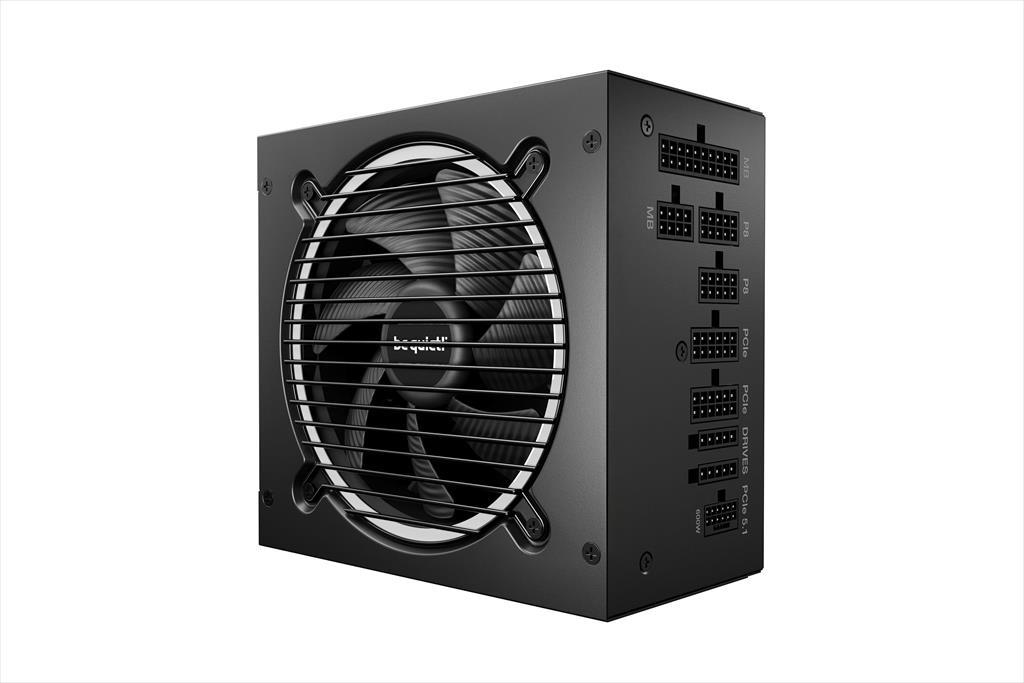

PSU 850W BE QUIET! PURE POWER 13 M w/PCIe 5.1, 80 Plus GOLD FULL MODULAR, BP027EU

Цена со ДДВ: 9.800 ден.
Шифра: 26338
Баркод: 4260052192191
Производител: Be quiet!
Гаранција: 1800 дена
залиха: има на залиха
Спецификација

Model name: BE QUIET! PURE POWER 13 M BP027EU

Specification :

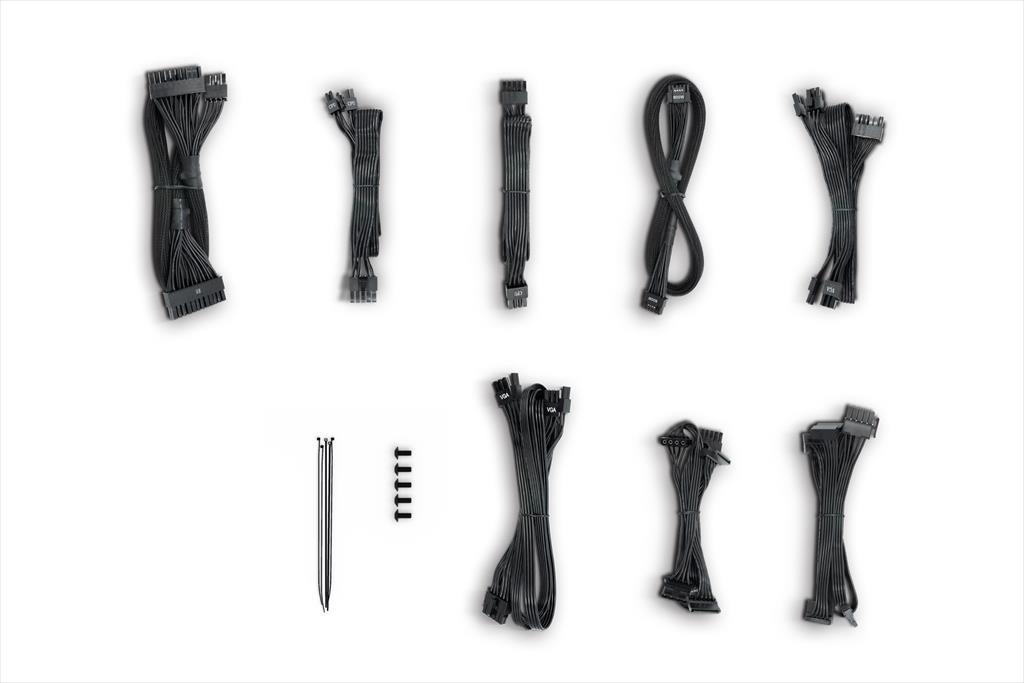

  • Cables and connectors
    • Modular cables: ✓
    • Sleeved cables: ✓
    • Flat cables: ✓
    • Maximum cable length (cm): 95
    • Cable length to motherboard (cm): 55
    • No. of cables: 8
    • ATX-Motherboard (20+4-pin): 1
    • P4+4 (CPU): 1
    • P8 (CPU): 1
    • P4 (CPU): -
    • 12V-2x6 cables: 1
    • PCI-e 6+2-pin (GPU): 4
    • SATA: 6
    • PATA: 2
  • General data
    • Model: Pure Power 13 M | 850W
    • Continuous power (W): 850
    • Peak power (W): 900
    • Form factor: ATX 3.1
    • Form factor EPS 12V: Version 2.92
    • Topology: LLC + SR + DC/DC
    • Voltage (Vac): 100 - 240
    • Frequency (Hz): 50 - 60
    • Input current (A): 12 / 6
    • Power factor at 100% load: >0.98
    • Modern standby: ✓
    • Power consumption in standby (W): <0.1
    • Average life time (h / 25°C): >100,000
    • Operating temperature up to (°C): 40
  • Efficiency
    • 80 PLUS certification: Gold
    • Efficiency (%) at 230V, 2% load: 70.5
    • Efficiency (%) at 230V, 10% load: 90.0
    • Efficiency (%) at 230V, 20% load: 93.2
    • Efficiency (%) at 230V, 50% load: 94.4
    • Efficiency (%) at 230V, 100% load: 92.8
  • Fan and cooling technology
    • Fan: Silence-optimized be quiet! fan
    • Fan size (mm): 120
    • Bearing technology: Rifle
    • Motor technology: 4-pole fan motor
    • Max. fan speed (rpm): 2000
    • dB(A) at 10% load: 7.5
    • dB(A) at 20% load: 7.6
    • dB(A) at 50% load: 8.3
    • dB(A) at 100% load: 17.6
  • Output
    • Multi-rail operation (12V rails): -
    • 12V single rail operation: ✓
    • Overclocking key: -
    • +3.3V (A): 22
    • +5V (A): 22
    • +12V1 (A): 70.9
    • -12V (A): 0.3
    • +5Vsb (A): 3
    • Max. combined power 12V (W): 850
    • Max. combined power 12V-2x6 (W): 600
    • Max. combined power 3.3V + 5V (W): 120
    • Hold-up time at 100% load (ms): 25.09
    • Hold-up time at 80% load (ms): 33.38
    • Power good signal (ms): 100 - 150
  • Protection
    • OTP (over temperature protection): ✓
    • OCP (over current protection): ✓
    • OPP (over power protection): ✓
    • SCP (short circuit protection): ✓
    • OVP (over Voltage protection): ✓
    • UVP (under Voltage protection): ✓
    • SIP (Surge & Inrush protection): ✓
