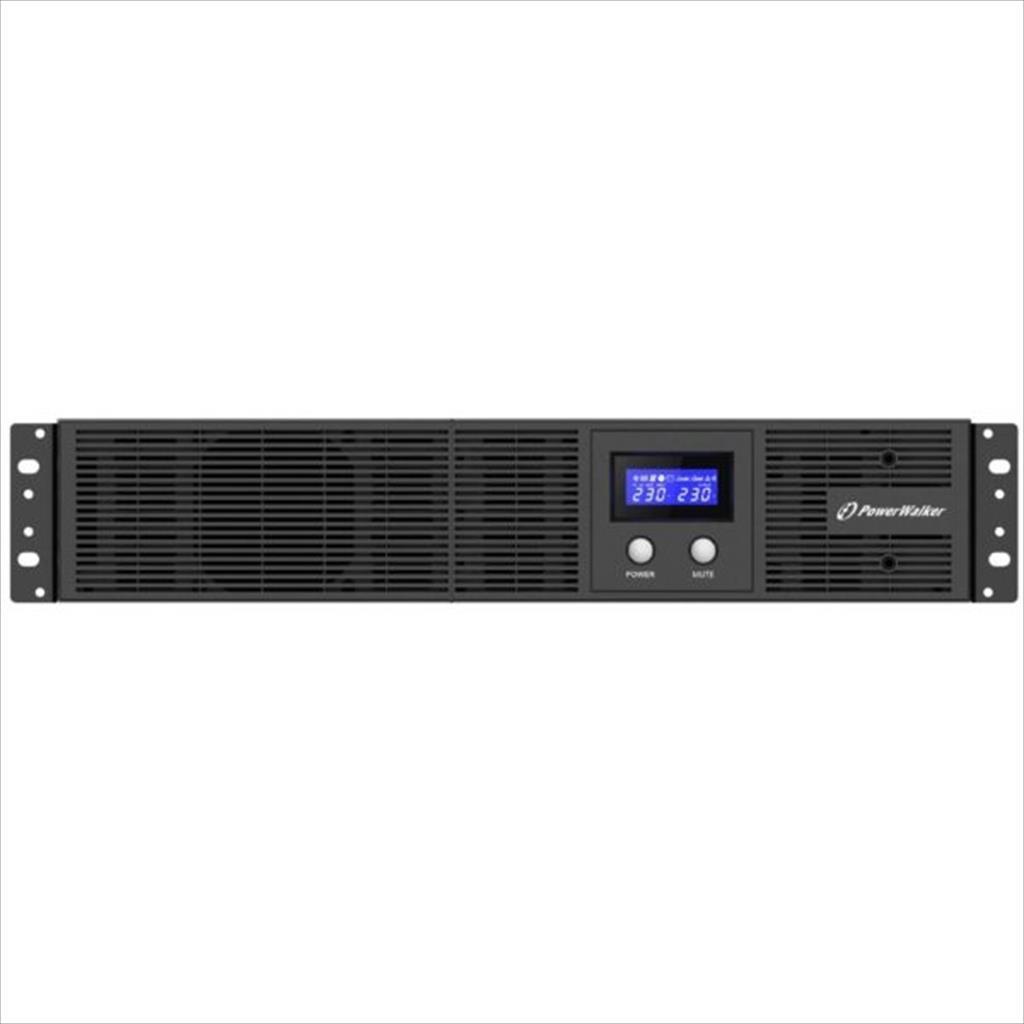

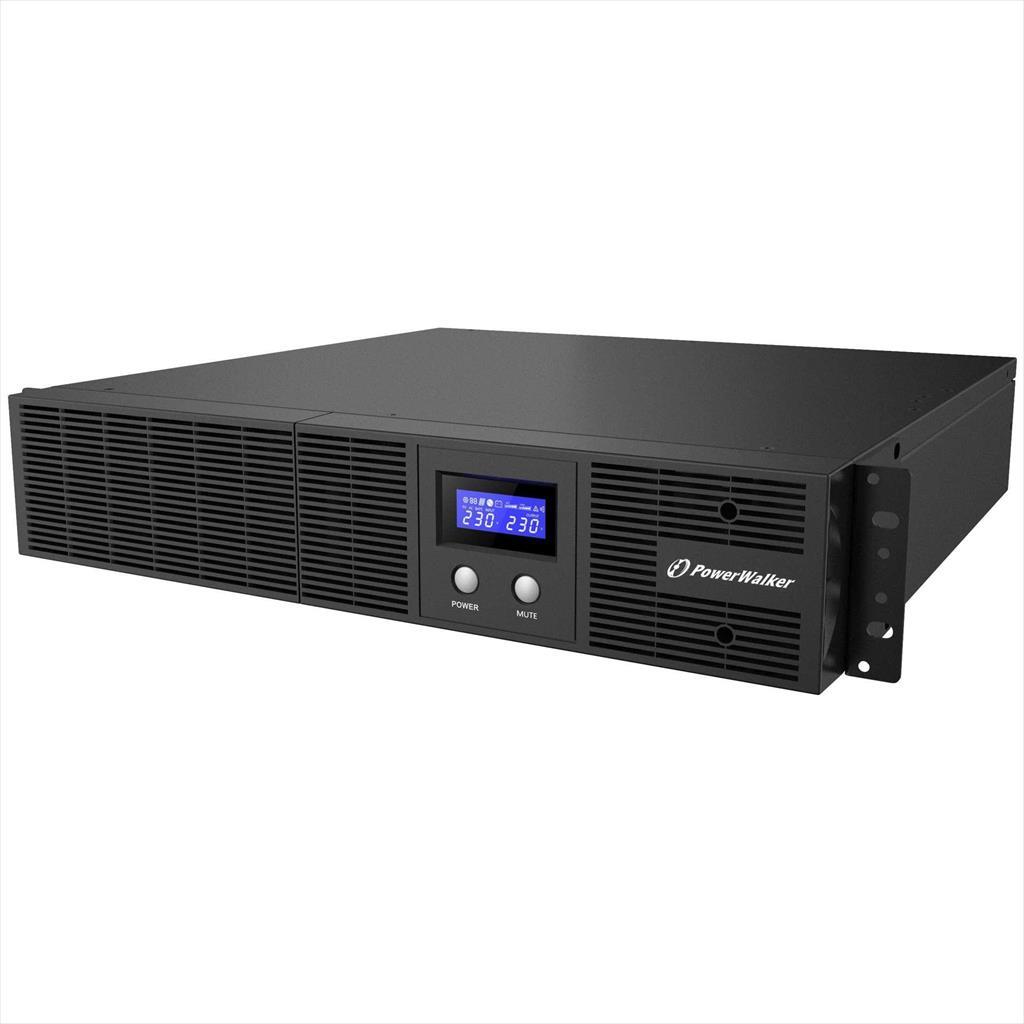

Model name: POWERWALKER VI 2200 RLE

Specifications:

• Type: Line-Interactive (VI)
• Phases (IN-OUT): 1-1
• Form Factor: Rack
• Rack Units [U]: 2U
• Power Capacity: 2200VA / 1320W
• Output Power Factor: 0.60
• Input:
  • Input Voltage Range: 165-290 VAC
  • Frequency Range: 45Hz – 65Hz
• Output:
  • Waveform: Pure Sine Wave
  • VA: 2200
  • Nominal Output Voltage: 230 VAC
  • THDv: ≤3% @ 100% linear load, ≤5% @ 100% non-linear load
  • Frequency (Battery Mode): ±0.5Hz
  • Output Power Factor: 0.60

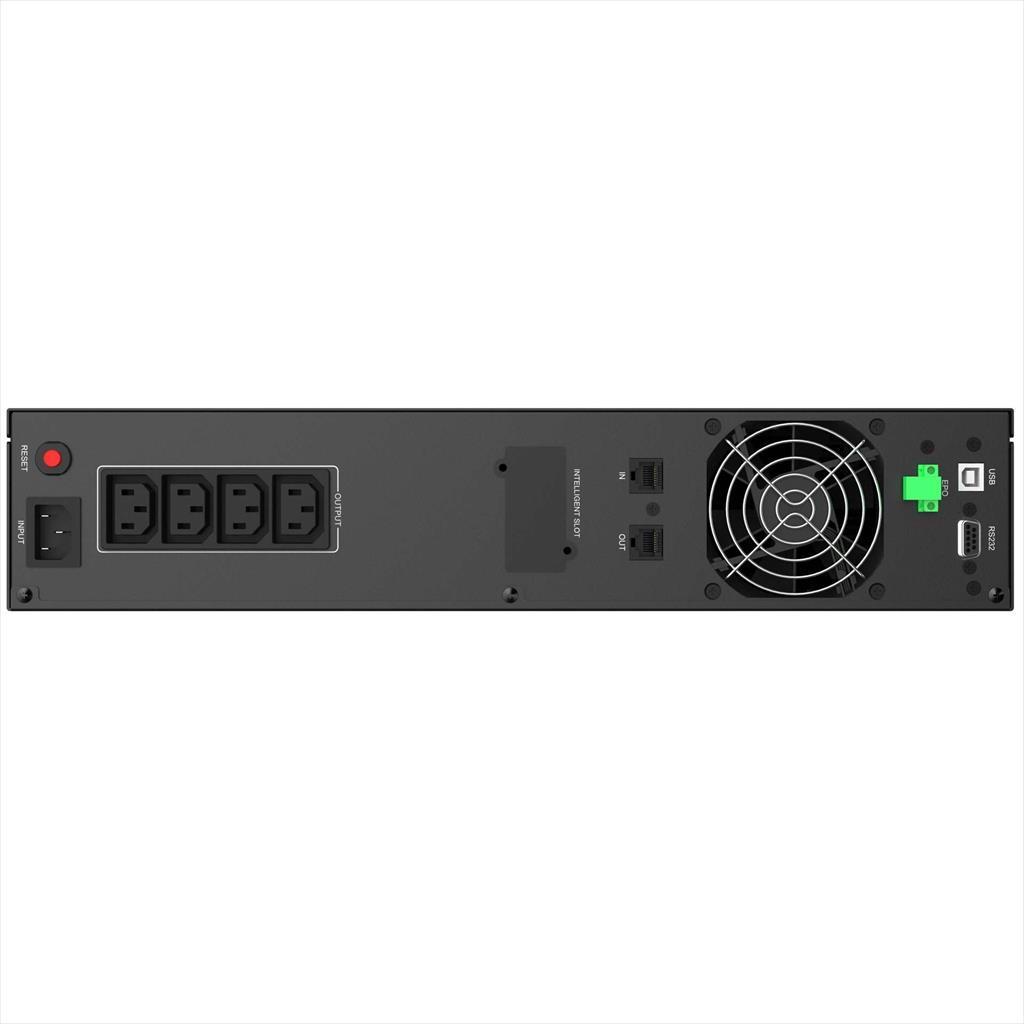

• Input & Output Connectors:
  • Input Connector: C14
  • IEC C13: 4
• Technical Details:
  • LINE Mode Efficiency: 98.0% (Full Load)
  • Battery Mode Efficiency: 80.0% (Full Load)
  • Transfer Time (AC / Line Mode to Battery Mode): 4 ms typical
  • Data Line Protection: RJ-11 Port, RJ-45 Port (100 mbit)
  • Additional Features: LCD Display, Circuit Breaker Reset, Generator Compatible, EPO – Emergency Power Off, HID – Human Interface Device, AVR – Automatic Voltage Regulator, Energy Saving Function
• Batteries and Autonomy:
  • Batteries: 2x 12.0V / 9.0Ah
  • DC Voltage: 2x 12.0V
  • Recharge Time: 4h to 90%
  • Full Load Backup Time: 1.1 min
  • Half Load Backup Time: 7.1 min
  • Charger: 1A
• Communication:
  • Communication: USB Type B – for Monitoring Software, RS-232, Management Card Slot
  • Software: PowerMaster
• Management and Environment:
  • Noise Level: < 50dB
  • Fan Logic:
    • Fan Off: Line Mode
    • Fan On: Battery Mode, AVR ON, Battery Charging
  • Temperature: 0°C – 40°C
  • Humidity: 0% – 90% RH (non-condensing)
  • IP: IP 20
