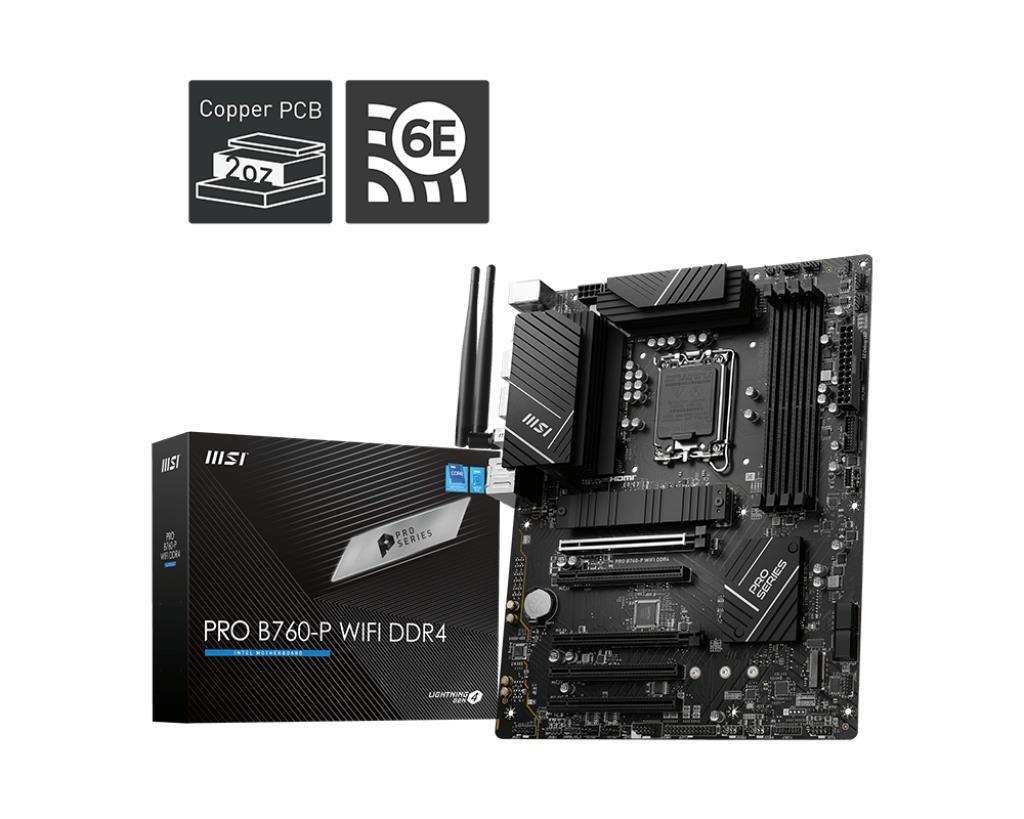

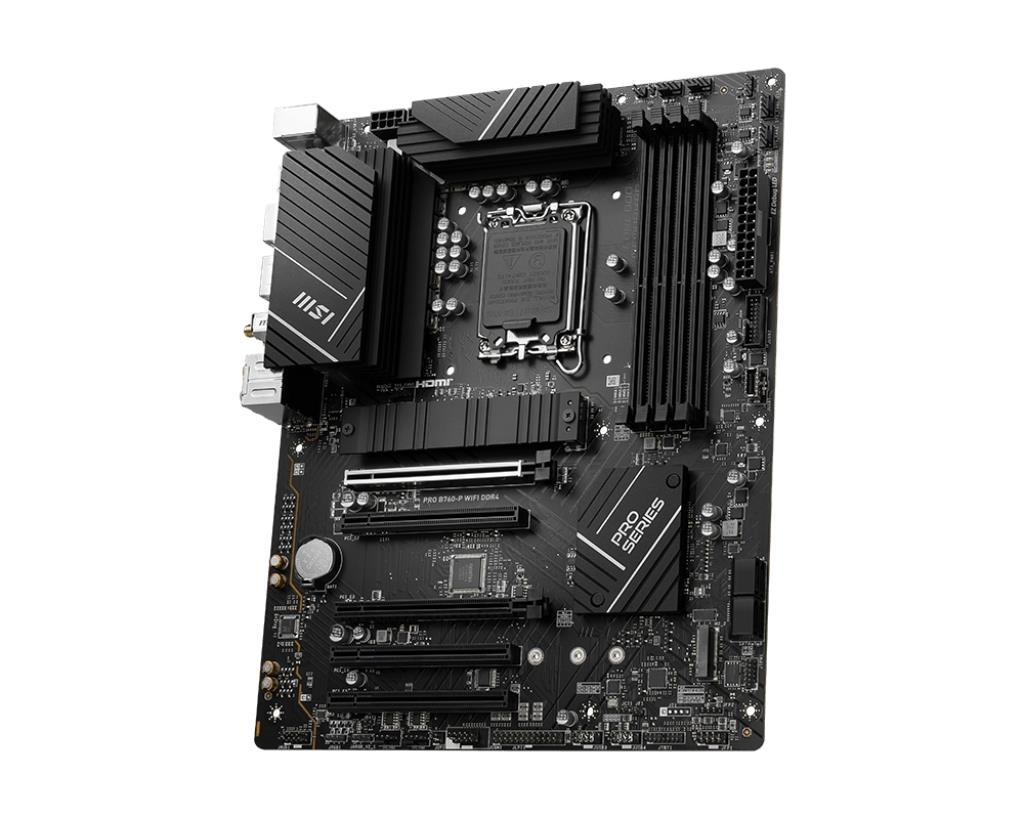

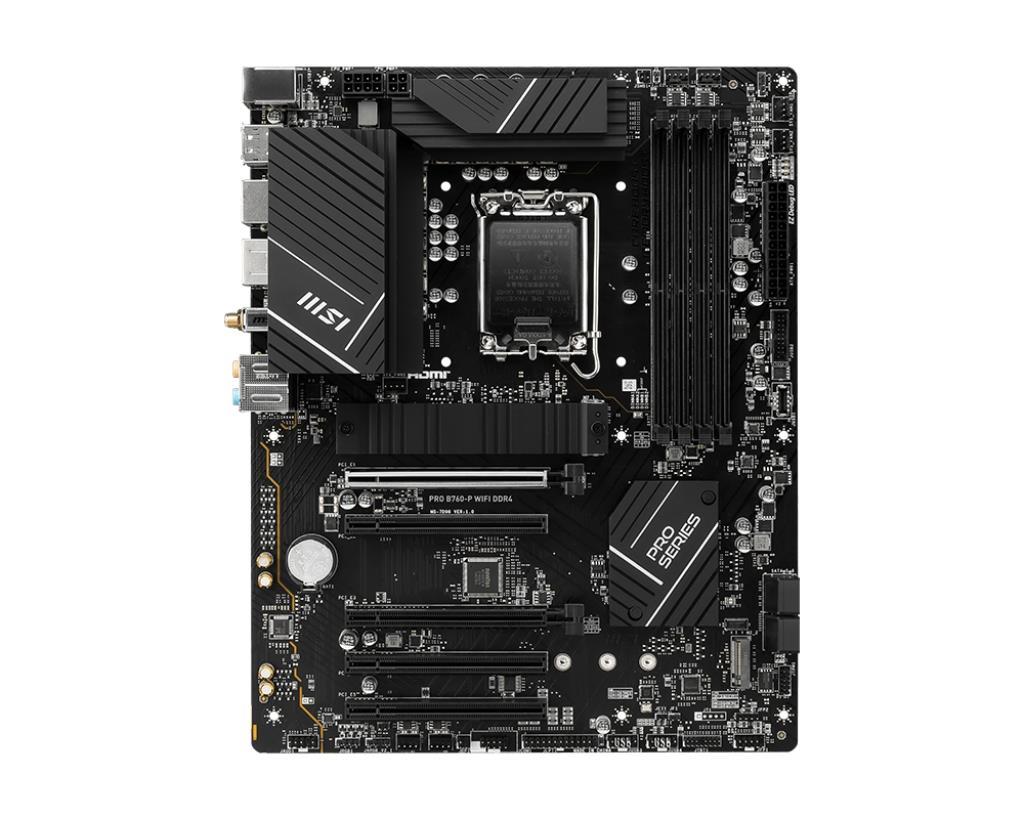

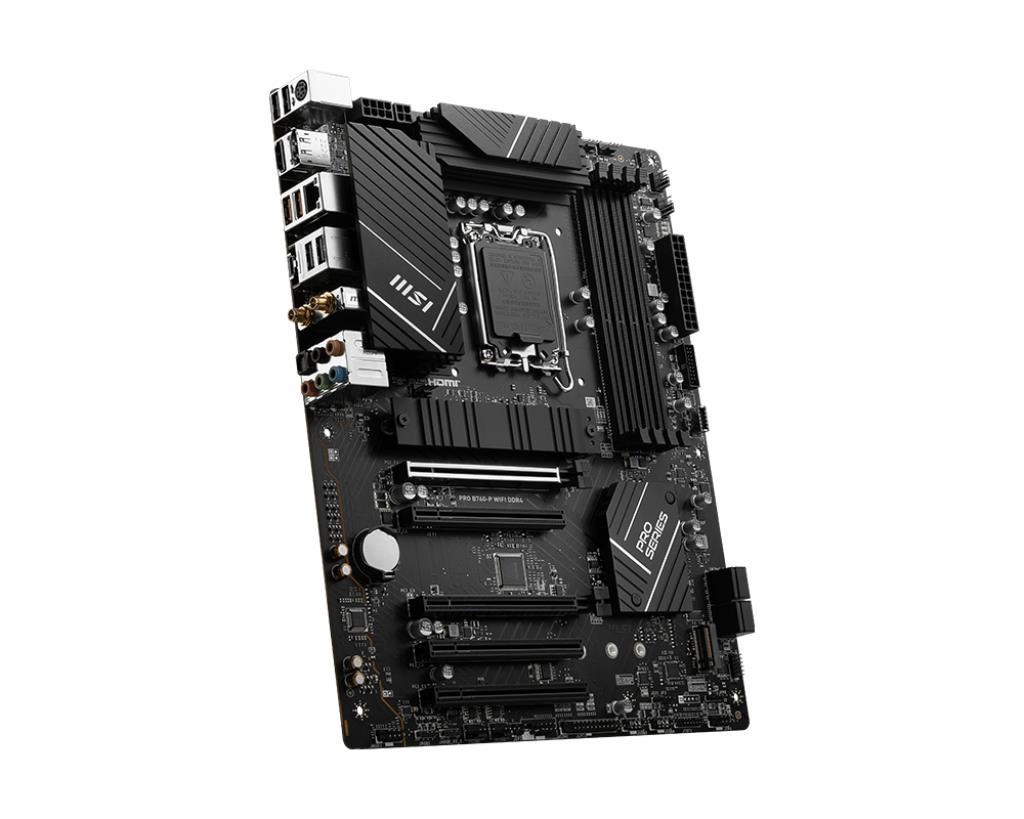

MB 1700 B760-P WIFI DDR4 MSI, 4xDDR4 5333MHz(OC), 2xM.2, HDMI, DP, PCIex16, 4xPCIex1, 4xSATAIII, USB3.2Gen1, WIFI6, 7D98-001R

Спецификација

Chipset: INTEL B760
CPU Support: Intel® Core™ 14th/13th/12th Gen, Intel® Pentium® Gold, Intel® Celeron® (Socket LGA 1700)

Memory: 4x DDR4, up to 128GB
Supported Frequencies: 5333(OC) / 5200(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4200(OC) / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200(JEDEC) / 2933(JEDEC) / 2666(JEDEC) / 2400(JEDEC) / 2133(JEDEC)
Max Overclocking Frequency:
- 1DPC 1R: up to 5333+ MHz
- 1DPC 2R: up to 4800+ MHz
- 2DPC 1R: up to 4400+ MHz
- 2DPC 2R: up to 4000+ MHz
Memory Features: Dual-Channel, non-ECC, un-buffered, Intel® XMP support

Onboard Graphics:
- 1x HDMI™ 2.1, up to 4K @ 60Hz
- 1x DisplayPort 1.4, up to 4K @ 60Hz

Expansion Slots: 5x PCIe x16
- PCI_E1: PCIe 4.0 x16 (CPU)
- PCI_E2: PCIe 3.0 x1 (Chipset)
- PCI_E3: PCIe 4.0 x4 (Chipset)
- PCI_E4: PCIe 3.0 x1 (Chipset)
- PCI_E5: PCIe 3.0 x1 (Chipset)

Storage:
- 2x M.2
  - M.2_1 (CPU): PCIe 4.0 x4, 22110/2280/2260/2242
  - M.2_2 (Chipset): PCIe 4.0 x4 / SATA, 2280/2260/2242
- 4x SATA 6G
RAID: RAID 0, 1, 5, 10 (SATA devices)

USB:

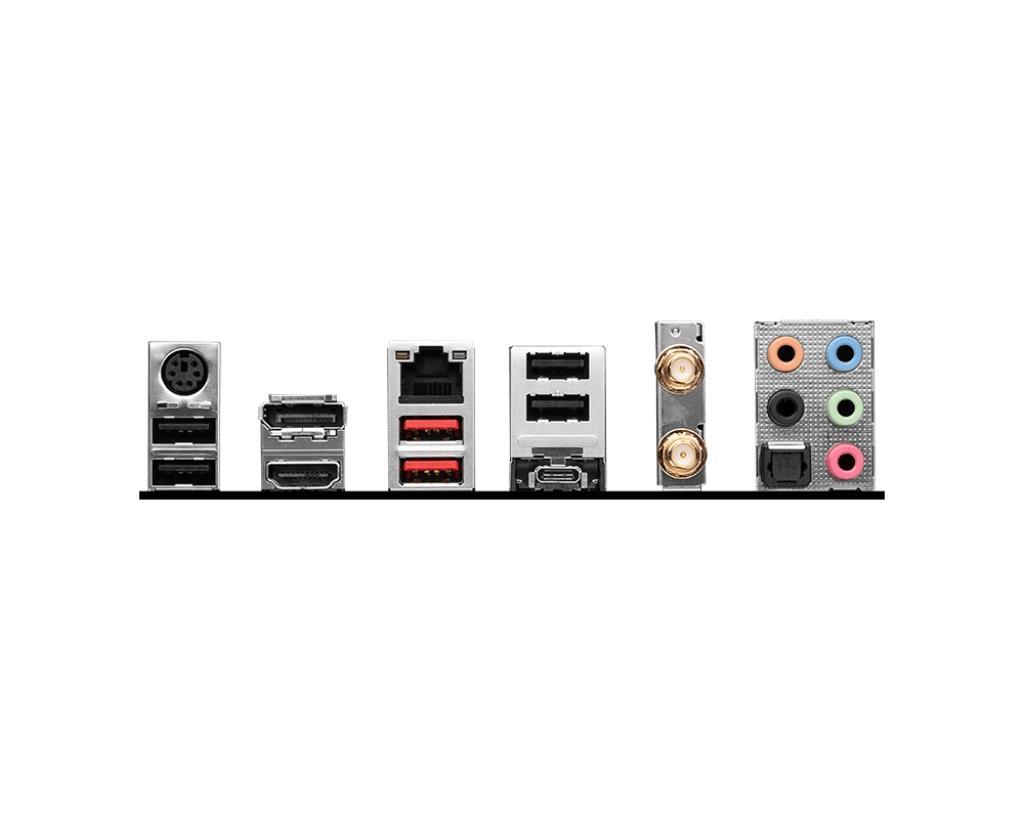

- Rear: 4x USB 2.0, 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C
- Front: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C

Internal I/O:
- 1x ATX_PWR, 2x CPU_PWR
- 1x CPU Fan, 1x Pump Fan, 5x System Fan
- 2x Front Panel (JFP), 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD), 1x Printer Port (JLPT), 1x COM Port (JCOM)
- 2x Addressable V2 RGB LED (JARGB_V2), 1x RGB LED (JRGB)
- 1x TPM header (TPM 2.0 support)
- 4x USB 2.0 ports, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C
